Page 145 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual Pad Replacement WARNING: Clean brake pads with a vacuum dust collector to minimize the hazard of airborne particles or other materials. CAUTION: lWhen cylinder body is open, do not depress brake pedal

Page 146 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual 1. Remove master cylinder reservoir cap. 2. Remove lower pin bolt. 3. Open cylinder body upward. Then remove pad retainers, and inner and outer shims. Standard pad thickness: 11 mm (0.43 in) Pad wear

Page 147 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual Disassembly WARNING: Do not place your fingers in front of piston. CAUTION: Do not scratch or score cylinder wall. 1. Push out piston with dust seal with compressed air. 2. Remove piston seal with sui

Page 148 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual Pad Replacement WARNING: Clean brake pads with a vacuum dust collector to minimize the hazard of airborne particles or other materials. CAUTION: lWhen cylinder body is open, do not depress brake pedal

Page 149 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual REMOVAL 1. Remove the housing retaining spring. 2. Wipe away any dirt from the guide pins between the torque member and the cylinder body. 3. Pull out the protective caps from the guide sleeves. 4. Us

Page 150 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual CAUTION: Do not use any sharp tools or cleaning agents which con- tains mineral oil. Damage to the installation can occur. 10. Clean the cylinder body and guide grooves in the torque member. 11. Check

Page 151 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual 6. Check the cylinder body retaining spring for damage if the spring is defective, replace the spring. 7. Click the cylinder body retaining spring in position and make sure that: lThe two ends of spri

Page 152 of 2267

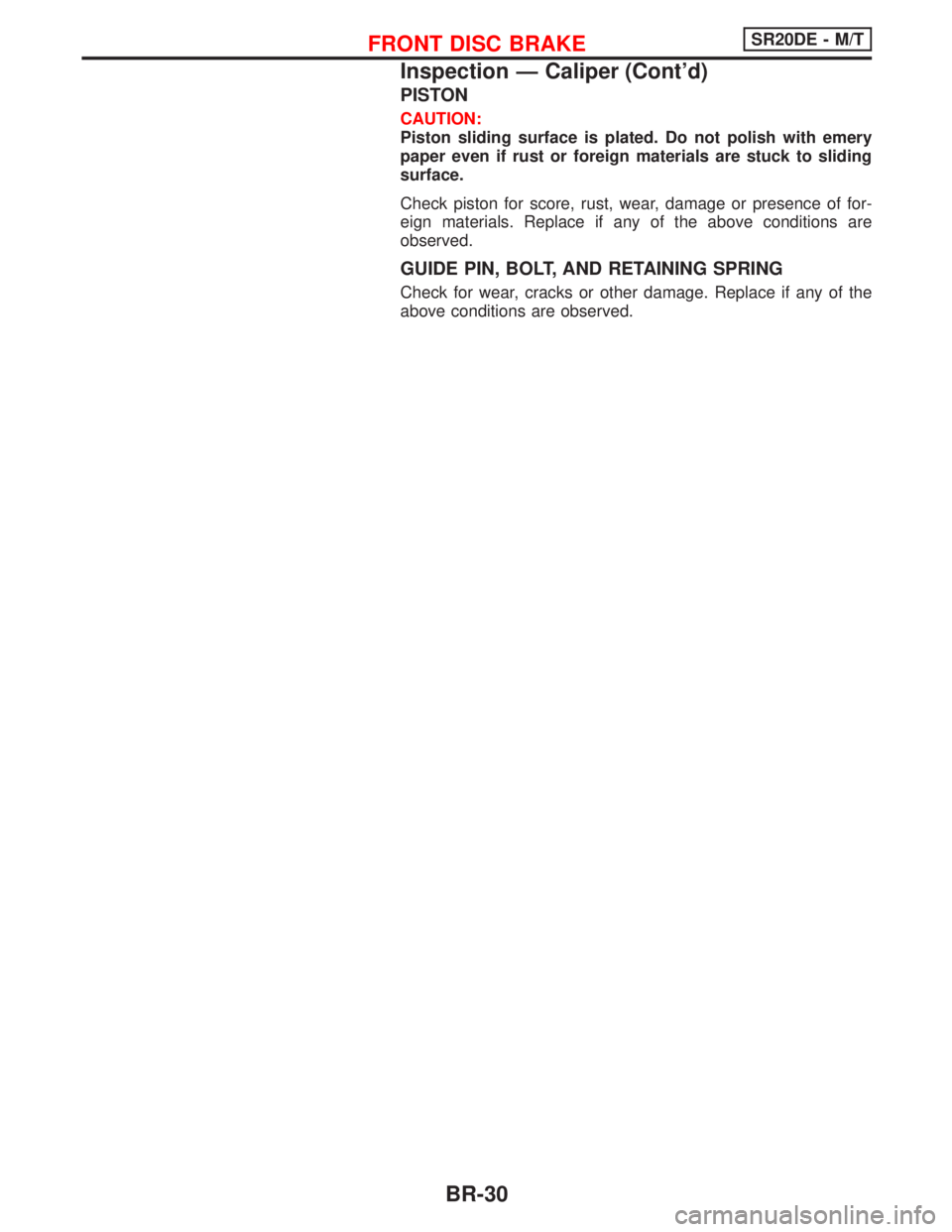

NISSAN PRIMERA 1999 Electronic Repair Manual PISTON CAUTION: Piston sliding surface is plated. Do not polish with emery paper even if rust or foreign materials are stuck to sliding surface. Check piston for score, rust, wear, damage or presence
