Page 241 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual REMOVAL Ð Headlining Wagon p1Remove front and rear seats. Refer to ªSEATº for details, BT-40. p2Remove front and rear seat belts. Refer to ªSEAT BELTSº in RS section for details. p3Remove body si

Page 242 of 2267

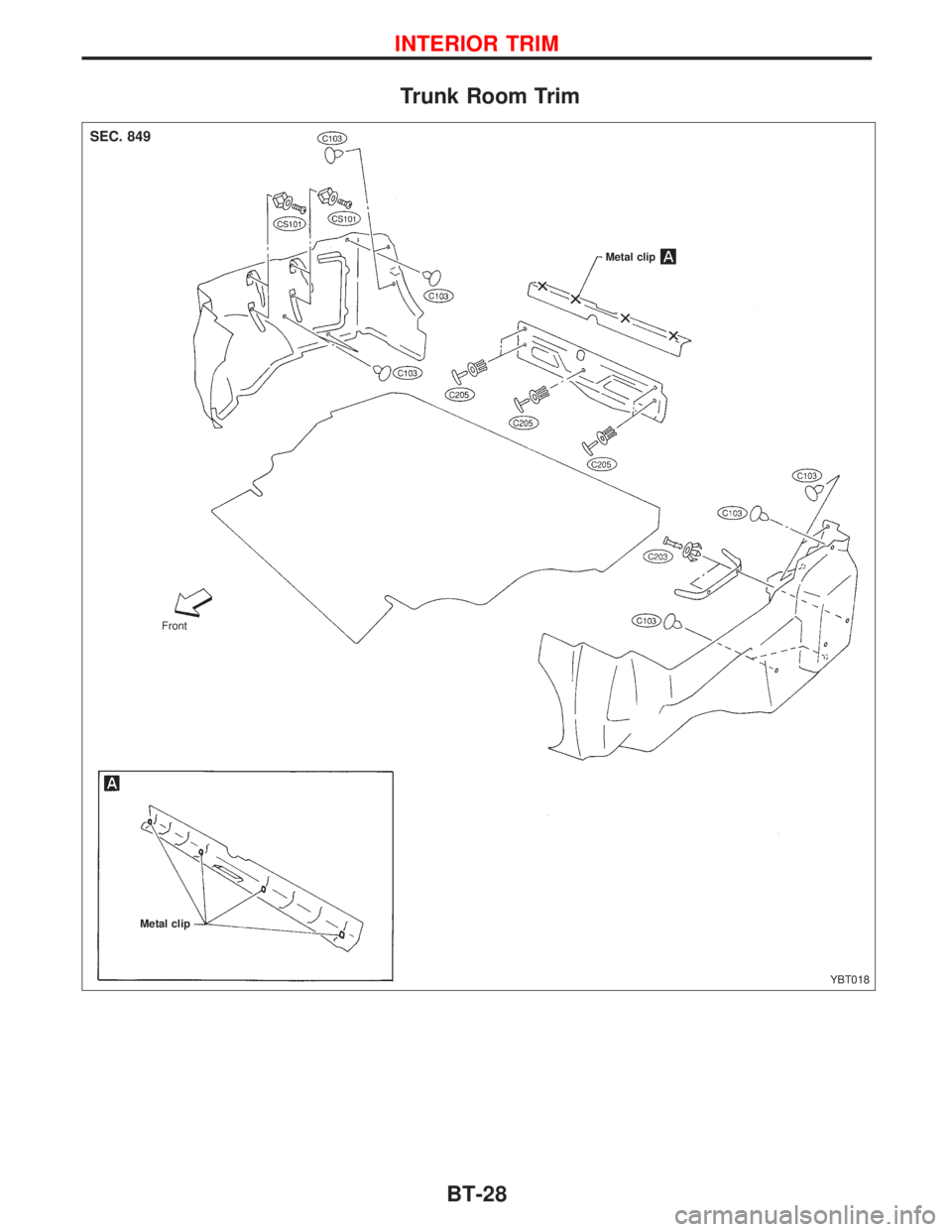

NISSAN PRIMERA 1999 Electronic Repair Manual Trunk Room Trim YBT018 Metal clipFrontMetal clip SEC. 849 INTERIOR TRIM BT-28

Page 243 of 2267

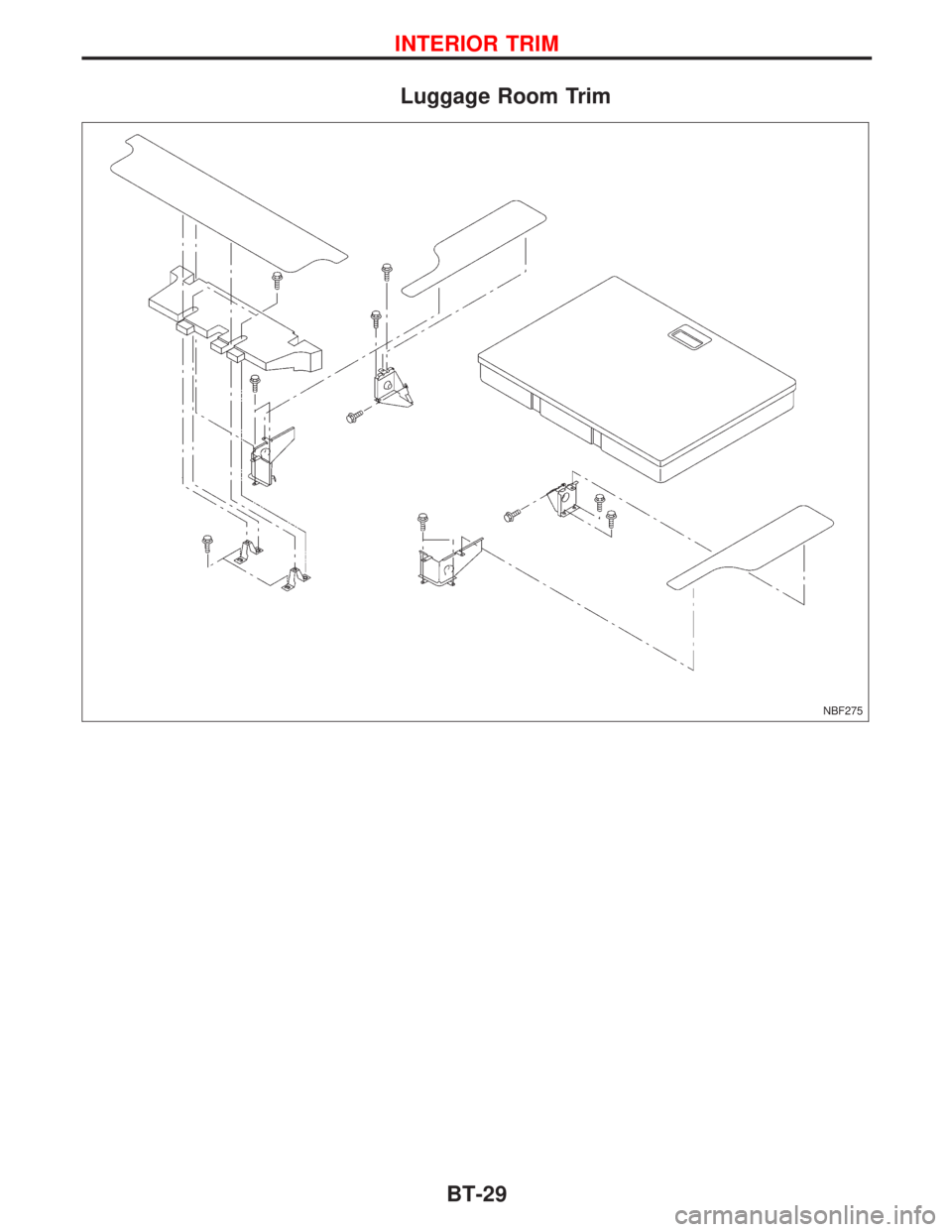

NISSAN PRIMERA 1999 Electronic Repair Manual Luggage Room Trim NBF275 INTERIOR TRIM BT-29

Page 244 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual Back Door Trim REMOVAL Ð Back door trim p1Remove back door lower finisher. p2Remove back door upper finisher. p3Remove back door side finisher. p4Remove high-mounted stop lamp. NBT054 Metal clip Meta

Page 245 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual NBT051 EXTERIOR BT-31

Page 246 of 2267

NISSAN PRIMERA 1999 Electronic Repair Manual NBT052 EXTERIOR BT-32

Page 247 of 2267

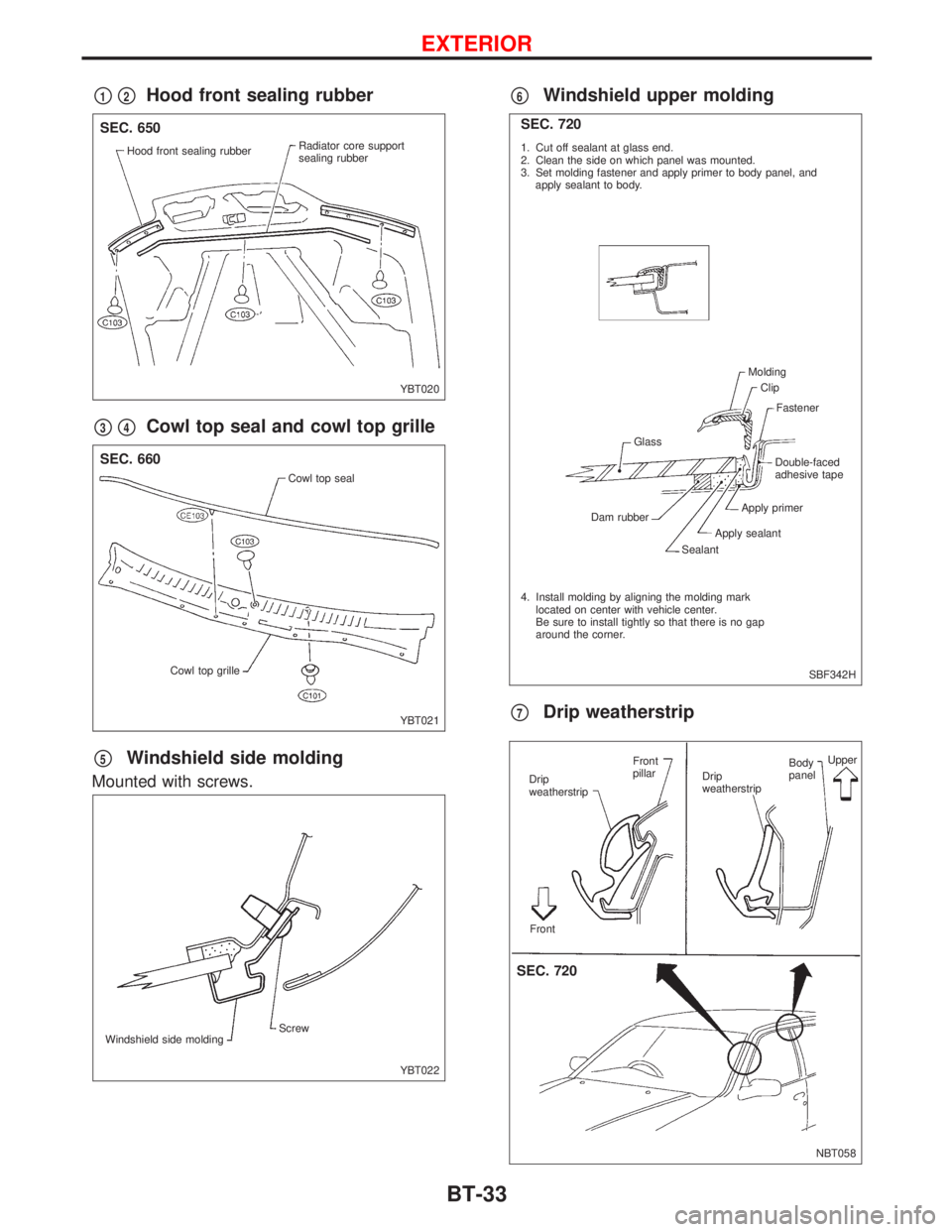

NISSAN PRIMERA 1999 Electronic Repair Manual p1p2Hood front sealing rubber p3p4Cowl top seal and cowl top grille p5Windshield side molding Mounted with screws. p6Windshield upper molding p7Drip weatherstrip YBT020 Hood front sealing rubber SEC.

Page 248 of 2267

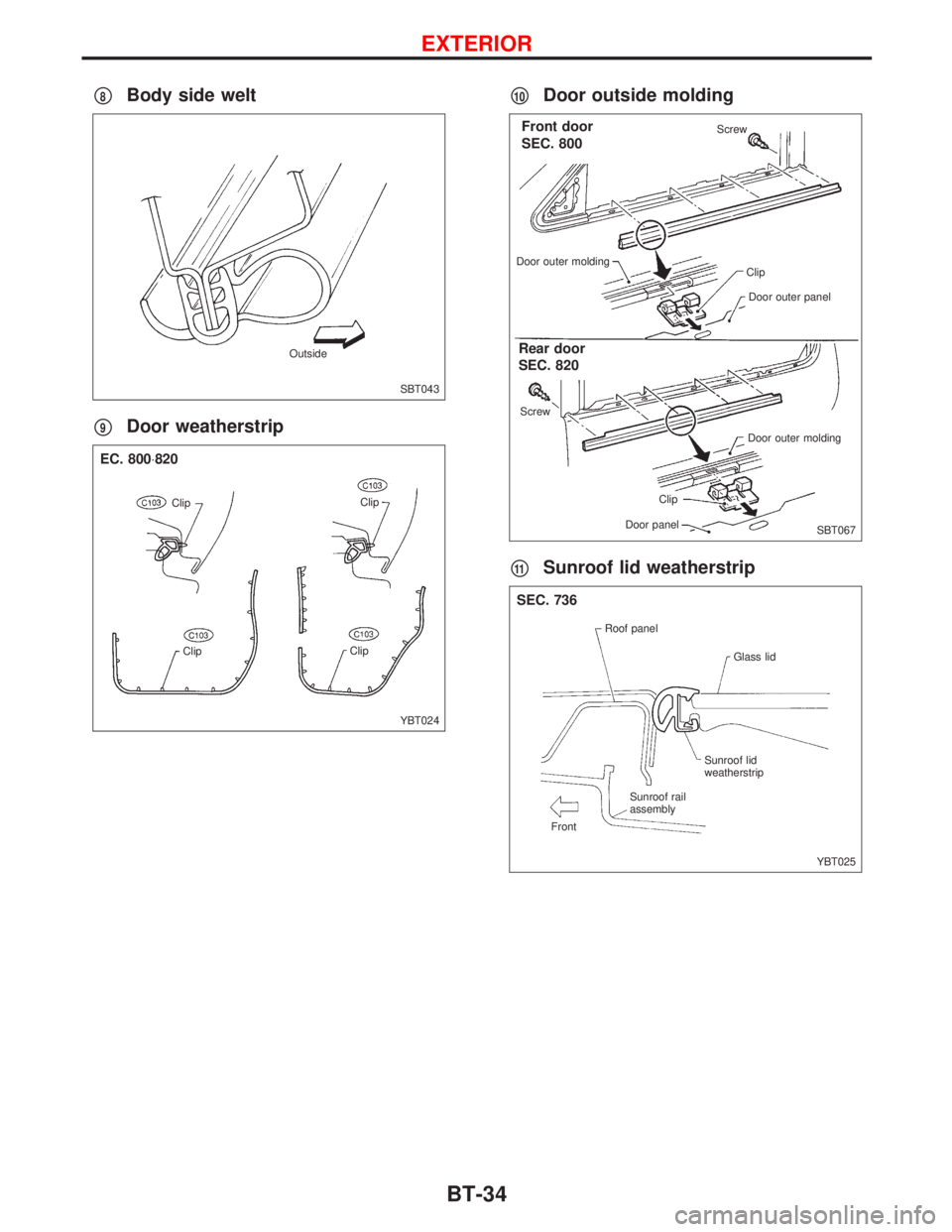

NISSAN PRIMERA 1999 Electronic Repair Manual p8Body side welt p9Door weatherstrip p10Door outside molding p11Sunroof lid weatherstrip SBT043 Outside YBT024 EC. 800×820 ClipClip ClipClip SBT067 Front door SEC. 800Screw Clip Door outer panel Door
