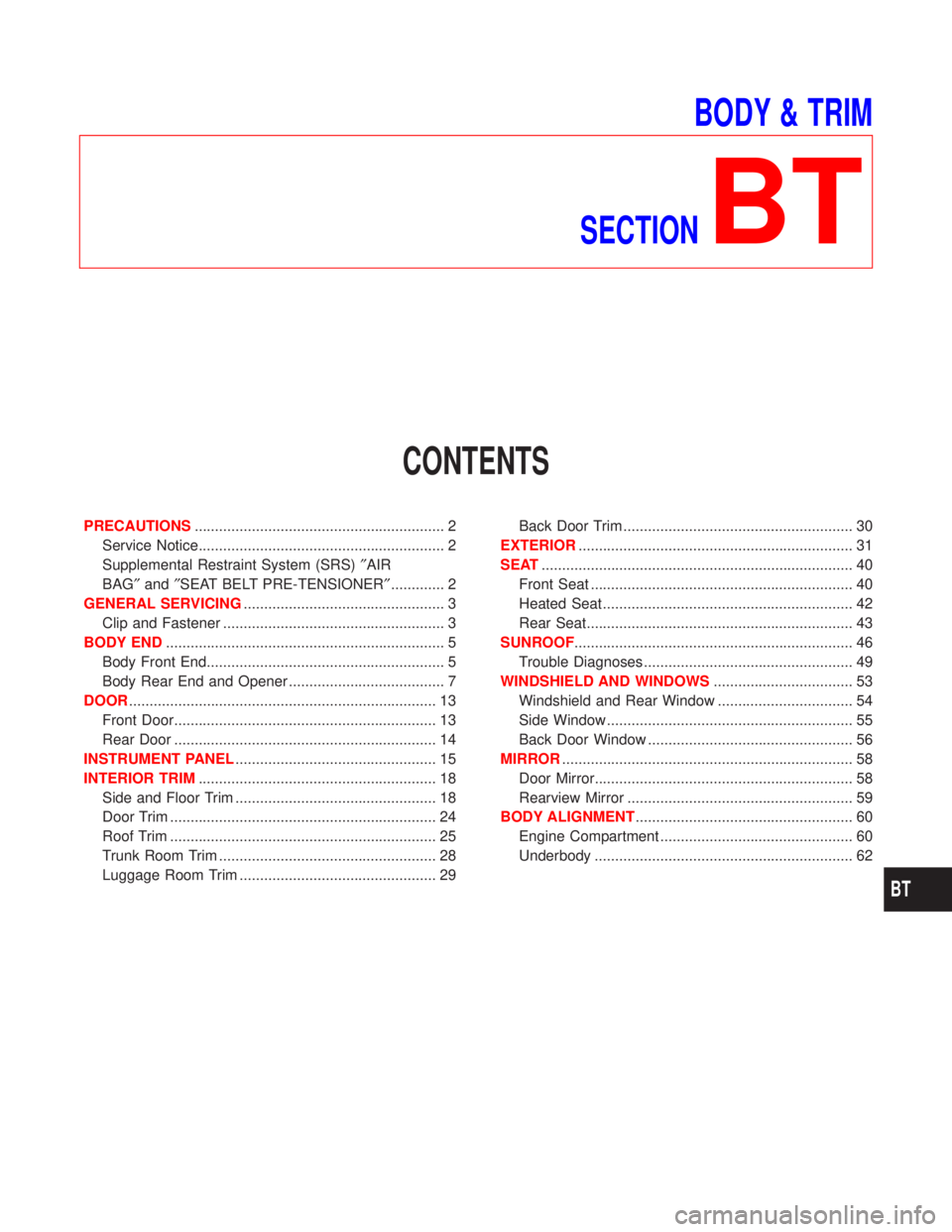

CONTENTS
PRECAUTIONS............................................................. 2
Service Notice............................................................ 2
Supplemental Restraint System (SRS)²AIR
BAG²and²SEAT BELT PRE-TENSIONER²............. 2
GENERAL SERVICING................................................. 3
Clip and Fastener ...................................................... 3
BODY END.................................................................... 5
Body Front End.......................................................... 5
Body Rear End and Opener ...................................... 7
DOOR........................................................................... 13
Front Door................................................................ 13
Rear Door ................................................................ 14
INSTRUMENT PANEL................................................. 15
INTERIOR TRIM.......................................................... 18
Side and Floor Trim ................................................. 18
Door Trim ................................................................. 24
Roof Trim ................................................................. 25
Trunk Room Trim ..................................................... 28
Luggage Room Trim ................................................ 29Back Door Trim ........................................................ 30
EXTERIOR................................................................... 31
SEAT............................................................................ 40
Front Seat ................................................................ 40
Heated Seat ............................................................. 42
Rear Seat................................................................. 43
SUNROOF.................................................................... 46
Trouble Diagnoses................................................... 49
WINDSHIELD AND WINDOWS.................................. 53
Windshield and Rear Window ................................. 54
Side Window ............................................................ 55
Back Door Window .................................................. 56
MIRROR....................................................................... 58
Door Mirror............................................................... 58
Rearview Mirror ....................................................... 59
BODY ALIGNMENT..................................................... 60
Engine Compartment ............................................... 60
Underbody ............................................................... 62
BT

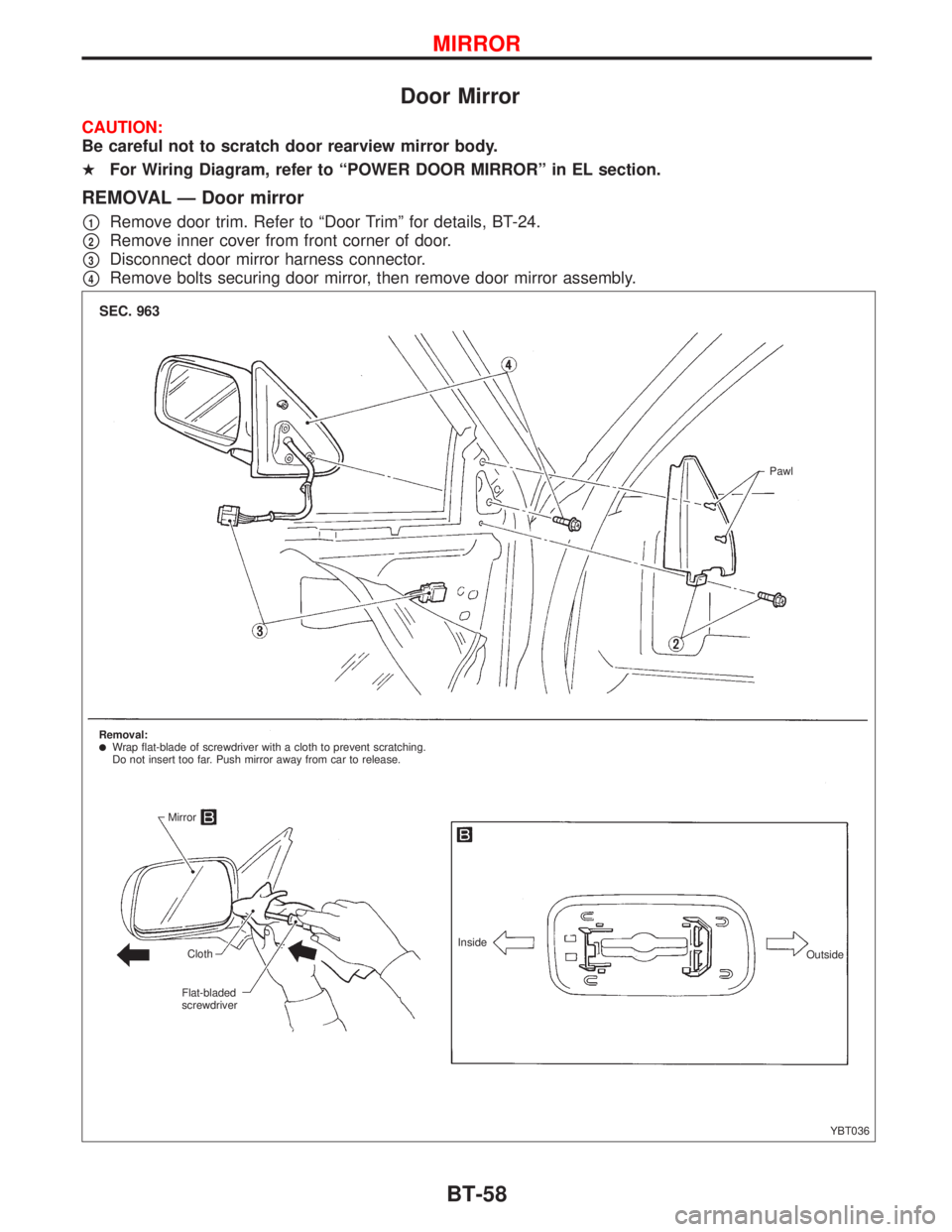

Door Mirror
CAUTION:
Be careful not to scratch door rearview mirror body.
HFor Wiring Diagram, refer to ªPOWER DOOR MIRRORº in EL section.
REMOVAL Ð Door mirror
p1Remove door trim. Refer to ªDoor Trimº for details, BT-24.
p2Remove inner cover from front corner of door.
p3Disconnect door mirror harness connector.
p4Remove bolts securing door mirror, then remove door mirror assembly.
YBT036
SEC. 963
Pawl
Removal:
lWrap flat-blade of screwdriver with a cloth to prevent scratching.
Do not insert too far. Push mirror away from car to release.
Mirror
Cloth
Flat-bladed
screwdriverInside
Outside
MIRROR
BT-58

Rearview Mirror
REMOVAL
Remove rearview mirror by pushing deflect spring with screw-
driver as shown in the figure.
INSTALLATION
1. Install mounting bracket as follows:
(1) Determine mounting bracket position on windshield by mea-
suring from top of windshield to top of mounting bracket as
shown in the figure.
(2) Mark location on outside of windshield with wax pencil or
equivalent.
(3) Clean attaching point on inside of windshield with an alcohol-
saturated paper towel.
(4) Sand bonding surface of mounting bracket with sandpaper
(No. 320 or No. 360).
(5) Clean bonding surface of mounting bracket with an alcohol-
saturated paper towel.
(6) Apply Loctite Adhesive 11067-2 or equivalent to bonding sur-
face of mounting bracket.
(7) Install mounting bracket at premarked position and press
mounting bracket against glass for 30 to 60 seconds.
(8) After five minutes, wipe off excess adhesive with an alcohol-
moistened paper towel.
2. Install rearview mirror.
NBT059 Windshield
Mirror assembly
Windshield Mounting
bracket
Mounting
bracket
Side viewMirror assembly
YBT049 Bracket
Center of windshield85-90mm
(3.34 - 3.54 in) Mounting bracket location
MIRROR
BT-59
