NISSAN LATIO 2010 Service Repair Manual EC-280
< COMPONENT DIAGNOSIS >[HR16DE]
P0442 EVAP CONTROL SYSTEM
2. Check for genuine NISSAN fuel filler cap design.
Is the inspection result normal?
YES >> GO TO 2.
NO >> Replace with genuine NISSAN

Page 1546 of 3745

NISSAN LATIO 2010 Service Repair Manual P0442 EVAP CONTROL SYSTEMEC-281
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
2. Does water drain from the EVAP canister?
Does water drain from
the EVAP canister?
YES >> GO TO 9.
N

Page 1547 of 3745

NISSAN LATIO 2010 Service Repair Manual EC-282
< COMPONENT DIAGNOSIS >[HR16DE]
P0442 EVAP CONTROL SYSTEM
YES >> GO TO 14.
NO >> Repair or reconnect the hose.
14.CHECK EVAP CANISTER PURGE VO
LUME CONTROL SOLENOID VALVE
Refer to EC-290, "
Co

Page 1548 of 3745

NISSAN LATIO 2010 Service Repair Manual P0442 EVAP CONTROL SYSTEMEC-283
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
NO >> Replace fuel level sensor unit.
23.CHECK INTERMITTENT INCIDENT
Refer to EC-114, "
Diagnosis Proc

Page 1549 of 3745

NISSAN LATIO 2010 Service Repair Manual EC-284
< COMPONENT DIAGNOSIS >[HR16DE]
P0442 EVAP CONTROL SYSTEM
4. Blow air into port A and check t
hat it flows freely out of port B.
5. Block port B.
6. Blow air into port A and check that there is

Page 1550 of 3745

NISSAN LATIO 2010 Service Repair Manual P0443 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
EC-285
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
P0443 EVAP CANISTER PURGE VOLU
ME CONTROL SOLENOID VALVE
DescriptionINFO

P0443 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
EC-285
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
P0443 EVAP CANISTER PURGE VOLU
ME CONTROL SOLENOID VALVE
DescriptionINFOID:0000000005398445
The EVAP canister purge volume control solenoid valve is used to
control the flow rate of fuel vapor from the EVAP canister. The EVAP
canister purge volume control solenoid valve is moved by ON/OFF
pulses from the ECM. The longer the ON pulse, the greater the
amount of fuel vapor that will flow through the valve.
DTC LogicINFOID:0000000005710208
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
• Perform “DTC CONFIRMATION PROCEDURE” when the fuel level is between 1/4 and 3/4 full, and
vehicle is placed on flat level surface.
• Always perform test at a temperature of 5 to 60 °C (41 to 140 °F).
• Cool the vehicle so that engi ne coolant temperature becomes same level as ambient temperature.
Do you have CONSULT-III?
YES >> GO TO 2.
NO >> GO TO 4.
2.PERFORM DTC CONFIRMATION PROCEDURE A
With CONSULT-III
1. Turn ignition switch ON.
2. Check that the following condition are met. FUEL T/TMP SE: 0 - 35 °C (32 - 95° F)
3. Start engine and wait at least 60 seconds.
4. Check 1st trip DTC.
Is 1st trip DTC detected?
YES >> Go to EC-287, "Diagnosis Procedure".
NO >> GO TO 3.
3.PERFORM DTC CONFIRMATION PROCEDURE B
JMBIA0069ZZ
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0443 EVAP canister purge
volume control solenoid
valve A
The canister purge flow is detected during
the vehicle is stopped while the engine is
running, even when EVAP canister purge
volume control solenoid valve is complete-
ly closed. • EVAP control system pressure sensor
• EVAP canister purge volume control so-
lenoid valve
(The valve is stuck open.)
• EVAP canister vent control valve
• EVAP canister
• Hoses (Hoses are connected incorrectly or
clogged.)
B
The canister purge flow is detected during
the specified driving conditions, even
when EVAP canister purge volume control
solenoid valve is completely closed.
Revision: January 20102010 Versa

Page 1551 of 3745

NISSAN LATIO 2010 Service Repair Manual EC-286
< COMPONENT DIAGNOSIS >[HR16DE]
P0443 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
With CONSULT-III
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch

Page 1552 of 3745

NISSAN LATIO 2010 Service Repair Manual P0443 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
EC-287
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

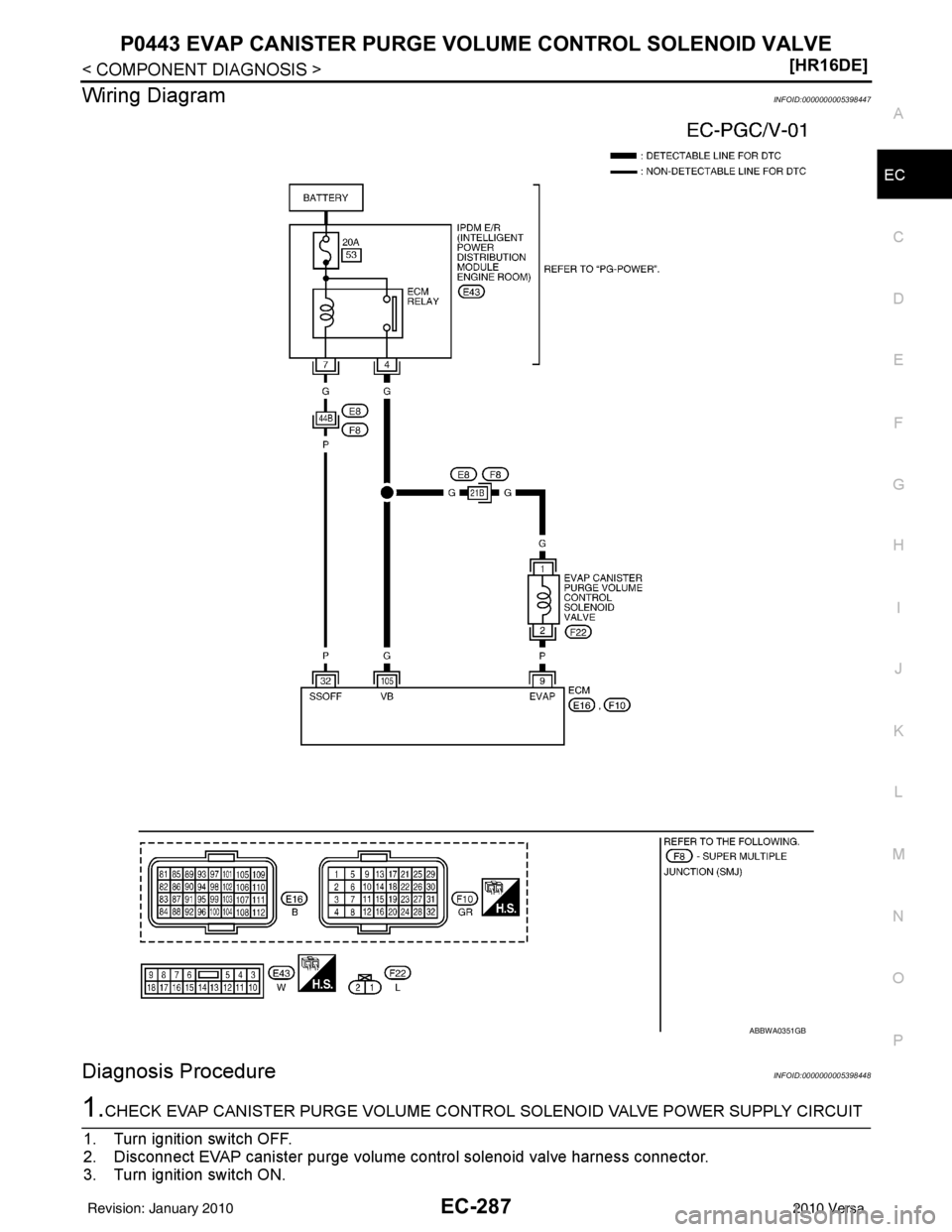

Wiring DiagramINFOID:0000000005398447
Diagnosis ProcedureINFOID:00000000
