Page 3737 of 3745

WW-32
< SERVICE INFORMATION >
REAR WIPER AND WASHER SYSTEM
Select "BCM" on CONSULT-III. With "WIPER" data monitor, make sure "RR WIPER STOP" turns ON-OFF
according to wiper operation.
OK or NG
OK >> Replace BCM. Refer to BCS-19, "Removal and Installation of BCM" .
NG >> GO TO 2.
2.CHECK REAR WIPER MOTOR CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM and rear wiper motor.
3. Check continuity between rear wiper motor connector (A) D404 terminal 2 and BCM connector (B) M19 terminal 44.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness.
3.CHECK REAR WIPER MOTOR SHORT CIRCUIT
Check continuity between rear wiper motor connector D404 terminal
2 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness.
4.CHECK GROUND CIRCUIT
Check continuity between rear wiper motor connector D404 terminal
3 and ground.
OK or NG
OK >> GO TO 5.
NG >> Repair or replace harness.
5.CHECK AUTO STOP SIGNAL When wiper switch is in
OFF position
: RR WIPER STOP OFF
44 - 2 : Continuity should exist.
WKIA5533E
2 - Ground: Continuity should not exist.
WKIA5534E
3 - Ground : Continuity should exist.
WKIA5535E
Revision: January 20102010 Versa
Page 3738 of 3745

REAR WIPER AND WASHER SYSTEMWW-33
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
WW
N
O P
1. Connect BCM.
2. Turn ignition switch ON.
3. Check voltage between rear wiper motor connector D404 termi- nal 2 and ground.
OK or NG
OK >> Replace BCM. Refer to BCS-19, "Removal and Installa-
tion of BCM" .
NG >> Replace rear wiper motor. Refer to WW-33, "
Removal
and Installation" .
Only Rear Wiper Does Not OperateINFOID:0000000005395093
1.CHECK COMBINATION SWITCH INPUT SIGNAL
Select "BCM" on CONSULT-III. With "WIPER" data monitor, make sure "RR WIPER ON" turns ON-OFF
according to operation of wiper switch.
OK or NG
OK >> Replace BCM. Refer to BCS-19, "Removal and Installation of BCM" .
NG >> Check the wiper switch. Refer to BCS-4, "
System Description" .
Only Rear Wiper Intermi ttent Does Not OperateINFOID:0000000005395094
1.CHECK COMBINATION SWITCH INPUT SIGNAL
Select "BCM" on CONSULT-III. With "WIPER" data m onitor, make sure "RR WIPER INT" turns ON-OFF
according to operation of wiper switch.
OK or NG
OK >> Replace BCM. Refer to BCS-19, "Removal and Installation of BCM" .
NG >> Check the wiper switch. Refer to BCS-4, "
System Description" .
Wiper Does Not Wipe When Rear Washer OperatesINFOID:0000000005395095
1.CHECK COMBINATION SWITCH INPUT SIGNAL
Select "BCM" on CONSULT-III. With "WIPER" data monitor, make sure "RR WASHER SW" turns ON-OFF
according to operation of rear washer switch.
OK or NG
OK >> Replace BCM. Refer to BCS-19, "Removal and Installation of BCM" .
NG >> Check the wiper switch. Refer to BCS-4, "
System Description" .
Removal and InstallationINFOID:0000000005395096
REAR WIPER ARM
Removal
2 - Ground : Battery voltage should exist.
WKIA5536E
When rear wiper switch is in
ON position : RR WIPER ON ON
When rear wiper switch is in
INT position : RR WIPER INT ON
When rear wiper switch is in
WASHER position : RR WASHER SW ON
Revision: January 20102010 Versa
Page 3739 of 3745
WW-34
< SERVICE INFORMATION >
REAR WIPER AND WASHER SYSTEM
1. Raise wiper arm cover (1), and remove the rear wiper arm nut(A).
2. Remove the wiper arm.
3. Remove wiper blade.
Installation
1. Operate rear wiper motor one full cycle, then turn "OFF" (Auto Stop).
2. Clean pivot area as shown. This will reduce the possibility of wiper arm looseness.
3. Install wiper blade.
4. Install wiper arm so that the arm rests in the stopper and tighten rear wiper arm nut.
5. Install wiper arm cover.
REAR WIPER MOTOR
LKIA0787E
SEL024J
1. Rear wiper motor 2. Rear wiper arm and blade3. Wiper arm cover
4. Pivot cap A. Wiper motor bolts B. Rear wiper motor nut
LKIA0788E
Revision: January 20102010 Versa
Page 3740 of 3745
REAR WIPER AND WASHER SYSTEMWW-35
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
WW
N
O P

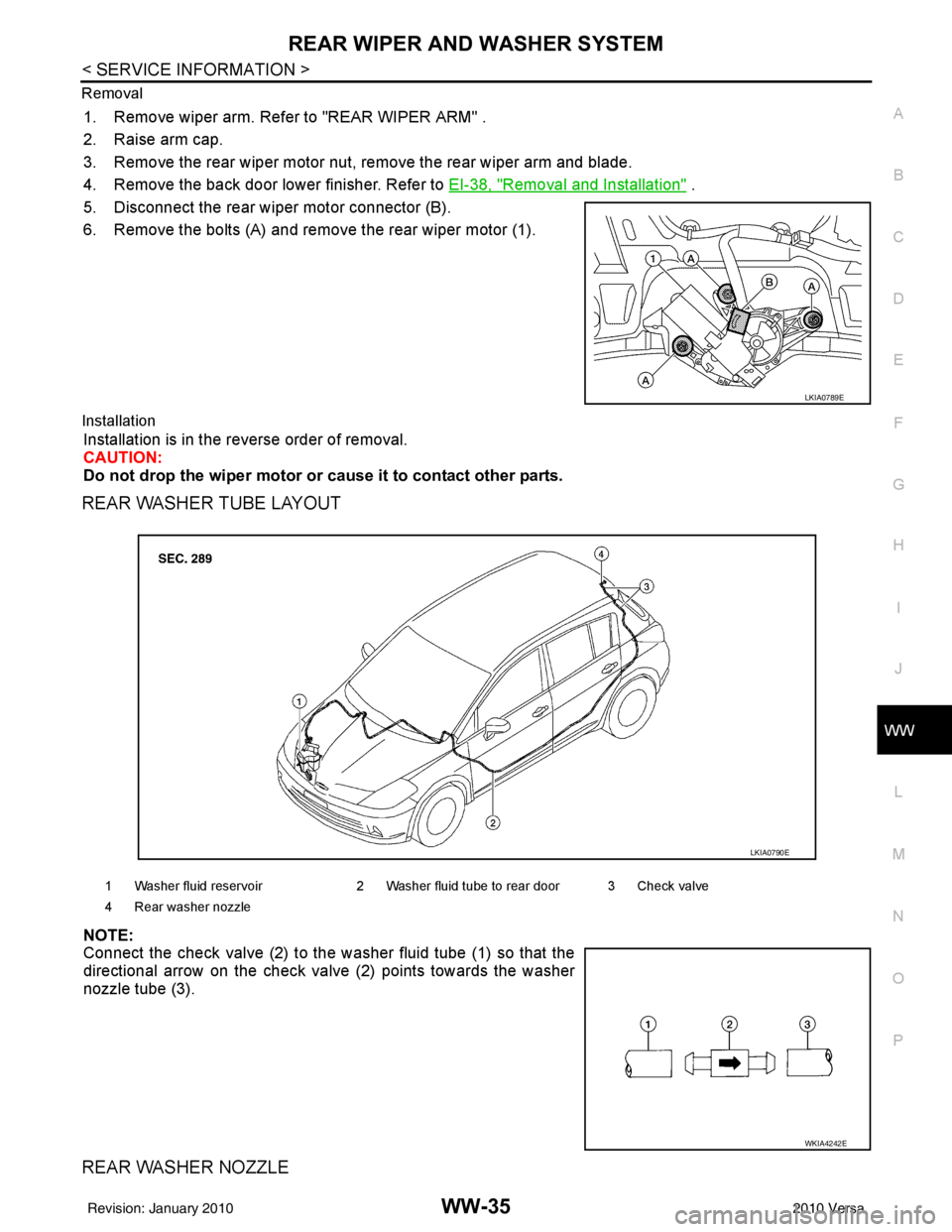

Removal
1. Remove wiper arm. Refer to "REAR WIPER ARM" .
2. Raise arm cap.
3. Remove the rear wiper motor nut, remove the rear wiper arm and blade.
4. Remove the back door lower finisher. Refer to
EI-38, "
Removal and Installation" .
5. Disconnect the rear wiper motor connector (B).
6. Remove the bolts (A) and remove the rear wiper motor (1).
Installation
Installation is in the reverse order of removal.
CAUTION:
Do not drop the wiper motor or cause it to contact other parts.
REAR WASHER TUBE LAYOUT
NOTE:
Connect the check valve (2) to the washer fluid tube (1) so that the
directional arrow on the check valve (2) points towards the washer
nozzle tube (3).
REAR WASHER NOZZLE
LKIA0789E
1 Washer fluid reservoir 2 Washer fluid tube to rear door 3 Check valve
4 Rear washer nozzle
LKIA0790E
WKIA4242E
Revision: January 20102010 Versa
Page 3741 of 3745

WW-36
< SERVICE INFORMATION >
REAR WIPER AND WASHER SYSTEM

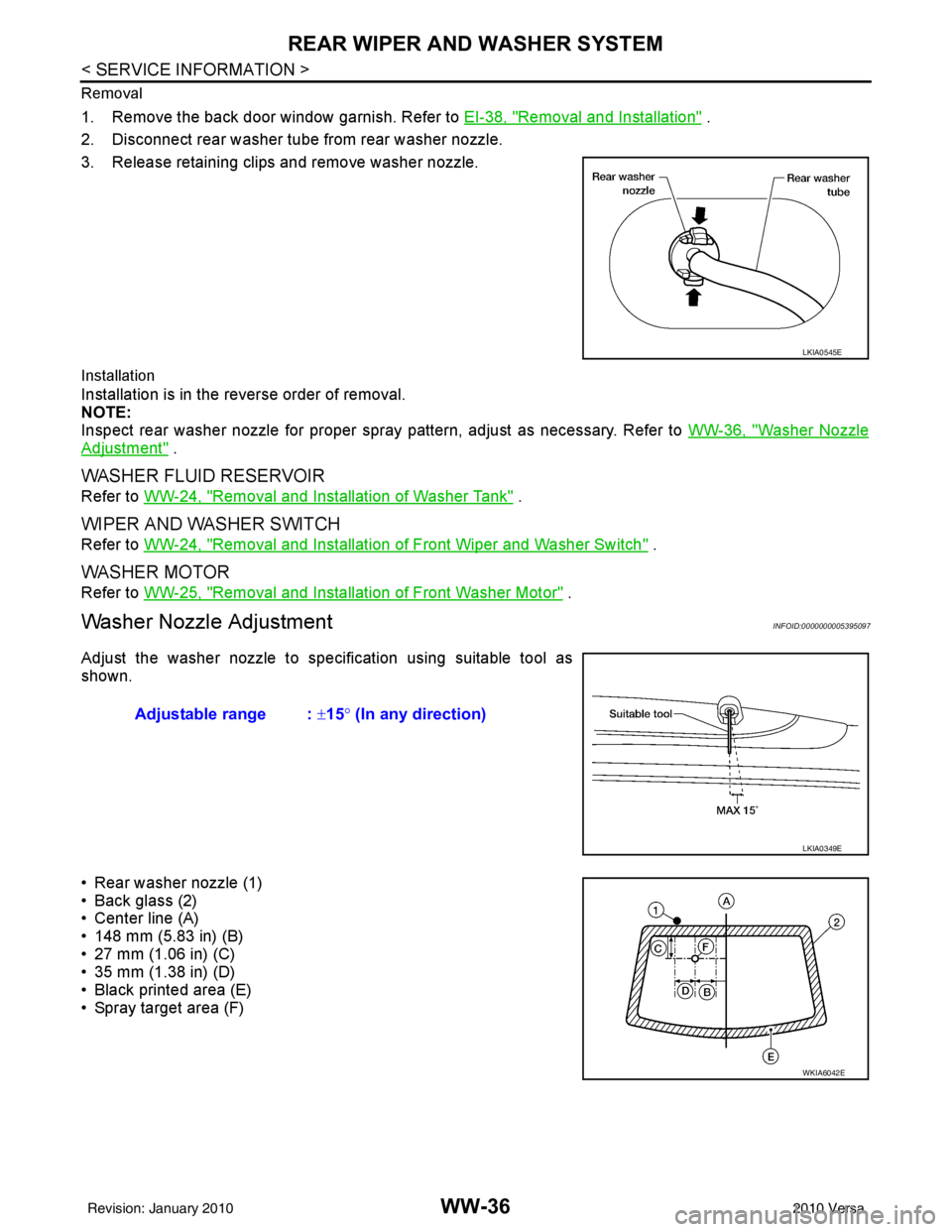

Removal
1. Remove the back door window garnish. Refer to EI-38, "Removal and Installation" .
2. Disconnect rear washer tube from rear washer nozzle.
3. Release retaining clips and remove washer nozzle.
Installation
Installation is in the reverse order of removal.
NOTE:
Inspect rear washer nozzle for proper spray pattern, adjust as necessary. Refer to WW-36, "
Washer Nozzle
Adjustment" .
WASHER FLUID RESERVOIR
Refer to WW-24, "Removal and Installation of Washer Tank" .
WIPER AND WASHER SWITCH
Refer to WW-24, "Removal and Installation of Front Wiper and Washer Switch" .
WASHER MOTOR
Refer to WW-25, "Removal and Installation of Front Washer Motor" .
Washer Nozzle AdjustmentINFOID:0000000005395097
Adjust the washer nozzle to specification using suitable tool as
shown.
• Rear washer nozzle (1)
• Back glass (2)
• Center line (A)
• 148 mm (5.83 in) (B)
• 27 mm (1.06 in) (C)
• 35 mm (1.38 in) (D)
• Black printed area (E)
• Spray target area (F)
LKIA0545E
Adjustable range : ±15° (In any direction)
LKIA0349E
WKIA6042E
Revision: January 20102010 Versa
Page 3742 of 3745
POWER SOCKETWW-37
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
WW
N
O P
POWER SOCKET
Wiring Diagram - P/SCKT -INFOID:0000000005395098
Removal and InstallationINFOID:0000000005395099
REMOVAL
1. Remove the fuse for the power socket.
WKWA5835E
Revision: January 20102010 Versa
Page 3743 of 3745
WW-38
< SERVICE INFORMATION >
POWER SOCKET

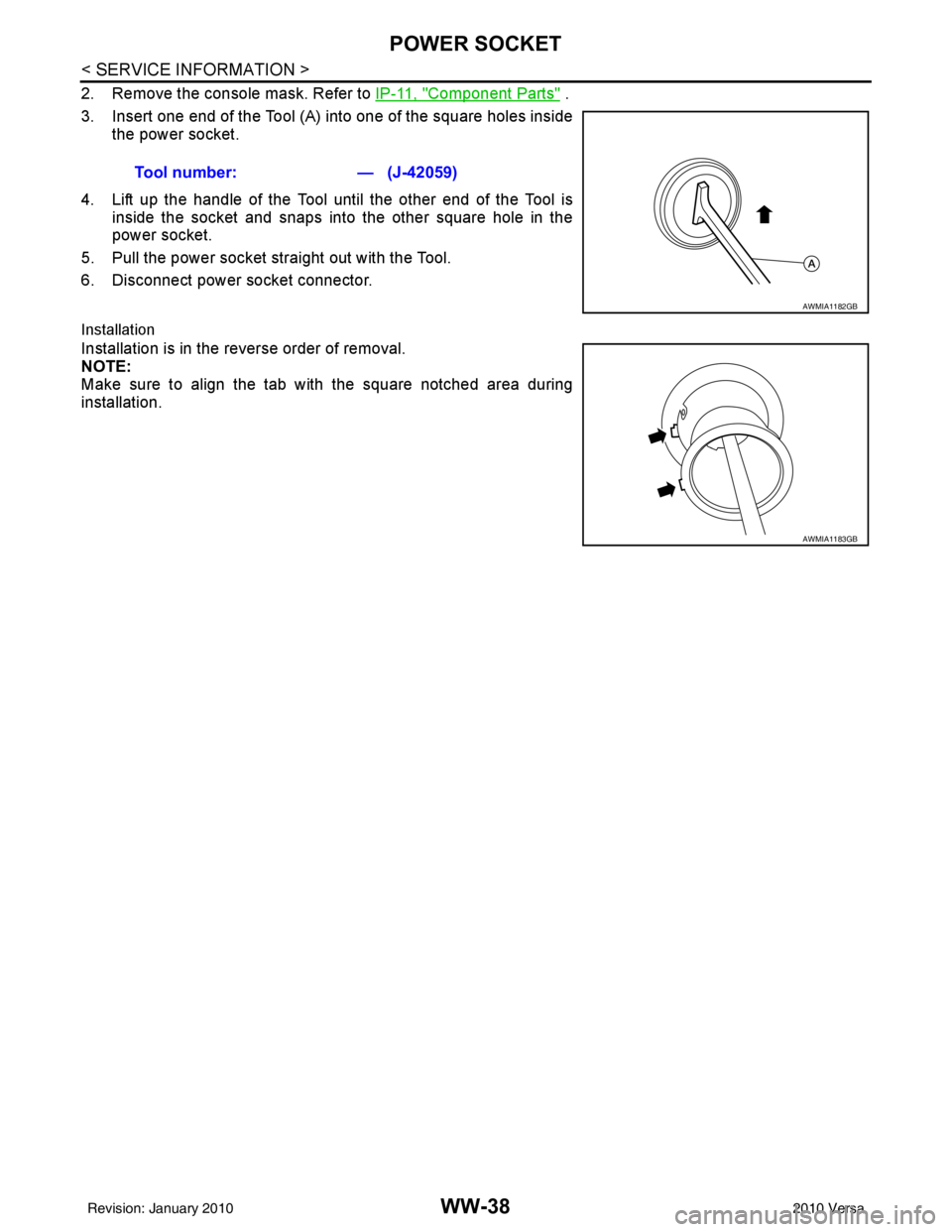

2. Remove the console mask. Refer to IP-11, "Component Parts" .
3. Insert one end of the Tool (A) into one of the square holes inside the power socket.
4. Lift up the handle of the Tool until the other end of the Tool is inside the socket and snaps into the other square hole in the
power socket.
5. Pull the power socket straight out with the Tool.
6. Disconnect power socket connector.
Installation
Installation is in the reverse order of removal.
NOTE:
Make sure to align the tab with the square notched area during
installation. Tool number:
— (J-42059)
AWMIA1182GB
AWMIA1183GB
Revision: January 20102010 Versa
Page 3744 of 3745
HORN
WW-39
< SERVICE INFORMATION >
C
D E
F
G H
I
J
L
M A
B
WW
N
O P
HORN

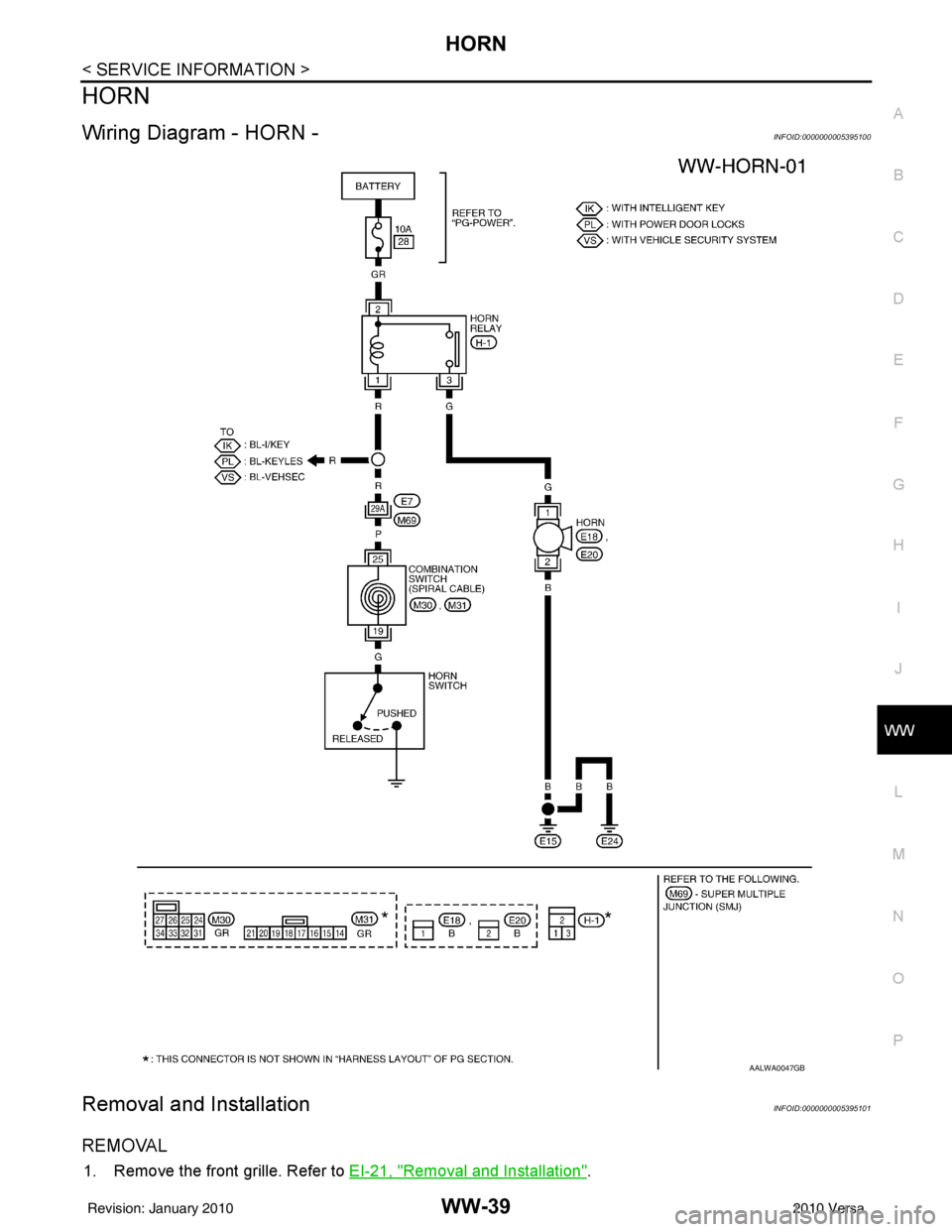

Wiring Diagram - HORN -INFOID:0000000005395100
Removal and InstallationINFOID:0000000005395101
REMOVAL
1. Remove the front grille. Refer to EI-21, "Removal and Installation".
AALWA0047GB
