Page 2833 of 3745

NISSAN LATIO 2010 Service Repair Manual LAN-24 < SERVICE INFORMATION >[CAN] PRECAUTIONS • Bypass connection is never allowed at the repaired area. NOTE: Bypass connection may cause CAN communication error. The spliced wire becomes separat

Page 2834 of 3745

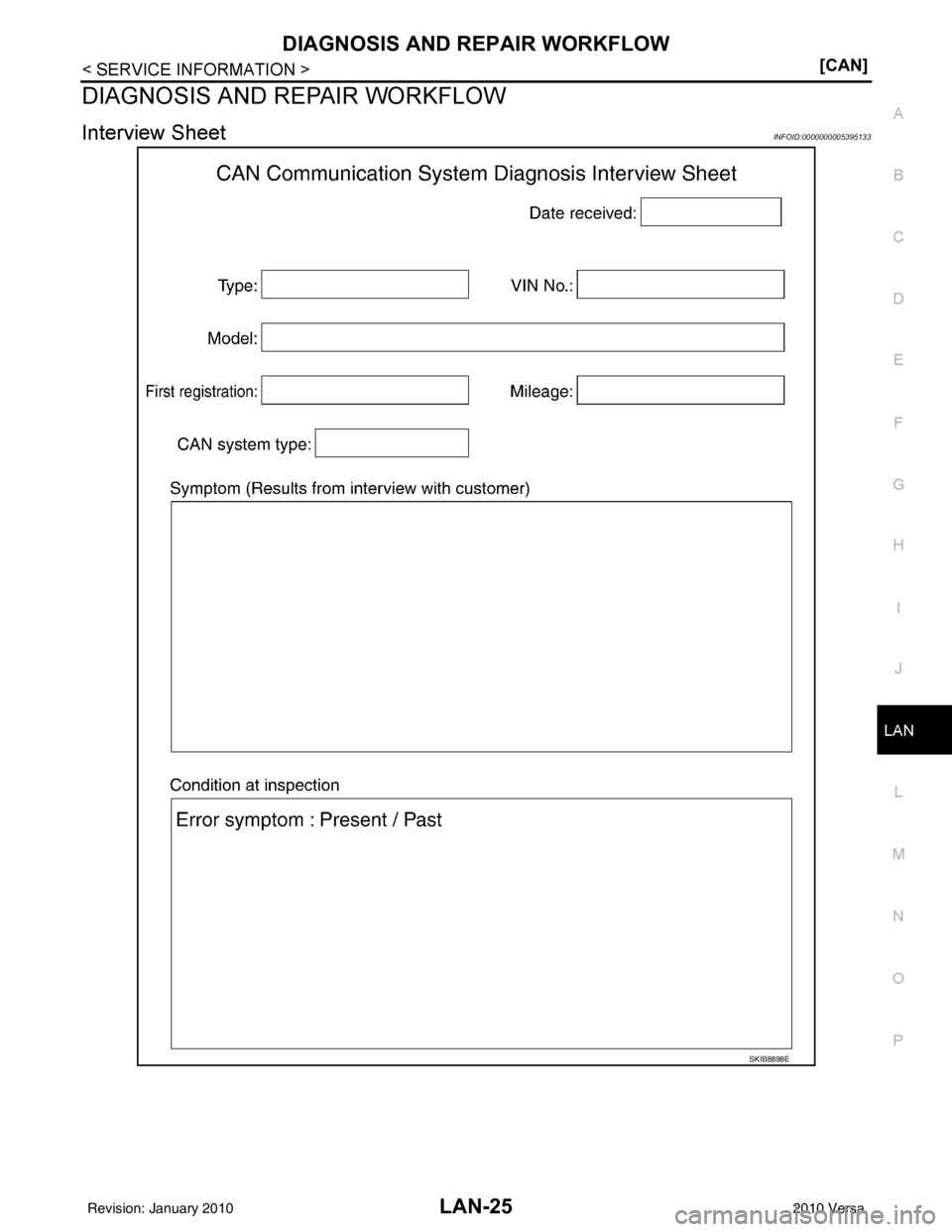

NISSAN LATIO 2010 Service Repair Manual DIAGNOSIS AND REPAIR WORKFLOWLAN-25 < SERVICE INFORMATION > [CAN] C D E F G H I J L M A B LAN N O P DIAGNOSIS AND REPAIR WORKFLOW Interview SheetINFOID:0000000005395133 SKIB8898E Revision: January 201

Page 2835 of 3745

NISSAN LATIO 2010 Service Repair Manual LAN-26 < SERVICE INFORMATION >[CAN] CAN COMMUNICATION SYSTEM CAN COMMUNICATION SYSTEM CAN System Specification ChartINFOID:0000000005395134 NOTE: Refer to LAN-17, " Trouble Diagnosis Procedure" for h

Page 2836 of 3745

NISSAN LATIO 2010 Service Repair Manual CAN COMMUNICATION SYSTEMLAN-27 < SERVICE INFORMATION > [CAN] C D E F G H I J L M A B LAN N O P CAN Communication Signal ChartINFOID:0000000005395135 Refer to LAN-16, "How to Use CAN Communication Sig

Page 2837 of 3745

NISSAN LATIO 2010 Service Repair Manual LAN-28 < SERVICE INFORMATION >[CAN] CAN COMMUNICATION SYSTEM *1: A/T models *2: CVT models *3: Models with VDC *4: Models for Canada *5: Models for USA *6: Models without ABS NOTE: CAN data of the air

Page 2838 of 3745

NISSAN LATIO 2010 Service Repair Manual CAN COMMUNICATION SYSTEMLAN-29 < SERVICE INFORMATION > [CAN] C D E F G H I J L M A B LAN N O P CAN COMMUNICATION SYSTEM Component Parts LocationINFOID:0000000005395136 1. BCM M18 2. ABS actuator and e

Page 2839 of 3745

NISSAN LATIO 2010 Service Repair Manual LAN-30 < SERVICE INFORMATION >[CAN] CAN COMMUNICATION SYSTEM Schematic INFOID:0000000005395137 ABMWA0490GB Revision: January 20102010 Versa

Page 2840 of 3745

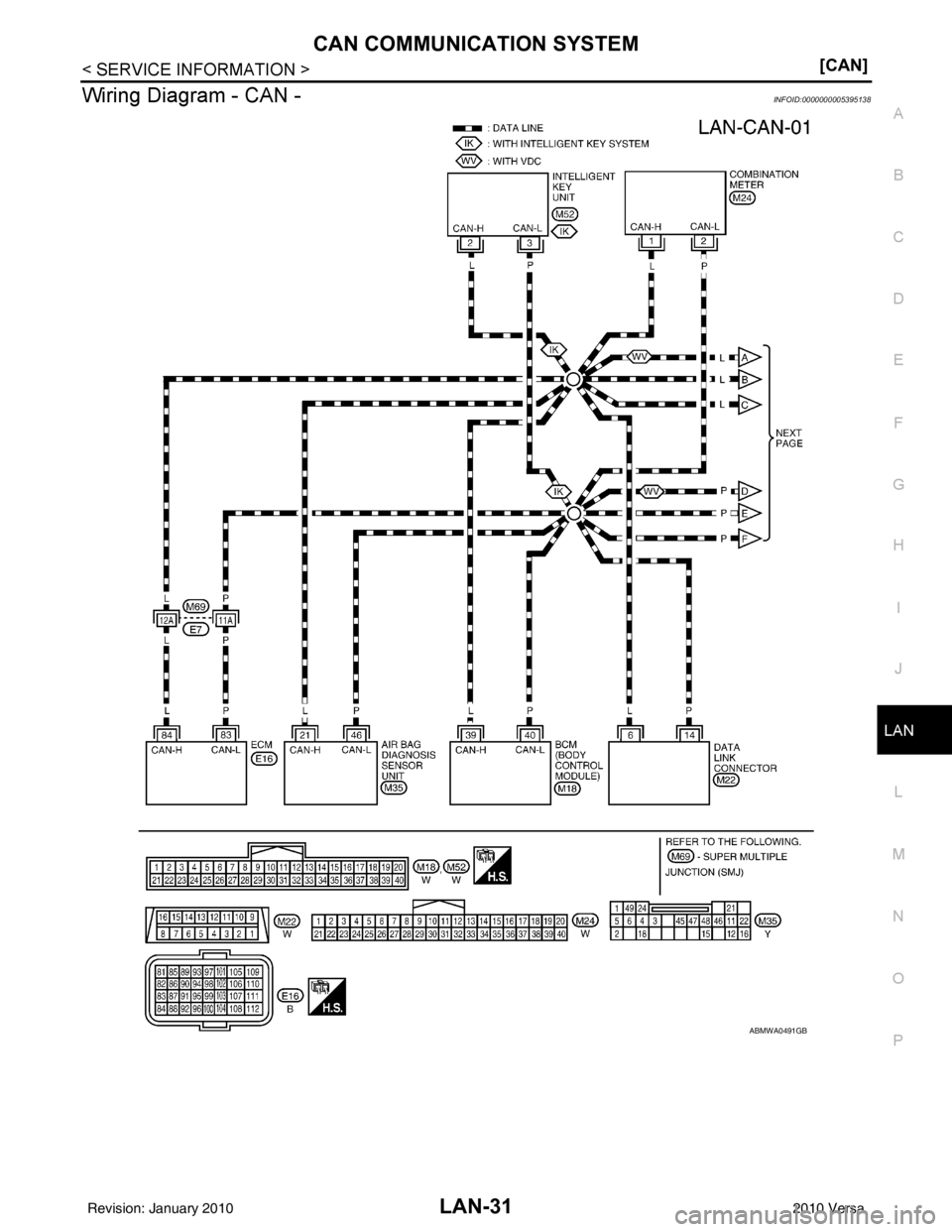

NISSAN LATIO 2010 Service Repair Manual CAN COMMUNICATION SYSTEMLAN-31 < SERVICE INFORMATION > [CAN] C D E F G H I J L M A B LAN N O P Wiring Diagram - CAN -INFOID:0000000005395138 ABMWA0491GB Revision: January 20102010 Versa
