NISSAN LATIO 2010 Service Repair Manual PG-42 < SERVICE INFORMATION > HARNESS ENGINE ROOM HARNESS (LH VIEW) Refer to "ENGINE ROOM HARNESS (RH VIEW)" for continuation of engine room harness. AAMIA0136GB C4 E3 GR/4 : Cooling fan motor (witho

Page 3426 of 3745

NISSAN LATIO 2010 Service Repair Manual HARNESSPG-43 < SERVICE INFORMATION > C DE F G H I J L M A B PG N O P ENGINE ROOM HARNESS (RH VIEW) D3 E8 SMJ : To F8 A2 E34 BR/2 : Clutch interlock switch (with M/T) B4 E9 BR/2 : Fusible link box (bat

Page 3427 of 3745

NISSAN LATIO 2010 Service Repair Manual PG-44 < SERVICE INFORMATION > HARNESS Refer to "ENGINE ROOM HARNESS (LH VIEW)" for continuation of engine room harness. G2 E1 GR/5 : Front wiper motor F2 E33 B/26 : ABS actuator and electric unit (co

Page 3428 of 3745

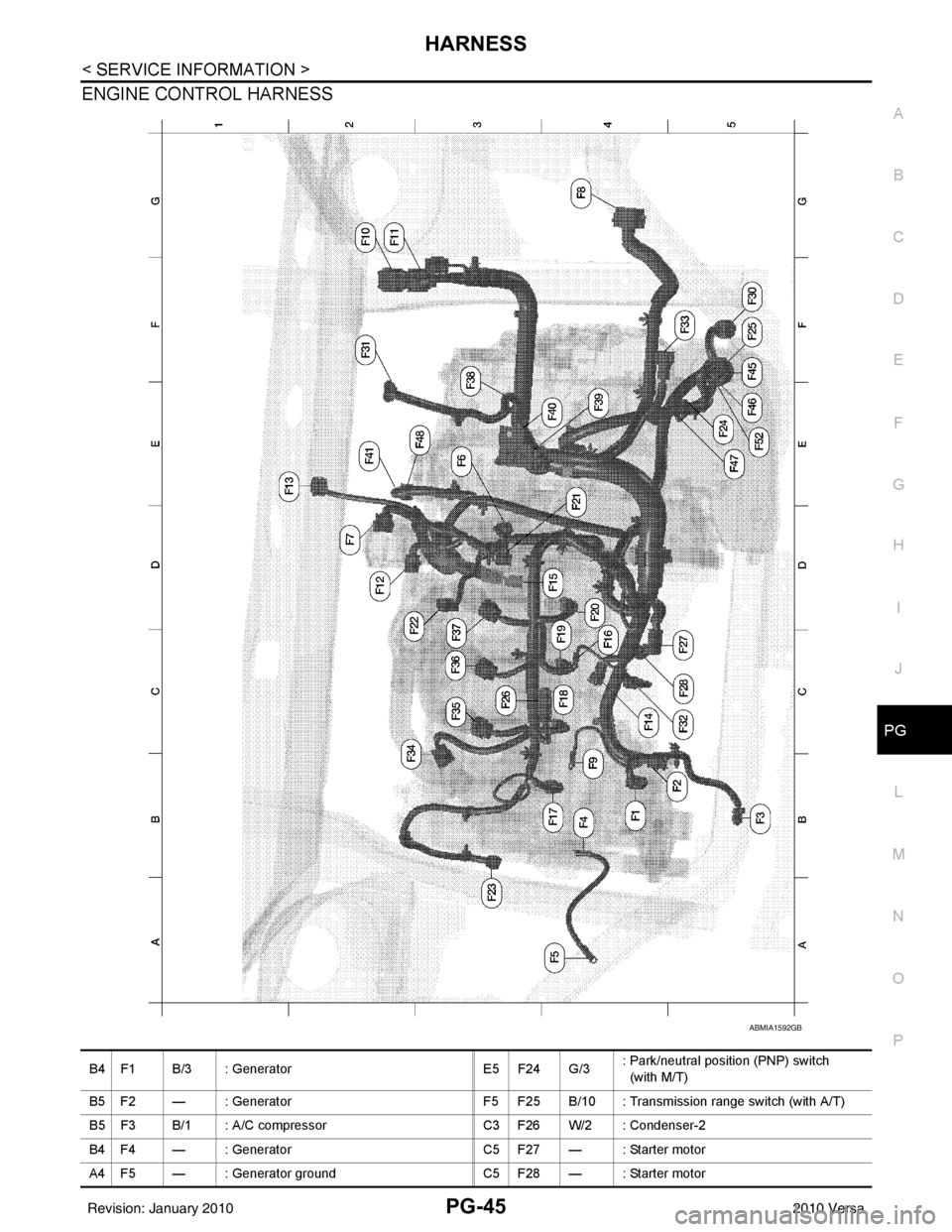

NISSAN LATIO 2010 Service Repair Manual HARNESSPG-45 < SERVICE INFORMATION > C DE F G H I J L M A B PG N O P ENGINE CONTROL HARNESS ABMIA1592GB B4 F1 B/3 : Generator E5 F24 G/3: Park/neutral position (PNP) switch (with M/T) B5 F2 — : G

Page 3429 of 3745

NISSAN LATIO 2010 Service Repair Manual PG-46 < SERVICE INFORMATION > HARNESS BODY HARNESS (HATCHBACK) E3 F6 GR/2 : Engine coolant temperature sensor F5 F30 B/8 : Terminal cord assembly D2 F7 B/6 : Electric throttle control actuatorF2 F31 B

Page 3430 of 3745

NISSAN LATIO 2010 Service Repair Manual HARNESSPG-47 < SERVICE INFORMATION > C DE F G H I J L M A B PG N O P A4 B1 W/24 : To M31 C4 B14 Y/2 : Front LH seat belt pre-tensioner G4 B2 GR/2 : Rear bumper antenna C5 B15 Y/2 : LH side air bag (sa

Page 3431 of 3745

NISSAN LATIO 2010 Service Repair Manual PG-48 < SERVICE INFORMATION > HARNESS BODY HARNESS (SEDAN) ABMIA1594GB A4 B1 W/24 : To M31C4 B14 Y/2 : Front LH seat belt pre-tensioner G4 B2 GR/2 : Rear bumper antenna C5 B15 Y/2 : LH side air bag (s

Page 3432 of 3745

NISSAN LATIO 2010 Service Repair Manual HARNESSPG-49 < SERVICE INFORMATION > C DE F G H I J L M A B PG N O P D3 B6 W/1 : Rear door switch LH A4 B23 W/16 : To M15 C3 B7 — : Body ground A4 B24 W/24 : To M16 C4 B8 W/3 : Front door switch LH
