NISSAN LATIO 2010 Service Repair Manual LAN-16
< SERVICE INFORMATION >[CAN FUNDAMENTAL]
TROUBLE DIAGNOSIS

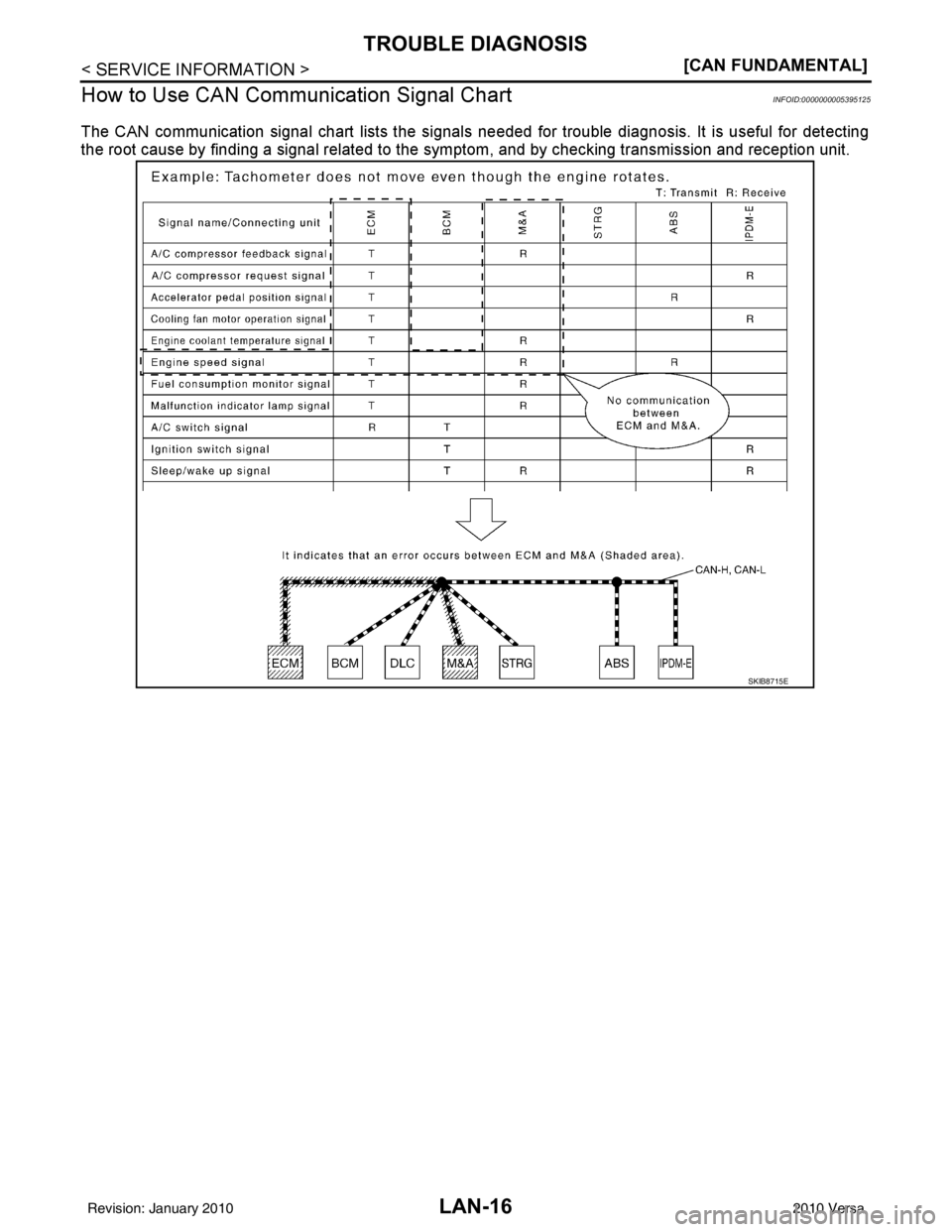

How to Use CAN Communication Signal Chart
INFOID:0000000005395125
The CAN communication signal chart lists the signals needed for trou

Page 2826 of 3745

NISSAN LATIO 2010 Service Repair Manual DIAGNOSIS AND REPAIR WORKFLOWLAN-17
< SERVICE INFORMATION > [CAN FUNDAMENTAL]
C
D
E
F
G H
I
J
L
M A
B
LAN
N
O P
DIAGNOSIS AND REPAIR WORKFLOW

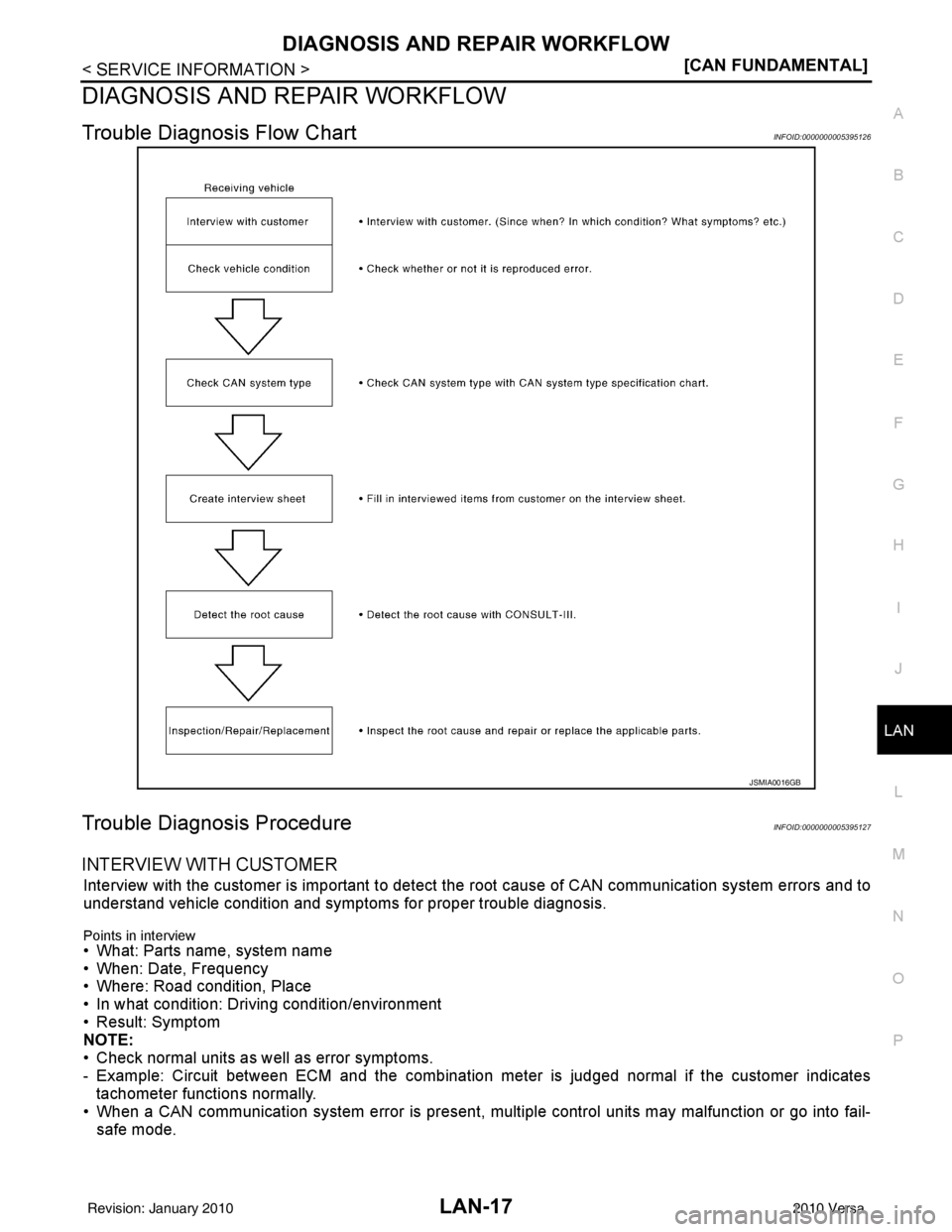

Trouble Diagnosis Flow ChartINFOID:0000000005395126
Troubl

Page 2827 of 3745

NISSAN LATIO 2010 Service Repair Manual LAN-18
< SERVICE INFORMATION >[CAN FUNDAMENTAL]
DIAGNOSIS AND REPAIR WORKFLOW

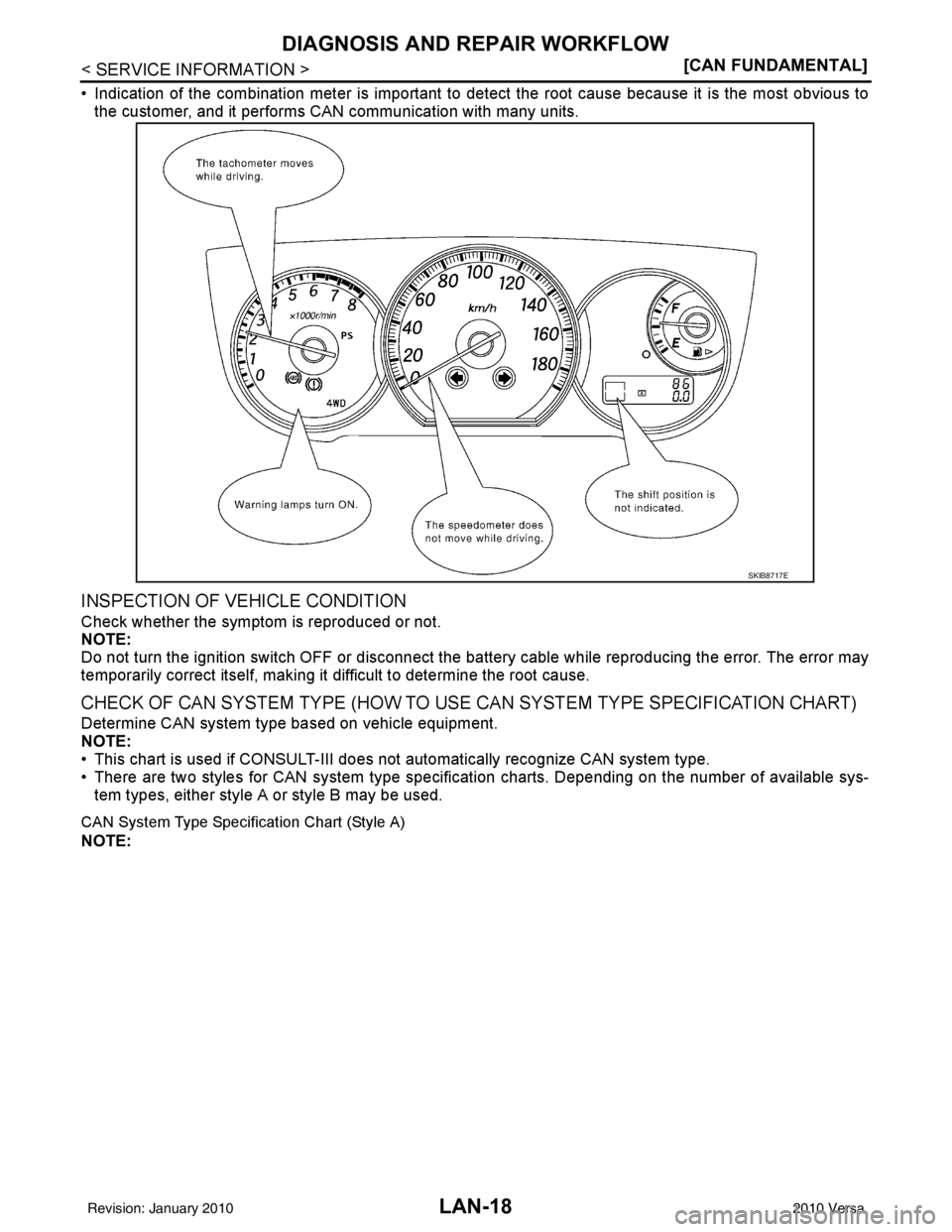

• Indication of the combination meter is important to det
ect the root cause because it is the most obvious to
the custo

Page 2828 of 3745

NISSAN LATIO 2010 Service Repair Manual DIAGNOSIS AND REPAIR WORKFLOWLAN-19
< SERVICE INFORMATION > [CAN FUNDAMENTAL]
C
D
E
F
G H
I
J
L
M A
B
LAN
N
O P

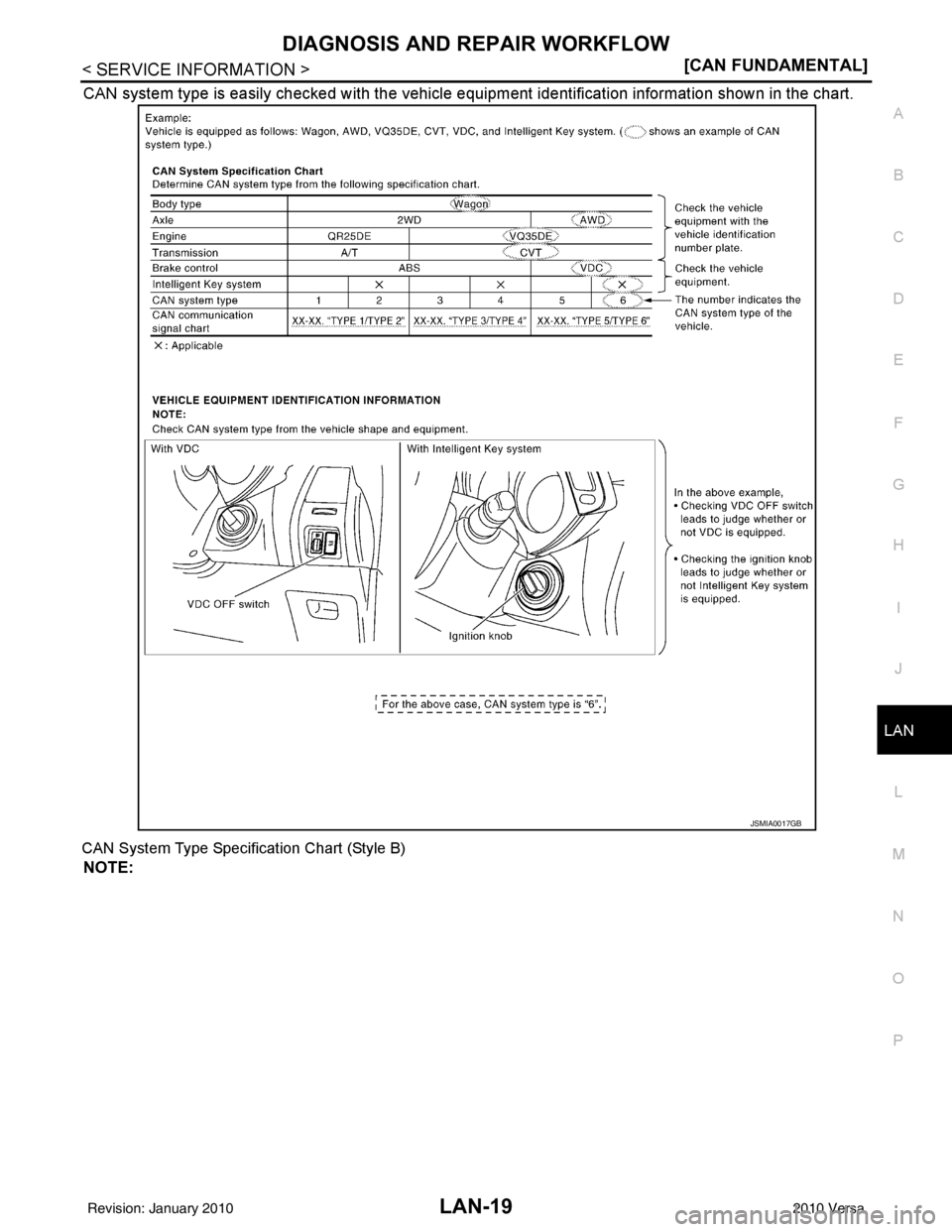

CAN system type is easily checked wi th the vehicle equipment identification information

Page 2829 of 3745

NISSAN LATIO 2010 Service Repair Manual LAN-20
< SERVICE INFORMATION >[CAN FUNDAMENTAL]
DIAGNOSIS AND REPAIR WORKFLOW
CAN system type is easily checked with the vehicle equi
pment identification information shown in the chart.
CREATE INTERV

Page 2830 of 3745

NISSAN LATIO 2010 Service Repair Manual DIAGNOSIS AND REPAIR WORKFLOWLAN-21
< SERVICE INFORMATION > [CAN FUNDAMENTAL]
C
D
E
F
G H
I
J
L
M A
B
LAN
N
O P

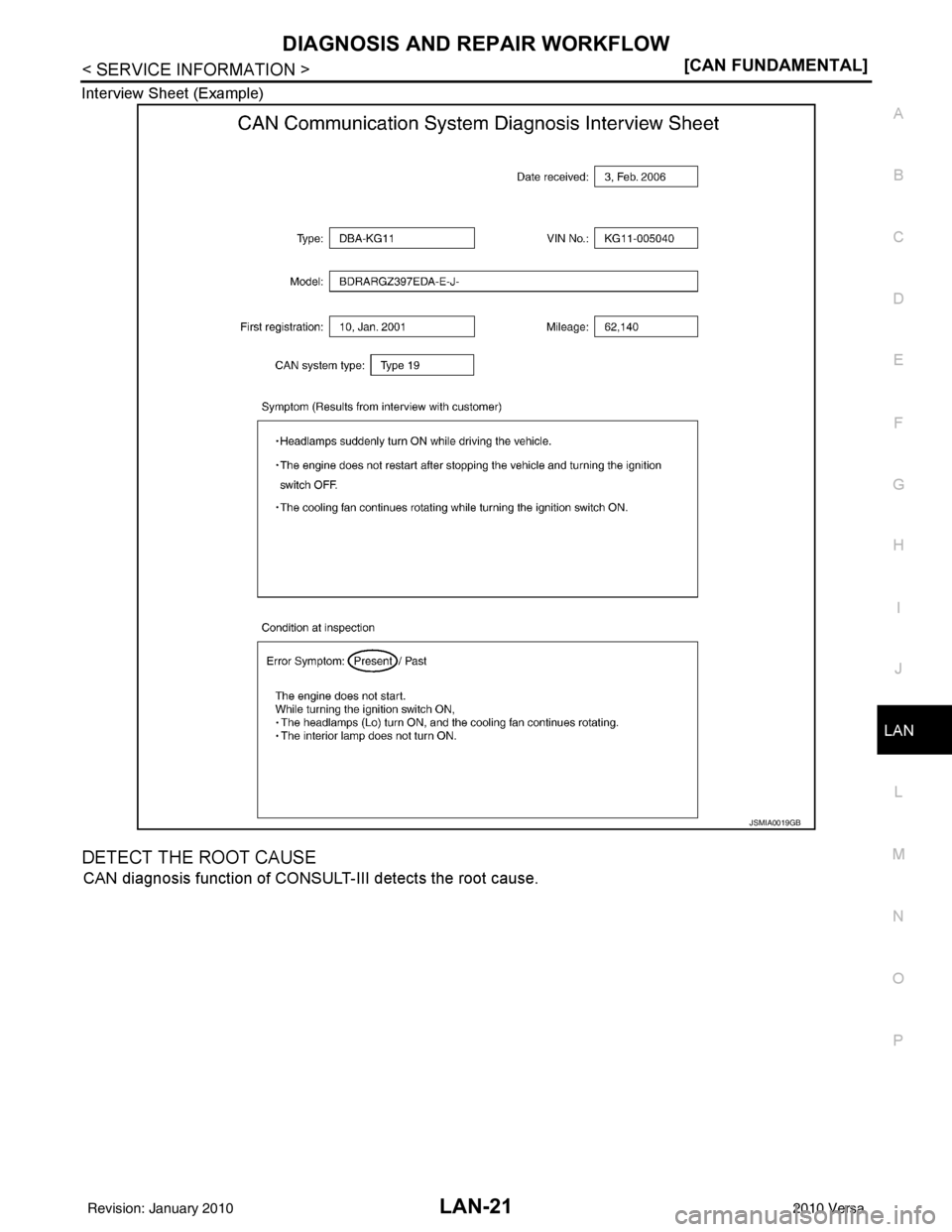

Interview Sheet (Example)
DETECT THE ROOT CAUSE
CAN diagnosis function of CONSUL
T-III d

Page 2831 of 3745

NISSAN LATIO 2010 Service Repair Manual LAN-22
< SERVICE INFORMATION >[CAN]
HOW TO USE THIS SECTION
SERVICE INFORMATION
HOW TO USE THIS SECTION
CautionINFOID:0000000005395128
• This section describes information pecul
iar to a vehicle and

Page 2832 of 3745

NISSAN LATIO 2010 Service Repair Manual PRECAUTIONSLAN-23
< SERVICE INFORMATION > [CAN]
C
D
E
F
G H
I
J
L
M A
B
LAN
N
O P
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:000000

PRECAUTIONSLAN-23
< SERVICE INFORMATION > [CAN]
C
D
E
F
G H
I
J
L
M A
B
LAN
N
O P
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000006007865
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severi ty of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and w hether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WARNING:
• To avoid rendering the SRS inoper ative, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.
• Improper maintenance, including in correct removal and installation of the SRS can lead to personal
injury caused by unintentional act ivation of the system. For removal of Spiral Cable and Air Bag
Module, see the SRS section.
• Do not use electrical test equipm ent on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identi fied by yellow and/or orange harnesses or har-
ness connectors.
PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS
WARNING:
• When working near the Airbag Diagnosis Sensor Un it or other Airbag System sensors with the Igni-
tion ON or engine running, DO NOT use air or el ectric power tools or strike near the sensor(s) with a
hammer. Heavy vibration could activate the sensor( s) and deploy the air bag(s), possibly causing
serious injury.
• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the battery, and wait at least 3 minutes before performing any service.
Precautions for Trouble DiagnosisINFOID:0000000005395131
CAUTION:
• Never apply 7.0 V or more to the measurement terminal.
• Use a tester with open terminal voltage of 7.0 V or less.
• Turn the ignition switch OFF and disconnect th e battery cable from the negative terminal when
checking the harness.
Precautions for Harness RepairINFOID:0000000005395132
• Solder the repaired area and wrap tape around the soldered area. NOTE:
A fray of twisted lines must be within 110 mm (4.33 in).
SKIB8766E
Revision: January 20102010 Versa
