Page 3057 of 3745

LT-62
< SERVICE INFORMATION >
TURN SIGNAL AND HAZARD WARNING LAMPS
1. Disconnect hazard switch connector.
2. Check continuity hazard switch terminals.
OK or NG
OK >> Replace BCM if hazard warning lamps do not operateafter setting the connector again. Refer to BCS-19,
"Removal and Installation of BCM" .
NG >> Replace hazard switch.
Turn Signal Indicator Lamp Does Not OperateINFOID:0000000005394940
1.CHECK CAN COMMUNICATION SYSTEM
Check CAN communication. Refer to LAN-7
.
OK or NG
OK >> Replace combination meter. Refer to DI-20, "Removal and Installation" .
NG >> Repair as necessary.
Bulb Replacement for Front Turn Signal LampINFOID:0000000005394941
Refer to LT-25, "Bulb Replacement" .
Bulb Replacement for Rear Turn Signal LampINFOID:0000000005394942
Refer to LT-88, "Bulb Replacement" .
Removal and Installation of Front Turn Signal LampINFOID:0000000005394943
Refer to LT-26, "Removal and Installation" .
Removal and Installation of Rear Turn Signal LampINFOID:0000000005394944
Refer to LT-89, "Removal and Installation" .
Te r m i n a l
Condition Continuity
Hazard switch
12 Hazard switch is ON
Yes
Hazard switch is OFF No
PKIC1017E
Revision: January 20102010 Versa
Page 3058 of 3745
LIGHTING AND TURN SIGNAL SWITCHLT-63
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
LT
N
O P
LIGHTING AND TURN SIGNAL SWITCH
Removal and InstallationINFOID:0000000005394945
REMOVAL
1. Remove steering column cover. Refer to IP-11 .
2. While pressing pawls (A) in direction as shown, pull lighting and turn signal switch (1) toward LH door and disconnect from the
base.
INSTALLATION
Installation is in the reverse order of removal.
PKIC1018E
Revision: January 20102010 Versa
Page 3059 of 3745
LT-64
< SERVICE INFORMATION >
HAZARD SWITCH
HAZARD SWITCH
Removal and InstallationINFOID:0000000005394946
REMOVAL
1. Remove cluster lid C. Refer to IP-11 .
2. Disconnect hazard switch connector.
3. Press pawl (A) on reverse side and remove the hazard switch (1).
INSTALLATION
Installation is in the reverse order of removal.
WKIA5421E
Revision: January 20102010 Versa
Page 3060 of 3745
COMBINATION SWITCHLT-65
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
LT
N
O P
COMBINATION SWITCH

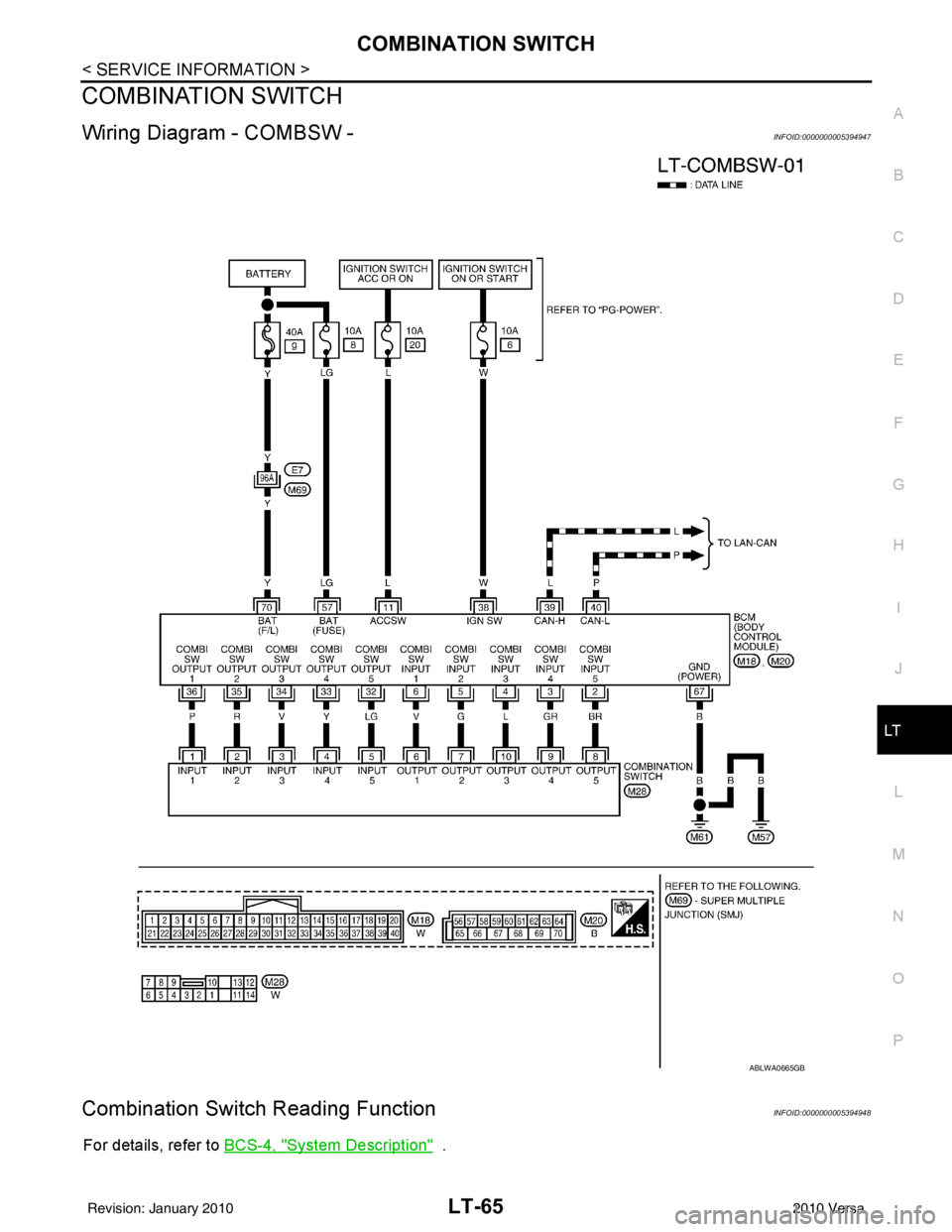

Wiring Diagram - COMBSW -INFOID:0000000005394947
Combination Switch Reading FunctionINFOID:0000000005394948
For details, refer to BCS-4, "System Description" .
ABLWA0665GB
Revision: January 20102010 Versa
Page 3061 of 3745

LT-66
< SERVICE INFORMATION >
COMBINATION SWITCH
Terminal and Reference Value for BCM
INFOID:0000000005394949
Refer to BCS-12, "Terminal and Reference Value for BCM" .
CONSULT-III Function (BCM)INFOID:0000000005394950
Refer to LT-13, "CONSULT-III Function (BCM)" .
Combination Switch InspectionINFOID:0000000005394951
1.SYSTEM CHECK
Referring to table below, check which sy stem malfunctioning switch belongs to.
>> Check the system to which the switch belongs, and GO TO 2.
2.SYSTEM CHECK
With CONSULT-III
CAUTION:
If CONSULT-III is used with no connection of CONSULT-III CONVERTER, malfunctions might be
detected in self-diagnosis depending on cont rol unit which carry out CAN communication.
1. Connect CONSULT-III, and select “COM B SW” on “SELECT TEST ITEM” screen.
2. Select “DATA MONITOR”.
3. Select “START”, and confirm that other switches in the system operate normally.
Example: When turn signal LH is inoperative, confirm that PASSING, HEAD LAMP 2 or FRONT FOG (if
equipped) turn ON-OFF normally.
Without CONSULT-III
Operating combination switch, and confirm that other switches in the system operate normally.
Example: When a turn signal switch is inoperative, confirm that FRONT WIPER LO or FRONT WIPER INT
turn ON-OFF normally.
Check results
Other switches in the system operate normall y.>>Replace lighting switch or wiper switch.
Other switches in the system do not operate normally.>>GO TO 3.

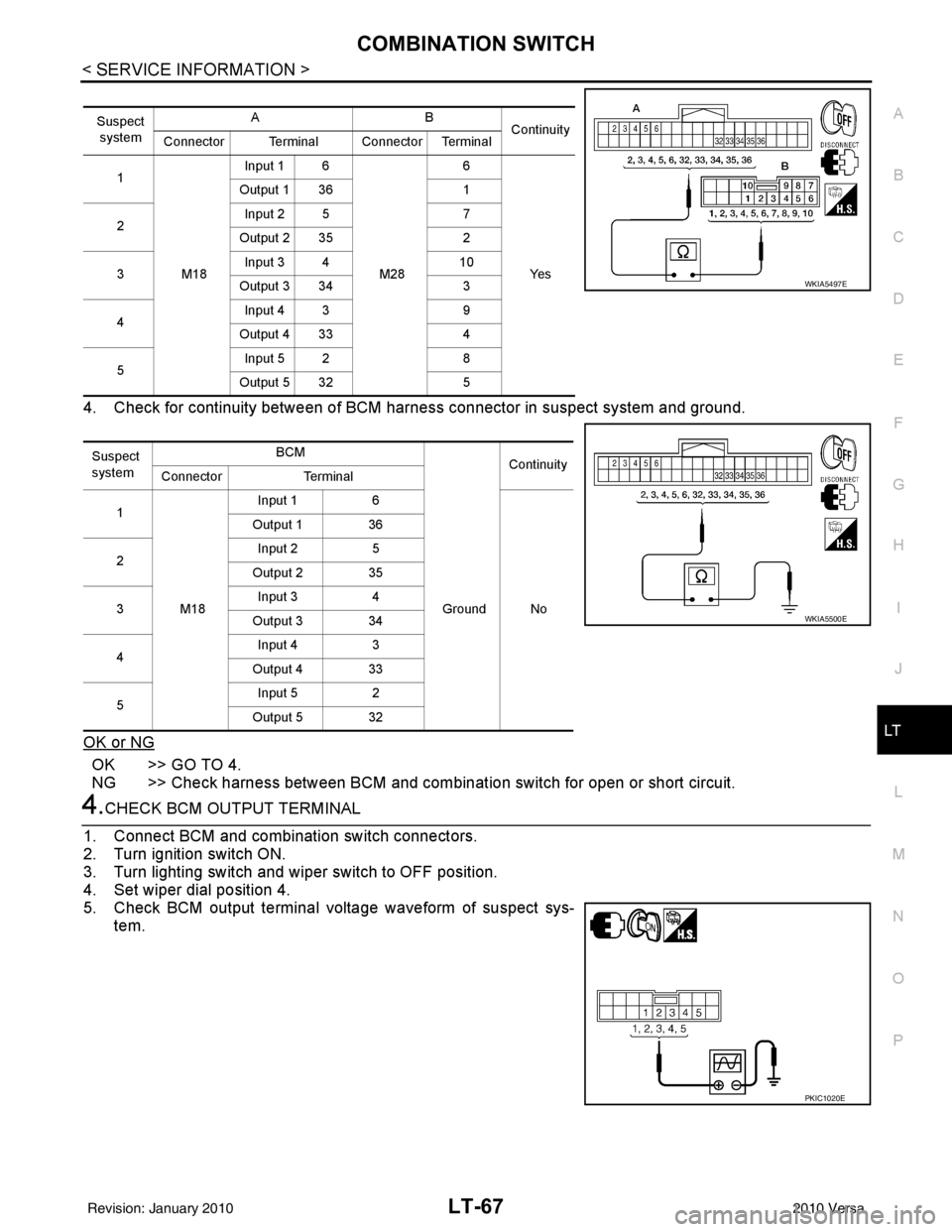

3.HARNESS INSPECTION
1. Turn ignition switch OFF.
2. Disconnect BCM connector and combination switch connector.
3. Check for continuity between BCM harness connecto r of the suspect system and the corresponding com-
bination switch harness connector.
System 1 System 2System 3System 4 System 5
— FRONT WASHER FRONT WIPER LO TURN LHTURN RH
FRONT WIPER HI —FRONT WIPER INT PASSINGHEAD LAMP 1
INT VOLUME 1 ——HEAD LAMP 2 HI BEAM
— INT VOLUME 3 ——LIGHT SW 1ST
INT VOLUME 2 ——FRONT FOG —
Revision: January 20102010 Versa
Page 3062 of 3745

COMBINATION SWITCHLT-67
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
LT
N
O P
4. Check for continuity between of BCM har ness connector in suspect system and ground.
OK or NG
OK >> GO TO 4.
NG >> Check harness between BCM and combinat ion switch for open or short circuit.
4.CHECK BCM OUTPUT TERMINAL
1. Connect BCM and combination switch connectors.
2. Turn ignition switch ON.
3. Turn lighting switch and wiper switch to OFF position.
4. Set wiper dial position 4.
5. Check BCM output terminal voltage waveform of suspect sys- tem.
Suspect
system AB
Continuity
Connector Terminal Connector Terminal
1
M18Input 1 6
M286
Ye s
Output 1 36
1
2 Input 2 5
7
Output 2 35 2
3 Input 3 4
10
Output 3 34 3
4 Input 4 3
9
Output 4 33 4
5 Input 5 2
8
Output 5 32 5
Suspect
system BCM
Continuity
Connector Terminal
1
M18 Input 1
6
Ground No
Output 1 36
2 Input 2
5
Output 2 35
3 Input 3
4
Output 3 34
4 Input 4
3
Output 4 33
5 Input 5
2
Output 5 32
WKIA5497E
WKIA5500E
PKIC1020E
Revision: January 20102010 Versa
Page 3063 of 3745
LT-68
< SERVICE INFORMATION >
COMBINATION SWITCH
OK or NG
OK >> Open circuit in combination switch, GO TO 5.
NG >> Replace BCM. Refer to BCS-19, "
Removal and Installation of BCM" .

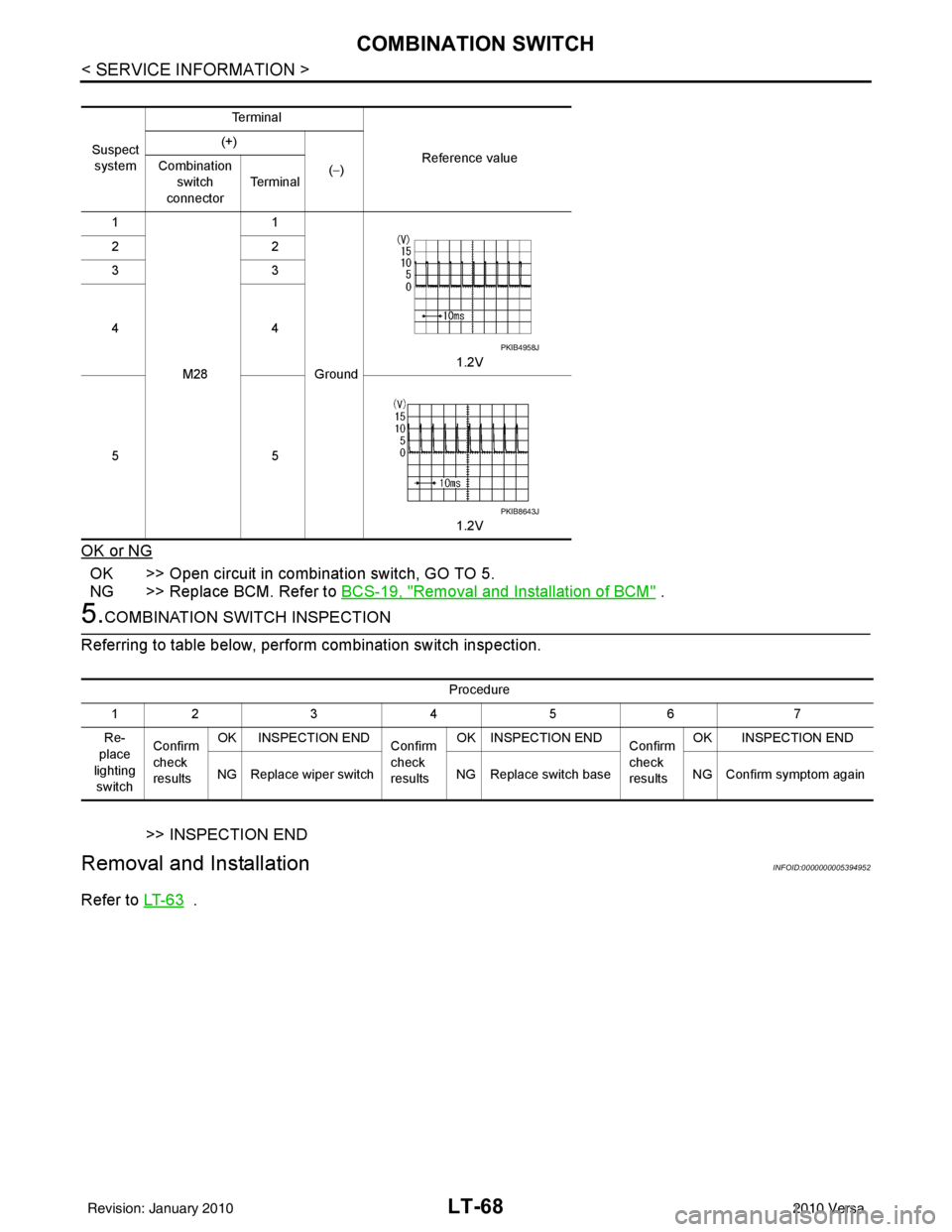

5.COMBINATION SWITCH INSPECTION
Referring to table below, perform combination switch inspection.
>> INSPECTION END
Removal and InstallationINFOID:0000000005394952
Refer to LT- 6 3 .
Suspect
system Te r m i n a l
Reference value
(+)
(−)
Combination
switch
connector Te r m i n a l
1
M28 1
Ground 1.2V
22
33
44
55
1.2V
PKIB4958J
PKIB8643J
Procedure
12 3 4 5 6 7
Re-
place
lighting switch Confirm
check
results
OK INSPECTION END
Confirm
check
resultsOK INSPECTION END
Confirm
check
resultsOK INSPECTION END
NG Replace wiper switch NG Replace switch baseNG Confirm symptom again
Revision: January 20102010 Versa
Page 3064 of 3745
STOP LAMPLT-69
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
LT
N
O P
STOP LAMP

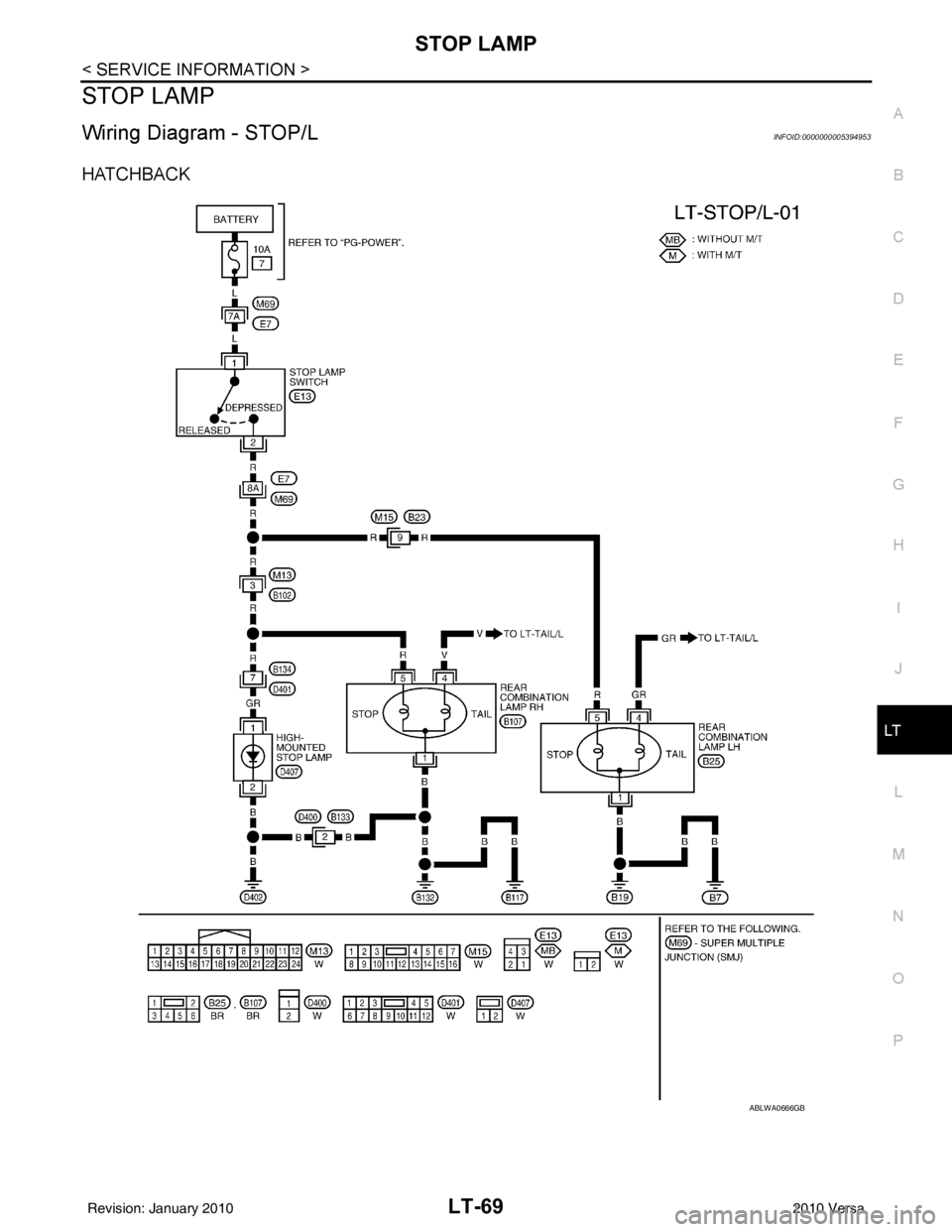

Wiring Diagram - STOP/LINFOID:0000000005394953
HATCHBACK
ABLWA0666GB
