Page 1617 of 3745

NISSAN LATIO 2010 Service Repair Manual EC-352 < COMPONENT DIAGNOSIS >[HR16DE] P0643 SENSOR POWER SUPPLY P0643 SENSOR POWER SUPPLY DTC LogicINFOID:0000000005398517 DTC DETECTION LOGIC DTC CONFIRMATION PROCEDURE 1.PRECONDITIONING If DTC Conf

Page 1618 of 3745

NISSAN LATIO 2010 Service Repair Manual P0643 SENSOR POWER SUPPLYEC-353 < COMPONENT DIAGNOSIS > [HR16DE] C D E F G H I J K L M A EC NP O Wiring DiagramINFOID:0000000005398518 Diagnosis ProcedureINFOID:0000000005398519 1.CHECK GROUND CONNECT

Page 1619 of 3745

NISSAN LATIO 2010 Service Repair Manual EC-354 < COMPONENT DIAGNOSIS >[HR16DE] P0643 SENSOR POWER SUPPLY YES >> GO TO 2. NO >> Repair or replace ground connection. 2.CHECK ACCELERATOR PEDAL POSITION SENSOR 1 POWER SUPPLY CIRCUIT 1. Disconn

Page 1620 of 3745

NISSAN LATIO 2010 Service Repair Manual P0643 SENSOR POWER SUPPLYEC-355 < COMPONENT DIAGNOSIS > [HR16DE] C D E F G H I J K L M A EC NP O 8.REPLACE ACCELERATOR PEDAL ASSEMBLY 1. Replace accelerator pedal assembly. 2. Perform EC-395, " Speci

Page 1621 of 3745

NISSAN LATIO 2010 Service Repair Manual EC-356 < COMPONENT DIAGNOSIS >[HR16DE] P0850 PNP SWITCH P0850 PNP SWITCH DescriptionINFOID:0000000005398520 When the shift lever position is Neutral, pa rk/neutral position (PNP) switch is ON. (M/T) W

Page 1622 of 3745

NISSAN LATIO 2010 Service Repair Manual P0850 PNP SWITCHEC-357 < COMPONENT DIAGNOSIS > [HR16DE] C D E F G H I J K L M A EC NP O 4. Check 1st trip DTC. Is 1st trip DTC detected? YES >> Go to EC-358, "Diagnosis Procedure". NO >> INSPECTION EN

Page 1623 of 3745

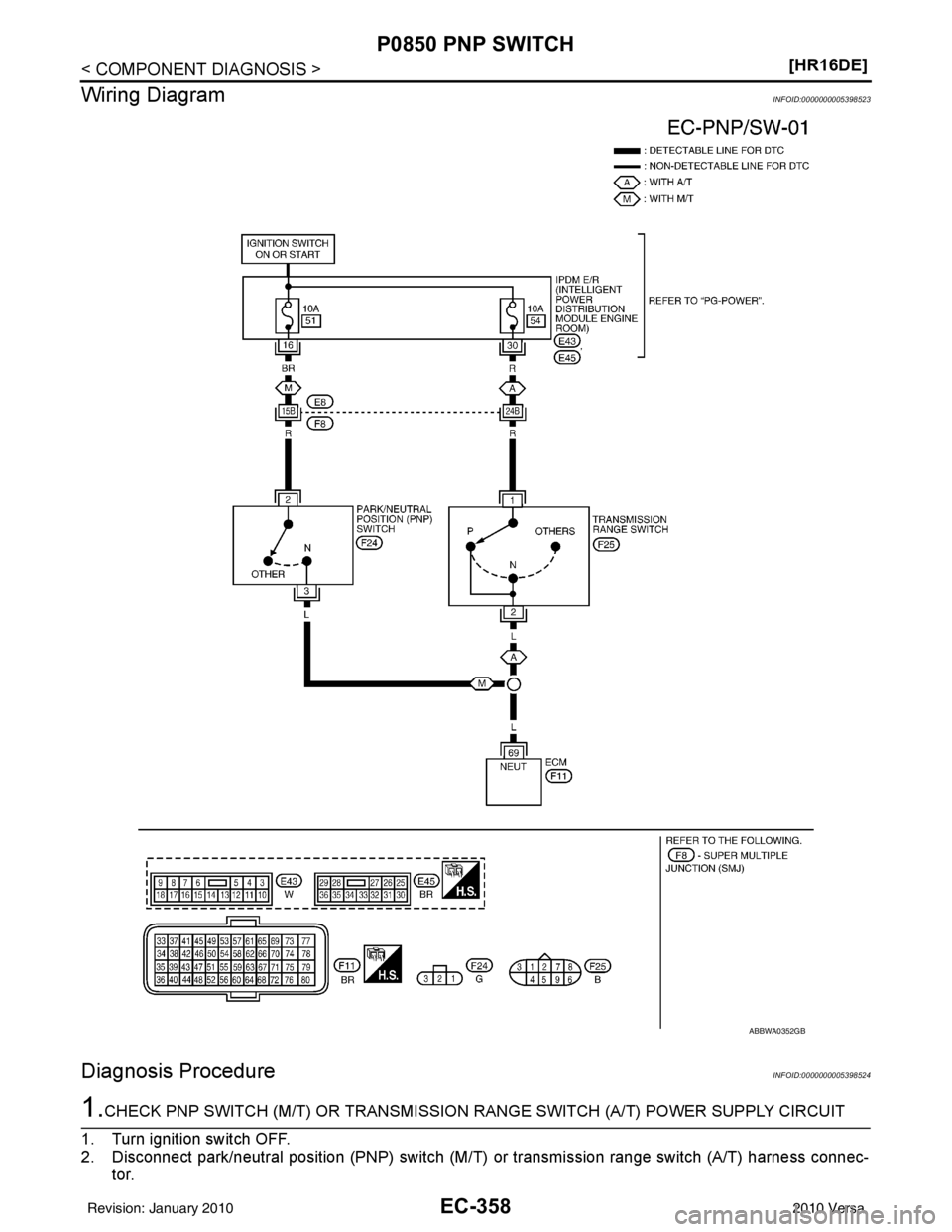

NISSAN LATIO 2010 Service Repair Manual EC-358 < COMPONENT DIAGNOSIS >[HR16DE] P0850 PNP SWITCH Wiring Diagram INFOID:0000000005398523 Diagnosis ProcedureINFOID:0000000005398524 1.CHECK PNP SWITCH (M/T) OR TRANSMISSION RANGE SWITCH (A/T)

Page 1624 of 3745

NISSAN LATIO 2010 Service Repair Manual P0850 PNP SWITCHEC-359 < COMPONENT DIAGNOSIS > [HR16DE] C D E F G H I J K L M A EC NP O 3. Turn ignition switch ON. 4. Check the voltage between PNP switch (M/T) or transmission range switch (A/T) har
