FRONT DRIVE SHAFT
• Check boot for cracks or other damage, and for grease leakage.
• If damaged, disassemble drive shaft to verify damage, and repairor replace as ne

Page 2618 of 3745

NISSAN LATIO 2010  Service Repair Manual FRONT DRIVE SHAFTFAX-13
< SERVICE INFORMATION >
CEF
G H
I
J
K L
M A
B
FA X
N
O P

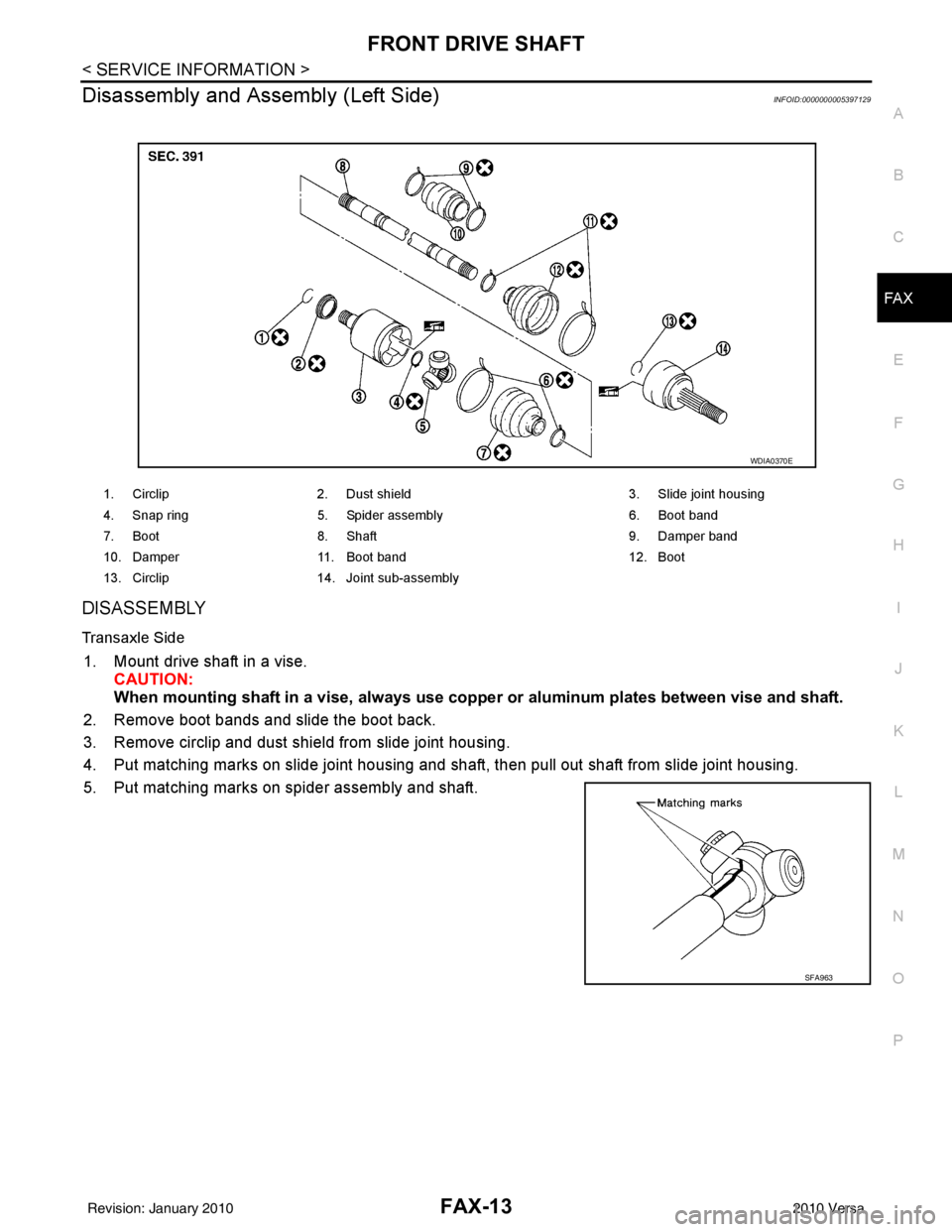

Disassembly and Assembly (Left Side)INFOID:0000000005397129
DISASSEMBLY
Transaxle Side
1. Mount drive shaft in a vise.

Page 2619 of 3745

NISSAN LATIO 2010  Service Repair Manual FAX-14
< SERVICE INFORMATION >
FRONT DRIVE SHAFT
6. Remove snap ring using a suitable tool, then remove spiderassembly from shaft.
7. Remove boot from shaft.
8. Clean the old grease off of the slide j

Page 2620 of 3745

NISSAN LATIO 2010  Service Repair Manual FRONT DRIVE SHAFTFAX-15
< SERVICE INFORMATION >
CEF
G H
I
J
K L
M A
B
FA X
N
O P

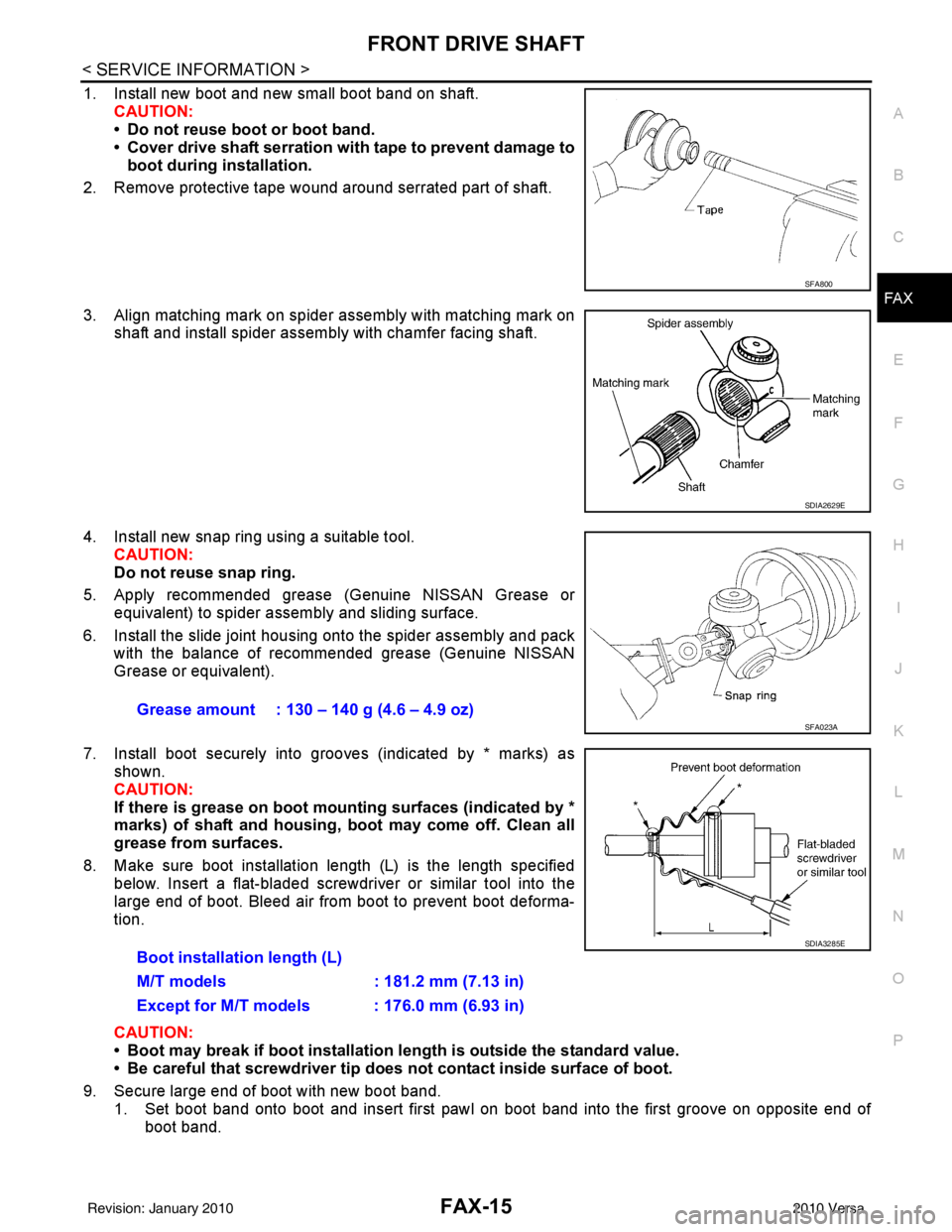

1. Install new boot and new small boot band on shaft. CAUTION:
• Do not reuse boot or boot band.
• Cover drive shaf

Page 2621 of 3745

NISSAN LATIO 2010  Service Repair Manual FAX-16
< SERVICE INFORMATION >
FRONT DRIVE SHAFT
2. Pull and tighten the boot band using suitable tool until bothpawls of boot band are secured in the boot band grooves.
CAUTION:
Do not reuse boot ban

Page 2622 of 3745

NISSAN LATIO 2010  Service Repair Manual FRONT DRIVE SHAFTFAX-17
< SERVICE INFORMATION >
CEF
G H
I
J
K L
M A
B
FA X
N
O P

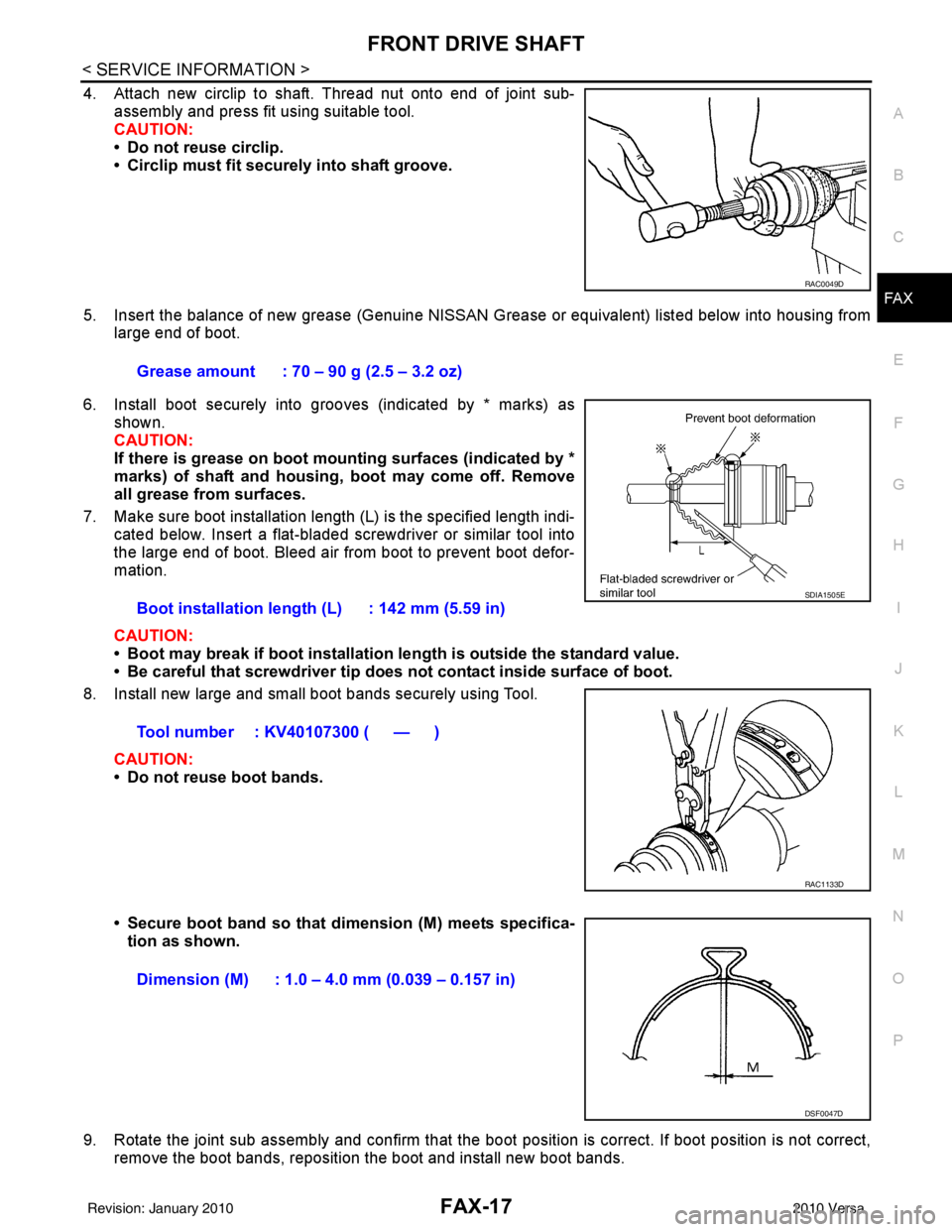

4. Attach new circlip to shaft. Thread nut onto end of joint sub- assembly and press fit using suitable tool.
CAUTION:

Page 2623 of 3745

NISSAN LATIO 2010  Service Repair Manual FAX-18
< SERVICE INFORMATION >
FRONT DRIVE SHAFT
Damper
1. Secure damper with new damper bands.CAUTION:
Do not reuse damper bands.
Disassembly and Asse mbly (Right Side)INFOID:0000000005397130
DISASSE

Page 2624 of 3745

NISSAN LATIO 2010  Service Repair Manual FRONT DRIVE SHAFTFAX-19
< SERVICE INFORMATION >
CEF
G H
I
J
K L
M A
B
FA X
N
O P
4. Put matching marks on spider assembly and shaft.
5. Remove snap ring using a suitable tool, then remove spider assem
