Page 2129 of 3745

NISSAN LATIO 2010 Service Repair Manual EC-864
< SERVICE INFORMATION >[MR18DE]
DTC P0453 EVAP CONTROL
SYSTEM PRESSURE SENSOR
1. Check harness continuity between ECM terminal 42 and EVAP control system pressure sensor terminal
2. Refer to

Page 2130 of 3745

NISSAN LATIO 2010 Service Repair Manual DTC P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR
EC-865
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
20.CHECK EVAP CANISTER
Weigh the EVAP canister with the EVAP canister vent contro

Page 2131 of 3745

NISSAN LATIO 2010 Service Repair Manual EC-866
< SERVICE INFORMATION >[MR18DE]
DTC P0455 EVAP CONTROL SYSTEM
DTC P0455 EVAP CONTROL SYSTEM
On Board Diagn
osis LogicINFOID:0000000005532717
This diagnosis detects a very large leak (fuel fille

Page 2132 of 3745

NISSAN LATIO 2010 Service Repair Manual DTC P0455 EVAP CONTROL SYSTEMEC-867
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
NOTE:
•
Make sure that EVAP hose are connected to EVAP canister purge volume control solenoid va

DTC P0455 EVAP CONTROL SYSTEMEC-867
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
NOTE:
•
Make sure that EVAP hose are connected to EVAP canister purge volume control solenoid valve
properly.
• If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
• Perform “DTC WORK SUPPORT” when the fuel level is between 1/4 and 3/4 full, and vehicle is placed
on flat level surface.
• Open engine hood before conducting the following procedure.
WITH CONSULT-III
1. Tighten fuel filler cap securely until reteaching sound is heard.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON and select “DATA MONITOR” mode with CONSULT-III.
5. Make sure that the following conditions are met.
COOLAN TEMP/S: 0 - 70 °C (32 - 158° F)
INT/A TEMP SE: 0 - 60 °C (32 - 140° F)
6. Select “EVAP SML LEAK P0442/P1442” of “EVAPORATIVE SYSTEM” in “DTC WORK SUPPORT” mode
with CONSULT-III.
Follow the instruction displayed.
NOTE:
If the engine speed cannot be maintained within the range displayed on the CONSULT-III screen, go to
EC-574, "
Basic Inspection".
7. Make sure that “OK” is displayed. If “NG” is displayed, select “SELF-DIAG RESULT S” mode with CONSULT-III and make sure that “EVAP
GROSS LEAK [P0455]” is displayed. If it is displayed, refer to EC-867, "
Diagnosis Procedure".
If P0442 is displayed, perform Diagnostic Procedure for DTC P0442, EC-816, "
Diagnosis Procedure".
WITH GST
NOTE:
Be sure to read the explanation of Driving Pattern on EC-542, "
Emission-related Diagnostic Information"
before driving vehicle.
1. Start engine.
2. Drive vehicle according to Driving Pattern, EC-542, "
Emission-related Diagnostic Information".
3. Stop vehicle.
4. Turn ignition switch OFF, wait at least 10 seconds and then turn ignition switch ON.
5. Select Service $07 with GST.
• If P0441 is displayed on the screen, go to EC-811, "
Diagnosis Procedure" for DTC P0441.
• If P0442 is displayed on the screen, go to EC-816, "
Diagnosis Procedure" for DTC P0442.
• If P0455 is displayed on the screen, go to EC-867, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000005532719
1.CHECK FUEL FILLER CAP DESIGN
1. Turn ignition switch OFF.
2. Check for genuine NISSAN fuel filler cap design.
OK or NG
OK >> GO TO 2.
NG >> Replace with genuine NISSAN fuel filler cap.
2.CHECK FUEL FILLER CAP INSTALLATION

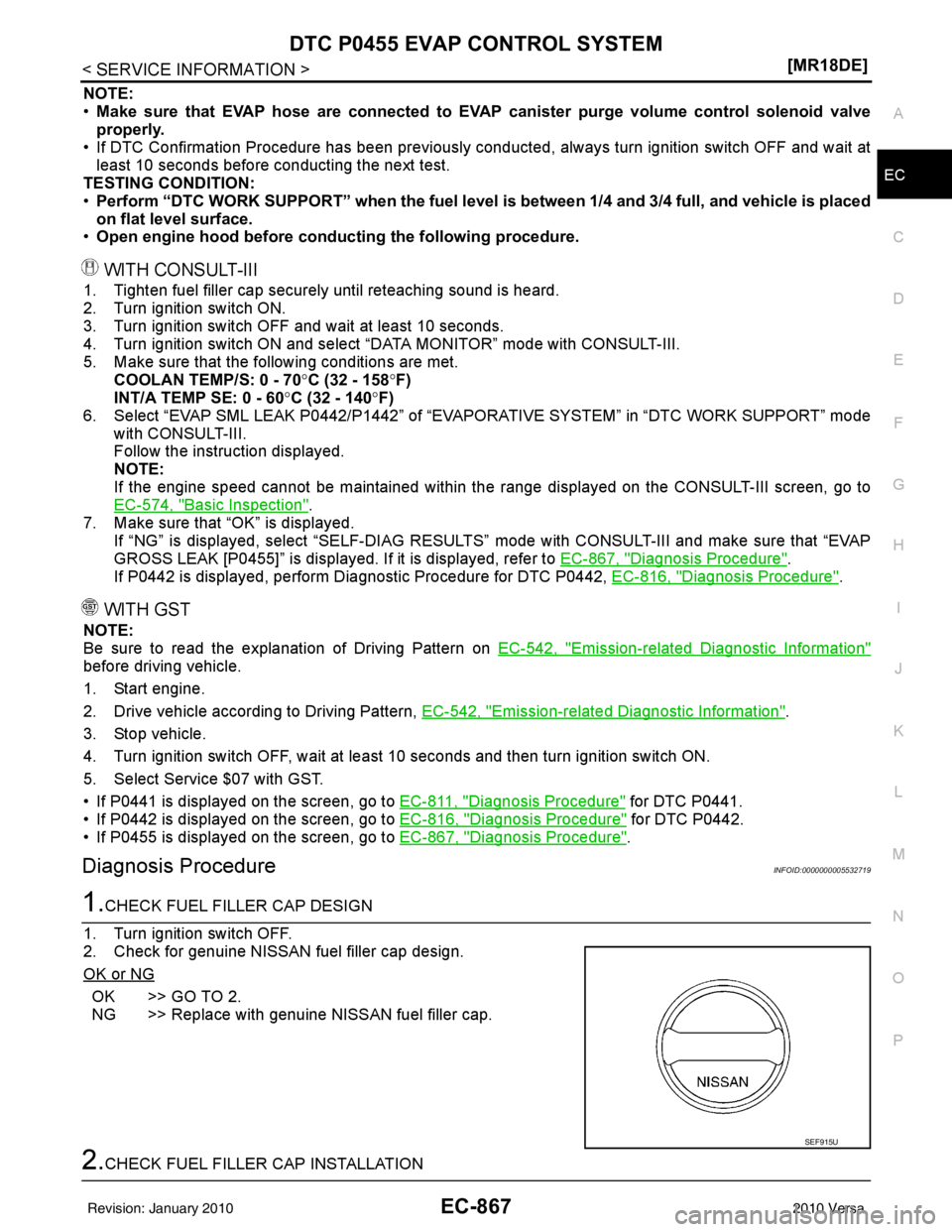

SEF915U
Revision: January 20102010 Versa

Page 2133 of 3745

NISSAN LATIO 2010 Service Repair Manual EC-868
< SERVICE INFORMATION >[MR18DE]
DTC P0455 EVAP CONTROL SYSTEM
Check that the cap is tightened proper
ly by rotating the cap clockwise.
OK or NG
OK >> GO TO 3.
NG >> 1. Open fuel filler cap, the

Page 2134 of 3745

NISSAN LATIO 2010 Service Repair Manual DTC P0455 EVAP CONTROL SYSTEMEC-869
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

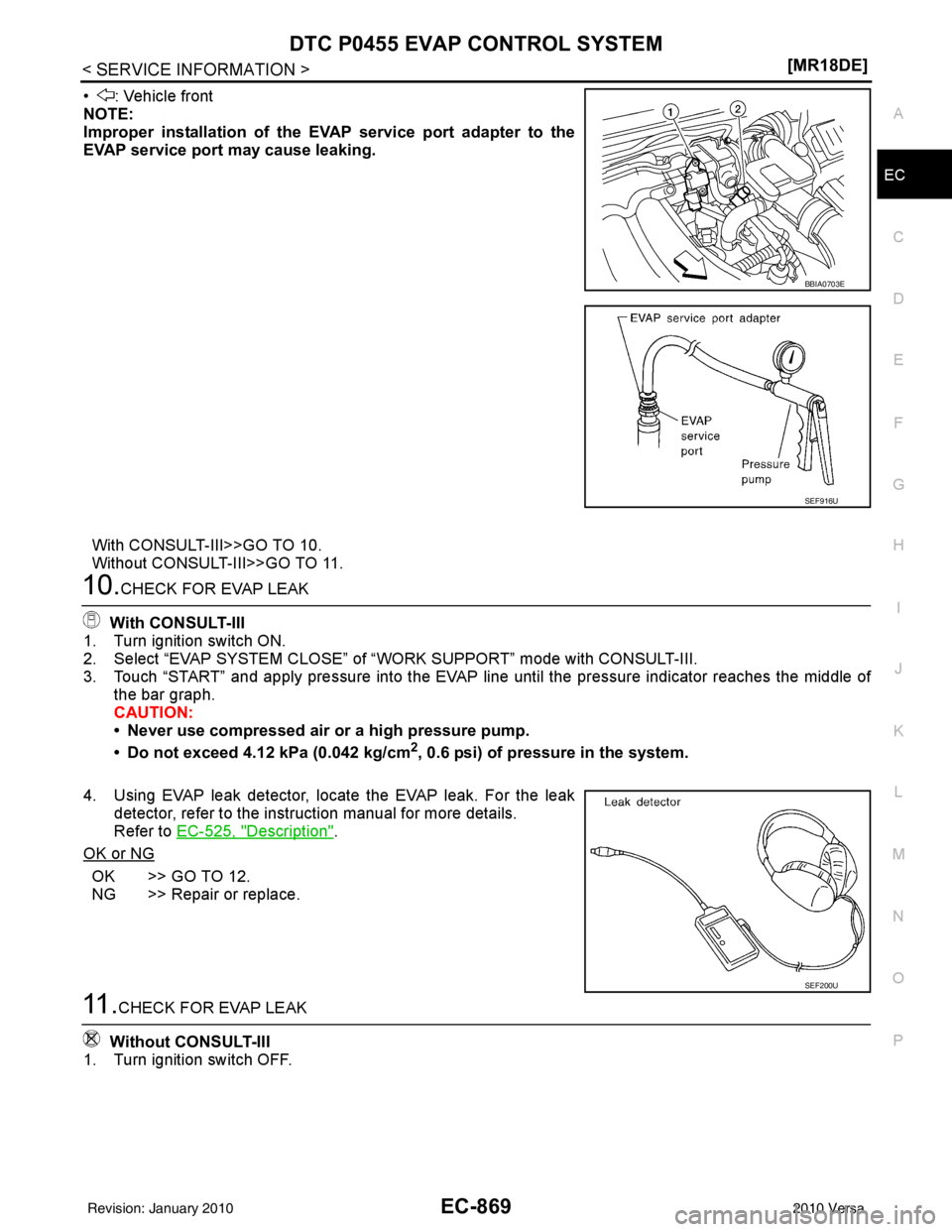

• : Vehicle front
NOTE:
Improper installation of the EV
AP service port adapter to the
EVAP servi

Page 2135 of 3745

NISSAN LATIO 2010 Service Repair Manual EC-870
< SERVICE INFORMATION >[MR18DE]
DTC P0455 EVAP CONTROL SYSTEM
2. Apply 12 volts DC to EVAP canister vent control valve (3). The
valve will close. (Continue to appl y 12 volts until the end of t

Page 2136 of 3745

NISSAN LATIO 2010 Service Repair Manual DTC P0455 EVAP CONTROL SYSTEMEC-871
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Check vacuum hoses for clogging or disconnection. Refer to
EC-602, "Vacuum Hose Drawing".
OK or NG
