NISSAN LATIO 2010 Service Repair Manual EC-440
< COMPONENT DIAGNOSIS >[HR16DE]
MALFUNCTION INDICATOR LAMP

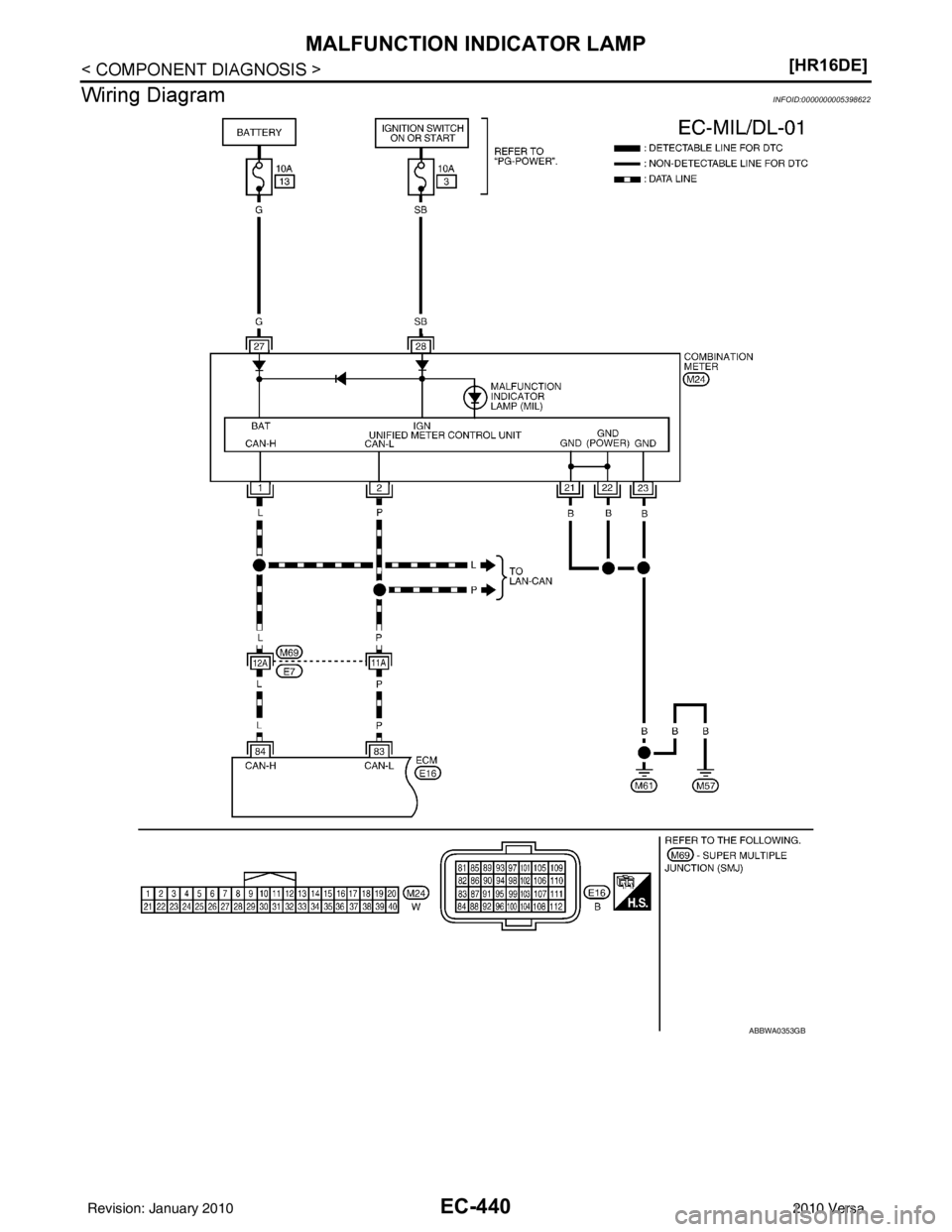

Wiring Diagram
INFOID:0000000005398622
ABBWA0353GB
Revision: January 20102010 Versa

Page 1706 of 3745

NISSAN LATIO 2010 Service Repair Manual MALFUNCTION INDICATOR LAMPEC-441
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Diagnosis ProcedureINFOID:0000000005398623
1.CHECK DTC
Check that DTC UXXXX is not displayed.
Is the i

Page 1707 of 3745

NISSAN LATIO 2010 Service Repair Manual EC-442
< COMPONENT DIAGNOSIS >[HR16DE]
MALFUNCTION INDICATOR LAMP
2.CHECK DTC WITH METER
Refer to DI-13, "
CONSULT-III Function (METER/M&A)".
Is the inspection result normal?
YES >> GO TO 3.
NO >> Re

Page 1708 of 3745

NISSAN LATIO 2010 Service Repair Manual ON BOARD REFUELING VAPOR RECOVERY (ORVR)EC-443
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
ON BOARD REFUELING VAPOR RECOVERY (ORVR)
DescriptionINFOID:0000000005398624
From the beg

ON BOARD REFUELING VAPOR RECOVERY (ORVR)EC-443
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
ON BOARD REFUELING VAPOR RECOVERY (ORVR)
DescriptionINFOID:0000000005398624
From the beginning of refueling, the air and vapor insi
de the fuel tank go through refueling EVAP vapor cut
valve and EVAP/ORVR line to the EVAP canister. The v apor is absorbed by the EVAP canister and the air is
released to the atmosphere.
When the refueling has reached the full level of the fuel tank, the refueling EVAP vapor cut valve is closed and
refueling is stopped because of auto shut-off. The vapor which was absorbed by the EVAP canister is purged
during driving.
WARNING:
When conducting inspectio ns below, be sure to observe the following:
• Put a “CAUTION: FLAMMABL E” sign in workshop.
• Do not smoke while servicing fuel system. Keep open flames and sparks away from work area.
• Be sure to furnish the workshop with a CO
2 fire extinguisher.
CAUTION:
• Before removing fuel line parts, carry out the following procedures:
- Put drained fuel in an explosion-proof containe r and put lid on securely.
- Release fuel pressure from fuel line. Refer to FL-5, "
Checking Fuel Line".
- Disconnect battery ground cable.
• Always replace O-ring when the fu el gauge retainer is removed.
• Do not kink or twist hose and tube when they are installed.
• Do not tighten hose and clamps excessively to avoid damaging hoses.
• After installation, run engine and check for fuel leaks at connection.
• Do not attempt to top off the fuel tank after the fuel pump nozzle shuts off automatically.
Continued refueling may cause fuel overflow, resulting in fuel spray and possibly a fire.
Component Function CheckINFOID:0000000005398625
1.CHECK ORVR FUNCTION
Check whether the following symptoms are present.
• Fuel odor from EVAP canister is strong.
• Cannot refuel/Fuel odor from the fuel filler opening is strong while refueling.
Is any symptom present?
YES >> Go to EC-443, "Diagnosis Procedure".
NO >> INSPECTION END
Diagnosis ProcedureINFOID:0000000005398626
1.INSPECTION START
Check whether the following symptoms are present.
A: Fuel odor from EVAP canister is strong.
JMBIA1930GB
Revision: January 20102010 Versa

Page 1709 of 3745

NISSAN LATIO 2010 Service Repair Manual EC-444
< COMPONENT DIAGNOSIS >[HR16DE]
ON BOARD REFUELING VAPOR RECOVERY (ORVR)
B: Cannot refuel/Fuel odor from the fuel
filler opening is strong while refueling.
Which symptom is present?
A>>GO TO 2

Page 1710 of 3745

NISSAN LATIO 2010 Service Repair Manual ON BOARD REFUELING VAPOR RECOVERY (ORVR)EC-445
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
YES >> GO TO 9.
NO >> GO TO 10.
9.CHECK IF EVAP CANISTER
IS SATURATED WITH WATER
Check

Page 1711 of 3745

NISSAN LATIO 2010 Service Repair Manual EC-446
< COMPONENT DIAGNOSIS >[HR16DE]
ON BOARD REFUELING VAPOR RECOVERY (ORVR)
17.CHECK ONE-WAY FUEL VALVE-I
Check one-way valve for clogging.
Is the inspection result normal?
YES >> GO TO 18.
NO >>

Page 1712 of 3745

NISSAN LATIO 2010 Service Repair Manual ON BOARD REFUELING VAPOR RECOVERY (ORVR)EC-447
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Is the inspection result normal?
YES >> INSPECTION END
NO >> Replace refueling EVAP vapo
