Page 233 of 3745

NISSAN LATIO 2010 Service Repair Manual AT-216
< SERVICE INFORMATION >
SHIFT CONTROL SYSTEM
• When installing the control cable (1) to the A/T shift selectorassembly (2), make sure that the control cable (1) is fully pressed
in with the r

Page 234 of 3745

NISSAN LATIO 2010 Service Repair Manual SHIFT CONTROL SYSTEMAT-217
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P

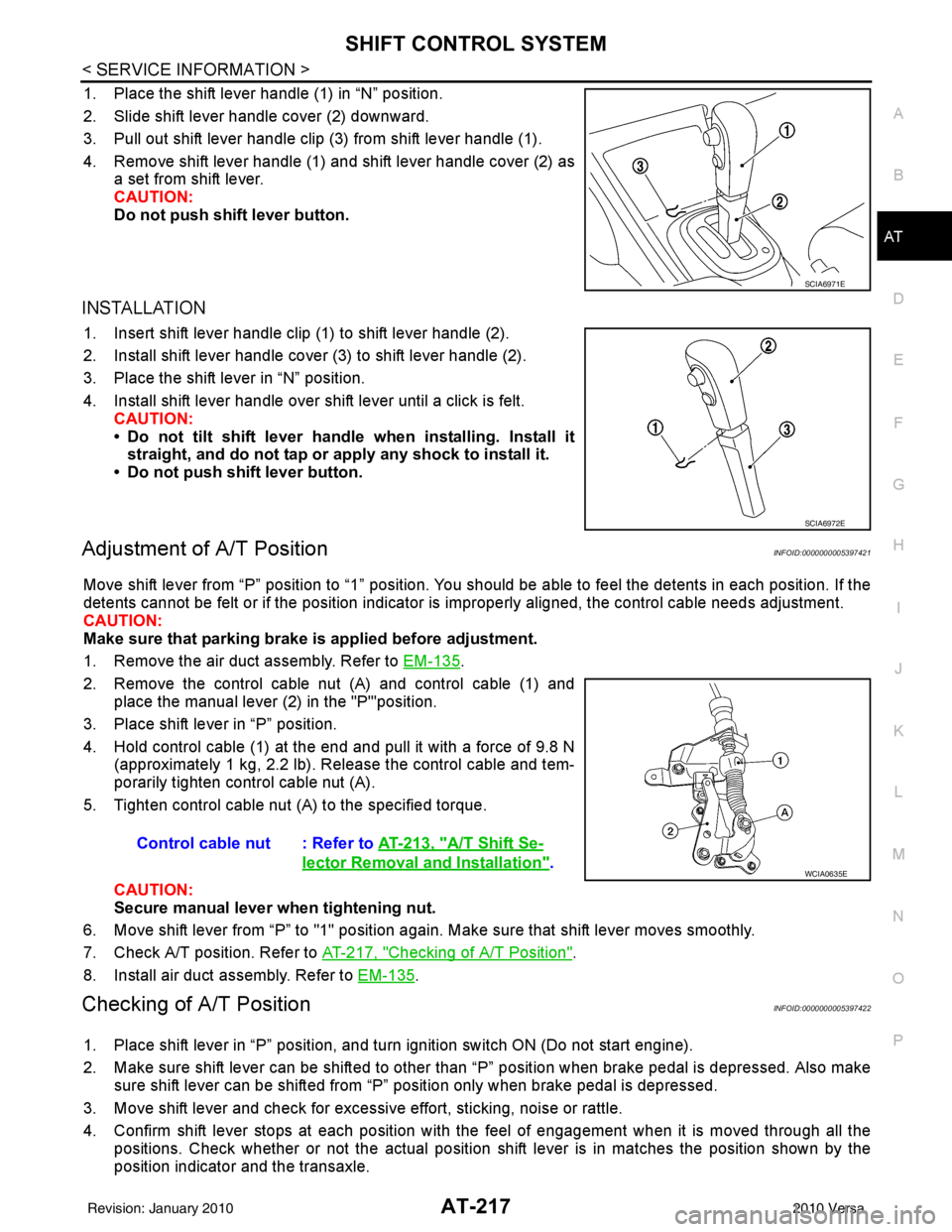

1. Place the shift lever handle (1) in “N” position.
2. Slide shift lever handle cover (2) downward.
3. Pull out

SHIFT CONTROL SYSTEMAT-217
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P
1. Place the shift lever handle (1) in “N” position.
2. Slide shift lever handle cover (2) downward.
3. Pull out shift lever handle clip (3) from shift lever handle (1).
4. Remove shift lever handle (1) and shift lever handle cover (2) as a set from shift lever.
CAUTION:
Do not push shift lever button.
INSTALLATION
1. Insert shift lever handle clip (1) to shift lever handle (2).
2. Install shift lever handle cover (3) to shift lever handle (2).
3. Place the shift lever in “N” position.
4. Install shift lever handle over shift lever until a click is felt.CAUTION:
• Do not tilt shift lever handle when installing. Install it
straight, and do not tap or ap ply any shock to install it.
• Do not push shift lever button.
Adjustment of A/T PositionINFOID:0000000005397421
Move shift lever from “P” position to “1” position. You should be able to feel the detents in each position. If the
detents cannot be felt or if the position indicator is improperly aligned, the control cable needs adjustment.
CAUTION:
Make sure that parking brake is applied before adjustment.
1. Remove the air duct assembly. Refer to EM-135
.
2. Remove the control cable nut (A) and control cable (1) and place the manual lever (2) in the "P'"position.
3. Place shift lever in “P” position.
4. Hold control cable (1) at the end and pull it with a force of 9.8 N (approximately 1 kg, 2.2 lb). Release the control cable and tem-
porarily tighten control cable nut (A).
5. Tighten control cable nut (A) to the specified torque.
CAUTION:
Secure manual lever when tightening nut.
6. Move shift lever from “P” to "1" position again. Make sure that shift lever moves smoothly.
7. Check A/T position. Refer to AT-217, "
Checking of A/T Position".
8. Install air duct assembly. Refer to EM-135
.
Checking of A/T PositionINFOID:0000000005397422
1. Place shift lever in “P” position, and turn ignition switch ON (Do not start engine).
2. Make sure shift lever can be shifted to other t han “P” position when brake pedal is depressed. Also make
sure shift lever can be shifted from “P” position only when brake pedal is depressed.
3. Move shift lever and check for excessive effort, sticking, noise or rattle.
4. Confirm shift lever stops at each position with the feel of engagement when it is moved through all the positions. Check whether or not the actual position shift lever is in matches the position shown by the
position indicator and the transaxle.
SCIA6971E
SCIA6972E
Control cable nut : Refer to AT-213, "A/T Shift Se-
lector Removal and Installation".WCIA0635E
Revision: January 20102010 Versa

Page 235 of 3745

NISSAN LATIO 2010 Service Repair Manual AT-218
< SERVICE INFORMATION >
SHIFT CONTROL SYSTEM
5. The method of operating shift lever to individual positions cor-rectly should be as shown.
• (A): Press shift lever button to operate selector

Page 236 of 3745

NISSAN LATIO 2010 Service Repair Manual KEY INTERLOCK CABLEAT-219
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P

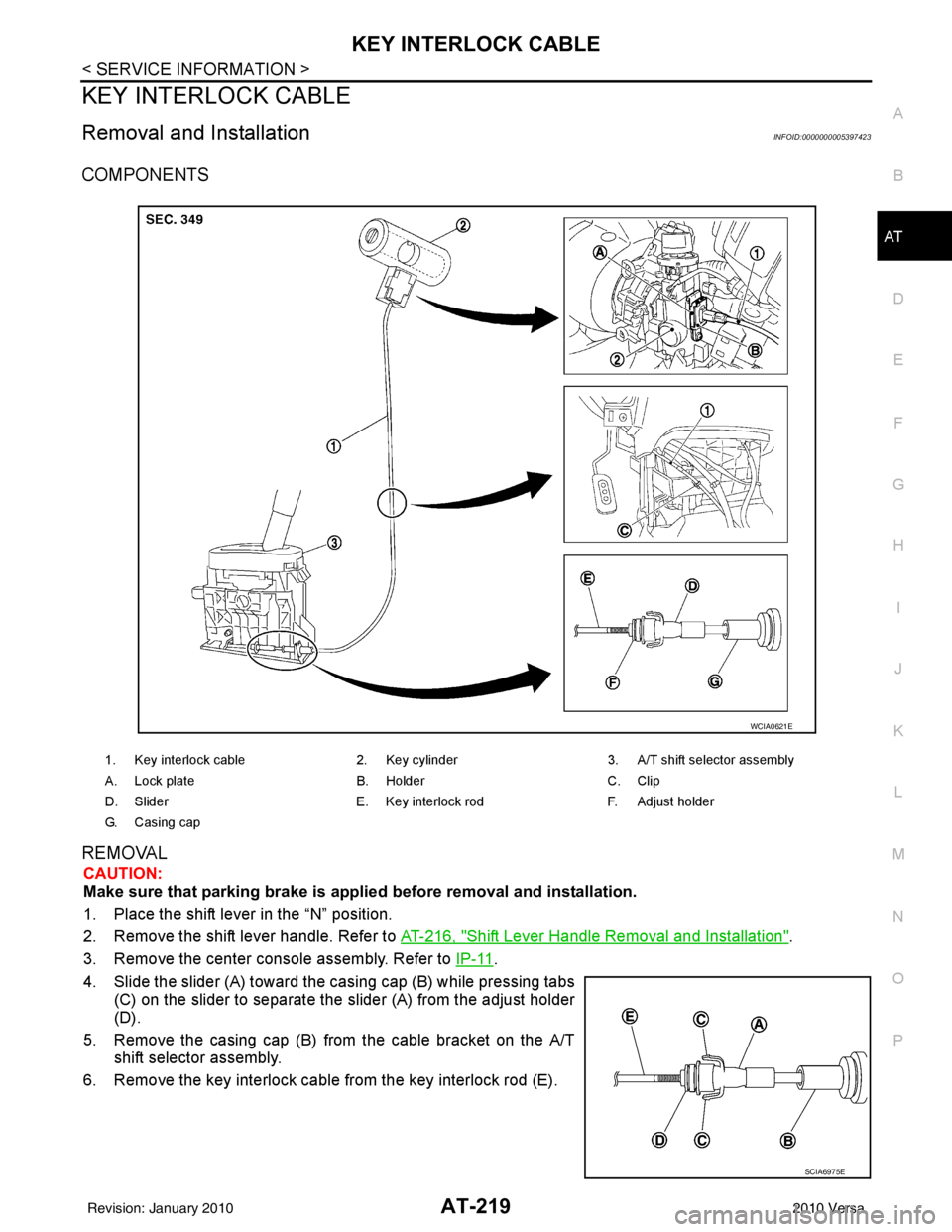

KEY INTERLOCK CABLE
Removal and InstallationINFOID:0000000005397423
COMPONENTS
REMOVAL
CAUTION:
Make sure that parking

Page 237 of 3745

NISSAN LATIO 2010 Service Repair Manual AT-220
< SERVICE INFORMATION >
KEY INTERLOCK CABLE
7. Remove steering column cover (upper and lower) and instru-ment lower finisher. Refer to IP-11
.
8. Pull out the lock plate (A) from the holder (B

Page 238 of 3745

NISSAN LATIO 2010 Service Repair Manual KEY INTERLOCK CABLEAT-221
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P
8. Slide the slider (A) toward the key interlock rod (D) while press- ing the pull lock (B) down to securely connect t

Page 239 of 3745

NISSAN LATIO 2010 Service Repair Manual AT-222
< SERVICE INFORMATION >
ON-VEHICLE SERVICE
ON-VEHICLE SERVICE

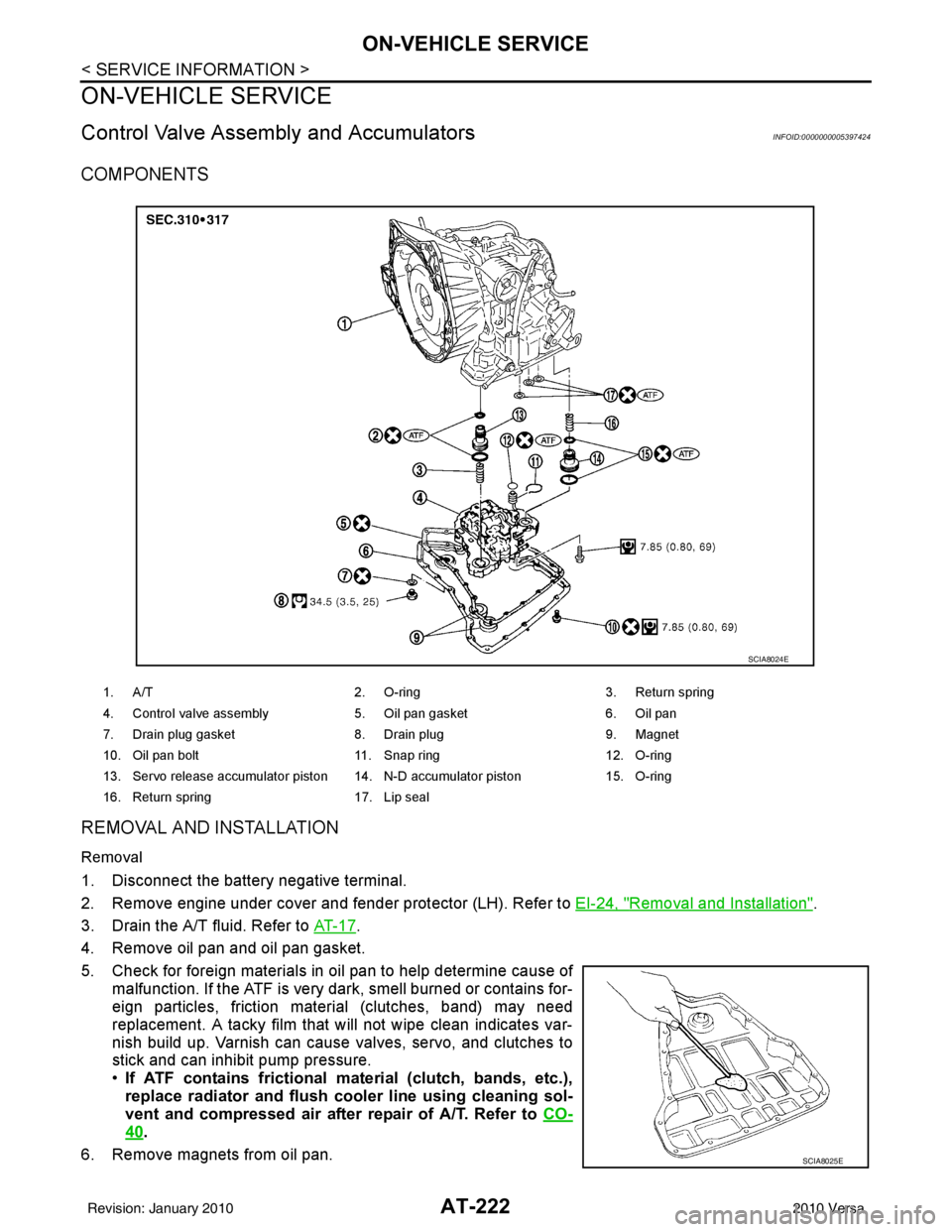

Control Valve Assembly and AccumulatorsINFOID:0000000005397424
COMPONENTS
REMOVAL AND INSTALLATION
Removal
1. Disconnect the batter

Page 240 of 3745

NISSAN LATIO 2010 Service Repair Manual ON-VEHICLE SERVICEAT-223
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P

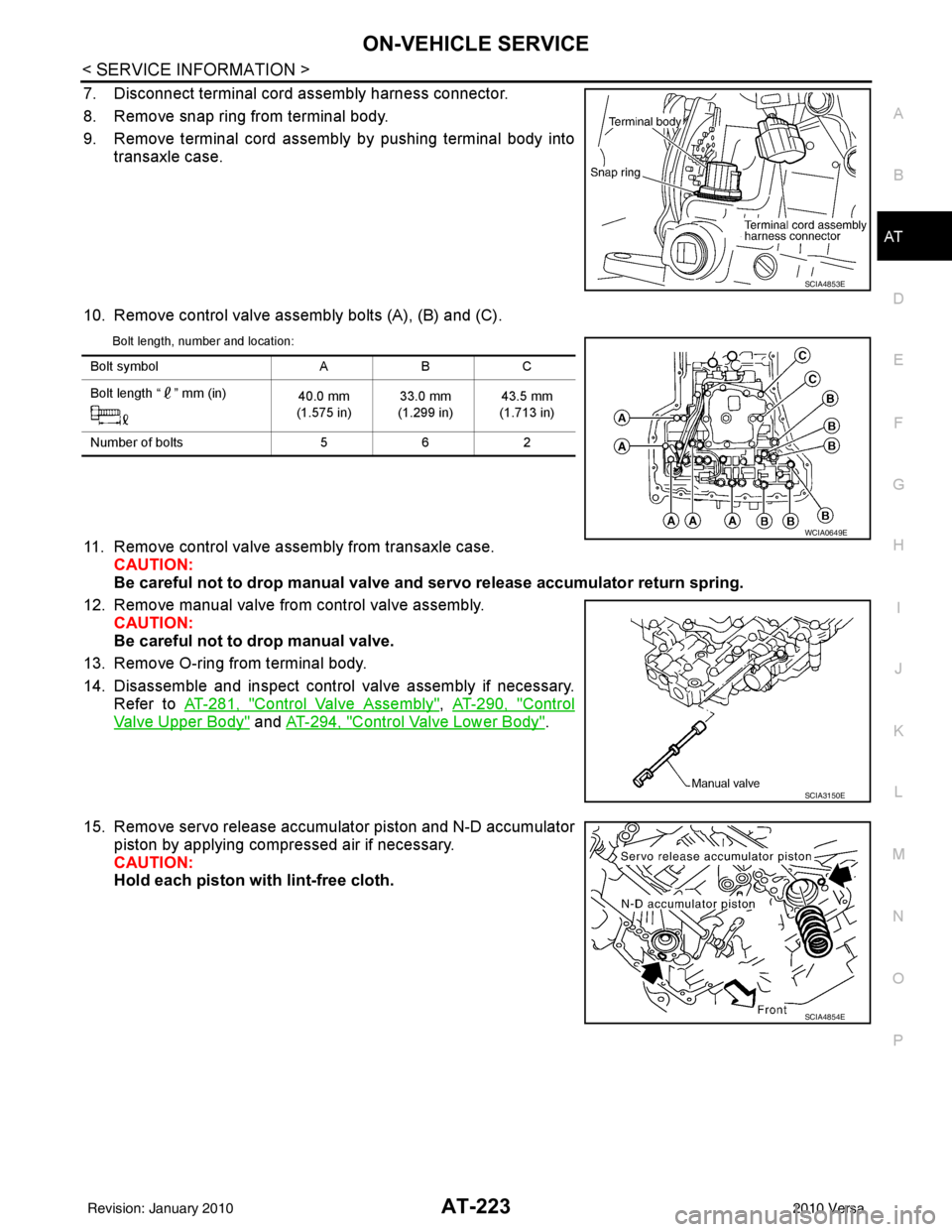

7. Disconnect terminal cord assembly harness connector.
8. Remove snap ring from terminal body.
9. Remove terminal cord
