Page 1449 of 3745

NISSAN LATIO 2010 Service Repair Manual EC-184
< COMPONENT DIAGNOSIS >[HR16DE]
P0131 A/F SENSOR 1
Wiring Diagram
INFOID:0000000005398367
Diagnosis ProcedureINFOID:0000000005398368
1.CHECK GROUND CONNECTION
1. Turn ignition switch OFF.
2. Ch

Page 1450 of 3745

NISSAN LATIO 2010 Service Repair Manual P0131 A/F SENSOR 1EC-185
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
YES >> GO TO 2.
NO >> Repair or replace ground connection.
2.CHECK AIR FUEL RATIO (A/F) SENSOR 1 POWER SUPPLY

Page 1451 of 3745

NISSAN LATIO 2010 Service Repair Manual EC-186
< COMPONENT DIAGNOSIS >[HR16DE]
P0131 A/F SENSOR 1
Perform
EC-114, "Diagnosis Procedure".
Is the inspection result normal?
YES >> GO TO 6.
NO >> Repair or replace.
6.REPLACE AIR FUEL RATIO (A/

Page 1452 of 3745

NISSAN LATIO 2010 Service Repair Manual P0132 A/F SENSOR 1EC-187
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
P0132 A/F SENSOR 1

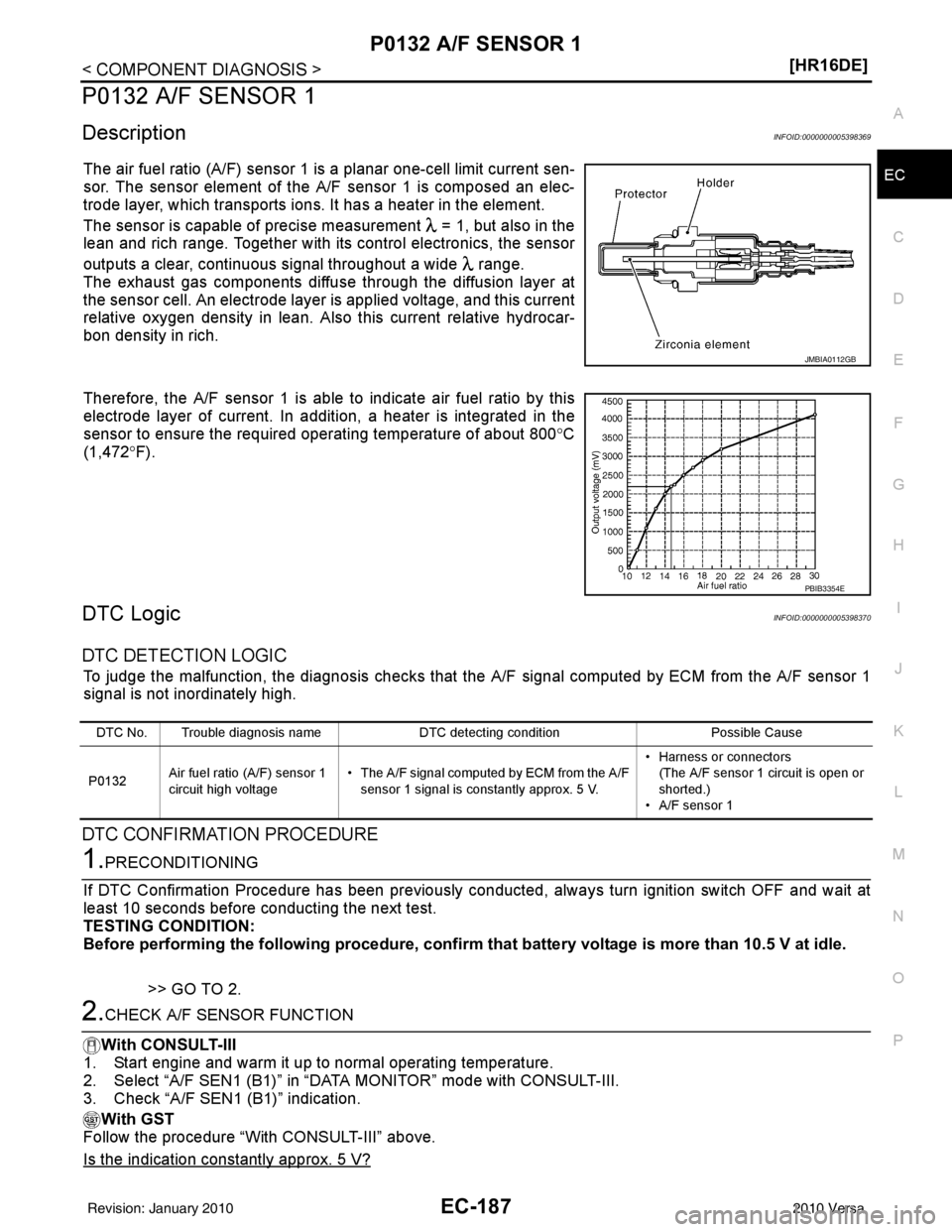

DescriptionINFOID:0000000005398369
The air fuel ratio (A/F) sensor 1 is a planar one-cell l

P0132 A/F SENSOR 1EC-187
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
P0132 A/F SENSOR 1
DescriptionINFOID:0000000005398369
The air fuel ratio (A/F) sensor 1 is a planar one-cell limit current sen-
sor. The sensor element of the A/F sensor 1 is composed an elec-
trode layer, which transports ions. It has a heater in the element.
The sensor is capable of precise m
easurement = 1, but also in the
lean and rich range. Together with its control electronics, the sensor
outputs a clear, continuous signal throughout a wide range.
The exhaust gas components diffuse through the diffusion layer at
the sensor cell. An electrode layer is applied voltage, and this current
relative oxygen density in lean. Also this current relative hydrocar-
bon density in rich.
Therefore, the A/F sensor 1 is able to indicate air fuel ratio by this
electrode layer of current. In addition, a heater is integrated in the
sensor to ensure the required operating temperature of about 800 °C
(1,472 °F).
DTC LogicINFOID:0000000005398370
DTC DETECTION LOGIC
To judge the malfunction, the diagnosis checks that the A/F signal computed by ECM from the A/F sensor 1
signal is not inordinately high.
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10.5 V at idle.
>> GO TO 2.
2.CHECK A/F SENSOR FUNCTION
With CONSULT-III
1. Start engine and warm it up to normal operating temperature.
2. Select “A/F SEN1 (B1)” in “DAT A MONITOR” mode with CONSULT-III.
3. Check “A/F SEN1 (B1)” indication.
With GST
Follow the procedure “With CONSULT-III” above.
Is the indication constantly approx. 5 V?
JMBIA0112GB
PBIB3354E
DTC No. Trouble diagnosis name DTC detecting conditionPossible Cause
P0132 Air fuel ratio (A/F) sensor 1
circuit high voltage • The A/F signal computed by ECM from the A/F
sensor 1 signal is constantly approx. 5 V. • Harness or connectors
(The A/F sensor 1 circuit is open or
shorted.)
• A/F sensor 1
Revision: January 20102010 Versa

Page 1453 of 3745

NISSAN LATIO 2010 Service Repair Manual EC-188
< COMPONENT DIAGNOSIS >[HR16DE]
P0132 A/F SENSOR 1
YES >> Go to EC-189, "Diagnosis Procedure".
NO >> GO TO 3.
3.PERFORM DTC CONFIRMATION PROCEDURE
With CONSULT-III
1. Turn ignition switch OFF,

Page 1454 of 3745

NISSAN LATIO 2010 Service Repair Manual P0132 A/F SENSOR 1EC-189
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

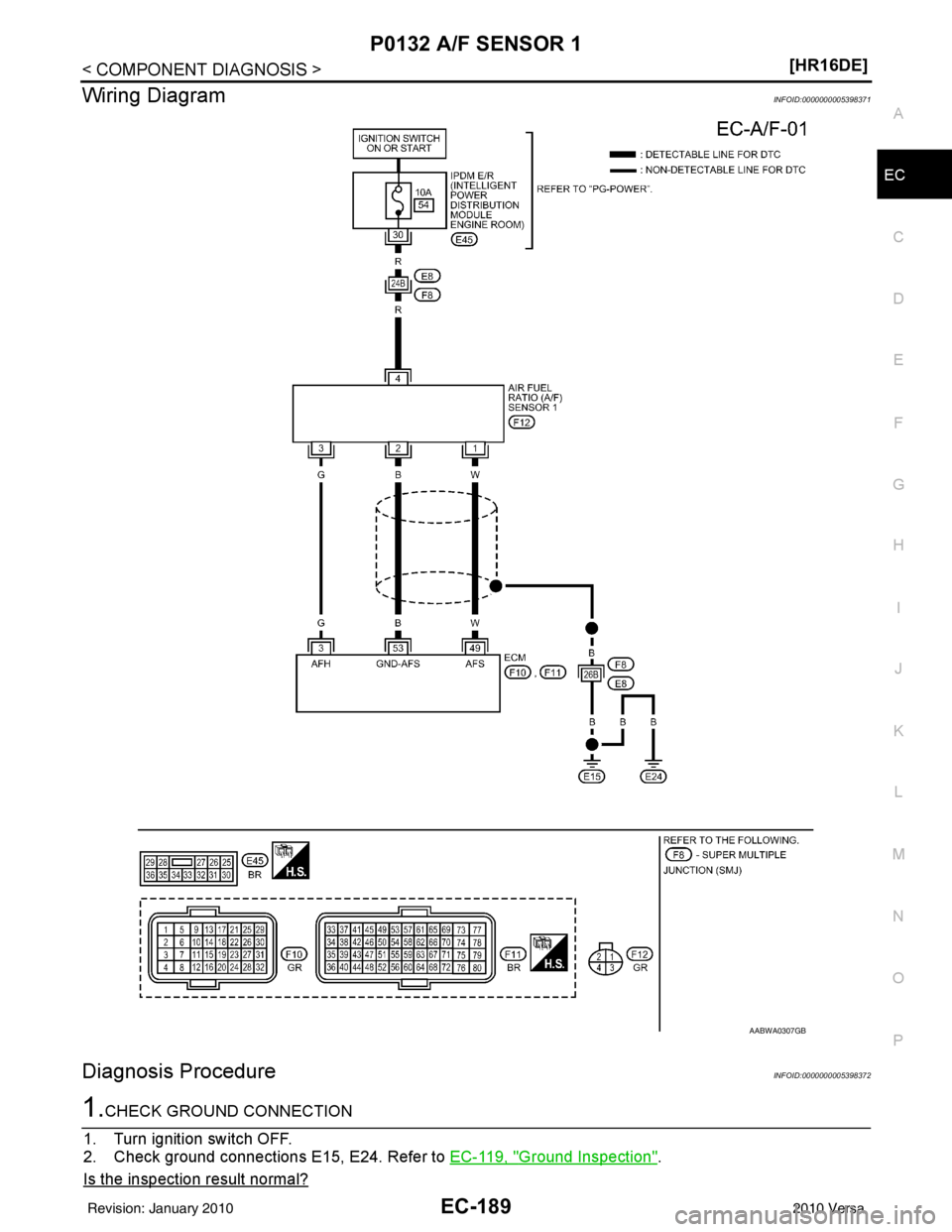

Wiring DiagramINFOID:0000000005398371
Diagnosis ProcedureINFOID:0000000005398372

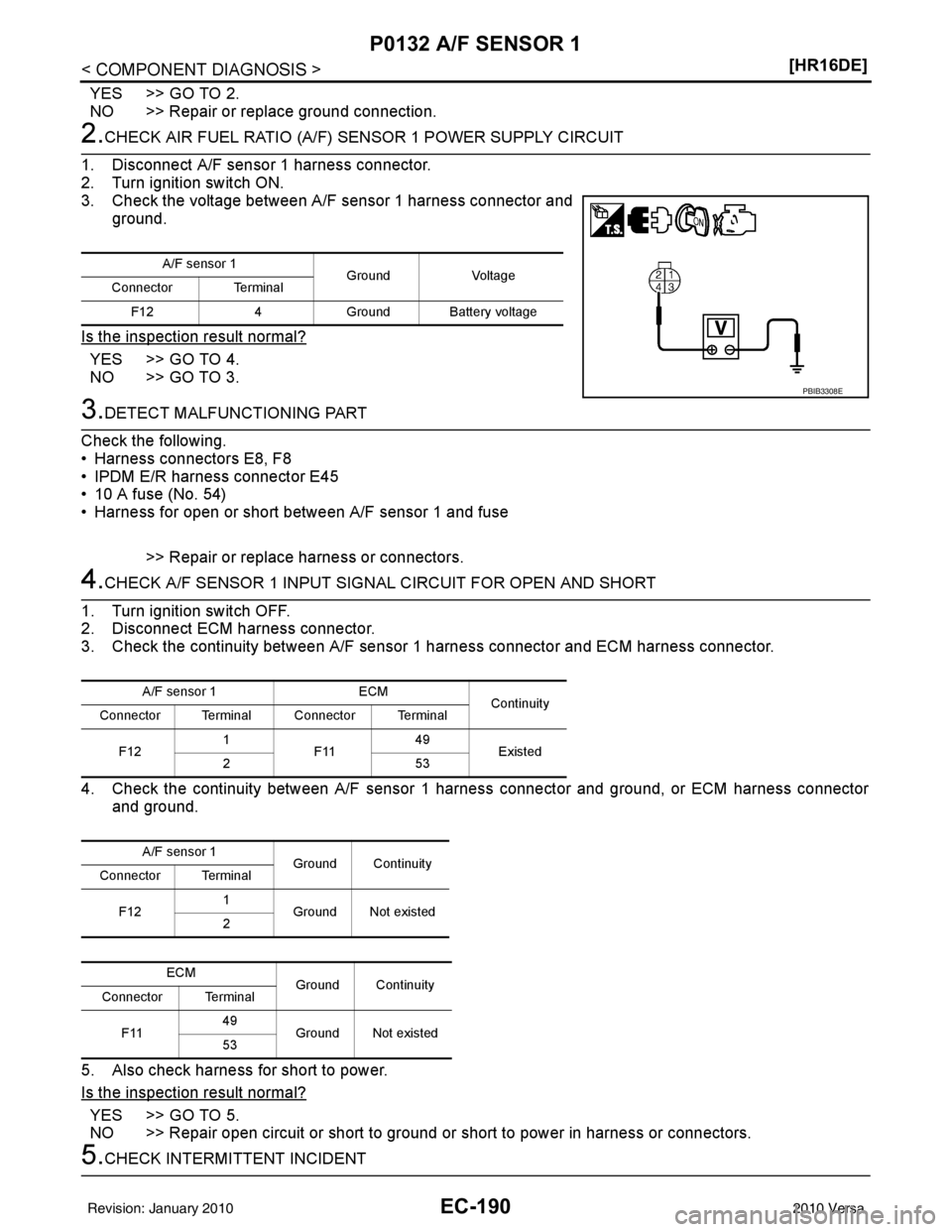

1.CHECK GROUND CONNECTION
1.

Page 1455 of 3745

NISSAN LATIO 2010 Service Repair Manual EC-190
< COMPONENT DIAGNOSIS >[HR16DE]
P0132 A/F SENSOR 1
YES >> GO TO 2.
NO >> Repair or replace ground connection.
2.CHECK AIR FUEL RATIO (A/F) SENSOR 1 POWER SUPPLY CIRCUIT
1. Disconnect A/F sensor

Page 1456 of 3745

NISSAN LATIO 2010 Service Repair Manual P0132 A/F SENSOR 1EC-191
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Perform
EC-114, "Diagnosis Procedure".
Is the inspection result normal?
YES >> GO TO 6.
NO >> Repair or repla
