NISSAN LATIO 2010 Service Repair Manual EC-296
< COMPONENT DIAGNOSIS >[HR16DE]
P0447 EVAP CANISTER VENT CONTROL VALVE

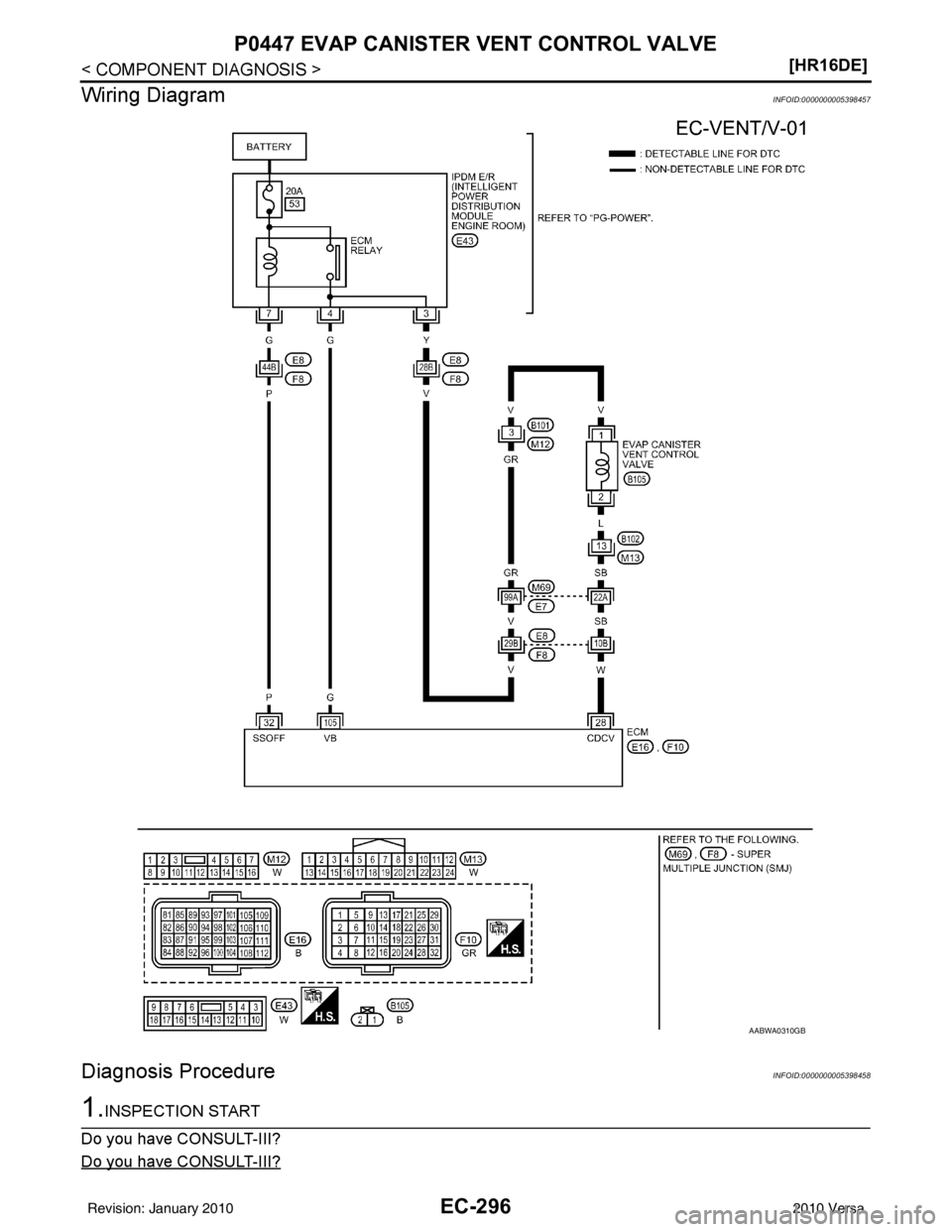

Wiring Diagram
INFOID:0000000005398457
Diagnosis ProcedureINFOID:0000000005398458
1.INSPECTION START
Do you have CONSULT-I

Page 1562 of 3745

NISSAN LATIO 2010 Service Repair Manual P0447 EVAP CANISTER VENT CONTROL VALVEEC-297
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
YES >> GO TO 2.
NO >> GO TO 3.
2.CHECK EVAP CANISTER VENT CONTROL VALVE CIRCUIT
With CONSU

Page 1563 of 3745

NISSAN LATIO 2010 Service Repair Manual EC-298
< COMPONENT DIAGNOSIS >[HR16DE]
P0447 EVAP CANISTER VENT CONTROL VALVE
• Harness connectors E7, M69
• Harness connectors M13, B102
• Harness for open or short between EVAP canister vent c

Page 1564 of 3745

NISSAN LATIO 2010 Service Repair Manual P0447 EVAP CANISTER VENT CONTROL VALVEEC-299
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

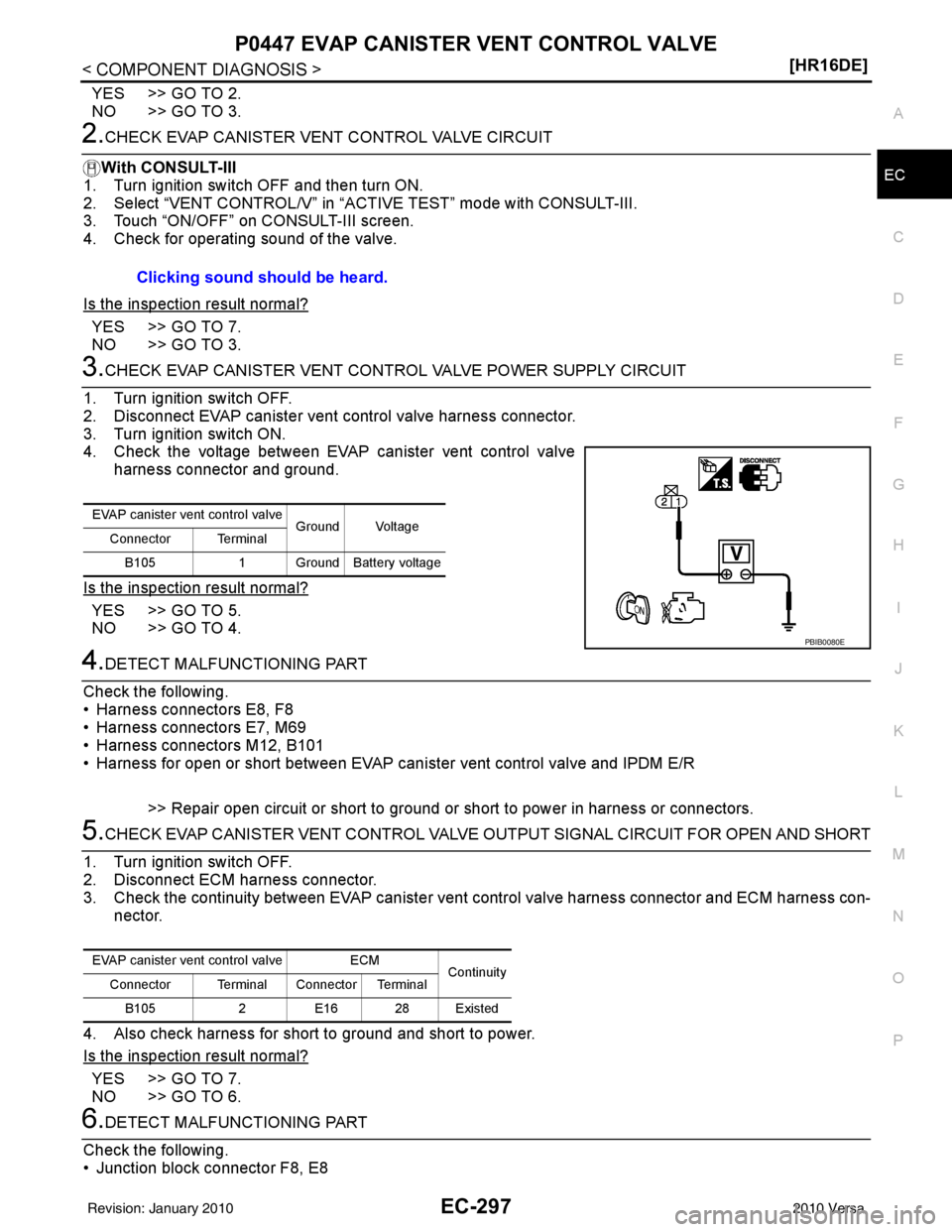

Operation takes less than 1 second.
Is the inspection result normal?
YES >> GO TO 3.
NO >>

Page 1565 of 3745

NISSAN LATIO 2010 Service Repair Manual EC-300
< COMPONENT DIAGNOSIS >[HR16DE]
P0448 EVAP CANISTER VENT CONTROL VALVE
P0448 EVAP CANISTER VENT CONTROL VALVE
DescriptionINFOID:0000000005398460
The EVAP canister vent control
valve is located

EC-300
< COMPONENT DIAGNOSIS >[HR16DE]
P0448 EVAP CANISTER VENT CONTROL VALVE
P0448 EVAP CANISTER VENT CONTROL VALVE
DescriptionINFOID:0000000005398460
The EVAP canister vent control
valve is located on the EVAP canis-
ter and is used to seal the canister vent.
This solenoid valve responds to signals from the ECM. When the
ECM sends an ON signal, the coil in the solenoid valve is energized.
A plunger will then move to seal the canister vent. The ability to seal
the vent is necessary for the on board diagnosis of other evaporative
emission control system components.
This solenoid valve is used only for diagnosis, and usually remains
opened.
When the vent is closed, under normal purge conditions, the evapo-
rative emission control system is depressurized and allows “EVAP
Control System” diagnosis.
DTC LogicINFOID:0000000005398461
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
>> GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE
With CONSULT-III
1. Turn ignition switch ON and wait at least 5 seconds.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Turn ignition switch ON and select “DATA MONITOR” mode with CONSULT-III.
4. Start engine and let it idle for at least 1 minute.
5. Repeat next procedures three times.

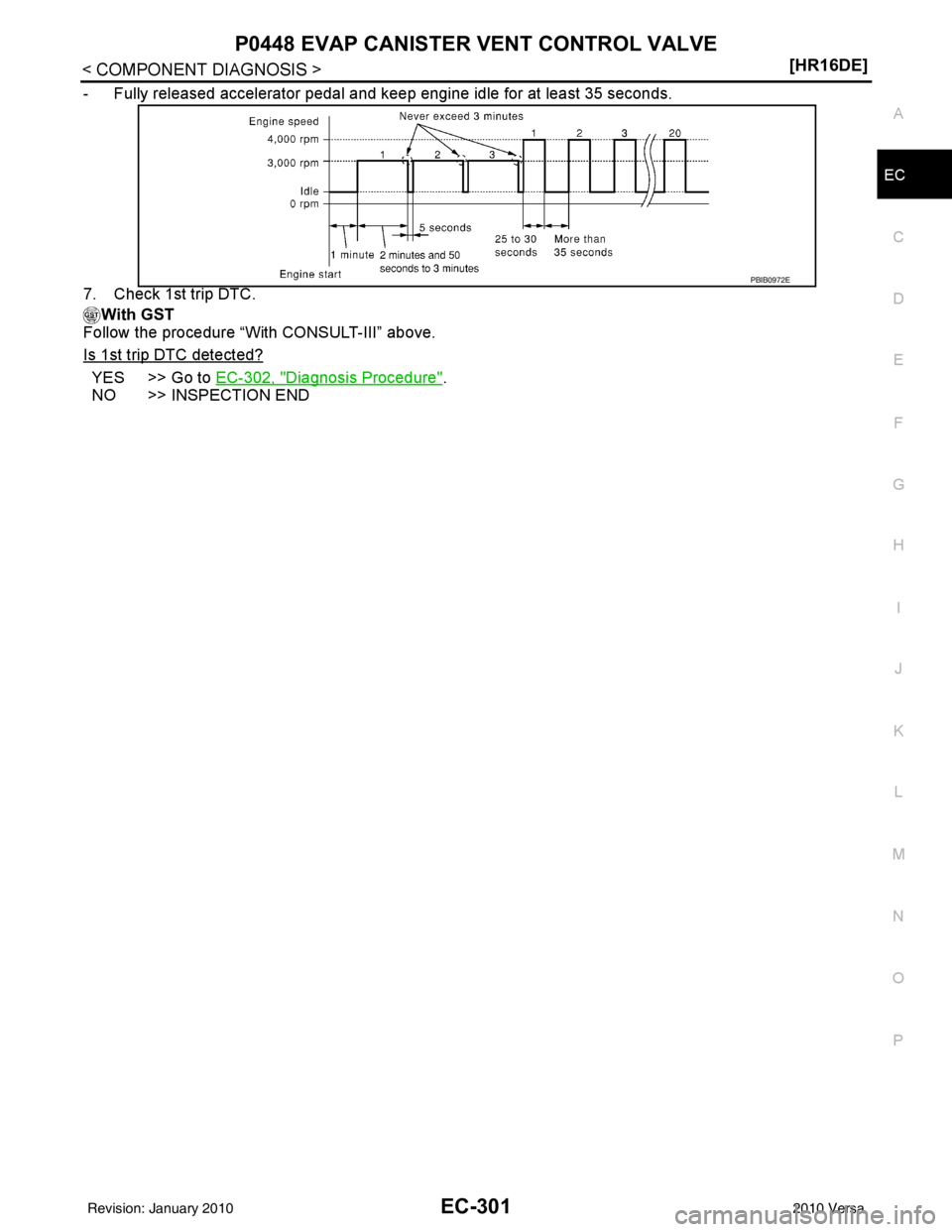

- Increase the engine speed up to 3,000 to 3,500 rpm and keep it for 2 minutes and 50 seconds to 3 min-
utes.
Never exceed 3 minutes.
- Fully released accelerator pedal and keep engine idle for about 5 seconds.
6. Repeat next procedure 20 times.
- Quickly increase the engine speed up to 4,000 to 4,500 rpm or more and keep it for 25 to 30 seconds.
PBIB1263E
DTC No. Trouble diagnosis name DTC detecting conditionPossible cause
P0448 EVAP canister vent control
valve close EVAP canister vent control valve remains
closed under specified driving conditions. • EVAP canister vent control valve
• EVAP control system pressure sensor
and the circuit
• Blocked rubber tube to EVAP canister
vent control valve
• EVAP canister is saturated with water
Revision: January 20102010 Versa

Page 1566 of 3745

NISSAN LATIO 2010 Service Repair Manual P0448 EVAP CANISTER VENT CONTROL VALVEEC-301
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
- Fully released accelerator pedal and keep engine idle for at least 35 seconds.
7. Check

Page 1567 of 3745

NISSAN LATIO 2010 Service Repair Manual EC-302
< COMPONENT DIAGNOSIS >[HR16DE]
P0448 EVAP CANISTER VENT CONTROL VALVE
Wiring Diagram
INFOID:0000000005398462
Diagnosis ProcedureINFOID:0000000005398463
1.CHECK RUBBER TUBE
1. Turn ignition swi

Page 1568 of 3745

NISSAN LATIO 2010 Service Repair Manual P0448 EVAP CANISTER VENT CONTROL VALVEEC-303
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Is the inspection result normal?
YES >> GO TO 2.
NO >> Clean rubber tube using an air blow
