Page 1905 of 3745
EC-640
< SERVICE INFORMATION >[MR18DE]
DTC U0101 CAN COMMUNICATION LINE

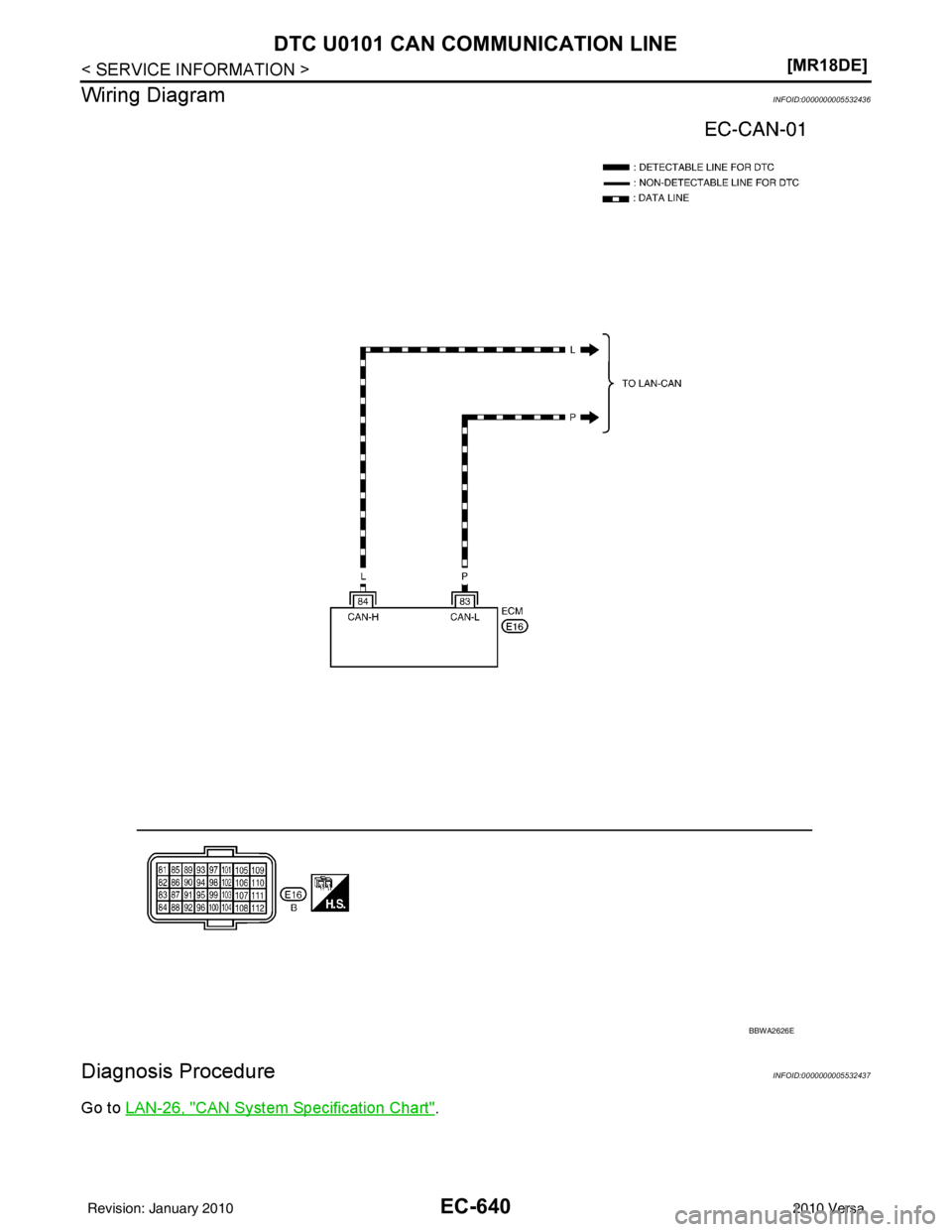

Wiring Diagram
INFOID:0000000005532436
Diagnosis ProcedureINFOID:0000000005532437
Go to LAN-26, "CAN System Specification Chart".
BBWA2626E
Revision: January 20102010 Versa
Page 1906 of 3745
![NISSAN LATIO 2010 Service Repair Manual DTC U0140 CAN COMMUNICATION LINEEC-641
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
DTC U0140 CAN COMMUNICATION LINE
DescriptionINFOID:0000000005532438
CAN (Controller Area Network NISSAN LATIO 2010 Service Repair Manual DTC U0140 CAN COMMUNICATION LINEEC-641
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
DTC U0140 CAN COMMUNICATION LINE
DescriptionINFOID:0000000005532438
CAN (Controller Area Network](/manual-img/5/57358/w960_57358-1905.png)
DTC U0140 CAN COMMUNICATION LINEEC-641
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
DTC U0140 CAN COMMUNICATION LINE
DescriptionINFOID:0000000005532438
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each
control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
On Board Diagnosis LogicINFOID:0000000005532439
This self-diagnosis has the one trip detection logic.
DTC Confirmation ProcedureINFOID:0000000005532440
1. Turn ignition switch ON and wait at least 3 seconds.
2. Check DTC.
3. If DTC is detected, go to EC-642, "
Diagnosis Procedure".
DTC No.Trouble diagnosis
name DTC detecting condition
Possible cause
U0140
0140 Lost communication
with BCM When ECM is not transmitting or receiving CAN
communication signal of OBD (emission-related
diagnosis) with BCM for 2 seconds or more. • CAN communication line between BCM
and ECM
• CAN communication line is open or short-
ed.
Revision: January 20102010 Versa
Page 1907 of 3745
EC-642
< SERVICE INFORMATION >[MR18DE]
DTC U0140 CAN COMMUNICATION LINE
Wiring Diagram
INFOID:0000000005532441
Diagnosis ProcedureINFOID:0000000005532442
Go to LAN-26, "CAN System Specification Chart".
BBWA2626E
Revision: January 20102010 Versa
Page 1908 of 3745
![NISSAN LATIO 2010 Service Repair Manual DTC U1001 CAN COMMUNICATION LINEEC-643
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
DTC U1001 CAN COMMUNICATION LINE
DescriptionINFOID:0000000005532443
CAN (Controller Area Network NISSAN LATIO 2010 Service Repair Manual DTC U1001 CAN COMMUNICATION LINEEC-643
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
DTC U1001 CAN COMMUNICATION LINE
DescriptionINFOID:0000000005532443
CAN (Controller Area Network](/manual-img/5/57358/w960_57358-1907.png)
DTC U1001 CAN COMMUNICATION LINEEC-643
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
DTC U1001 CAN COMMUNICATION LINE
DescriptionINFOID:0000000005532443
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each
control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
On Board Diagnosis LogicINFOID:0000000005532444
The MIL will not light up for this self-diagnosis.
DTC Confirmation ProcedureINFOID:0000000005532445
1. Turn ignition switch ON and wait at least 3 seconds.
2. Check 1st trip DTC.
3. If 1st trip DTC is detected, go to EC-644, "
Diagnosis Procedure".
DTC No.Trouble diagnosis
name DTC detecting condition
Possible cause
U1001
1001 CAN communication
line When ECM is not transmitting or receiving CAN
communication signal other than OBD (emission-
related diagnosis) for 2 seconds or more. • Harness or connectors
(CAN communication line is open or
shorted.)
Revision: January 20102010 Versa
Page 1909 of 3745
EC-644
< SERVICE INFORMATION >[MR18DE]
DTC U1001 CAN COMMUNICATION LINE
Wiring Diagram
INFOID:0000000005532446
Diagnosis ProcedureINFOID:0000000005532447
Go to LAN-26, "CAN System Specification Chart".
BBWA2626E
Revision: January 20102010 Versa
Page 1910 of 3745
![NISSAN LATIO 2010 Service Repair Manual DTC P0011 IVT CONTROLEC-645
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
DTC P0011 IVT CONTROL
DescriptionINFOID:0000000005532448
SYSTEM DESCRIPTION
*: This signal is sent to the E NISSAN LATIO 2010 Service Repair Manual DTC P0011 IVT CONTROLEC-645
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
DTC P0011 IVT CONTROL
DescriptionINFOID:0000000005532448
SYSTEM DESCRIPTION
*: This signal is sent to the E](/manual-img/5/57358/w960_57358-1909.png)
DTC P0011 IVT CONTROLEC-645
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
DTC P0011 IVT CONTROL
DescriptionINFOID:0000000005532448
SYSTEM DESCRIPTION
*: This signal is sent to the ECM through CAN communication line.
This mechanism hydraulically controls cam phases c
ontinuously with the fixed operating angle of the intake
valve. The ECM receives signals such as cranks haft position, camshaft position, engine speed, and engine
coolant temperature. Then, the ECM sends ON/OFF pulse duty signals to the intake valve timing control sole-
noid valve depending on driving status. This makes it po ssible to control the shut/open timing of the intake
valve to increase engine torque in low/mid speed range and output in high-speed range.
CONSULT-III Reference Val ue in Data Monitor ModeINFOID:0000000005532449
Specification data are reference values.
Sensor Input signal to ECMECM functionActuator
Crankshaft position sensor (POS)
Camshaft position sensor (PHASE) Engine speed and piston position
Intake valve
timing controlIntake valve timing control
solenoid valve
Engine coolant temperature sensor
Engine coolant temperature
ABS actuator and electric unit (control unit)
Vehicle speed*
Combination meter
PBIB3333E
Monitor item Condition Specification
INT/V TIM (B1) • Engine: After warming up
• Air conditioner switch: OFF
• Shift lever: P or N (A/T, CVT),
Neutral (M/T)
•No load Idle
−5 ° - 5 °CA
When revving engine up to 2,000 rpm
quickly Approx. 0
° - 40 °CA
INT/V SOL (B1) • Engine: After warming up
• Air conditioner switch: OFF
• Shift lever: P or N (A/T, CVT),
Neutral (M/T)
•No load Idle
0% - 2%
When revving engine up to 2,000 rpm
quickly Approx. 0% - 90%
Revision: January 20102010 Versa
Page 1911 of 3745
![NISSAN LATIO 2010 Service Repair Manual EC-646
< SERVICE INFORMATION >[MR18DE]
DTC P0011 IVT CONTROL
On Board Diagn osis Logic
INFOID:0000000005532450
FA I L - S A F E M O D E
ECM enters in fail-safe mode when the malfunction is detected.
NISSAN LATIO 2010 Service Repair Manual EC-646
< SERVICE INFORMATION >[MR18DE]
DTC P0011 IVT CONTROL
On Board Diagn osis Logic
INFOID:0000000005532450
FA I L - S A F E M O D E
ECM enters in fail-safe mode when the malfunction is detected.](/manual-img/5/57358/w960_57358-1910.png)
EC-646
< SERVICE INFORMATION >[MR18DE]
DTC P0011 IVT CONTROL
On Board Diagn osis Logic
INFOID:0000000005532450
FA I L - S A F E M O D E
ECM enters in fail-safe mode when the malfunction is detected.
DTC Confirmation ProcedureINFOID:0000000005532451
CAUTION:
Always drive at a safe speed.
NOTE:
•If DTC P0011 is displayed with DTC P0075, first perform trouble diagnosis for DTC P0075.
See EC-659
.
• If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confi rm that battery voltage is between 10 V and 16 V at
idle.
WITH CONSULT-III
1. Turn ignition switch ON and select “DATA MONITOR” mode with CONSULT-III.
2. Start engine and warm it up to the normal operating temperature.
3. Maintain the following conditions for at least 6 consecutive seconds. Hold the accelerator pedal as steady as possible.
4. Let engine idle for 10 seconds.
5. If 1st trip DTC is detected, go to EC-647, "
Diagnosis Procedure".
If 1st trip DTC is not detected, go to next step.
6. Maintain the following conditions for at least 10 consecutive seconds.
7. If 1st trip DTC is detected, go to EC-647, "
Diagnosis Procedure".
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0011
0011 Intake valve timing control
performance There is a gap between angle of target and
phase-control angle degree. • Crankshaft position sensor (POS)
• Camshaft position
sensor (PHASE)
• Intake valve timing control solenoid valve
• Accumulation of debris to the signal pick-up portion of the camshaft
• Timing chain installation
• Foreign matter caught in the oil groove for in- take valve timing control
Detected items Engine operating condition in fail-safe mode
Intake valve timing control The signal is not energized to the solenoid valve and the valve control does not function
ENG SPEED1,200 - 2,000 rpm (A constant rotati on is maintained.)
COOLAN TEMP/S More than 60 °C (140 °F)
B/FUEL SCHDL More than 3.87 msec
Shift lever P or N position (A/T, CVT)
Neutral position (M/T)
ENG SPEED 1,200 - 3,175 rpm (A constant rotation is maintained.)
COOLAN TEMP/S More than 65 °C (149 °F)
Shift lever 1st or 2nd position
Driving location Driving vehicle uphill
(Increased engine load will help maintain the driving
conditions required for this test.)
Revision: January 20102010 Versa
Page 1912 of 3745
![NISSAN LATIO 2010 Service Repair Manual DTC P0011 IVT CONTROLEC-647
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
WITH GST
Follow the procedure “WITH CONSULT-III” above.
Diagnosis ProcedureINFOID:0000000005532452
1.C NISSAN LATIO 2010 Service Repair Manual DTC P0011 IVT CONTROLEC-647
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
WITH GST
Follow the procedure “WITH CONSULT-III” above.
Diagnosis ProcedureINFOID:0000000005532452
1.C](/manual-img/5/57358/w960_57358-1911.png)
DTC P0011 IVT CONTROLEC-647
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
WITH GST
Follow the procedure “WITH CONSULT-III” above.
Diagnosis ProcedureINFOID:0000000005532452
1.CHECK OIL PRESSURE WARNING LAMP
1. Start engine.
2. Check oil pressure warning lamp and confirm it is not illumi- nated.
OK or NG
OK >> GO TO 2.
NG >> Go to LU-17, "
Inspection".
2.CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE
Refer to EC-648, "
Component Inspection".
OK or NG
OK >> GO TO 3.
NG >> Replace intake valve timing control solenoid valve.
3.CHECK CRANKSHAFT POSITION SENSOR (POS)
Refer to EC-798, "
Component Inspection".
OK or NG
OK >> GO TO 4.
NG >> Replace crankshaft position sensor (POS).
4.CHECK CAMSHAFT POSITI ON SENSOR (PHASE)
Refer to EC-803, "
Component Inspection".
OK or NG
OK >> GO TO 5.
NG >> Replace camshaft position sensor (PHASE).
5.CHECK CAMSHAFT (INTAKE)
Check the following.
• Accumulation of debris to the signal plate of camshaft (1) rear end
• Chipping signal plate of camshaft rear end
OK or NG
OK >> GO TO 6.
NG >> Remove debris and clean the signal plate of camshaft rear end or replace camshaft.
6.CHECK TIMING CHAIN INSTALLATION
Check service records for any recent repairs that may cause timing chain misaligned.
Are there any service records that may cause timing chain misaligned?
Ye s o r N o
Yes >> Check timing chain installation. Refer to EM-157, "Removal and Installation".
No >> GO TO 7.
7.CHECK LUBRICATION CIRCUIT
PBIA8559J
PBIA9557J
Revision: January 20102010 Versa
