EC-952
< SERVICE INFORMATION >[MR18DE]
DTC P2101 ELECTRIC THROTTLE CONTROL FUNCTION
DTC P2101 ELECTRIC THRO
TTLE CONTROL FUNCTION
DescriptionINFOID:0000000005532836
NOTE:
If DTC P2101 is displayed with DTC P2100 or P2119, first perform the trouble diagnosis for DTC P2100
or P2119. Refer to EC-948
or EC-963.
Electric throttle control actuator consists of th rottle control motor, throttle position sensor, etc.
The throttle control motor is operated by the ECM and it opens and closes the throttle valve.
The current opening angle of the throttle valve is detected by the throttle position sensor and it provides feed-
back to the ECM to control the throttle control mo tor to make the throttle valve opening angle properly in
response to driving condition.
On Board Diagn osis LogicINFOID:0000000005532837
This self-diagnosis has the one trip detection logic.
FA I L - S A F E M O D E
When the malfunction is detected, the ECM enters fail-safe mode and the MIL lights up.
DTC Confirmation ProcedureINFOID:0000000005532838
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confi rm that battery voltage is more than 11 V when
engine is running.
1. Turn ignition switch ON and wait at least 2 seconds.
2. Start engine and let it idle for 5 seconds.
3. Check DTC.
4. If DTC is detected, go to EC-954, "
Diagnosis Procedure".
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P2101
2101 Electric throttle control
performance Electric throttle control function does not oper-
ate properly. • Harness or connectors
(Throttle control motor circuit is open or
shorted)
• Electric throttle control actuator
Engine operating condition in fail-safe mode
ECM stops the electric throttle control actuator control, throttle valve is maintained at a fixed opening (approx. 5 degrees) b y the return
spring.
Revision: January 20102010 Versa
Page 2218 of 3745
DTC P2101 ELECTRIC THROTTLE CONTROL FUNCTIONEC-953
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

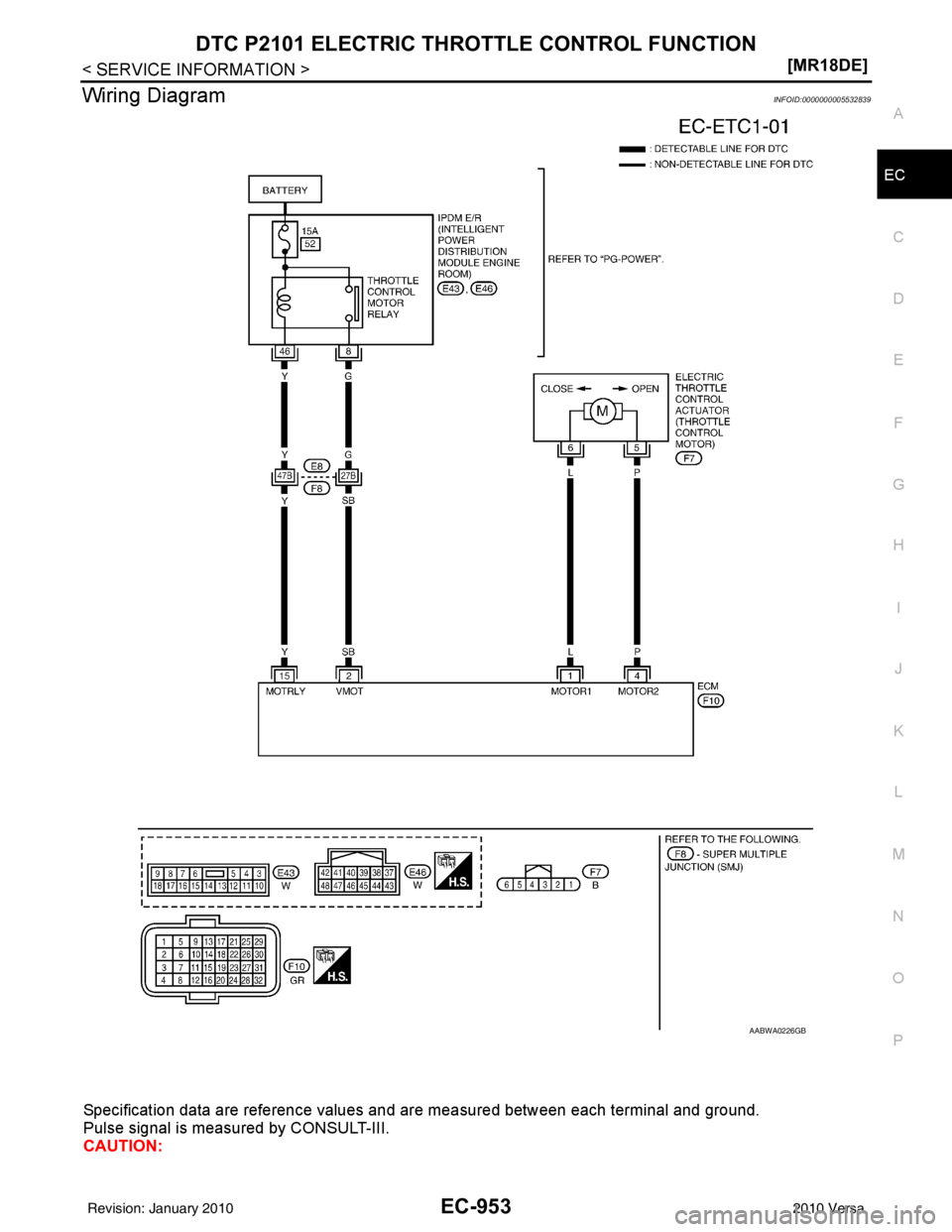

Wiring DiagramINFOID:0000000005532839
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-III.
CAUTION:
AABWA0226GB
Revision: January 20102010 Versa
Page 2219 of 3745
![NISSAN LATIO 2010 Service Repair Manual EC-954
< SERVICE INFORMATION >[MR18DE]
DTC P2101 ELECTRIC THROTTLE CONTROL FUNCTION
Do not use ECM ground terminals when measuring input/output voltage. Doi
ng so may result in dam-
age to the ECMs t NISSAN LATIO 2010 Service Repair Manual EC-954
< SERVICE INFORMATION >[MR18DE]
DTC P2101 ELECTRIC THROTTLE CONTROL FUNCTION
Do not use ECM ground terminals when measuring input/output voltage. Doi
ng so may result in dam-
age to the ECMs t](/manual-img/5/57358/w960_57358-2218.png)
EC-954
< SERVICE INFORMATION >[MR18DE]
DTC P2101 ELECTRIC THROTTLE CONTROL FUNCTION
Do not use ECM ground terminals when measuring input/output voltage. Doi
ng so may result in dam-
age to the ECM's transistor. Use a ground ot her than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
Diagnosis ProcedureINFOID:0000000005532840
1.CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground screw on the body. Refer to EC-638, "
Ground Inspection".
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
2.CHECK THROTTLE CONTROL MOTOR RELAY INPUT SIGNAL CIRCUIT-I
TERMI- NAL
NO. WIRE
COLOR ITEM
CONDITION DATA (DC Voltage)
1L Throttle control motor
(Open) [Ignition switch: ON]
• Engine stopped
• Shift lever: D (A/T, CVT), 1st (M/T)
• Accelerator pedal: Fully depressed Approximately 3.2 V
2SB Throttle contro
l motor power
supply [Ignition switch: ON] BATTERY VOLTAGE
(11 - 14 V)
4 P Throttle contro l motor (Close)[Ignition switch: ON]
• Engine stopped
• Shift lever: D (A/T, CVT), 1st (M/T)
• Accelerator pedal: Fully released Approximately 1.8 V
15 Y Throttle control motor relay [Ignition switch: OFF]
BATTERY VOLTAGE
(11 - 14 V)
[Ignition switch: ON] 0 - 1.0 V
PBIA8150J
PBIA8149J
:Vehicle front
1. Body ground E24 2. Engine ground F93. Engine ground F16
4. Body ground E15
BBIA0698E
Revision: January 20102010 Versa
Page 2220 of 3745
![NISSAN LATIO 2010 Service Repair Manual DTC P2101 ELECTRIC THROTTLE CONTROL FUNCTIONEC-955
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Check voltage between ECM terminal 2 and ground under the fol-
lowing conditions wit NISSAN LATIO 2010 Service Repair Manual DTC P2101 ELECTRIC THROTTLE CONTROL FUNCTIONEC-955
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Check voltage between ECM terminal 2 and ground under the fol-
lowing conditions wit](/manual-img/5/57358/w960_57358-2219.png)
DTC P2101 ELECTRIC THROTTLE CONTROL FUNCTIONEC-955
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Check voltage between ECM terminal 2 and ground under the fol-
lowing conditions with CONSULT-III or tester.
OK or NG
OK >> GO TO 10.
NG >> GO TO 3.
3.CHECK THROTTLE CONTROL MOTOR
RELAY INPUT SIGNAL CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Disconnect IPDM E/R harness connector E43.
4. Check continuity between ECM terminal 2 and IPDM E/R terminal 8. Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4.DETECT MALFUNCTIONING PART
Check the following.
• Harness connectors E8, F8
• Harness for open or short between ECM and IPDM E/R
>> Repair open circuit or short to ground or short to power in harness or connectors.
5.CHECK THROTTLE CONTROL MOTOR RELAY POWER SUPPLY CIRCUIT-I
1. Reconnect all harness connectors disconnected.
2. Check voltage between ECM terminal 15 and ground with CON- SULT-III or tester.
OK or NG
OK >> GO TO 9.
NG >> GO TO 6.
6.CHECK THROTTLE CONTROL MOTOR RELAY POWER SUPPLY CIRCUIT-II
1. Disconnect ECM harness connector.
2. Disconnect IPDM E/R harness connector E46.
3. Check harness continuity between ECM terminal 15 and IPDM E/R terminal 46. Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 8.
NG >> GO TO 7.
Ignition switch Voltage
OFF Approximately 0 V
ON Battery voltage
(11 - 14 V)
PBIA9568J
Continuity should exist.
Voltage: Battery voltage
PBIA9569J
Continuity should exist.
Revision: January 20102010 Versa
Page 2221 of 3745
![NISSAN LATIO 2010 Service Repair Manual EC-956
< SERVICE INFORMATION >[MR18DE]
DTC P2101 ELECTRIC THROTTLE CONTROL FUNCTION
7.DETECT MALFUNCTIONING PART
Check the following.
• Harness connectors E8, F8
• Harness for open or short betwee NISSAN LATIO 2010 Service Repair Manual EC-956
< SERVICE INFORMATION >[MR18DE]
DTC P2101 ELECTRIC THROTTLE CONTROL FUNCTION
7.DETECT MALFUNCTIONING PART
Check the following.
• Harness connectors E8, F8
• Harness for open or short betwee](/manual-img/5/57358/w960_57358-2220.png)
EC-956
< SERVICE INFORMATION >[MR18DE]
DTC P2101 ELECTRIC THROTTLE CONTROL FUNCTION
7.DETECT MALFUNCTIONING PART
Check the following.
• Harness connectors E8, F8
• Harness for open or short between ECM and IPDM E/R
>> Repair open circuit or short to ground or short to power in harness or connectors.
8.CHECK FUSE
1. Disconnect 15 A fuse.
2. Check 15 A fuse for blown.
OK or NG
OK >> GO TO 9.
NG >> Replace 15 A fuse.
9.CHECK INTERMITTENT INCIDENT
Refer to EC-632
.
OK or NG
OK >> Replace IPDM E/R. Refer to PG-28, "Removal and Installation of IPDM E/R".
NG >> Repair or replace harness or connectors.
10.CHECK THROTTLE CONTROL MOTOR OUTPUT SIGNAL CIRCUIT FOR OPEN OR SHORT
1. Turn ignition switch OFF.
2. Disconnect electric throttle control actuator (1) harness connec- tor.
- : Vehicle front
3. Disconnect ECM harness connector.
4. Check harness continuity between the following terminals. Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 11.
NG >> Repair or replace.
11 .CHECK ELECTRIC THROTTLE CONTROL ACTUATOR VISUALLY
1. Remove the intake air duct.
2. Check if foreign matter is caught between the throttle valve (1) and the housing.
- : Vehicle front
OK or NG
OK >> GO TO 12.
NG >> Remove the foreign matter and clean the electric throttle control actuator inside.
12.CHECK THROTTLE CONTROL MOTOR
Electric throttle control
actuator terminal ECM terminal
Continuity
5 1
Should not exist.
4 Should exist.
6 1
Should exist.
4 Should not exist.
PBIB3325E
BBIA0711E
Revision: January 20102010 Versa
Page 2222 of 3745
![NISSAN LATIO 2010 Service Repair Manual DTC P2101 ELECTRIC THROTTLE CONTROL FUNCTIONEC-957
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Refer to
EC-957, "Component Inspection".
OK or NG
OK >> GO TO 13.
NG >> GO TO 14.
1 NISSAN LATIO 2010 Service Repair Manual DTC P2101 ELECTRIC THROTTLE CONTROL FUNCTIONEC-957
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Refer to
EC-957, "Component Inspection".
OK or NG
OK >> GO TO 13.
NG >> GO TO 14.
1](/manual-img/5/57358/w960_57358-2221.png)
DTC P2101 ELECTRIC THROTTLE CONTROL FUNCTIONEC-957
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Refer to
EC-957, "Component Inspection".
OK or NG
OK >> GO TO 13.
NG >> GO TO 14.
13.CHECK INTERMITTENT INCIDENT
Refer to EC-632
.
OK or NG
OK >> GO TO 14.
NG >> Repair or replace harness or connectors.
14. REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace the electric throttle control actuator.
2. Perform EC-580, "
Throttle Valve Closed Position Learning".
3. Perform EC-580, "
Idle Air Volume Learning".
>> INSPECTION END
Component InspectionINFOID:0000000005532841
THROTTLE CONTROL MOTOR
1. Disconnect electric throttle c ontrol actuator harness connector.
2. Check resistance between terminals 5 and 6.
3. If NG, replace electric throttle control actuator and go to next step.
4. Perform EC-580, "
Throttle Valve Closed Position Learning".
5. Perform EC-580, "
Idle Air Volume Learning".
Removal and InstallationINFOID:0000000005532842
ELECTRIC THROTTLE CONTROL ACTUATOR
Refer to EM-137.
Resistance: Approximately 1 - 15
Ω [at 25 °C (77° F)]
PBIB2909E
Revision: January 20102010 Versa
Page 2223 of 3745
![NISSAN LATIO 2010 Service Repair Manual EC-958
< SERVICE INFORMATION >[MR18DE]
DTC P2118 THROTTLE CONTROL MOTOR
DTC P2118 THROTTLE CONTROL MOTOR
Component DescriptionINFOID:0000000005532843
The throttle control motor is operated by the ECM NISSAN LATIO 2010 Service Repair Manual EC-958
< SERVICE INFORMATION >[MR18DE]
DTC P2118 THROTTLE CONTROL MOTOR
DTC P2118 THROTTLE CONTROL MOTOR
Component DescriptionINFOID:0000000005532843
The throttle control motor is operated by the ECM](/manual-img/5/57358/w960_57358-2222.png)
EC-958
< SERVICE INFORMATION >[MR18DE]
DTC P2118 THROTTLE CONTROL MOTOR
DTC P2118 THROTTLE CONTROL MOTOR
Component DescriptionINFOID:0000000005532843
The throttle control motor is operated by the ECM and it opens and closes the throttle valve.
The current opening angle of the throttle valve is detected
by the throttle position sensor and it provides feed-
back to the ECM to control the throttle control mo tor to make the throttle valve opening angle properly in
response to driving condition.
On Board Diagn osis LogicINFOID:0000000005532844
This self-diagnosis has the one trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, ECM enters fail-safe mode and the MIL lights up.
DTC Confirmation ProcedureINFOID:0000000005532845
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
1. Turn ignition switch ON and wait at least 2 seconds.
2. Start engine and let it idle for 5 seconds.
3. Check DTC.
4. If DTC is detected, go to EC-960, "
Diagnosis Procedure".
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P2118
2118 Throttle control motor
circuit short ECM detects short in both circuits between
ECM and throttle control motor. • Harness or connectors
(Throttle control motor circuit is shorted.)
• Electric throttle control actuator
(Throttle control motor)
Engine operating condition in fail-safe mode
ECM stops the electric throttle control actuator control, throttle valve is maintained at a fixed opening (approx. 5 degrees) b y the return
spring.
Revision: January 20102010 Versa
Page 2224 of 3745
DTC P2118 THROTTLE CONTROL MOTOREC-959
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

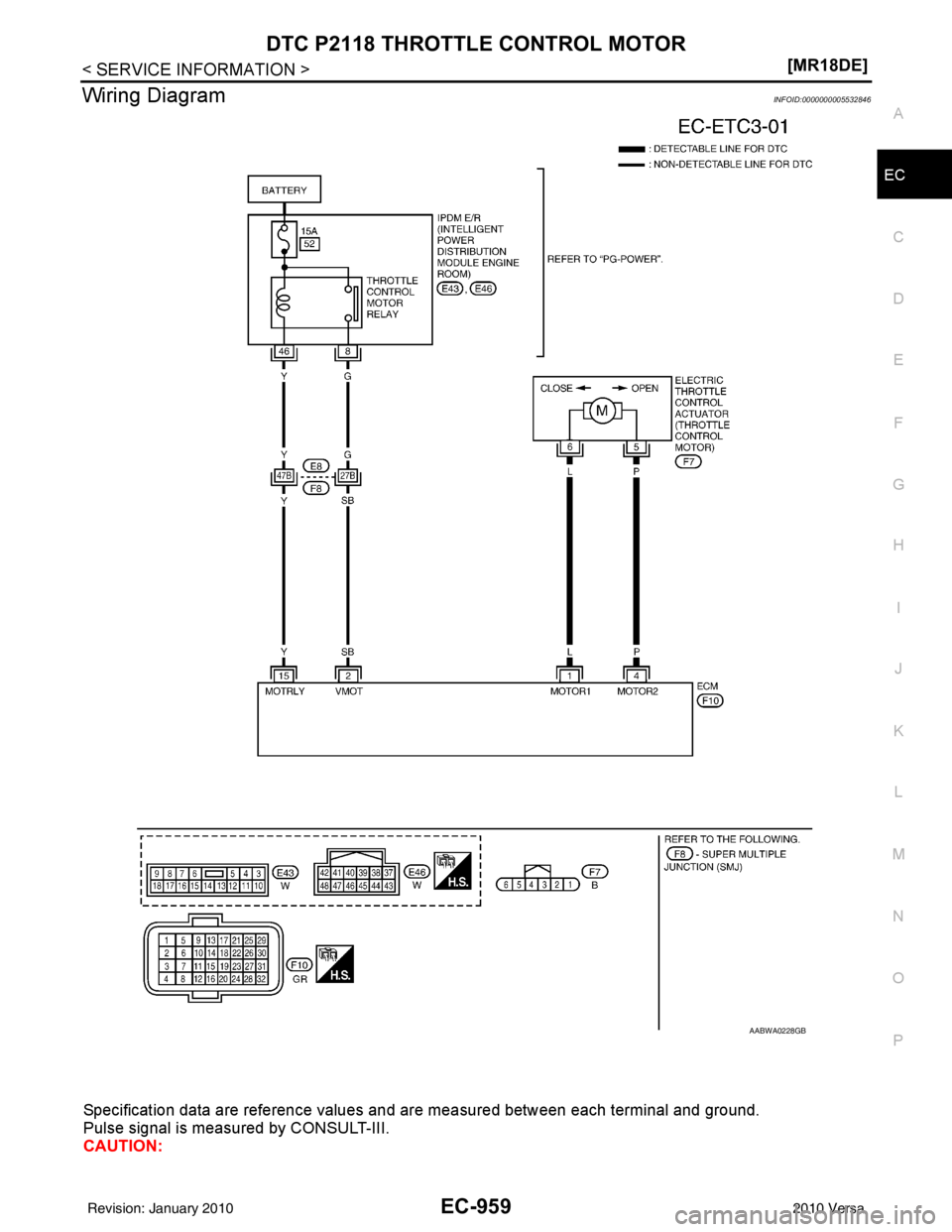

Wiring DiagramINFOID:0000000005532846
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-III.
CAUTION:
AABWA0228GB
Revision: January 20102010 Versa
