NISSAN LATIO 2010 Service Repair Manual EM-90
< DISASSEMBLY AND ASSEMBLY >[HR16DE]
CYLINDER BLOCK
Disassembly and Assembly
INFOID:0000000005398082
DISASSEMBLY
1. Remove cylinder head. Refer to EM-73, "Removal and Installation".
2. Remove k

EM-90
< DISASSEMBLY AND ASSEMBLY >[HR16DE]
CYLINDER BLOCK
Disassembly and Assembly
INFOID:0000000005398082
DISASSEMBLY
1. Remove cylinder head. Refer to EM-73, "Removal and Installation".
2. Remove knock sensor. CAUTION:
Carefully handle knock sensor avoiding shocks.
3. Remove crankshaft position sensor (POS) and cover. CAUTION:
• Avoid impacts such as a dropping.
• Never disassemble.
• Keep it away from metal particles.
• Never place the sensor where it is exposed to magnetism.
4. Remove piston and connecting rod assembly with the following procedure: • Before removing piston and connecting rod assembly, check the connecting rod side clearance. Refer toEM-97, "
Inspection".
a. Position crankshaft pin corresponding to connecting rod to be removed onto the bottom dead center.
b. Remove connecting rod cap.
c. Using a hammer handle or similar tool, push piston and connect- ing rod assembly out to the cylinder head side.
CAUTION:
• Be careful not to damage matching surface with connect-ing rod cap.
• Be careful not to damage the cylinder wall and crankshaft pin, resulting from an inte rference of the connecting rod
big end.
5. Remove connecting rod bearings. CAUTION:
Identify installation positions, and store them without mixing up.
6. Remove piston rings from piston. • Before removing piston rings, check the piston ring side clearance. Refer to EM-97, "
Inspection".
• Use suitable tool (A).
CAUTION:
• When removing piston rings, be careful not to damagethe piston.
• Be careful not to damage piston rings by expanding
them excessively.
10. Oil pressure switch 11. Top ring12. Second ring
13. Oil ring 14. Piston pin15. Piston
16. Connecting rod 17. Connecting rod bearing (upper) 18. Main bearing (upper)
19. Thrust bearing 20. Crankshaft key21. Connecting rod cap bolt
22. Connecting rod cap 23. Connecting rod bearing (lower) 24. Main bearing (lower)
25. Crankshaft 26. Pilot converter (A/T models) 27. Signal plate
28. Rear oil seal 29. Drive plate (A/T models)30. Reinforcement plate (A/T models)
31. Flywheel (M/T models) 32. Main bearing cap33. Main bearing cap bolt
A. Refer to Assembly procedure B. Refer to Assembly procedure
KBIA3365J
PBIC3233J
Revision: January 20102010 Versa

Page 2450 of 3745

NISSAN LATIO 2010 Service Repair Manual CYLINDER BLOCKEM-91
< DISASSEMBLY AND ASSEMBLY > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
7. Remove piston from connecting rod.
• Use Tool and a press to remove the piston pin.
CAUTION:
Be careful n

Page 2451 of 3745

NISSAN LATIO 2010 Service Repair Manual EM-92
< DISASSEMBLY AND ASSEMBLY >[HR16DE]
CYLINDER BLOCK
2. Install water drain plug (1) to cylinder block as shown.
Use Genuine Silicone RTV Sealant or equivalent. Refer to
GI-42, "
Recommended Che

Page 2452 of 3745

NISSAN LATIO 2010 Service Repair Manual CYLINDER BLOCKEM-93
< DISASSEMBLY AND ASSEMBLY > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
CAUTION:
Dimension L1 of journal No. 3 is the distance from the housing base end
surface (bulk) (not the
dist

Page 2453 of 3745

NISSAN LATIO 2010 Service Repair Manual EM-94
< DISASSEMBLY AND ASSEMBLY >[HR16DE]
CYLINDER BLOCK
c. Turn main bearing cap bolts 60 degrees clockwise (angle tight-
ening) in numerical order shown.
CAUTION:
Check and confirm the tightening

Page 2454 of 3745

NISSAN LATIO 2010 Service Repair Manual CYLINDER BLOCKEM-95
< DISASSEMBLY AND ASSEMBLY > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O

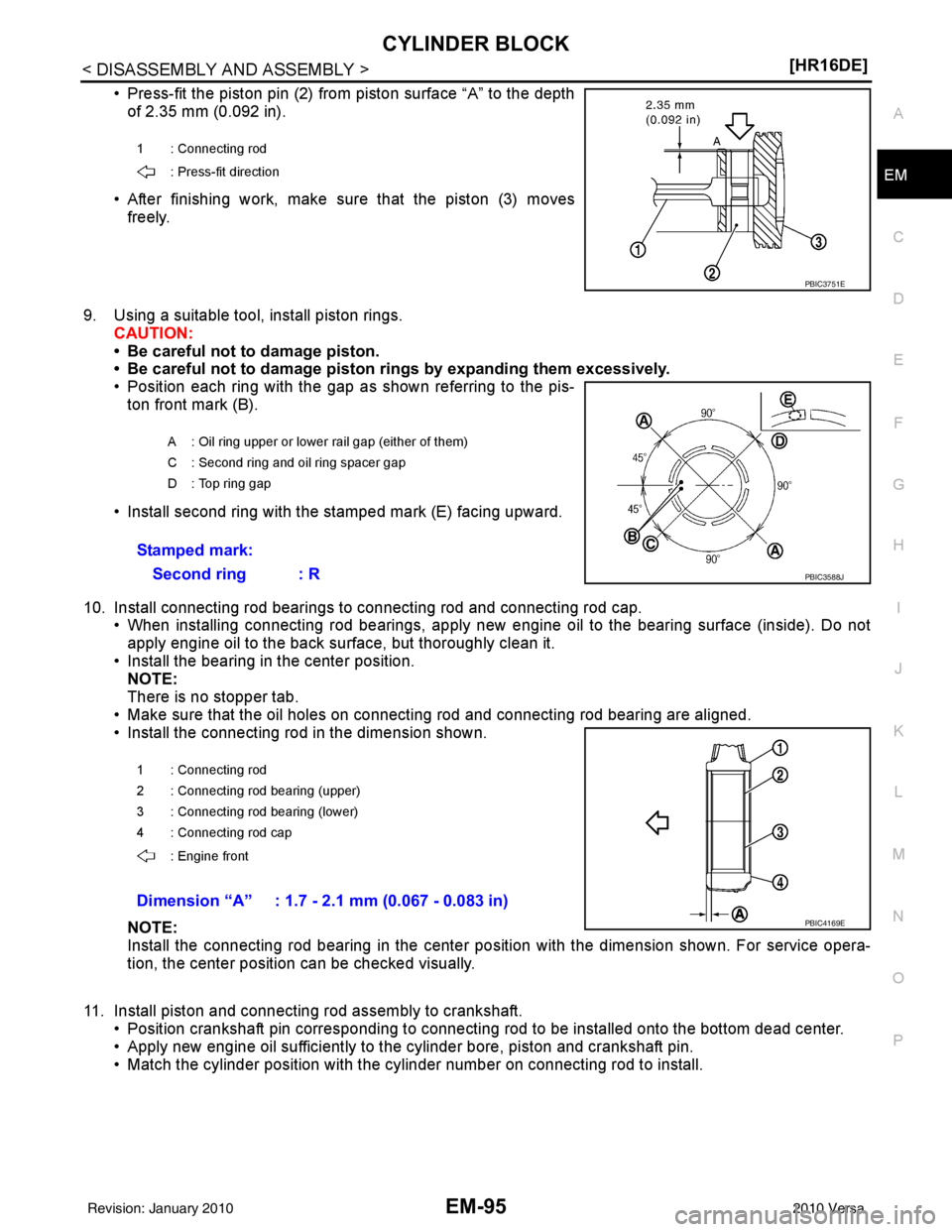

• Press-fit the piston pin (2) from piston surface “A” to the depth
of 2.35 mm (0.092 in).
• After fin

Page 2455 of 3745

NISSAN LATIO 2010 Service Repair Manual EM-96
< DISASSEMBLY AND ASSEMBLY >[HR16DE]
CYLINDER BLOCK
• Using Tool (A) or suitable tool, install piston with the front mark
on the piston head facing the front of the engine.
CAUTION:
• Be ca

Page 2456 of 3745

NISSAN LATIO 2010 Service Repair Manual CYLINDER BLOCKEM-97
< DISASSEMBLY AND ASSEMBLY > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
18. Install knock sensor (1).
• Install connectors so that they are positioned towards the rearof the engine
