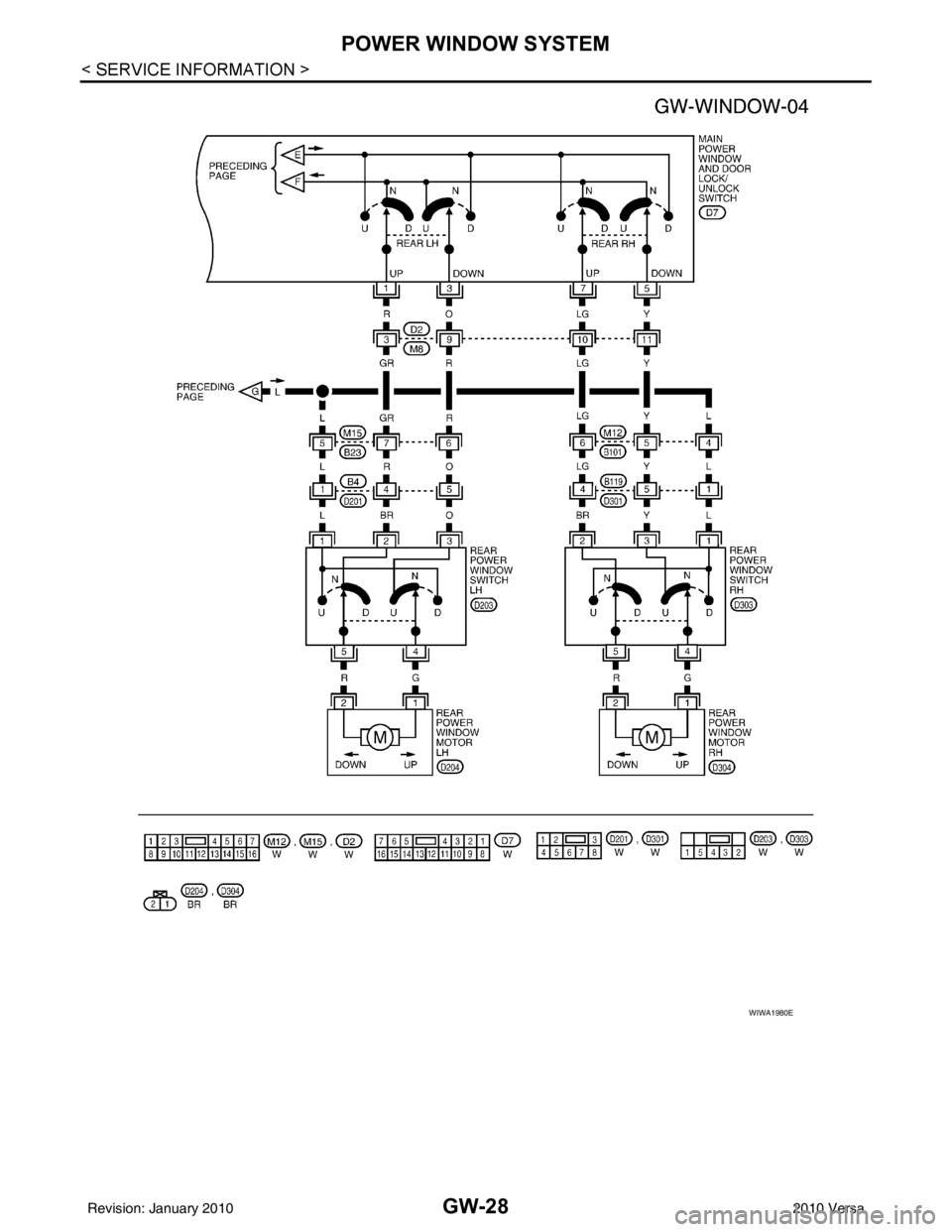

NISSAN LATIO 2010 Service Repair Manual GW-28
< SERVICE INFORMATION >
POWER WINDOW SYSTEM
WIWA1980E
Revision: January 20102010 Versa

Page 2746 of 3745

NISSAN LATIO 2010 Service Repair Manual POWER WINDOW SYSTEMGW-29
< SERVICE INFORMATION >
C
DE
F
G H
J
K L
M A
B
GW
N
O P
Main Power Window and Door Lock/Unlock Switch Harness Connector Terminal Lay-
out
INFOID:0000000005396744
Terminal and

Page 2747 of 3745

NISSAN LATIO 2010 Service Repair Manual GW-30
< SERVICE INFORMATION >
POWER WINDOW SYSTEM
Terminal and Reference Value for BCM
INFOID:0000000005396746
Refer to BCS-12, "Terminal and Reference Value for BCM" .
Work FlowINFOID:00000000053967

Page 2748 of 3745

NISSAN LATIO 2010 Service Repair Manual POWER WINDOW SYSTEMGW-31
< SERVICE INFORMATION >
C
DE
F
G H
J
K L
M A
B
GW
N
O P
WORK SUPPORT
DATA MONITOR
Trouble Diagnosis Symptom ChartINFOID:0000000005396750
Check that other systems us ing the si

POWER WINDOW SYSTEMGW-31
< SERVICE INFORMATION >
C
DE
F
G H
J
K L
M A
B
GW
N
O P
WORK SUPPORT
DATA MONITOR
Trouble Diagnosis Symptom ChartINFOID:0000000005396750
Check that other systems us ing the signal of the following systems operate normally.
Test Item Description
RETAINED PWR This test is able to supply RAP signal (powe
r) from BCM (body control module) to power window
system and power sunroof system (if equipped). Those systems can be operated when turning on
“RETAINED PWR” on CONSULT-III screen even if the ignition switch is turned OFF.
NOTE:
During this test, CONSULT-III can be operated with ignition switch in OFF position. “RETAINED
PWR” should be turned “ON” or “OFF” on CONSULT-III screen when ignition switch is ON. Then
turn ignition switch OFF to check retained power operation. CONSULT-III might be stuck if “RE-
TAINED PWR” is turned “ON” or “OFF” on CONSULT-III screen when ignition switch is OFF.
Work item Description
RETAINED PWR RAP signal’s power supply period can be changed by mode setting. Selects RAP signal’s power
supply period between three steps
• MODE1 (45 sec.)/MODE2 (OFF)/MODE3 (2 min.).
Work item
Description
IGN ON SW Indicates (ON/OFF) condition of ignition switch
DOOR SW-DR Indicates (ON/OFF) condition of front door switch LH
DOOR SW-AS Indicates (ON/OFF) condition of front door switch RH
Symptom Repair orderRefer to page
None of the power windows can be operated using any switch 1. BCM power supply and ground circuit check
BCS-16
2. Main power window and door lock/unlock
power supply and ground circuit check GW-32
3. Replace main power window and door lock/
unlock switch EI-34
Front power window LH alone does not operate 1. Front power window motor LH circuit check
GW-332. Replace main power window and door lock/
unlock switch EI-34
Front power window RH does not operate from power window and
door lock/unlock switch RH only 1. Front power window RH circuit check (power
window and door lock/unlock switch RH opera-
tion)
GW-34
Front power window RH does not operate from main power window
and door lock/unlock switch only
1. Replace main power window and door lock/
unlock switch
EI-34
Front power window RH does not operate from any switch 1. Front power window motor RH circuit check
GW-34
Anti-pinch system does not operate normally (Front LH)1. Door window sliding part malfunction
• A foreign material adheres to window glass or
glass run rubber.
• Glass run rubber wear or deformation.
• Sash is tilted too much, or not enough. —
2. Encoder circuit check GW-36
Rear power window LH does not operate from rear power window
switch LH only 1. Rear power window LH circuit check (rear
power window switch LH operation)
GW-39
Rear power window LH does not operate from main power window
and door lock/unlock switch only 1. Replace main power window and door lock/
unlock switch
EI-34
Rear power window LH does not operate from any switch 1. Rear power window motor LH circuit check
GW-40
Revision: January 20102010 Versa

Page 2749 of 3745

NISSAN LATIO 2010 Service Repair Manual GW-32
< SERVICE INFORMATION >
POWER WINDOW SYSTEM
BCM Power Supply and Ground Circuit Inspection
INFOID:0000000005396751
Refer to BCS-16, "BCM Power Supply and Ground Circuit Inspection" .
Main Power

Page 2750 of 3745

NISSAN LATIO 2010 Service Repair Manual POWER WINDOW SYSTEMGW-33
< SERVICE INFORMATION >
C
DE
F
G H
J
K L
M A
B
GW
N
O P
1. Turn ignition switch OFF.
2. Disconnect BCM and main power window and door lock/unlock
switch.
3. Check continuity

Page 2751 of 3745

NISSAN LATIO 2010 Service Repair Manual GW-34
< SERVICE INFORMATION >
POWER WINDOW SYSTEM
NG >> Replace main power window and door lock/unlock switch. Refer to EI-34, "Removal and Installa-
tion" .
2.CHECK POWER WINDOW MOTOR CIRCUIT
1. Turn

Page 2752 of 3745

NISSAN LATIO 2010 Service Repair Manual POWER WINDOW SYSTEMGW-35
< SERVICE INFORMATION >
C
DE
F
G H
J
K L
M A
B
GW
N
O P
OK or NG
OK >> Replace front power window motor RH. Refer to GW-44 .
NG >> GO TO 2.
2.CHECK FRONT POWER WINDOW MOTOR R
