Page 2465 of 3745

NISSAN LATIO 2010 Service Repair Manual EM-106
< DISASSEMBLY AND ASSEMBLY >[HR16DE]
HOW TO SELECT PISTON AND BEARING
HOW TO SELECT PISTON AND BEARING
DescriptionINFOID:0000000005398084
• The identification grade stamped on each part is th

EM-106
< DISASSEMBLY AND ASSEMBLY >[HR16DE]
HOW TO SELECT PISTON AND BEARING
HOW TO SELECT PISTON AND BEARING
DescriptionINFOID:0000000005398084
• The identification grade stamped on each part is the
grade for the dimension measured in new condition.
This grade cannot apply to reused parts.
• For reused or repaired parts, measure the dimension accurately. Determine the grade by comparing the measurement with the values of each selection table.
• For details of the measurement method of each part, the reuse standar ds and the selection method of the
selective fitting parts, follow the procedures.
Connecting Rod BearingINFOID:0000000005398085
WHEN NEW CONNECTING ROD AND CRANKSHAFT ARE USED
1. Apply connecting rod big end diameter grade stamped (C) on connecting rod side face to the row in the “Connecting Rod
Bearing Selection Table”.
2. Apply crankshaft pin journal diameter grade stamped (B) on
crankshaft front side to the column in the “Connecting Rod Bear-
ing Selection Table”.
3. Read the symbol at the cross point of selected row and column in the “Connecting Rod Bearing Selection Table”.
4. Apply the symbol obtained to the “Connecting Rod Bearing Grade Table” to select connecting rod bearing.
WHEN CONNECTING ROD AND CRANKSHAFT ARE REUSED
1. Measure the dimensions of the connecting rod big end diameter and crankshaft pin journal diameter indi-
vidually. Refer to EM-97, "
Inspection".
Selection points Selection parts Selection itemsSelection methods
Between cylinder block and
crankshaft Main bearingMain bearing grade (bearing
thickness) Determined by match of cylin-
der block bearing housing
grade (inner diameter of hous-
ing) and crankshaft journal
grade (outer diameter of jour-
nal)
Between crankshaft and con-
necting rod Connecting rod bearingConnecting rod bearing grade
(bearing thickness) Combining service grades for
connecting rod big end diame-
ter and crankshaft pin outer di-
ameter determine connecting
rod bearing selection.
A : Oil hole
B : Cylinder number
D : Front mark
PBIC3756E
A : Main journal diameter grade (No. 1 to 5 from left)
B : Crankshaft pin journal diameter grade (No. 1 to 4 from left)
PBIC3757E
Revision: January 20102010 Versa

Page 2466 of 3745

NISSAN LATIO 2010 Service Repair Manual HOW TO SELECT PISTON AND BEARINGEM-107
< DISASSEMBLY AND ASSEMBLY > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O

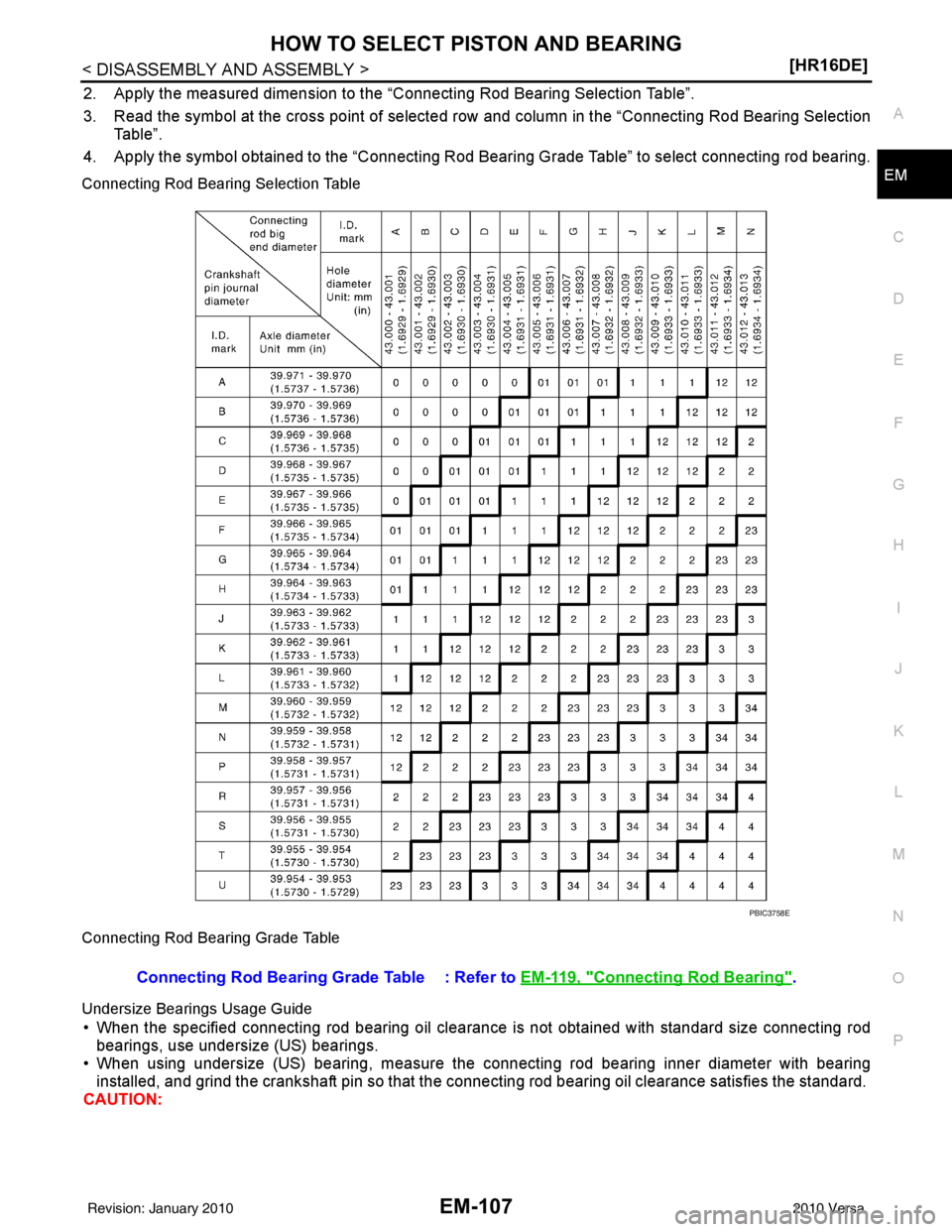

2. Apply the measured dimension to the
“Connecting Rod Bearing Selection Table”.
3. Re

Page 2467 of 3745

NISSAN LATIO 2010 Service Repair Manual EM-108
< DISASSEMBLY AND ASSEMBLY >[HR16DE]
HOW TO SELECT PISTON AND BEARING
In grinding crankshaft pin to u
se undersize bearings, keep the
fillet R (A) [0.8 - 1.2 mm (0.031 - 0.047 in)].
Main Bearin

Page 2468 of 3745

NISSAN LATIO 2010 Service Repair Manual HOW TO SELECT PISTON AND BEARINGEM-109
< DISASSEMBLY AND ASSEMBLY > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O

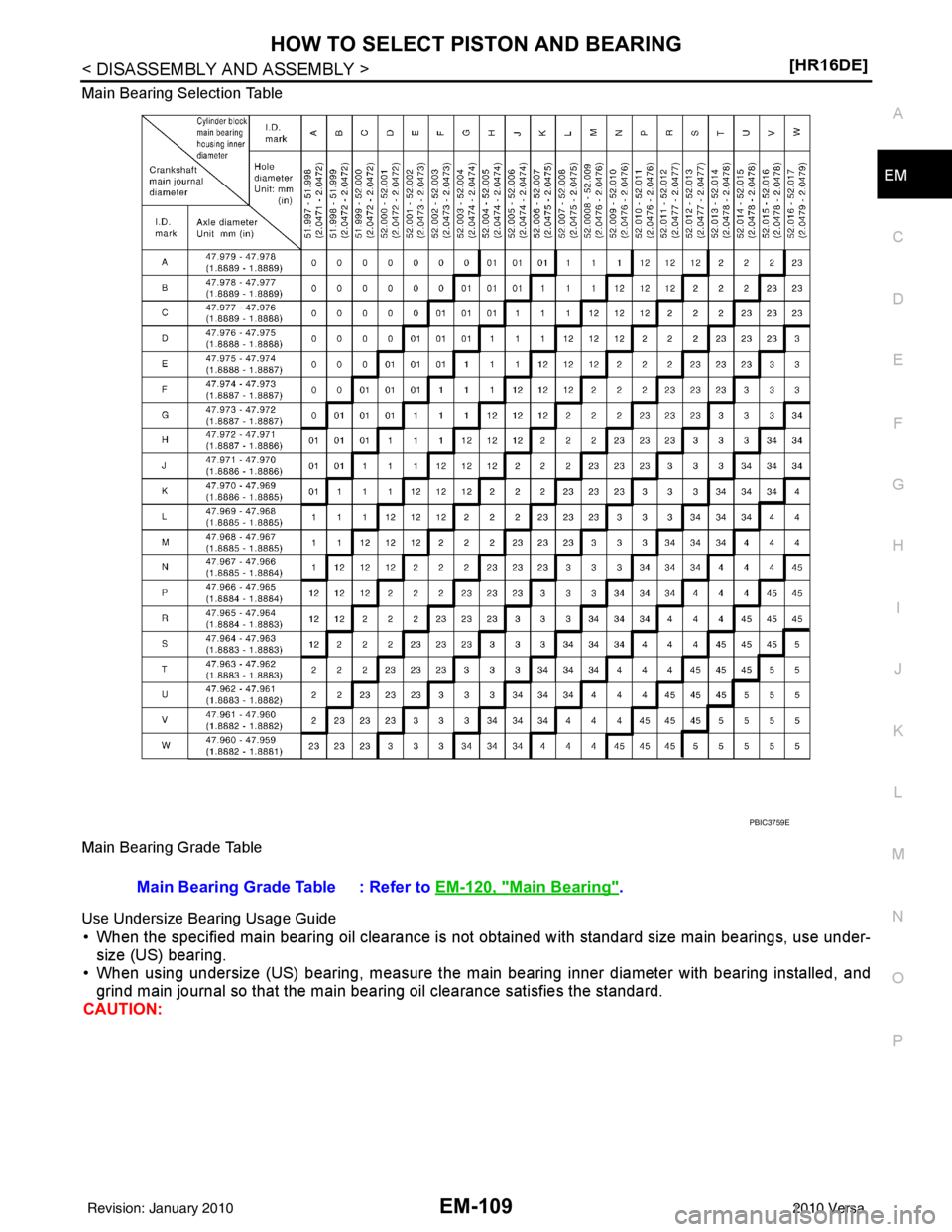

Main Bearing Selection Table
Main Bearing Grade Table
Use Undersize Bearing Usage Guide
�

Page 2469 of 3745

NISSAN LATIO 2010 Service Repair Manual EM-110
< DISASSEMBLY AND ASSEMBLY >[HR16DE]
HOW TO SELECT PISTON AND BEARING
In grinding crankshaft main jour
nal to use undersize bearings,
keep fillet R (A) [0.8 - 1.2 mm (0.031 - 0.047 in)].
Beari

Page 2470 of 3745

NISSAN LATIO 2010 Service Repair Manual SERVICE DATA AND SPECIFICATIONS (SDS)EM-111
< SERVICE DATA AND SPECIFICATIONS (SDS) [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS

Page 2471 of 3745

NISSAN LATIO 2010 Service Repair Manual EM-112
< SERVICE DATA AND SPECIFICATIONS (SDS) [HR16DE]
SERVICE DATA AND SPECIFICATIONS (SDS)
*: When engine is cold.
Spark PlugINFOID:0000000005398089
SPARK PLUG
Unit: mm (in)
*: Always check with t

Page 2472 of 3745

NISSAN LATIO 2010 Service Repair Manual SERVICE DATA AND SPECIFICATIONS (SDS)EM-113
< SERVICE DATA AND SPECIFICATIONS (SDS) [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
*: Total indicator reading
VA LV E L I F T E R
Unit: mm (in)
VALVE CLEARA
