Page 1169 of 3745
CVT-136
< SERVICE INFORMATION >[RE0F08B]
OVERDRIVE CONTROL SWITCH

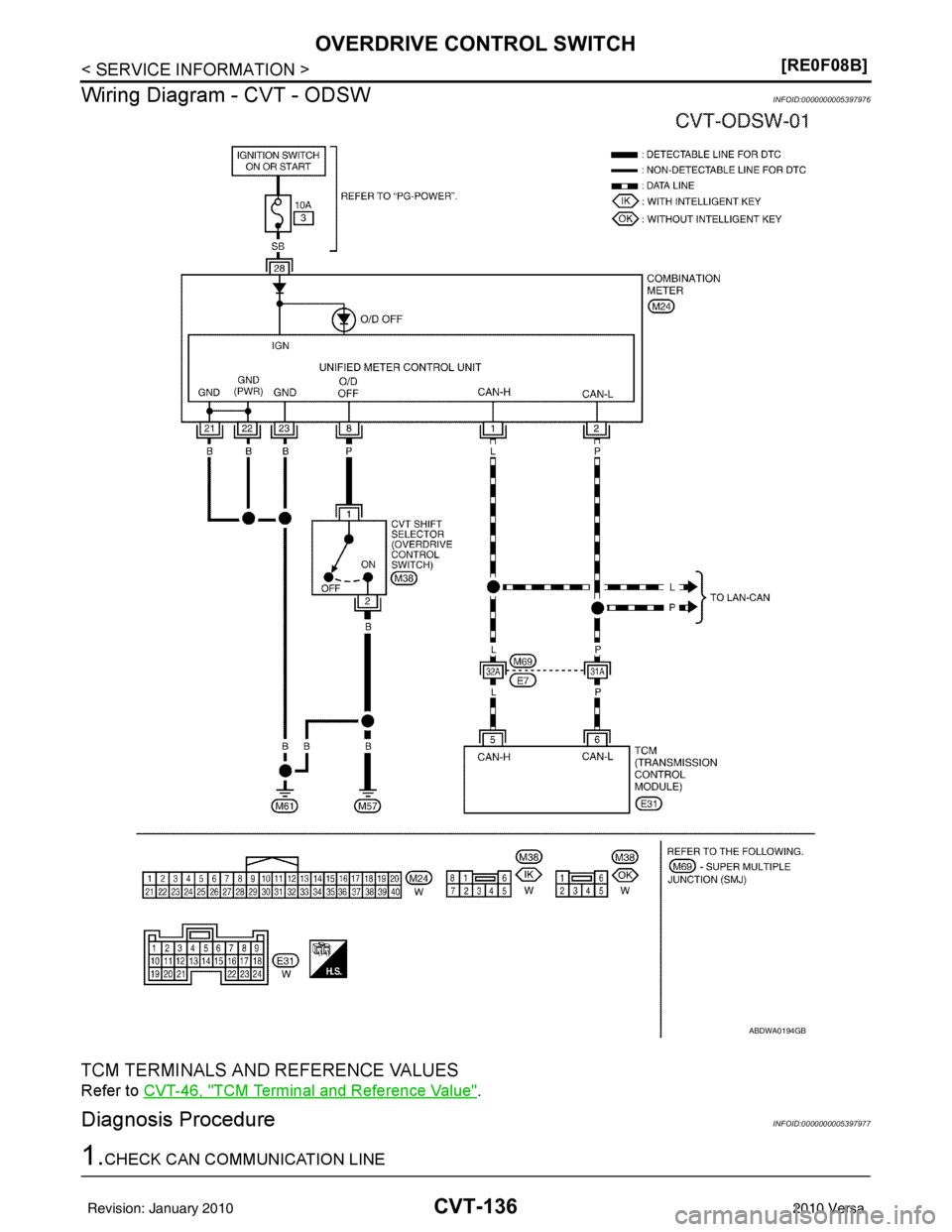

Wiring Diagram - CVT - ODSW
INFOID:0000000005397976
TCM TERMINALS AND REFERENCE VALUES
Refer to CVT-46, "TCM Terminal and Reference Value".
Diagnosis ProcedureINFOID:0000000005397977
1.CHECK CAN COMMUNICATION LINE
ABDWA0194GB
Revision: January 20102010 Versa
Page 1170 of 3745
![NISSAN LATIO 2010 Service Repair Manual OVERDRIVE CONTROL SWITCHCVT-137
< SERVICE INFORMATION > [RE0F08B]
D
E
F
G H
I
J
K L
M A
B
CVT
N
O P
Perform the self-diagnosis check. Refer to CVT-48, "CONSULT-III Function (TRANSMISSION)".
Is any ma NISSAN LATIO 2010 Service Repair Manual OVERDRIVE CONTROL SWITCHCVT-137
< SERVICE INFORMATION > [RE0F08B]
D
E
F
G H
I
J
K L
M A
B
CVT
N
O P
Perform the self-diagnosis check. Refer to CVT-48, "CONSULT-III Function (TRANSMISSION)".
Is any ma](/manual-img/5/57358/w960_57358-1169.png)
OVERDRIVE CONTROL SWITCHCVT-137
< SERVICE INFORMATION > [RE0F08B]
D
E
F
G H
I
J
K L
M A
B
CVT
N
O P
Perform the self-diagnosis check. Refer to CVT-48, "CONSULT-III Function (TRANSMISSION)".
Is any malfunction of the
“U1000” indicated in the results?
YES >> Check CAN communication line. Refer to CVT-56.
NO >> GO TO 2.
2.CHECK OVERDRIVE CO NTROL SWITCH SIGNAL
With CONSULT-III
1. Turn ignition switch ON.
2. Select “ECU INPUT SIGNALS” in “DATA MONITO R” mode for “TRANSMISSION” with CONSULT-III.
3. Read out ON/OFF switching action of the “SPORT MODE SW”.
OK or NG
OK >> INSPECTION END
NG >> GO TO 3.
3.CHECK OVERDRIVE CONTROL SWITCH
Check overdrive control switch. Refer to CVT-138, "
Component Inspection"
OK or NG
OK >> GO TO 4.
NG >> Repair or replace damaged parts.
4.CHECK SELF-DIAGNOSTIC RESULTS (COMBINATION METER)
Perform self-diagnosis check. Refer to DI-11, "
Self-Diagnosis Mode of Combination Meter".
Is any malfunction detected by self-diagnostic?
YES >> Check the malfunctioning system.
NO - 1 >> With intelligent key: GO TO 5.
NO - 2 >> Without intelligent key: GO TO 6.
5.CHECK OVERDRIVE CO NTROL SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect CVT shift selector connector and combination meter connector.
3. Check continuity between CVT shift selector harness connector (A) terminal and combination meter harness connector (B) ter-
minal.
Item name ConditionDisplay value
SPORT MODE SW While pushing overdrive
cancel switch
on
Other conditions off
ItemConnector Terminal Continuity
CVT shift selector harness con-
nector M38
1
Ye s
Combination meter harness
connector M24
8
SCIA7949E
Revision: January 20102010 Versa
Page 1171 of 3745
![NISSAN LATIO 2010 Service Repair Manual CVT-138
< SERVICE INFORMATION >[RE0F08B]
OVERDRIVE CONTROL SWITCH
4. Check continuity between CVT shift selector harness connector
terminal and ground.
5. If OK, check harness for short to ground and NISSAN LATIO 2010 Service Repair Manual CVT-138
< SERVICE INFORMATION >[RE0F08B]
OVERDRIVE CONTROL SWITCH
4. Check continuity between CVT shift selector harness connector
terminal and ground.
5. If OK, check harness for short to ground and](/manual-img/5/57358/w960_57358-1170.png)

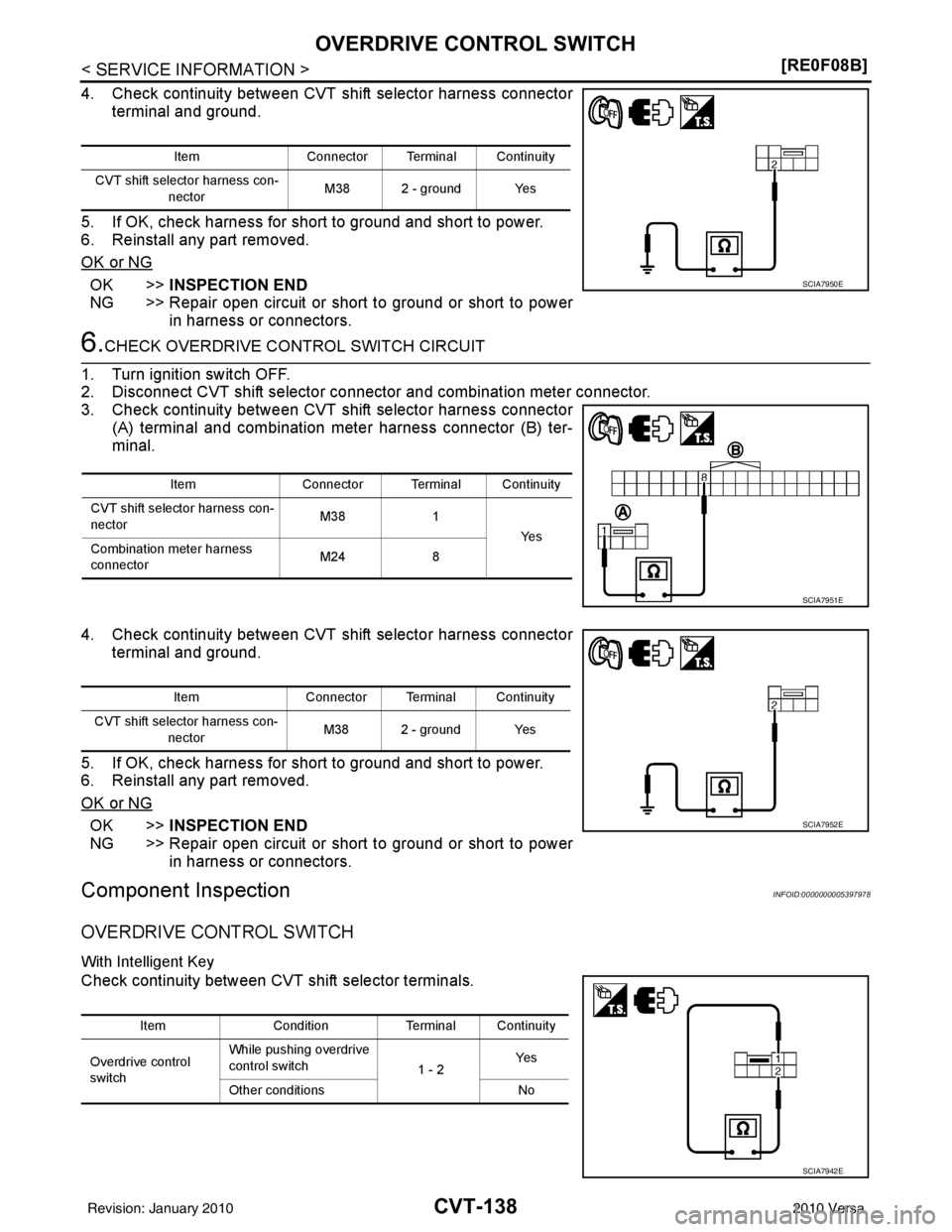

CVT-138
< SERVICE INFORMATION >[RE0F08B]
OVERDRIVE CONTROL SWITCH
4. Check continuity between CVT shift selector harness connector
terminal and ground.
5. If OK, check harness for short to ground and short to power.
6. Reinstall any part removed.
OK or NG
OK >> INSPECTION END
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
6.CHECK OVERDRIVE CONTROL SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect CVT shift selector connector and combination meter connector.
3. Check continuity between CVT shift selector harness connector (A) terminal and combination meter harness connector (B) ter-
minal.
4. Check continuity between CVT shift selector harness connector terminal and ground.
5. If OK, check harness for short to ground and short to power.
6. Reinstall any part removed.
OK or NG
OK >> INSPECTION END
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
Component InspectionINFOID:0000000005397978
OVERDRIVE CONTROL SWITCH
With Intelligent Key
Check continuity between CVT shift selector terminals.
Item Connector Terminal Continuity
CVT shift selector harness con- nector M38 2 - ground Yes
SCIA7950E
Item
Connector Terminal Continuity
CVT shift selector harness con-
nector M38
1
Ye s
Combination meter harness
connector M24
8
SCIA7951E
Item Connector Terminal Continuity
CVT shift selector harness con- nector M38 2 - ground Yes
SCIA7952E
Item
ConditionTerminal Continuity
Overdrive control
switch While pushing overdrive
control switch
1 - 2Ye s
Other conditions No
SCIA7942E
Revision: January 20102010 Versa
Page 1172 of 3745
OVERDRIVE CONTROL SWITCHCVT-139
< SERVICE INFORMATION > [RE0F08B]
D
E
F
G H
I
J
K L
M A
B
CVT
N
O P
Without Intelligent Key
Check continuity between CVT shift selector terminals.
Item
Condition Terminal Continuity
Overdrive control
switch While pushing overdrive
control switch
1 - 2Ye s
Other conditions No
SCIA7943E
Revision: January 20102010 Versa
Page 1173 of 3745
![NISSAN LATIO 2010 Service Repair Manual CVT-140
< SERVICE INFORMATION >[RE0F08B]
SHIFT POSITION INDICATOR CIRCUIT
SHIFT POSITION INDICATOR CIRCUIT
DescriptionINFOID:0000000005397979
TCM sends the switch signals to combination meter vi
a CAN NISSAN LATIO 2010 Service Repair Manual CVT-140
< SERVICE INFORMATION >[RE0F08B]
SHIFT POSITION INDICATOR CIRCUIT
SHIFT POSITION INDICATOR CIRCUIT
DescriptionINFOID:0000000005397979
TCM sends the switch signals to combination meter vi
a CAN](/manual-img/5/57358/w960_57358-1172.png)
CVT-140
< SERVICE INFORMATION >[RE0F08B]
SHIFT POSITION INDICATOR CIRCUIT
SHIFT POSITION INDICATOR CIRCUIT
DescriptionINFOID:0000000005397979
TCM sends the switch signals to combination meter vi
a CAN communication line. Then selector lever position
is indicated on the shift position indicator.
CONSULT-III Reference Value in Data Monitor ModeINFOID:0000000005397980
Diagnosis ProcedureINFOID:0000000005397981
1.CHECK INPUT SIGNALS
With CONSULT-III
1. Start engine.
2. Select “MAIN SIGNALS” in “DATA MONITOR” m ode for “TRANSMISSION” with CONSULT-III and read
out the value of “RANGE”.
3. Check that the following three pos itions or indicators are same.
- Actual position of the selector lever
- “RANGE” on CONSULT-III screen
- Shift position indicator in the combination meter
OK or NG
OK >> INSPECTION END
NG >> Check the following.
SHIFT POSITION INDICATOR SYMPTOM CHART
Item name Condition Display value
RANGE Selector lever in “N
” or “P” position. N·P
Selector lever in “R” position. R
Selector lever in “D” position. D
Selector lever in “L” position. L
Items Presumed location of trouble
Actual position does not change. Transmission range switch
• Refer to
CVT-62
.
CVT main system (Fail-safe function actuated)
• Refer to CVT-48, "
CONSULT-III Function (TRANSMISSION)".
Shift position indicator in the combination meter does not indicate
any position. Perform the self-diagnosis for CVT and the combination meter.
• Refer to CVT-48, "
CONSULT-III Function (TRANSMISSION)"
and DI-4
.
Actual position changes, but the shift position indicator in the com-
bination meter does not change.
Actual position differs from the shift position indicator in the com-
bination meter.
Shift position indicator in the combination meter does not indicate
specific position only.
Check the combination meter.
• Refer to
DI-4
.
Revision: January 20102010 Versa
Page 1174 of 3745
TROUBLE DIAGNOSIS FOR SYMPTOMSCVT-141
< SERVICE INFORMATION > [RE0F08B]
D
E
F
G H
I
J
K L
M A
B
CVT
N
O P
TROUBLE DIAGNOSIS FOR SYMPTOMS

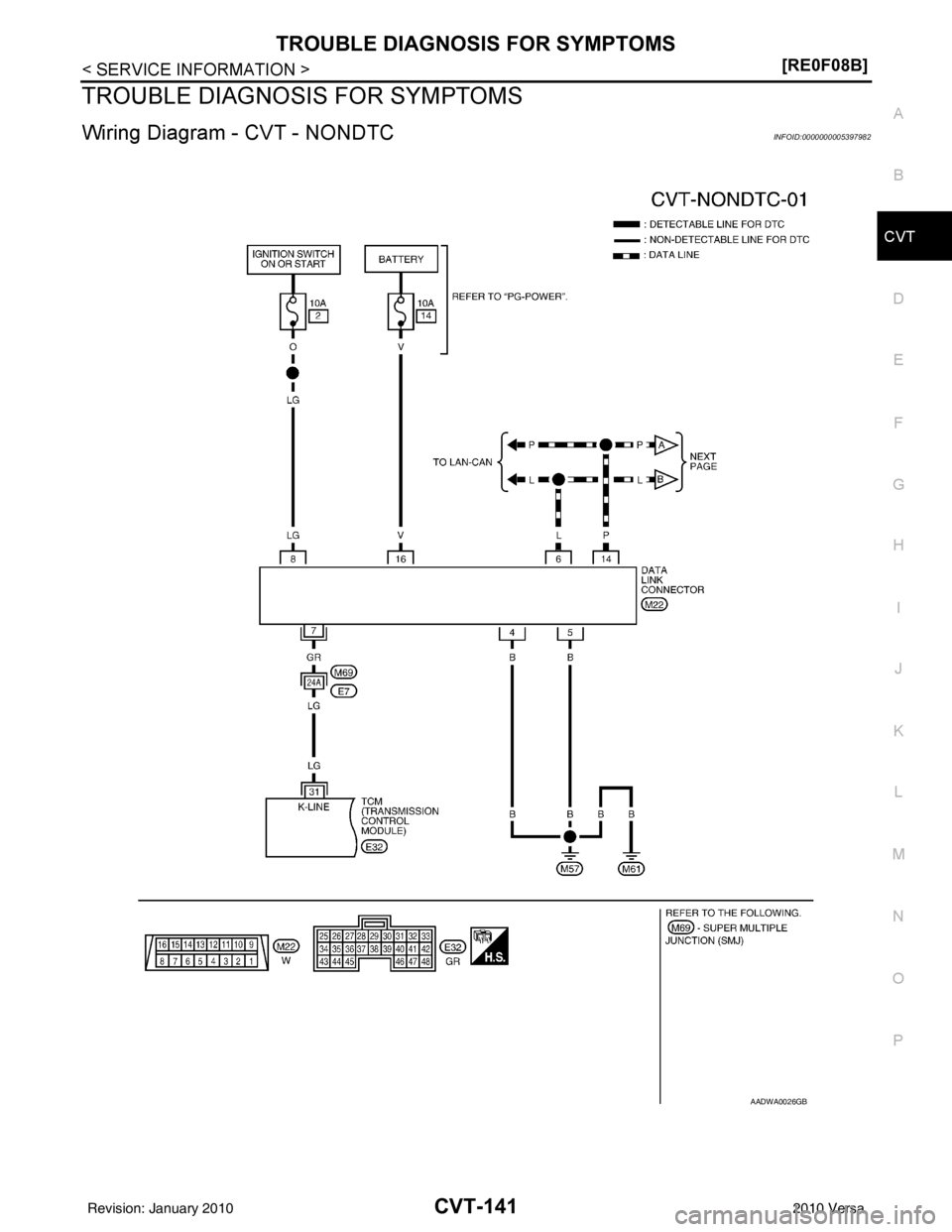

Wiring Diagram - CVT - NONDTCINFOID:0000000005397982
AADWA0026GB
Revision: January 20102010 Versa
Page 1175 of 3745
CVT-142
< SERVICE INFORMATION >[RE0F08B]
TROUBLE DIAGNOSIS FOR SYMPTOMS
ABDWA0195GB
Revision: January 20102010 Versa
Page 1176 of 3745
TROUBLE DIAGNOSIS FOR SYMPTOMSCVT-143
< SERVICE INFORMATION > [RE0F08B]
D
E
F
G H
I
J
K L
M A
B
CVT
N
O P

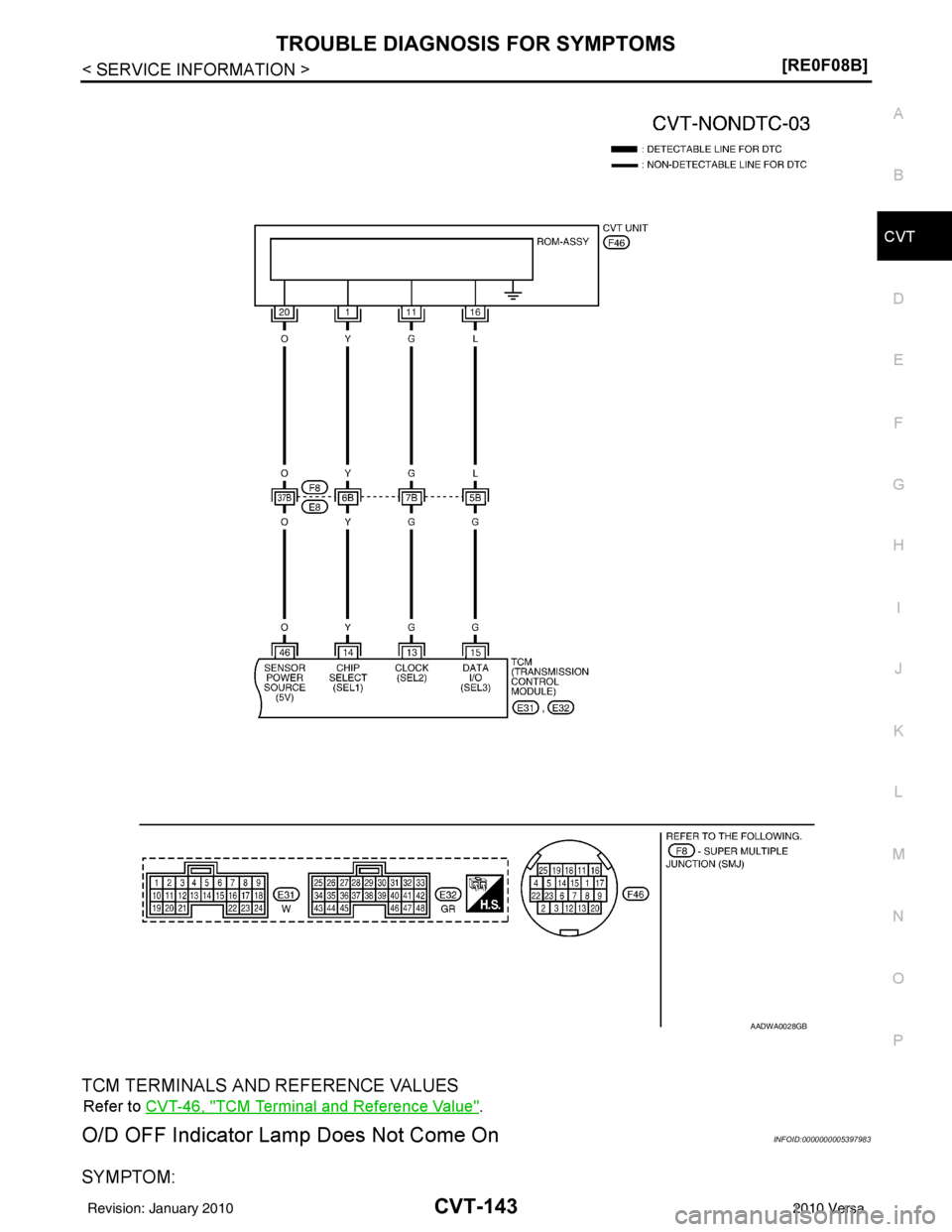

TCM TERMINALS AND REFERENCE VALUES
Refer to CVT-46, "TCM Terminal and Reference Value".
O/D OFF Indicator Lamp Does Not Come OnINFOID:0000000005397983
SYMPTOM:
AADWA0028GB
Revision: January 20102010 Versa
