Page 897 of 3745

NISSAN LATIO 2010 Service Repair Manual SYSTEM DESCRIPTIONBRC-7
< SERVICE INFORMATION > [ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P
SYSTEM DESCRIPTION
System ComponentINFOID:0000000005397026
ABS FunctionINFOID:0000000005397027
• The Anti-Lock

SYSTEM DESCRIPTIONBRC-7
< SERVICE INFORMATION > [ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P
SYSTEM DESCRIPTION
System ComponentINFOID:0000000005397026
ABS FunctionINFOID:0000000005397027
• The Anti-Lock Brake System detects wheel revolution while braking and improves handling stability during sudden braking by electrically preventing wheel lockup. Maneuverability is also improved for avoiding obsta-
cles during emergency braking.
• If the electrical system malfunctions, the Fail-Safe function is activated, t he ABS becomes inoperative and
the ABS warning lamp turns on.
• The electrical system can be diagnosed using CONSULT-III.
• During ABS operation, the brake pedal may vibrate lightly and a mechanical noise may be heard. This is normal.
• Just after starting the vehicle, the brake pedal may vibrate or motor operating noises may be heard from the
engine compartment. This is normal due to the self check operation.
• Stopping distance may be longer than that of vehicles without ABS when vehicle drives on rough, gravel, or
snow-covered (fresh, deep snow) roads.
EBD FunctionINFOID:0000000005397028
• Electronic Brake Distribution is a function that detects subtle slippages between the front and rear wheels during braking, and it improves handling stability by elec tronically controlling the brake fluid pressure which
results in reduced rear wheel slippage.
• If the electrical system malfunctions, the Fail-Safe function is activated, the EBD and ABS become inopera- tive, and the ABS warning lamp and brake warning lamp are turned on.
• The electrical system can be diagnosed using CONSULT-III.
• During EBD operation, the brake pedal may vibrate lightly and a mechanical noise may be heard. This is
normal.
• Just after starting the vehicle, the brake pedal may vibrate or motor operating noises may be heard from the
engine compartment. This is normal due to the self check operation.
Fail-Safe FunctionINFOID:0000000005397029
CAUTION:
If the Fail-Safe function is activated, perform the Self Diagnosis for ABS system.
ABS/EBD SYSTEM
In case of an electrical malfunction with the ABS, the ABS warning lamp wi ll turn on. In case of an electrical
malfunction with the EBD system, the brake warni ng lamp and the ABS warning lamp will turn on.
The system will revert to one of the follo wing conditions of the Fail-Safe function.
1. For ABS malfunction, only the EBD is operative and t he condition of the vehicle is the same condition of
vehicles without ABS system.
WFIA0118E
Revision: January 20102010 Versa

Page 898 of 3745

NISSAN LATIO 2010 Service Repair Manual BRC-8
< SERVICE INFORMATION >[ABS]
SYSTEM DESCRIPTION
2. For EBD malfunction, the EBD and ABS become inoperat
ive, and the condition of the vehicle is the same
as the condition of vehicles without ABS

Page 899 of 3745

NISSAN LATIO 2010 Service Repair Manual CAN COMMUNICATIONBRC-9
< SERVICE INFORMATION > [ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P
CAN COMMUNICATION
System DescriptionINFOID:0000000005397031
Refer to LAN-7, "System Description".
Revision: Janu

Page 900 of 3745

NISSAN LATIO 2010 Service Repair Manual BRC-10
< SERVICE INFORMATION >[ABS]
TROUBLE DIAGNOSIS
TROUBLE DIAGNOSIS
How to Perform Trouble Diagnosis
for Quick and Accurate RepairINFOID:0000000005397032
INTRODUCTION
The ABS system has an electr

Page 901 of 3745

NISSAN LATIO 2010 Service Repair Manual TROUBLE DIAGNOSISBRC-11
< SERVICE INFORMATION > [ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P

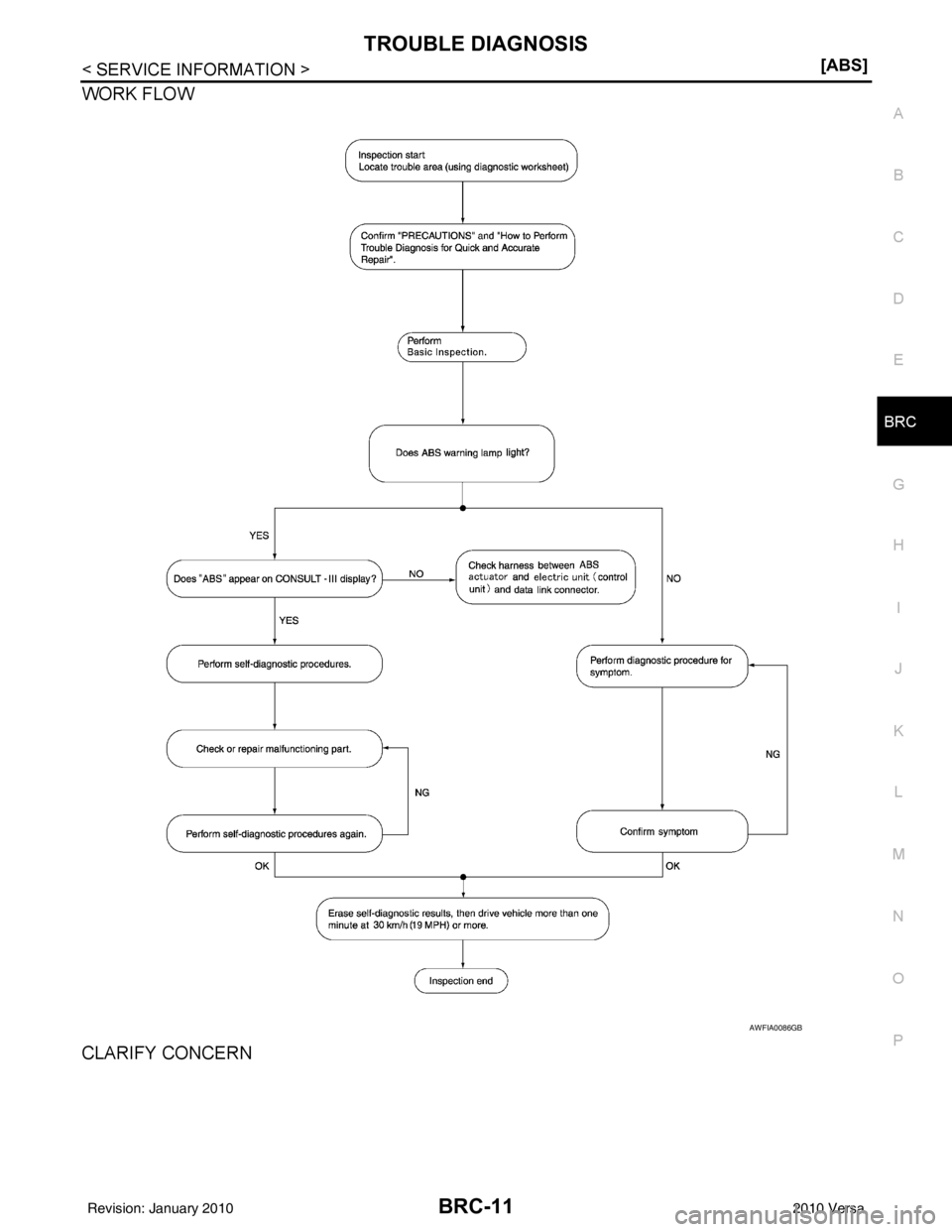

WORK FLOW
CLARIFY CONCERN
AWFIA0086GB
Revision: January 20102010 Versa

Page 902 of 3745

NISSAN LATIO 2010 Service Repair Manual BRC-12
< SERVICE INFORMATION >[ABS]
TROUBLE DIAGNOSIS
• A customers description of a vehicle concern may vary depending
on the individual. It is important to clarify the customers concern.
• As

Page 903 of 3745

NISSAN LATIO 2010 Service Repair Manual TROUBLE DIAGNOSISBRC-13
< SERVICE INFORMATION > [ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P
Component Parts and Har ness Connector LocationINFOID:0000000005397033
1. Front wheel sensor
LH E18
RH E117 2. R

Page 904 of 3745

NISSAN LATIO 2010 Service Repair Manual BRC-14
< SERVICE INFORMATION >[ABS]
TROUBLE DIAGNOSIS
Schematic
INFOID:0000000005397034
ABFWA0120GB
Revision: January 20102010 Versa
