Page 3249 of 3745
TRANSAXLE ASSEMBLYMT-65
< SERVICE INFORMATION > [RS6F94R]
D
E
F
G H
I
J
K L
M A
B
MT
N
O P
1. Mainshaft front bearing outer race 2. Mainshaft front bearing inner race 3. Mainshaft
4. 1st main gear 5. 1st inner baulk ring 6. 1st synchronizer cone
7. 1st outer baulk ring 8. 1st-2nd coupling sleeve 9. Insert key
10. 1st-2nd synchronizer hub 11. 2nd outer baulk ring 12. 2nd synchronizer cone
13. 2nd inner baulk ring 14. 2nd main gear 15. Bushing
16. 3rd main gear 17. Mainshaft adjusting shim 18. 4th main gear
19. 5th main gear 20. 6th main gear 21. Mainshaft rear bearing inner
race
22. Mainshaft rear bearing outer race 23. Snap ring
24. Mainshaft rear bearing adjust-
ing shim
: Apply gear oil.
: Replace the parts as a set.
SFIA3293E
Revision: January 20102010 Versa
Page 3250 of 3745
MT-66
< SERVICE INFORMATION >[RS6F94R]
TRANSAXLE ASSEMBLY
Shift Control Components
1. Reverse output gear 2. Snap ring
3. Reverse baulk ring
4. Return spring 5. Needle bearing 6. Seal washer
7. Reverse idler shaft 8. Spacer 9. Reverse input gear
10. Lock washer 11. Spring washer
: Replace the parts as a set.
JPDIC0425GB
Revision: January 20102010 Versa
Page 3251 of 3745
TRANSAXLE ASSEMBLYMT-67
< SERVICE INFORMATION > [RS6F94R]
D
E
F
G H
I
J
K L
M A
B
MT
N
O P
Final Drive Components
1. Shifter lever A
2. Shifter lever B 3. Retaining pin
4. Selector 5. Selector lever 6. Reverse fork rod
7. 1st-2nd fork rod 8. Fork rod
: Replace the parts as a set.
AWDIA0716ZZ
Revision: January 20102010 Versa
Page 3252 of 3745
MT-68
< SERVICE INFORMATION >[RS6F94R]
TRANSAXLE ASSEMBLY
DISASSEMBLY
1. Remove drain plug and gasket from clutch housing, using a suitable tool and then drain gear oil.
2. Remove filler plug and gasket from transaxle case.
3. Remove selector lever (1) retaining pin with a pin punch to
remove selector lever.
4. Remove bracket (2) and position switch (3) from transaxle case.

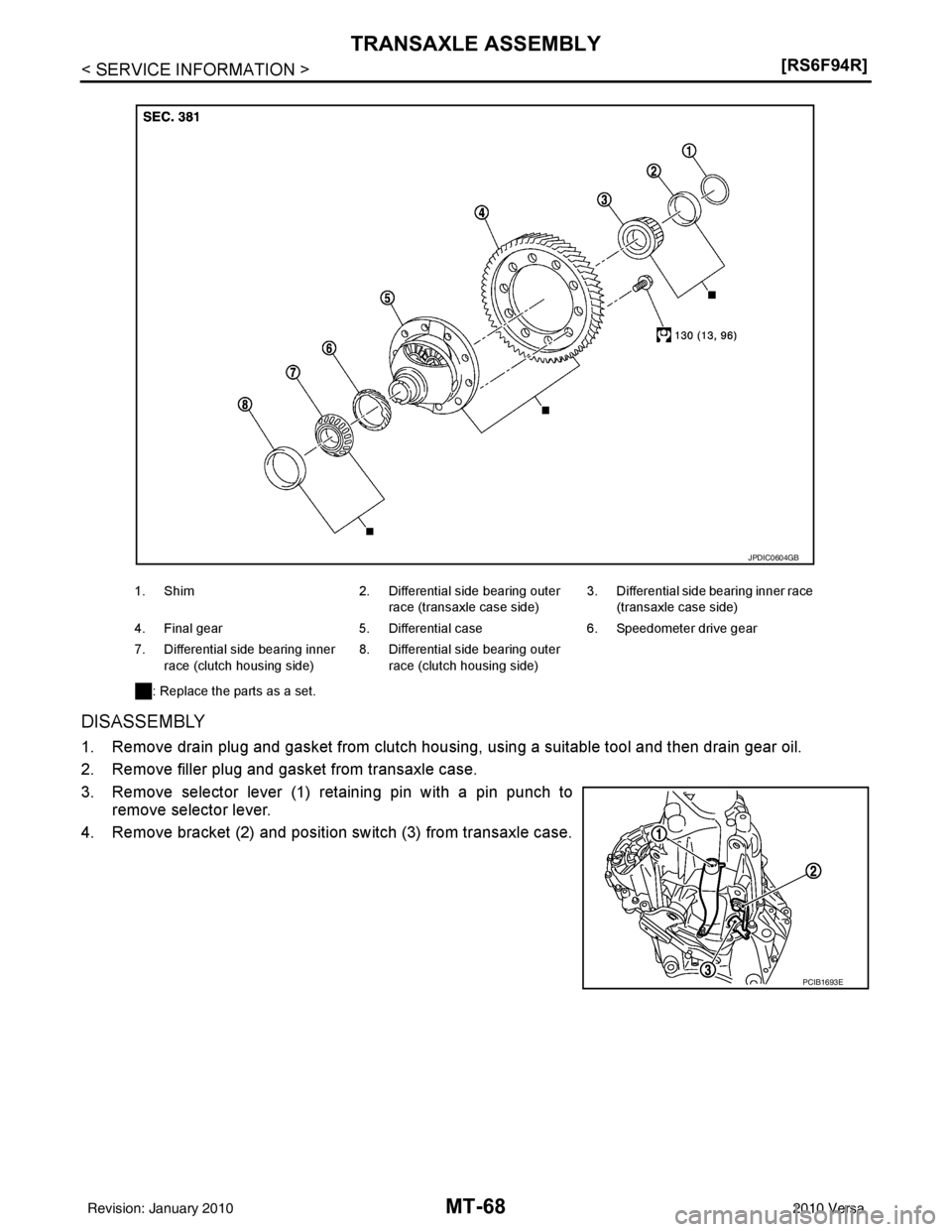

1. Shim 2. Differential side bearing outer
race (transaxle case side) 3. Differential side bearing inner race
(transaxle case side)
4. Final gear 5. Differential case 6. Speedometer drive gear
7. Differential side bearing inner race (clutch housing side) 8. Differential side bearing outer
race (clutch housing side)
: Replace the parts as a set.
JPDIC0604GB
PCIB1693E
Revision: January 20102010 Versa
Page 3253 of 3745
TRANSAXLE ASSEMBLYMT-69
< SERVICE INFORMATION > [RS6F94R]
D
E
F
G H
I
J
K L
M A
B
MT
N
O P

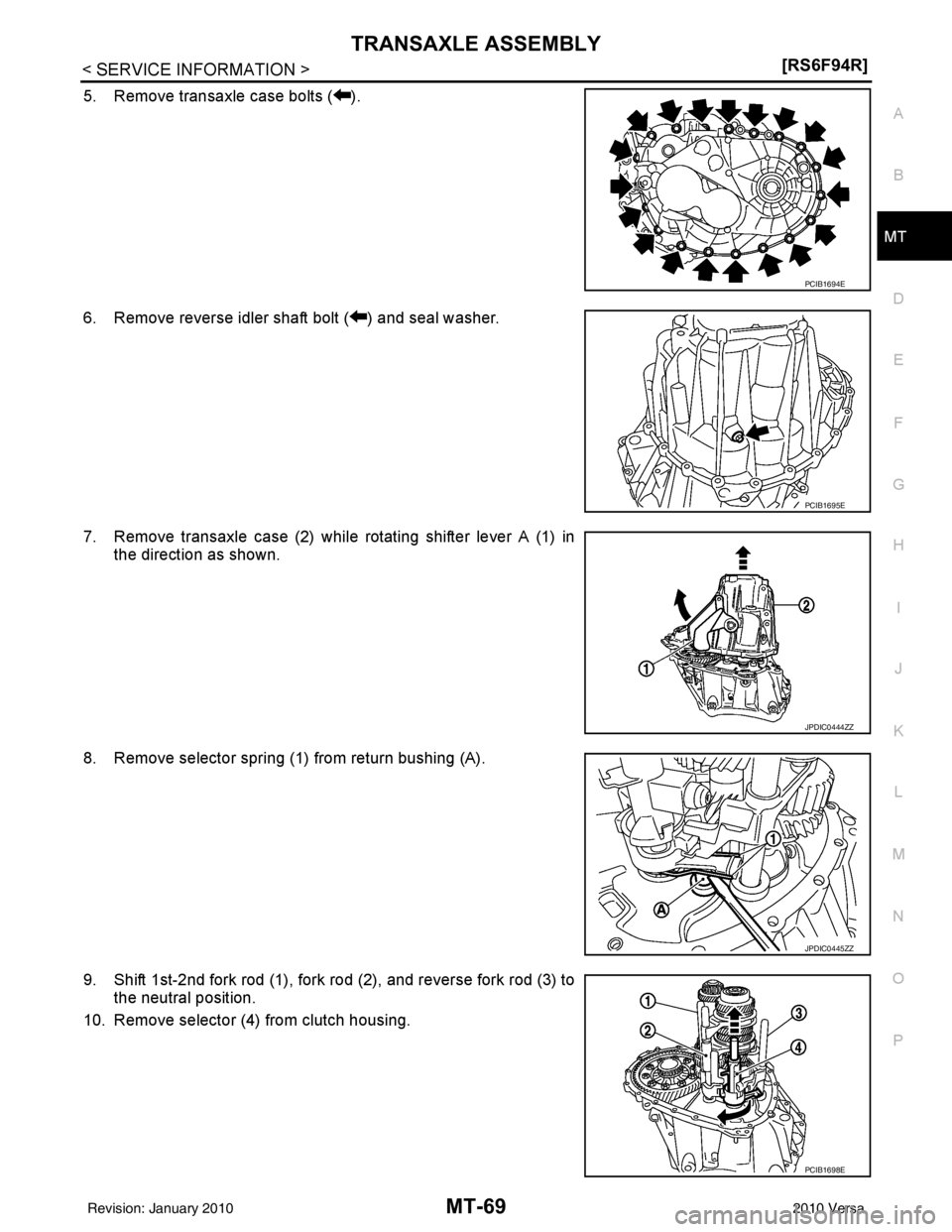

5. Remove transaxle case bolts ( ).
6. Remove reverse idler shaft bolt ( ) and seal washer.
7. Remove transaxle case (2) while rotating shifter lever A (1) in the direction as shown.
8. Remove selector spring (1) from return bushing (A).
9. Shift 1st-2nd fork rod (1), fork rod (2), and reverse fork rod (3) to the neutral position.
10. Remove selector (4) from clutch housing.
PCIB1694E
PCIB1695E
JPDIC0444ZZ
JPDIC0445ZZ
PCIB1698E
Revision: January 20102010 Versa
Page 3254 of 3745
![NISSAN LATIO 2010 Service Repair Manual MT-70
< SERVICE INFORMATION >[RS6F94R]
TRANSAXLE ASSEMBLY

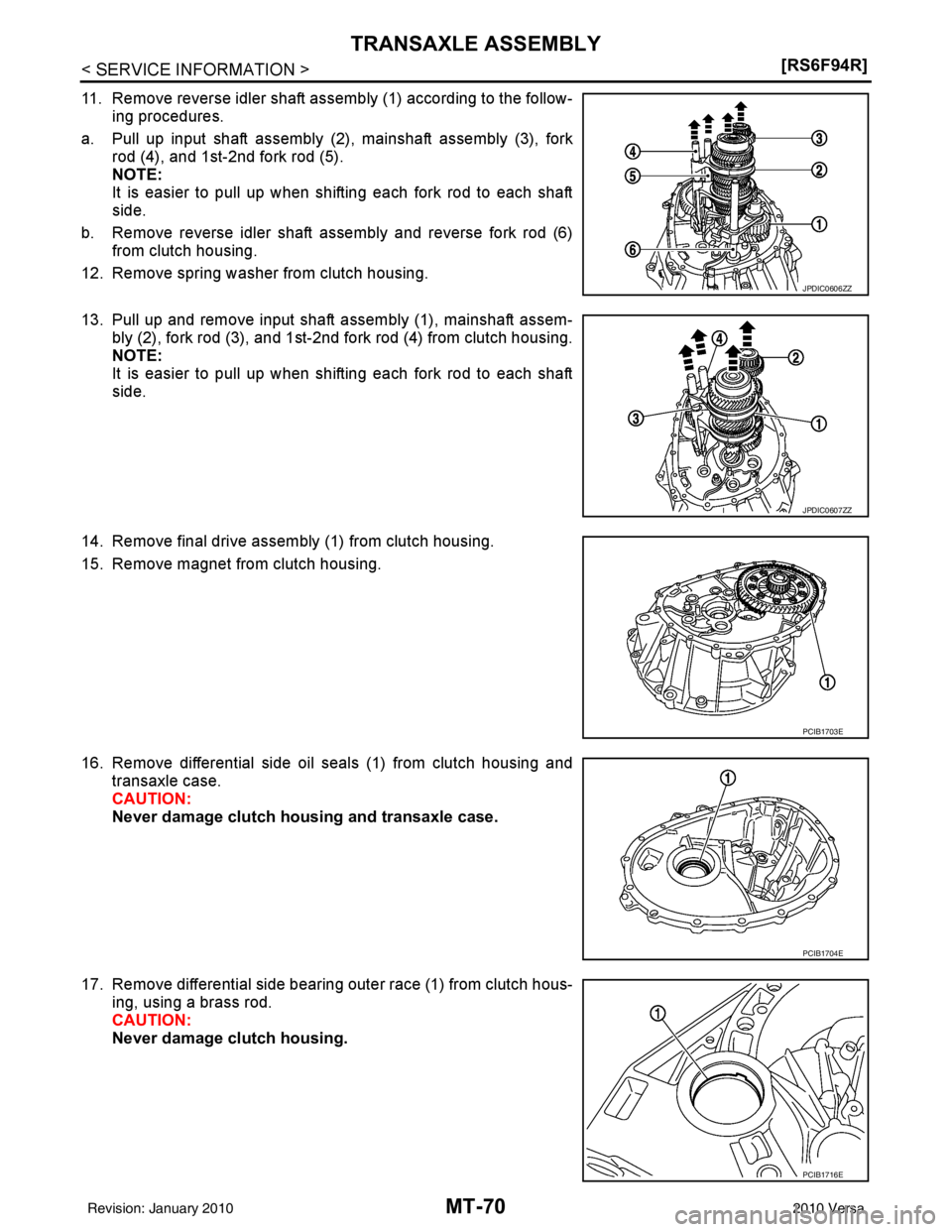

11. Remove reverse idler shaft assembly (1) according to the follow-
ing procedures.
a. Pull up input shaft assembly (2), mainshaft assembly ( NISSAN LATIO 2010 Service Repair Manual MT-70
< SERVICE INFORMATION >[RS6F94R]
TRANSAXLE ASSEMBLY
11. Remove reverse idler shaft assembly (1) according to the follow-
ing procedures.
a. Pull up input shaft assembly (2), mainshaft assembly (](/manual-img/5/57358/w960_57358-3253.png)
MT-70
< SERVICE INFORMATION >[RS6F94R]
TRANSAXLE ASSEMBLY
11. Remove reverse idler shaft assembly (1) according to the follow-
ing procedures.
a. Pull up input shaft assembly (2), mainshaft assembly (3), fork rod (4), and 1st-2nd fork rod (5).
NOTE:
It is easier to pull up when shifting each fork rod to each shaft
side.
b. Remove reverse idler shaft assembly and reverse fork rod (6) from clutch housing.
12. Remove spring washer from clutch housing.
13. Pull up and remove input shaft assembly (1), mainshaft assem- bly (2), fork rod (3), and 1st-2nd fork rod (4) from clutch housing.
NOTE:
It is easier to pull up when shifting each fork rod to each shaft
side.
14. Remove final drive assembly (1) from clutch housing.
15. Remove magnet from clutch housing.
16. Remove differential side oil seals (1) from clutch housing and transaxle case.
CAUTION:
Never damage clutch housing and transaxle case.
17. Remove differential side bearing outer race (1) from clutch hous- ing, using a brass rod.
CAUTION:
Never damage clutch housing.
JPDIC0606ZZ
JPDIC0607ZZ
PCIB1703E
PCIB1704E
PCIB1716E
Revision: January 20102010 Versa
Page 3255 of 3745
TRANSAXLE ASSEMBLYMT-71
< SERVICE INFORMATION > [RS6F94R]
D
E
F
G H
I
J
K L
M A
B
MT
N
O P

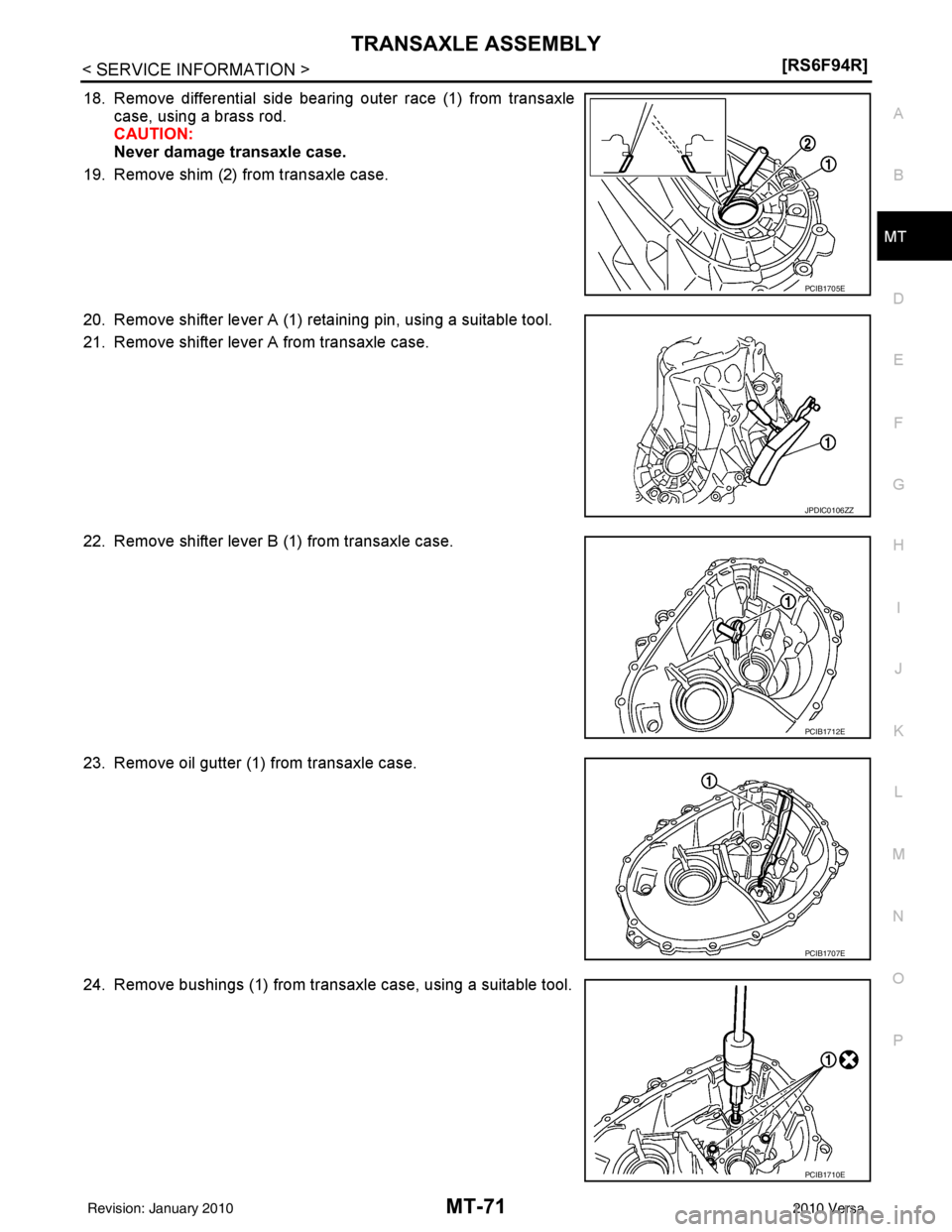

18. Remove differential side bearing outer race (1) from transaxle case, using a brass rod.
CAUTION:
Never damage transaxle case.
19. Remove shim (2) from transaxle case.
20. Remove shifter lever A (1) retaining pin, using a suitable tool.
21. Remove shifter lever A from transaxle case.
22. Remove shifter lever B (1) from transaxle case.
23. Remove oil gutter (1) from transaxle case.
24. Remove bushings (1) from transaxle case, using a suitable tool.
PCIB1705E
JPDIC0106ZZ
PCIB1712E
PCIB1707E
PCIB1710E
Revision: January 20102010 Versa
Page 3256 of 3745
MT-72
< SERVICE INFORMATION >[RS6F94R]
TRANSAXLE ASSEMBLY
25. Remove mainshaft rear bearing outer race from transaxle case,
using a suitable tool.
26. Remove mainshaft rear bearing adjusting shim from transaxle case.
27. Remove snap ring (1) and oil channel (2) from transaxle case.
28. Remove input shaft oil seal (1) from clutch housing, using a suit- able tool.
CAUTION:
Never damage clutch housing.
29. Remove mainshaft front bearing outer race (1) from clutch hous- ing, using Tool (A) and a suitable tool (B).
30. Remove oil channel (2) from clutch housing.
PCIB1706E
PCIB1708E
PCIB1714E
Tool number : KV381054S0 (J-34286)
JPDIC0107ZZ
Revision: January 20102010 Versa
