Page 809 of 3745

NISSAN LATIO 2010 Service Repair Manual BL-300
< SERVICE INFORMATION >
BODY REPAIR
Measurement
LIIA2605E
Revision: January 20102010 Versa

Page 810 of 3745

NISSAN LATIO 2010 Service Repair Manual BODY REPAIRBL-301
< SERVICE INFORMATION >
C
DE
F
G H
J
K L
M A
B
BL
N
O P
Measurement Points
REAR BODY SEDAN
LIIA2606E
Revision: January 20102010 Versa

Page 811 of 3745

NISSAN LATIO 2010 Service Repair Manual BL-302
< SERVICE INFORMATION >
BODY REPAIR
Measurement
LIIA2880E
Revision: January 20102010 Versa

Page 812 of 3745

NISSAN LATIO 2010 Service Repair Manual BODY REPAIRBL-303
< SERVICE INFORMATION >
C
DE
F
G H
J
K L
M A
B
BL
N
O P
Measurement Points
Handling Precaution for PlasticsINFOID:0000000005396724
HANDLING PRECAUTIONS FOR PLASTICS
LIIA2888E
Revisio

Page 813 of 3745

NISSAN LATIO 2010 Service Repair Manual BL-304
< SERVICE INFORMATION >
BODY REPAIR
1. When repairing and painting a portion of the body adjacent to plastic parts, consider their characteristics
(influence of heat and solvent) and remove the

BL-304
< SERVICE INFORMATION >
BODY REPAIR
1. When repairing and painting a portion of the body adjacent to plastic parts, consider their characteristics
(influence of heat and solvent) and remove them if neces sary or take suitable measures to protect them.
2. Plastic parts should be repaired and painted using methods suiting the materials
, characteristics.
LOCATION OF PLASTIC PARTS
Abbre- viation Material name Heat resisting
temperature °C ( °F) Resistance to gasoline and
solvents Other cautions
PE Polyethylene 60 (140)Gasoline and most solvents are
harmless if applied for a very
short time (wipe up quickly). Flammable
PVC Polyvinyl Chloride 80 (176) Same as above. Poison gas is emitted
when burned.
EPM/
EPDM Ethylene Propylene (Diene) rub-
ber
80 (176) Same as above.
Flammable
TPO/
TPR Thermoplastic Olefine/
Thermoplastic Rubber
80 (176) Same as above.
Flammable
PP Polypropylene 90 (194) Same as above. Flammable, avoid bat-
tery acid.
UP Polyester thermoset 90 (194) Same as above. Flammable
PS Polystyrene 80 (176) Avoid solvents. Flammable
ABS Acrylonitrile Butadiene Styrene
resin
80 (176) Avoid gasoline and solvents.
AES Acrylonitrile Ethylene Styrene 80 (176) Same as above.
PMMA Polymethyl Methacrylate 85 (185) Same as above.
AAS Acrylonitrile Acrylic Styrene 85 (185) Same as above.
AS Acrylonitrile Styrene 85 (185) Same as above.
EVA Polyvinyl Ethyl Acetate 90 (194) Same as above.
ASA Acrylonitrile Styrene Acrylate 100 (222) Same as above. Flammable
PPO/
PPE Polyphenylene Oxide/
Polyphenylene Ether
110 (230) Same as above.
PC Polycarbonate 120 (248) Same as above.
PAR Polyacrylate 180 (356) Same as above.
L-
LDPE Lenear Low Density PE
45 (100)Gasoline and most solvents are
harmless. Flammable
PUR Polyurethane 90 (194) Same as above.
TPU Thermoplastic Urethane 110 (230) Same as above.
PPC Polypropylene Composite 115 (239) Same as above. Flammable
POM Polyacetal 120 (248) Same as above. Avoid battery acid.
PBT+P
C Polybutylene Terephtha-
late+Polycarbonate
120 (248) Same as above.
Flammable
PA Polyamide (Nylon) 140 (284) Same as above. Avoid immersing in wa-
ter.
PBT Polybutylene Terephthalate 140 (284) Same as above.
FRP Fiber Reinforced Plastics 170 (338) Same as above. Avoid battery acid.
PET Polyethylene Terephthalate 180 (356) Same as above.
PEI Polyetherimide 200 (392) Same as above.
Revision: January 20102010 Versa

Page 814 of 3745

NISSAN LATIO 2010 Service Repair Manual BODY REPAIRBL-305
< SERVICE INFORMATION >
C
DE
F
G H
J
K L
M A
B
BL
N
O P
Exterior, Hatchback
LIIA2587E
Revision: January 20102010 Versa

Page 815 of 3745

NISSAN LATIO 2010 Service Repair Manual BL-306
< SERVICE INFORMATION >
BODY REPAIR

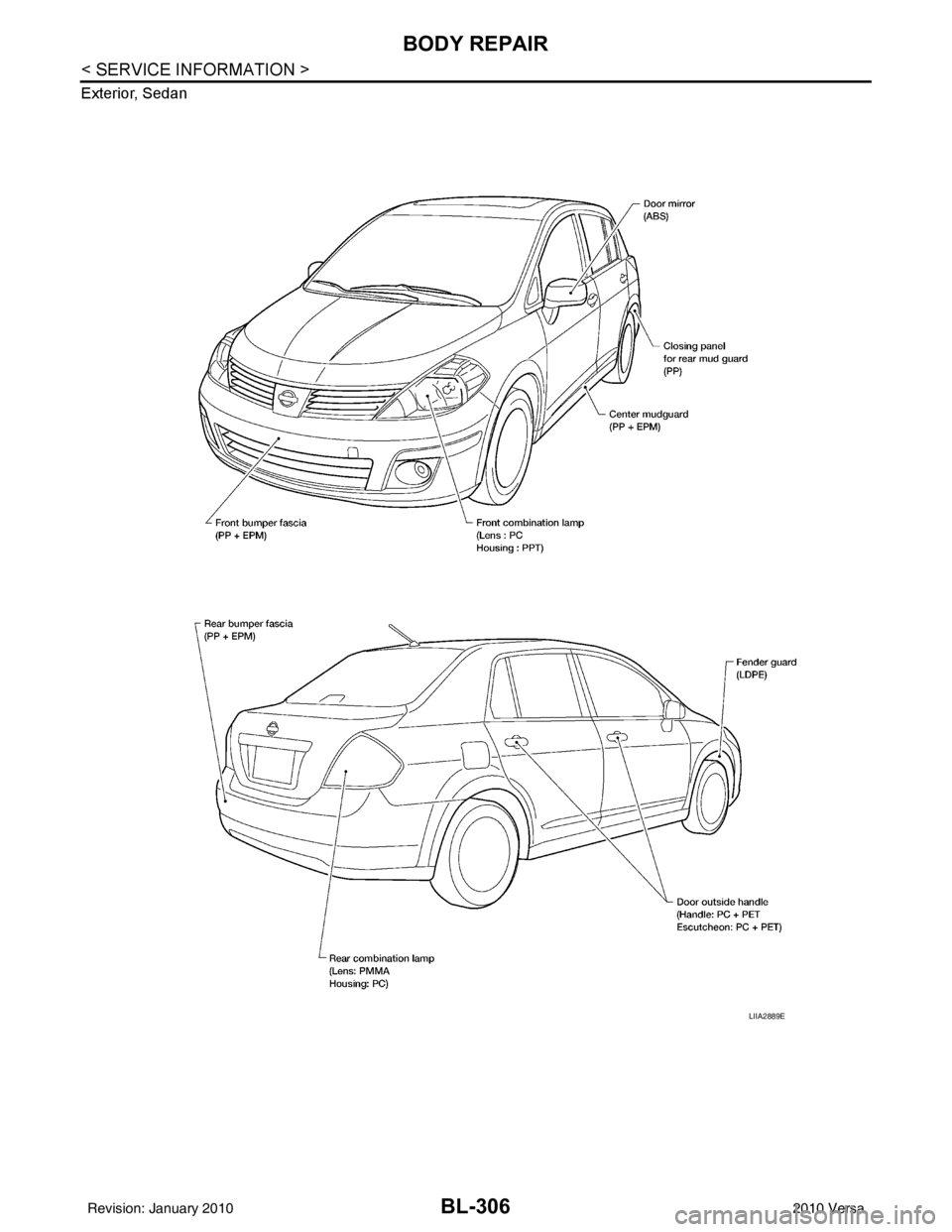

Exterior, Sedan
LIIA2889E
Revision: January 20102010 Versa

Page 816 of 3745

NISSAN LATIO 2010 Service Repair Manual BODY REPAIRBL-307
< SERVICE INFORMATION >
C
DE
F
G H
J
K L
M A
B
BL
N
O P

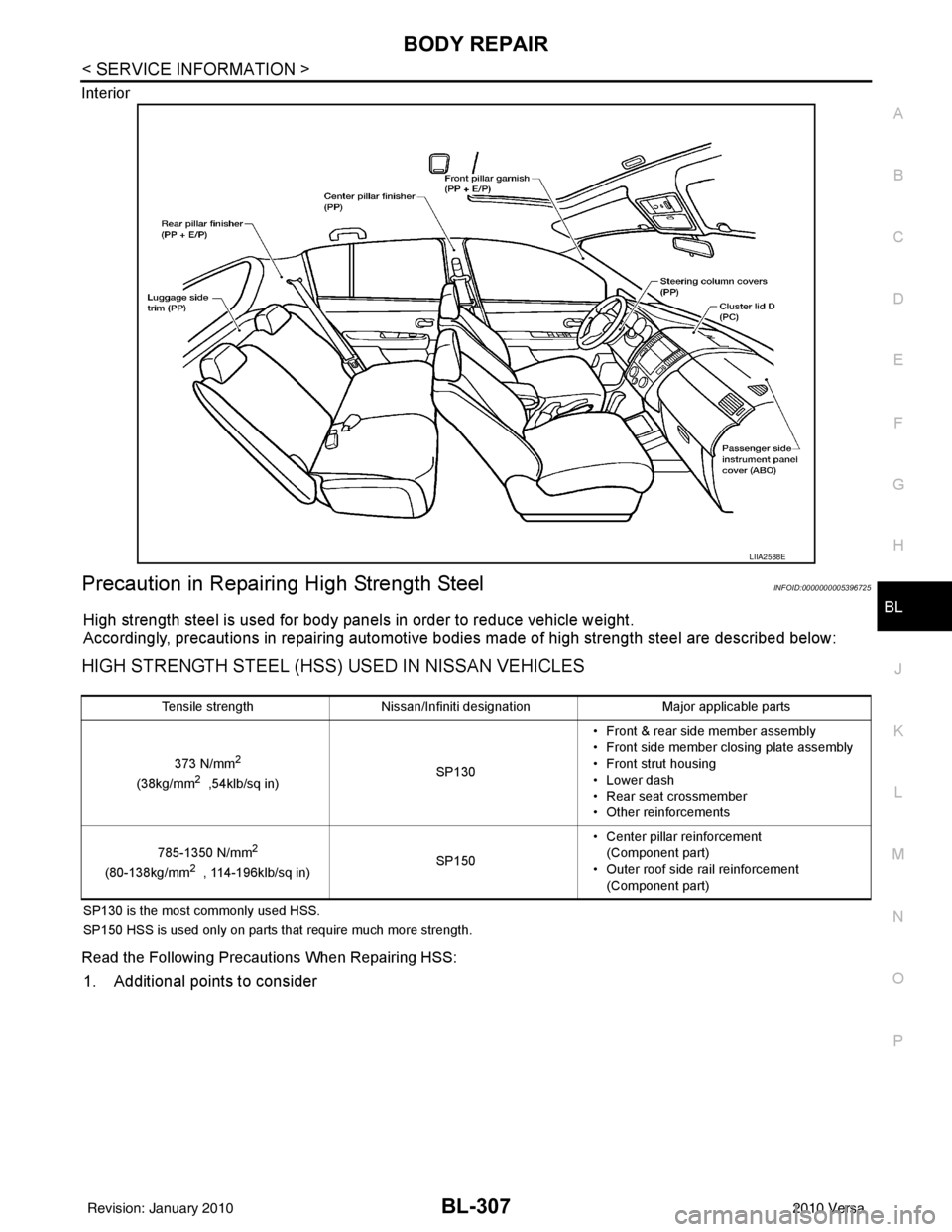

Interior
Precaution in Repairing High Strength SteelINFOID:0000000005396725
High strength steel is used for body panels in ord
