NISSAN LATIO 2010 Service Repair Manual BL-316 < SERVICE INFORMATION > BODY REPAIR • Front pillar butt joint can be determined anywhere within shadedarea as shown in the figure. The best location for the butt joint is at position A due to

Page 826 of 3745

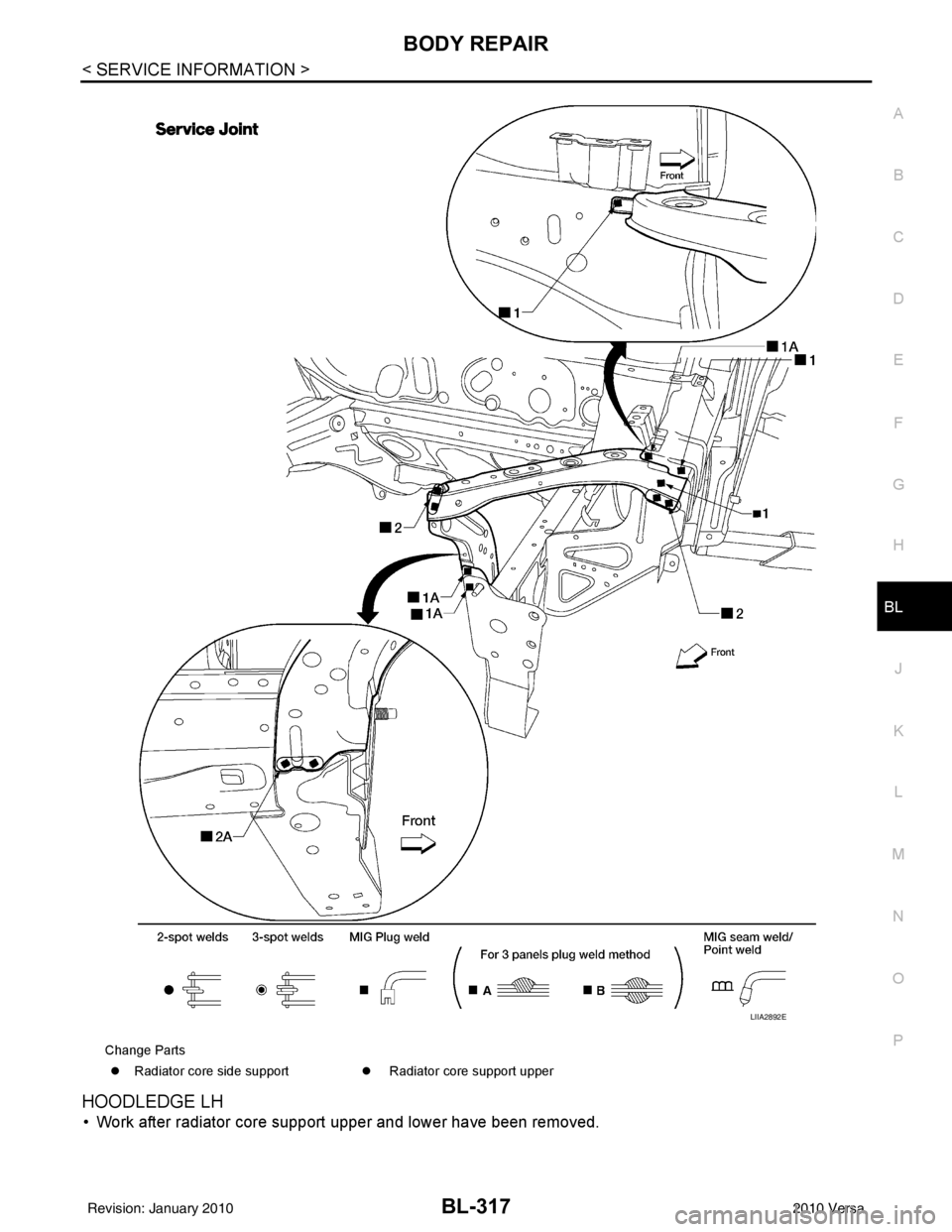

NISSAN LATIO 2010 Service Repair Manual BODY REPAIRBL-317 < SERVICE INFORMATION > C DE F G H J K L M A B BL N O P HOODLEDGE LH • Work after radiator core support upper and lower have been removed. Change Parts �z Radiator core side suppor

Page 827 of 3745

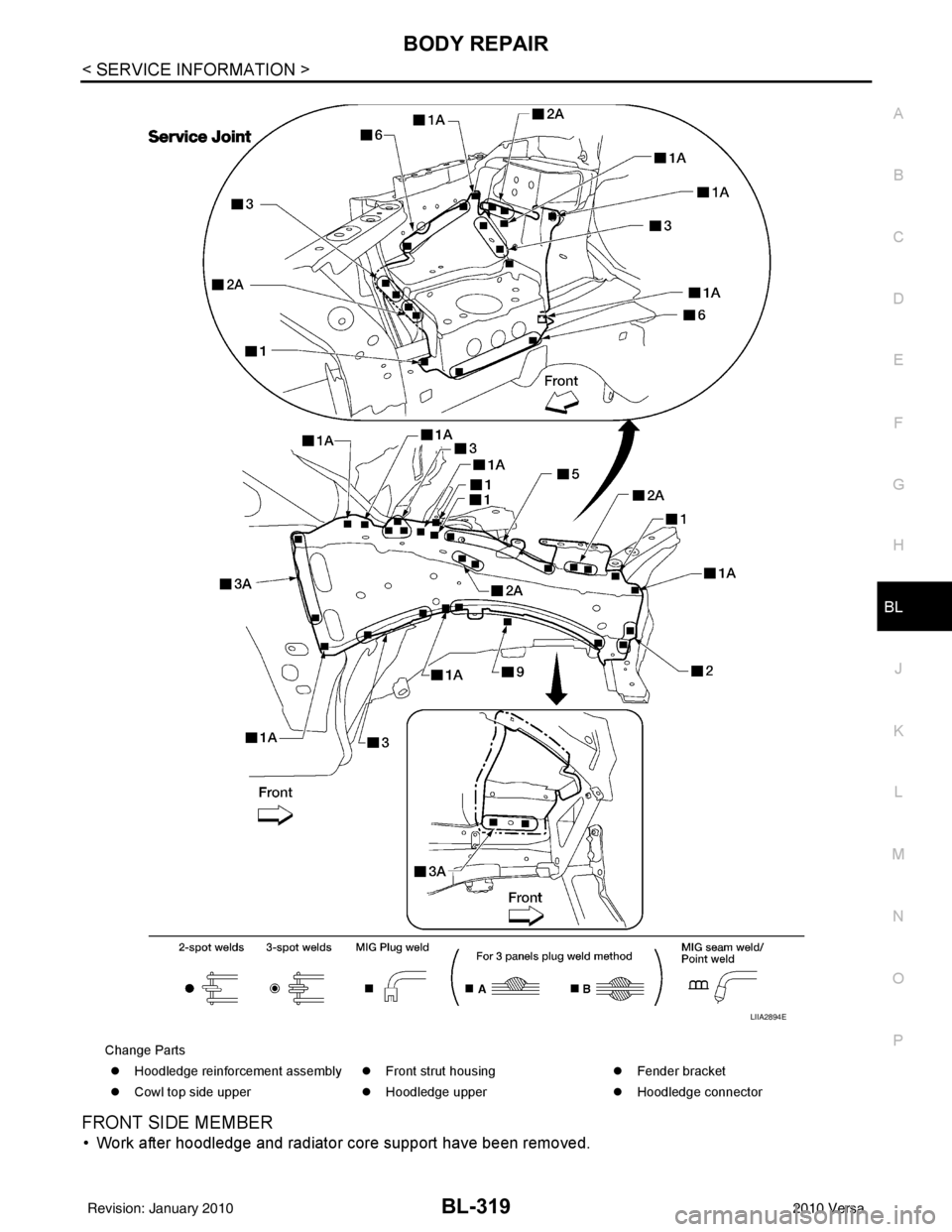

NISSAN LATIO 2010 Service Repair Manual BL-318 < SERVICE INFORMATION > BODY REPAIR HOODLEDGE RH • Work after radiator core support upper and lower have been removed. Change Parts�z Hoodledge reinforcement assembly �zFront strut housing �z

Page 828 of 3745

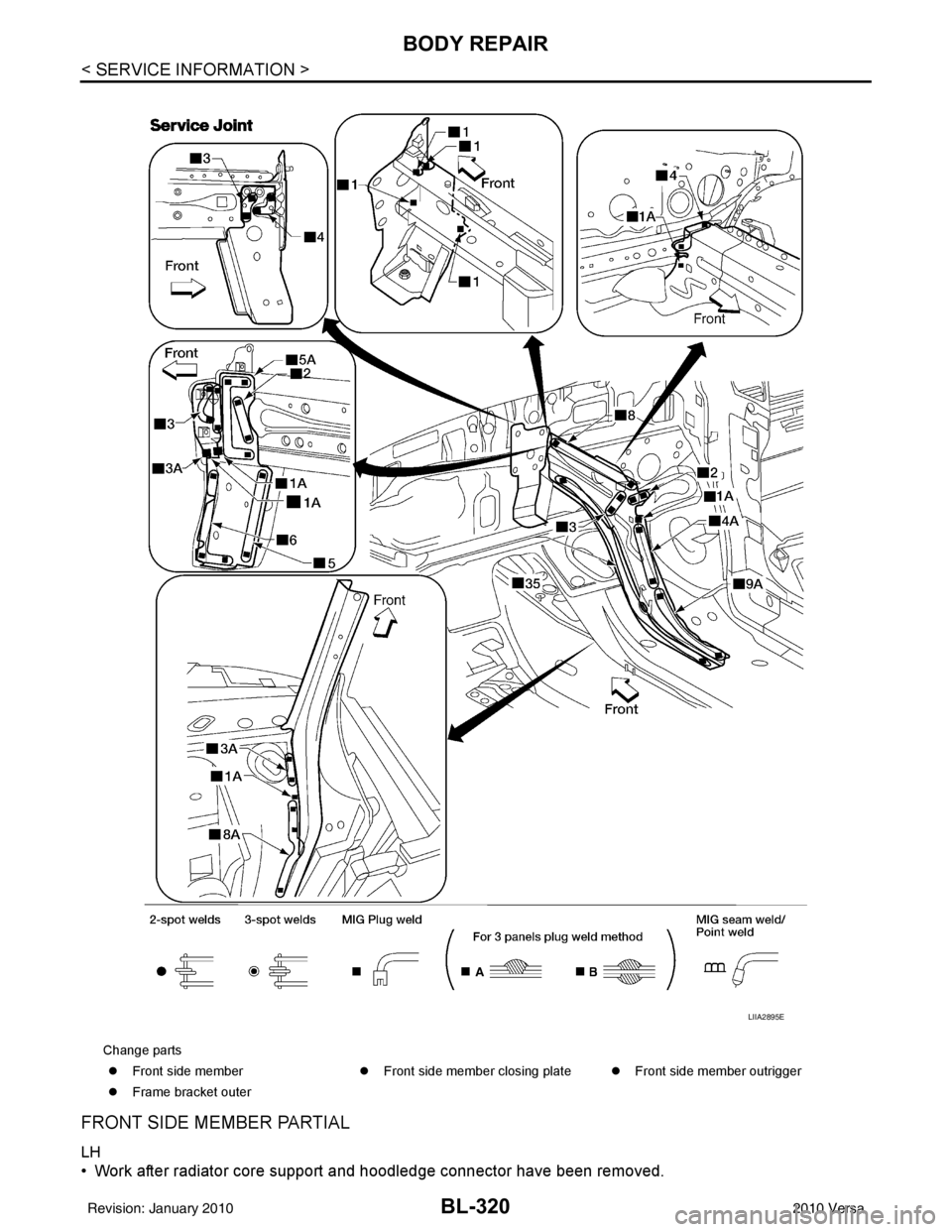

NISSAN LATIO 2010 Service Repair Manual BODY REPAIRBL-319 < SERVICE INFORMATION > C DE F G H J K L M A B BL N O P FRONT SIDE MEMBER • Work after hoodledge and radiator core support have been removed. Change Parts �z Hoodledge reinforcemen

Page 829 of 3745

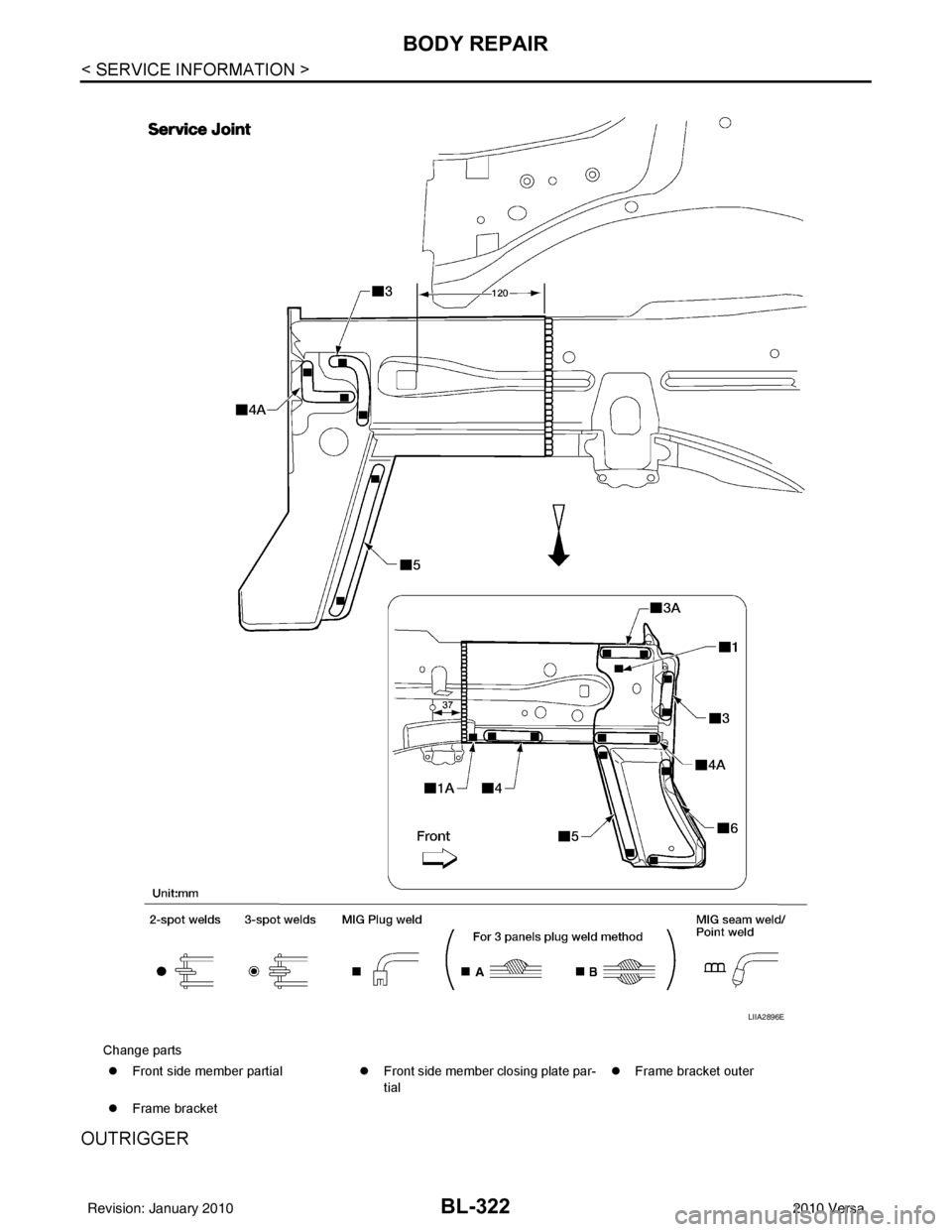

NISSAN LATIO 2010 Service Repair Manual BL-320 < SERVICE INFORMATION > BODY REPAIR FRONT SIDE MEMBER PARTIAL LH • Work after radiator core support and hoodledge connector have been removed. Change parts�z Front side member �zFront side me

Page 830 of 3745

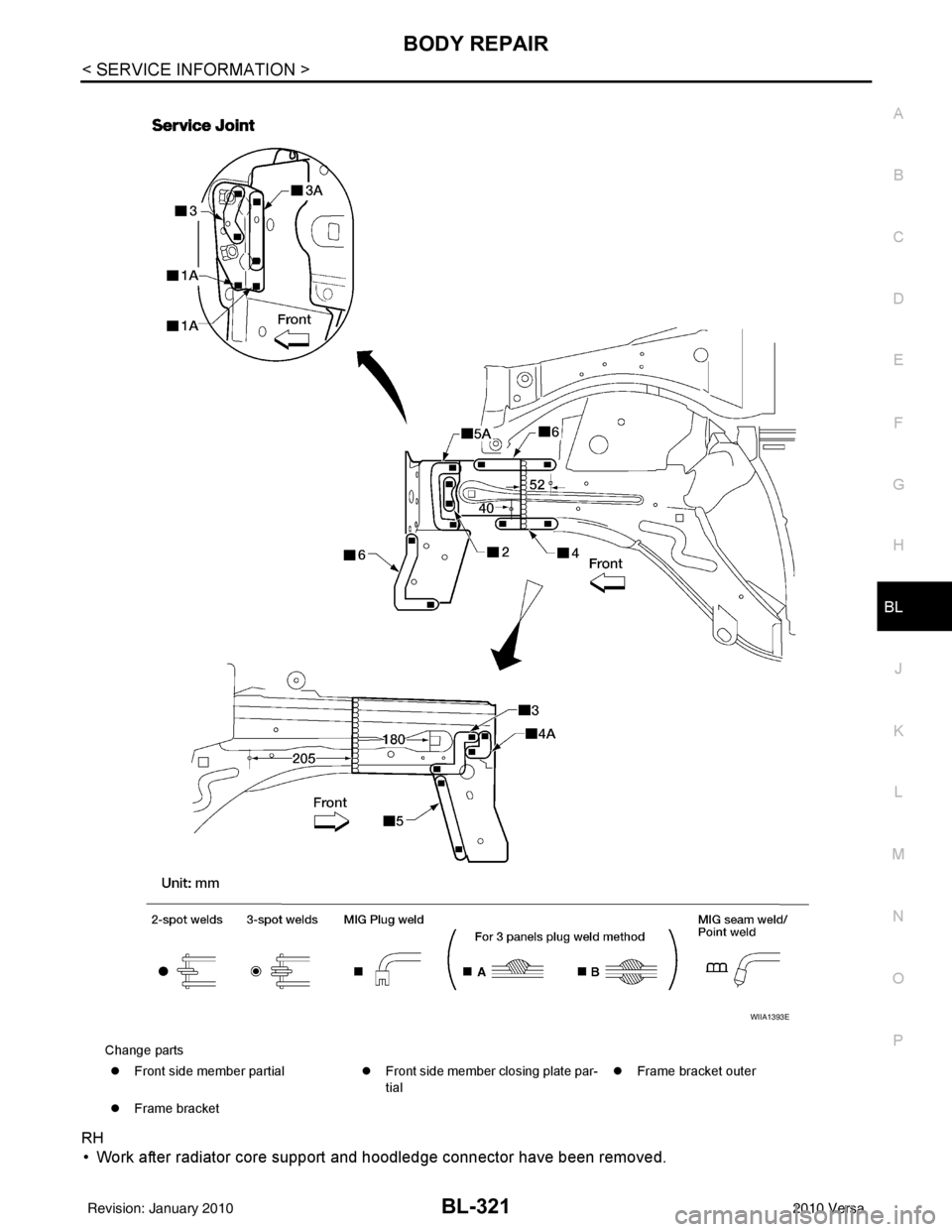

NISSAN LATIO 2010 Service Repair Manual BODY REPAIRBL-321 < SERVICE INFORMATION > C DE F G H J K L M A B BL N O P RH • Work after radiator core support and hoodledge connector have been removed. Change parts �z Front side member partial �

Page 831 of 3745

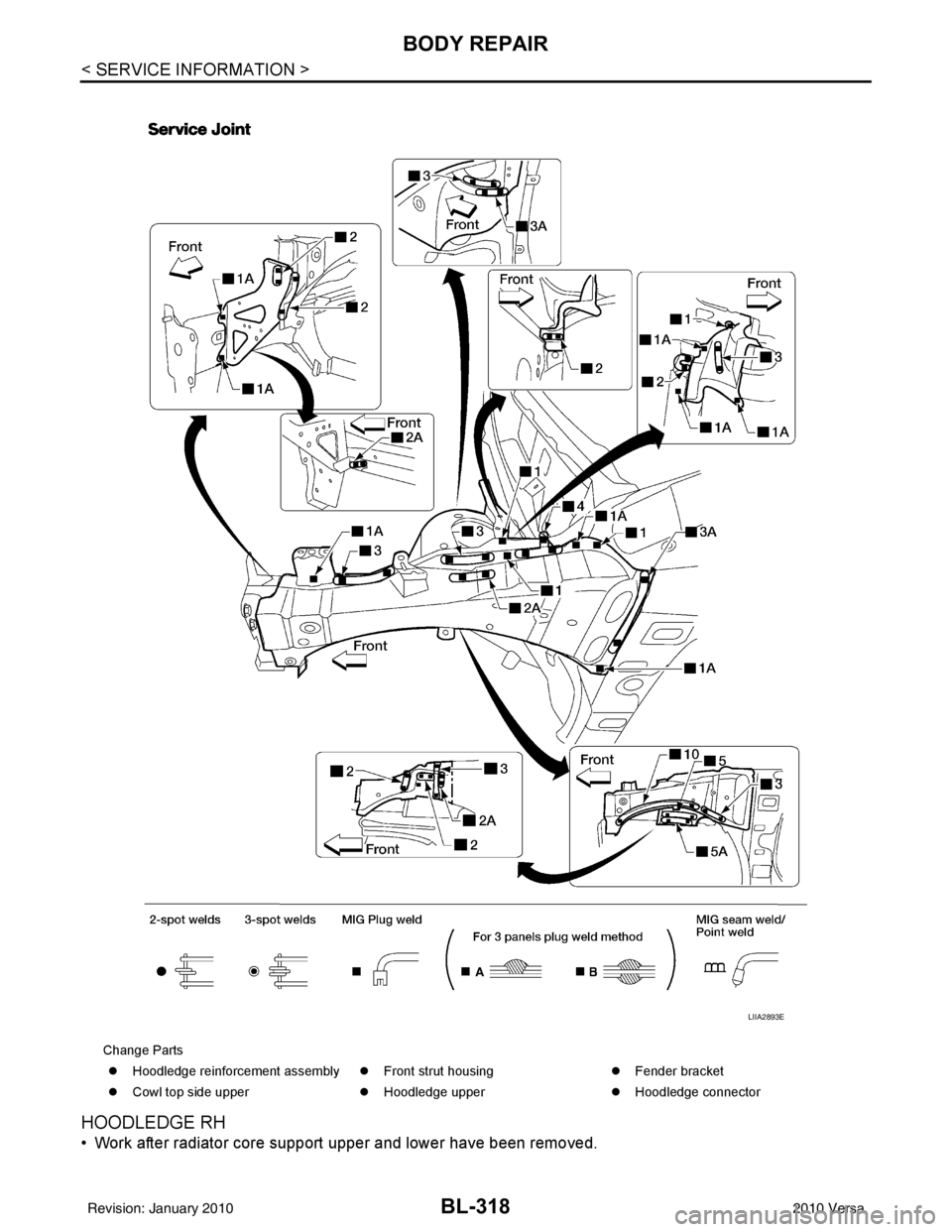

NISSAN LATIO 2010 Service Repair Manual BL-322 < SERVICE INFORMATION > BODY REPAIR OUTRIGGER Change parts�z Front side member partial �zFront side member closing plate par- tial �z Frame bracket outer �z Frame bracket LIIA2896E Revision: Ja

Page 832 of 3745

NISSAN LATIO 2010 Service Repair Manual BODY REPAIRBL-323 < SERVICE INFORMATION > C DE F G H J K L M A B BL N O P FRONT PILLAR • Work after the rear hoodledge reinforcement and the outer sill reinforcement have been removed. Change parts
