Page 1377 of 3745
![NISSAN LATIO 2010 Service Repair Manual EC-112
< COMPONENT DIAGNOSIS >[HR16DE]
TROUBLE DIAGNOSIS - SPECIFICATION VALUE
22.CHECK “A/F ALPHA-B1”
1. Start engine.
2. Select “A/F ALPHA-B1” in “SPEC” of “DATA MONITO R” mode, and NISSAN LATIO 2010 Service Repair Manual EC-112
< COMPONENT DIAGNOSIS >[HR16DE]
TROUBLE DIAGNOSIS - SPECIFICATION VALUE
22.CHECK “A/F ALPHA-B1”
1. Start engine.
2. Select “A/F ALPHA-B1” in “SPEC” of “DATA MONITO R” mode, and](/manual-img/5/57358/w960_57358-1376.png)
EC-112
< COMPONENT DIAGNOSIS >[HR16DE]
TROUBLE DIAGNOSIS - SPECIFICATION VALUE
22.CHECK “A/F ALPHA-B1”
1. Start engine.
2. Select “A/F ALPHA-B1” in “SPEC” of “DATA MONITO R” mode, and make sure that the indication is within
the SP value.
Is the measurement value within the SP value?
YES >> Detect malfunctioning part of mass air flow sensor circuit and repair it. Refer to EC-142, "DTC
Logic". Then GO TO 29.
NO >> GO TO 23.
23.CHECK “MAS A/F SE-B1”
Select “MAS A/F SE-B1” in “SPEC” of “DATA MONITOR” mode, and make sure that the indication is within the
SP value.
Is the measurement value within the SP value?
YES >> GO TO 24.
NO >> More than the SP value: Replace mass air flow sensor, and then GO TO 29.
24.REPLACE ECM
1. Replace ECM.
2. Perform EC-23, "
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Require-
ment".
>> GO TO 29.
25.CHECK INTAKE SYSTEM
Check for the cause of uneven air flow through mass air flow sensor. Refer to the following.
• Crushed air ducts
• Malfunctioning seal of air cleaner element
• Uneven dirt of air cleaner element
• Improper specification of intake air system
Is the inspection result normal?
YES >> GO TO 27.
NO >> Repair or replace malfunctioning part, and then GO TO 26.
26.CHECK “B/FUEL SCHDL”
Select “B/FUEL SCHDL” in “SPEC” of “DATA MONITOR” mode, and make sure that the indication is within the
SP value.
Is the measurement value within the SP value?
YES >> INSPECTION END
NO >> Less than the SP value: GO TO 27.
27.CHECK “MAS A/F SE-B1”
Select “MAS A/F SE-B1” in “SPEC” of “DATA MONITOR” mode, and make sure that the indication is within the
SP value.
Is the measurement value within the SP value?
YES >> GO TO 28.
NO >> Less than the SP value: Replace mass air flow sensor, and then GO TO 30.
28.CHECK INTAKE SYSTEM
Check for the cause of air leak after the mass air flow sensor. Refer to the following.
• Disconnection, looseness, and cracks in air duct
• Looseness of oil filler cap
• Disconnection of oil level gauge
• Open stuck, breakage, hose disconnecti on, or cracks of PCV valve
• Disconnection or cracks of EVAP purge hose, open stuc k of EVAP canister purge volume control solenoid
valve
• Malfunctioning seal of rocker cover gasket
• Disconnection, looseness, or cracks of hoses, such as vacuum hose, connecting to intake air system parts
Revision: January 20102010 Versa
Page 1378 of 3745
TROUBLE DIAGNOSIS - SPECIFICATION VALUEEC-113
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
• Malfunctioning seal of intake air system, etc.
>> GO TO 30.
29.CHECK “A/F ALPHA-B1” AND “B/FUEL SCHDL”
Select “A/F ALPHA-B1” and “B/FUEL SCHDL” in “SPEC” of “DATA MONITOR” mode, and make sure that
each indication is within the SP value.
Is the measurement value within the SP value?
YES >> INSPECTION END
NO >> Detect malfunctioning part according to EC-484, "
Symptom Table".
30.CHECK “B/FUEL SCHDL”
Select “B/FUEL SCHDL” in “SPEC” of “DATA MONITOR” mode, and then make sure that the indication is
within the SP value.
Is the measurement value within the SP value?
YES >> INSPECTION END
NO >> Detect malfunctioning part according to EC-484, "
Symptom Table".
Revision: January 20102010 Versa
Page 1379 of 3745
![NISSAN LATIO 2010 Service Repair Manual EC-114
< COMPONENT DIAGNOSIS >[HR16DE]
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT
TROUBLE DIAGNOSIS FOR
INTERMITTENT INCIDENT
DescriptionINFOID:0000000005398283
Intermittent incidents may occur. In NISSAN LATIO 2010 Service Repair Manual EC-114
< COMPONENT DIAGNOSIS >[HR16DE]
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT
TROUBLE DIAGNOSIS FOR
INTERMITTENT INCIDENT
DescriptionINFOID:0000000005398283
Intermittent incidents may occur. In](/manual-img/5/57358/w960_57358-1378.png)
EC-114
< COMPONENT DIAGNOSIS >[HR16DE]
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT
TROUBLE DIAGNOSIS FOR
INTERMITTENT INCIDENT
DescriptionINFOID:0000000005398283
Intermittent incidents may occur. In many cases, the ma lfunction resolves itself (the part or circuit function
returns to normal without intervention). It is important to realize that the symptoms described in the customer's
complaint often do not recur on (1st trip) DTC visits. R ealize also that the most frequent cause of Intermittent
Incidents occurrences is poor electrical connections. Because of this, the conditions under which the incident
occurred may not be clear. Therefore, circuit checks made as part of the standard diagnostic procedure may
not indicate the specific malfunctioning area.
Common Intermittent Incidents Report Situations
Diagnosis ProcedureINFOID:0000000005398284
1.INSPECTION START
Erase (1st trip) DTCs.
Refer to EC-84, "
Diagnosis Description", “DTC AND FREEZE FRAME DATA”, “How to Erase DTC and 1st Trip
DTC”.
>> GO TO 2.
2.CHECK GROUND TERMINALS
Check ground terminals for corroding or loose connection.
Refer to EC-119, "
Ground Inspection".
OK or NG
OK >> GO TO 3.
NG >> Repair or replace malfunctioning part.
3.SEARCH FOR ELECTRICAL INCIDENT
Perform GI-25, "
How to Perform Efficient Diagnosis for an Electrical Incident", “INCIDENT SIMULATION
TESTS”.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace malfunctioning part.
4.CHECK CONNECTOR TERMINALS
Refer to GI-22, "
How to Check Terminal", “HOW TO PROBE CONNECTORS”, “How to Check Enlarged Con-
tact Spring of Terminal”.
OK or NG
OK >> INSPECTION END
NG >> Repair or replace connector.
STEP in Work Flow Situation
2 The CONSULT-III is used. The SELF DIAGNOSTIC RESULT screen shows time data other than 0 or [1t].
3 or 4 The symptom described by the customer does not recur.
5 (1st trip) DTC does not appear during the DTC Confirmation Procedure.
10 The Diagnostic Procedure for PXXXX does not indicate the malfunctioning area.
Revision: January 20102010 Versa
Page 1380 of 3745
POWER SUPPLY AND GROUND CIRCUITEC-115
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
POWER SUPPLY AND GROUND CIRCUIT

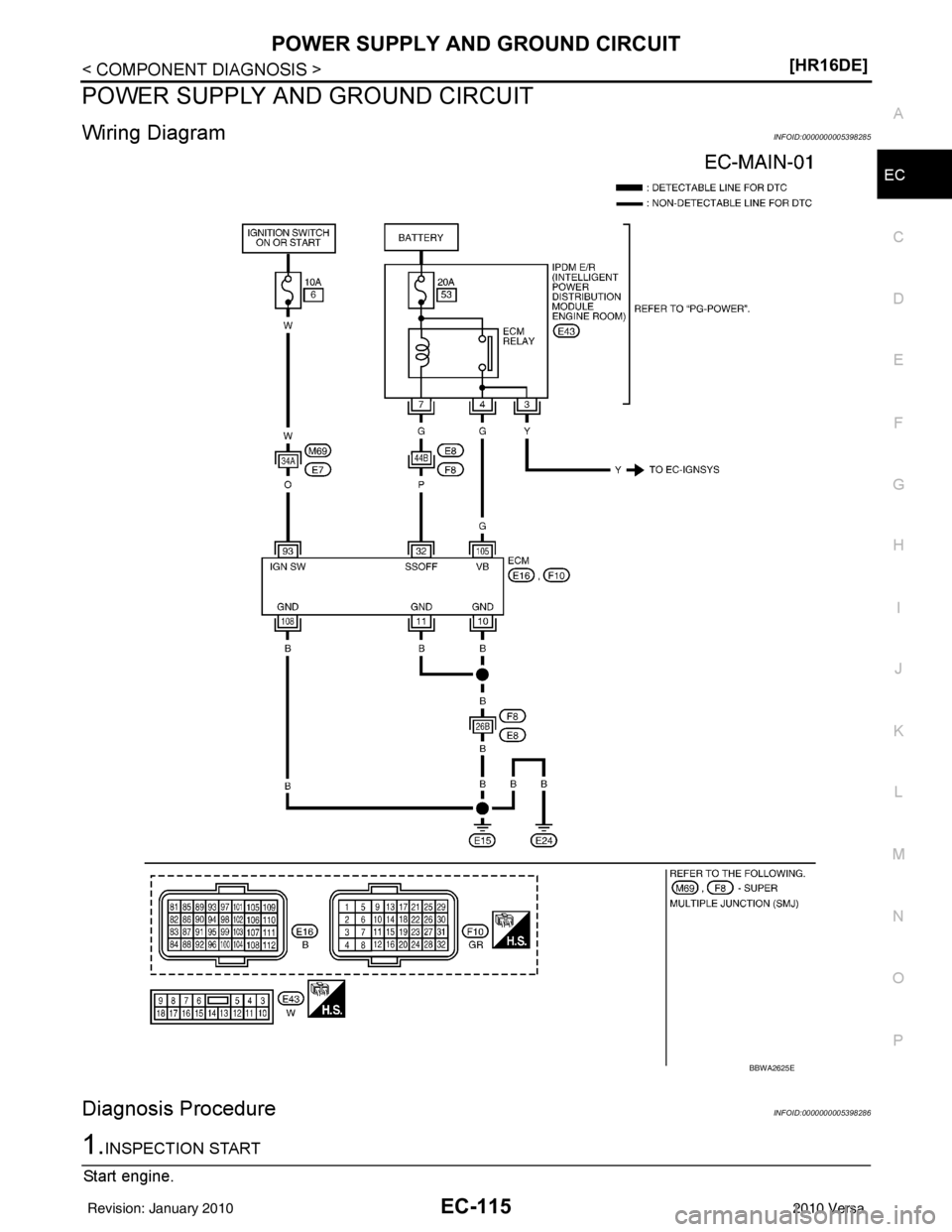

Wiring DiagramINFOID:0000000005398285
Diagnosis ProcedureINFOID:0000000005398286
1.INSPECTION START
Start engine.
BBWA2625E
Revision: January 20102010 Versa
Page 1381 of 3745
![NISSAN LATIO 2010 Service Repair Manual EC-116
< COMPONENT DIAGNOSIS >[HR16DE]
POWER SUPPLY AND GROUND CIRCUIT
Is engine running?
YES >> GO TO 8.
NO >> GO TO 2.
2.CHECK ECM POWER SUPPLY CIRCUIT-I
1. Turn ignition switch OFF and then ON.
2. NISSAN LATIO 2010 Service Repair Manual EC-116
< COMPONENT DIAGNOSIS >[HR16DE]
POWER SUPPLY AND GROUND CIRCUIT
Is engine running?
YES >> GO TO 8.
NO >> GO TO 2.
2.CHECK ECM POWER SUPPLY CIRCUIT-I
1. Turn ignition switch OFF and then ON.
2.](/manual-img/5/57358/w960_57358-1380.png)
EC-116
< COMPONENT DIAGNOSIS >[HR16DE]
POWER SUPPLY AND GROUND CIRCUIT
Is engine running?
YES >> GO TO 8.
NO >> GO TO 2.
2.CHECK ECM POWER SUPPLY CIRCUIT-I
1. Turn ignition switch OFF and then ON.
2. Check the voltage between ECM harness connector and ground.
Is the inspection result normal?
YES >> GO TO 4.
NO >> GO TO 3.
3.DETECT MALFUNCTIONING PART
Check the following.
• Harness connectors M69, E7
• 10A fuse (No. 6)
• Harness for open or short between ECM and fuse
>> Repair open circuit or short to ground or short to power in harness or connectors.
4.CHECK GROUND CONNECTION-I
1. Turn ignition switch OFF.
2. Check ground connections E15, E24. Refer to EC-119, "
Ground Inspection".
Is the inspection result normal?
YES >> GO TO 5.
NO >> Repair or replace ground connection.
5.CHECK ECM GROUND CIRCUIT FOR OPEN AND SHORT-I
1. Disconnect ECM harness connectors.
2. Check the continuity betw een ECM harness connector and ground.
3. Also check harness for short to power.
Is the inspection result normal?
YES >> GO TO 7.
NO >> GO TO 6.
6.DETECT MALFUNCTIONING PART
Check the following.
• Harness connectors F8, E8
• Harness for open or short between ECM and ground
>> Repair open circuit or short to power in harness or connectors.
7.CHECK ECM POWER SUPPLY CIRCUIT-II
1. Reconnect ECM harness connectors.
ECM Ground Voltage
Connector Terminal
E16 93 Ground Battery voltage
PBIA9561J
ECM
Ground Continuity
Connector Terminal
F10 10
Ground Existed
11
E16 108
Revision: January 20102010 Versa
Page 1382 of 3745
![NISSAN LATIO 2010 Service Repair Manual POWER SUPPLY AND GROUND CIRCUITEC-117
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
2. Turn ignition switch ON.
3. Check the voltage between IPDM E/R harness connector and
ground.
I NISSAN LATIO 2010 Service Repair Manual POWER SUPPLY AND GROUND CIRCUITEC-117
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
2. Turn ignition switch ON.
3. Check the voltage between IPDM E/R harness connector and
ground.
I](/manual-img/5/57358/w960_57358-1381.png)
POWER SUPPLY AND GROUND CIRCUITEC-117
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
2. Turn ignition switch ON.
3. Check the voltage between IPDM E/R harness connector and
ground.
Is the inspection result normal?
YES >> Go to EC-434, "Diagnosis Procedure".
NO >> GO TO 8.
8.CHECK ECM POWER SUPPLY CIRCUIT-III
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Check the voltage between ECM harness connector and ground.
Is the inspection result normal?
YES >> GO TO 14.
NO-1 >> Battery voltage does not exist: GO TO 9.
NO-2 >> Battery voltage exists for more than a few seconds: GO TO 11.
9.CHECK ECM POWER SUPPLY CIRCUIT-IV
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Check the voltage between ECM harness connector and ground.
Is the inspection result normal?
YES >> GO TO 10.
NO >> GO TO 11.
10.CHECK ECM POWER SUPPLY CIRCUIT-V
1. Disconnect ECM harness connector.
2. Disconnect IPDM E/R harness connector E43.
3. Check the continuity between ECM harness connector and IPDM E/R harness connector.
4. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 17.
NO >> Repair open circuit or short to ground or short to power in harness or connectors.
11 .CHECK ECM POWER SUPPLY CIRCUIT-VI
1. Disconnect ECM harness connector.
IPDM E/R Ground Voltage
Connector Terminal
E43 3 Ground Battery voltage
PBIB2658E
ECM
Ground Voltage
Connector Terminal
E16 105 Ground After turning ignition switch OFF, battery voltage
will exist for a few seconds, then drop approxi-
mately 0 V.
PBIB3037E
ECM
Ground Voltage
Connector Terminal
F10 32 Ground Battery voltage
PBIA9562J
ECM IPDM E/R
Continuity
Connector Terminal Connector Terminal
E16 105 E43 4Existed
Revision: January 20102010 Versa
Page 1383 of 3745
![NISSAN LATIO 2010 Service Repair Manual EC-118
< COMPONENT DIAGNOSIS >[HR16DE]
POWER SUPPLY AND GROUND CIRCUIT
2. Disconnect IPDM E/R harness connector E43.
3. Check the continuity between ECM harnes
s connector and IPDM E/R harness connect NISSAN LATIO 2010 Service Repair Manual EC-118
< COMPONENT DIAGNOSIS >[HR16DE]
POWER SUPPLY AND GROUND CIRCUIT
2. Disconnect IPDM E/R harness connector E43.
3. Check the continuity between ECM harnes
s connector and IPDM E/R harness connect](/manual-img/5/57358/w960_57358-1382.png)
EC-118
< COMPONENT DIAGNOSIS >[HR16DE]
POWER SUPPLY AND GROUND CIRCUIT
2. Disconnect IPDM E/R harness connector E43.
3. Check the continuity between ECM harnes
s connector and IPDM E/R harness connector.
4. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 13.
NO >> GO TO 12.
12.DETECT MALFUNCTIONING PART
Check the following.
• Harness connectors E8, F8
• Harness for open or short between ECM and IPDM E/R
>> Repair open circuit or short to ground or short to power in harness or connectors.
13.CHECK FUSE
1. Disconnect 20 A fuse (No. 53) from IPDM E/R.
2. Check 20 A fuse.
Is the inspection result normal?
YES >> GO TO 17.
NO >> Replace 20 A fuse.
14.CHECK GROUND CONNECTION-II
1. Turn ignition switch OFF.
2. Check ground connections E15, E24. Refer to EC-119, "
Ground Inspection".
Is the inspection result normal?
YES >> GO TO 15.
NO >> Repair or replace ground connection.
15.CHECK ECM GROUND CIRCUIT FOR OPEN AND SHORT-II
1. Disconnect ECM harness connector.
2. Check the continuity betw een ECM harness connector and ground.
3. Also check harness for short to power.
Is the inspection result normal?
YES >> GO TO 17.
NO >> GO TO 16.
16.DETECT MALFUNCTIONING PART
Check the following.
• Harness connectors E8, F8
• Harness for open or short between ECM and ground
>> Repair open circuit or short to power in harness or connectors.
17.CHECK INTERMITTENT INCIDENT
ECM IPDM E/R
Continuity
Connector Terminal Connector Terminal
F10 32E43 7Existed
ECM
Ground Continuity
Connector Terminal
F10 10
Ground Existed
11
E16 108
Revision: January 20102010 Versa
Page 1384 of 3745
![NISSAN LATIO 2010 Service Repair Manual POWER SUPPLY AND GROUND CIRCUITEC-119
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Refer to
EC-114, "Diagnosis Procedure".
Is the inspection result normal?
YES >> Replace IPDM E/R NISSAN LATIO 2010 Service Repair Manual POWER SUPPLY AND GROUND CIRCUITEC-119
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Refer to
EC-114, "Diagnosis Procedure".
Is the inspection result normal?
YES >> Replace IPDM E/R](/manual-img/5/57358/w960_57358-1383.png)
POWER SUPPLY AND GROUND CIRCUITEC-119
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Refer to
EC-114, "Diagnosis Procedure".
Is the inspection result normal?
YES >> Replace IPDM E/R. Refer to PG-28, "Removal and Installation of IPDM E/R".
NO >> Repair open circuit or short to ground or short to power in harness or connectors.
Ground InspectionINFOID:0000000005398287
Ground connections are very important to the proper oper ation of electrical and electronic circuits. Ground
connections are often exposed to moisture, dirt and other corrosive elements. The corrosion (rust) can
become an unwanted resistance. This unwanted resistance can change the way a circuit works.
Electronically controlled circuits are very sensitive to proper grounding. A loose or corroded ground can drasti-
cally affect an electronically controlled circuit. A poor or corroded ground can easily affect the circuit. Even
when the ground connection looks clean, there can be a thin film of rust on the surface.
When inspecting a ground connection follow these rules:
• Remove the ground bolt or screw.
• Inspect all mating surfaces for tarnish, dirt, rust, etc.
• Clean as required to assure good contact.
• Reinstall bolt or screw securely.
• Inspect for “add-on” accessories which may be interfering with the ground circuit.
• If several wires are crimped into one ground eyelet terminal, check for proper crimps. Make sure all of the wires are clean, securely fastened and providing a good ground path. If multiple wires are cased in one eye-
let make sure no ground wires have excess wire insulation.
For detailed ground distribution information, refer to PG-30, "
Ground Distribution".
PBIB1870E
Revision: January 20102010 Versa
