Page 265 of 3745

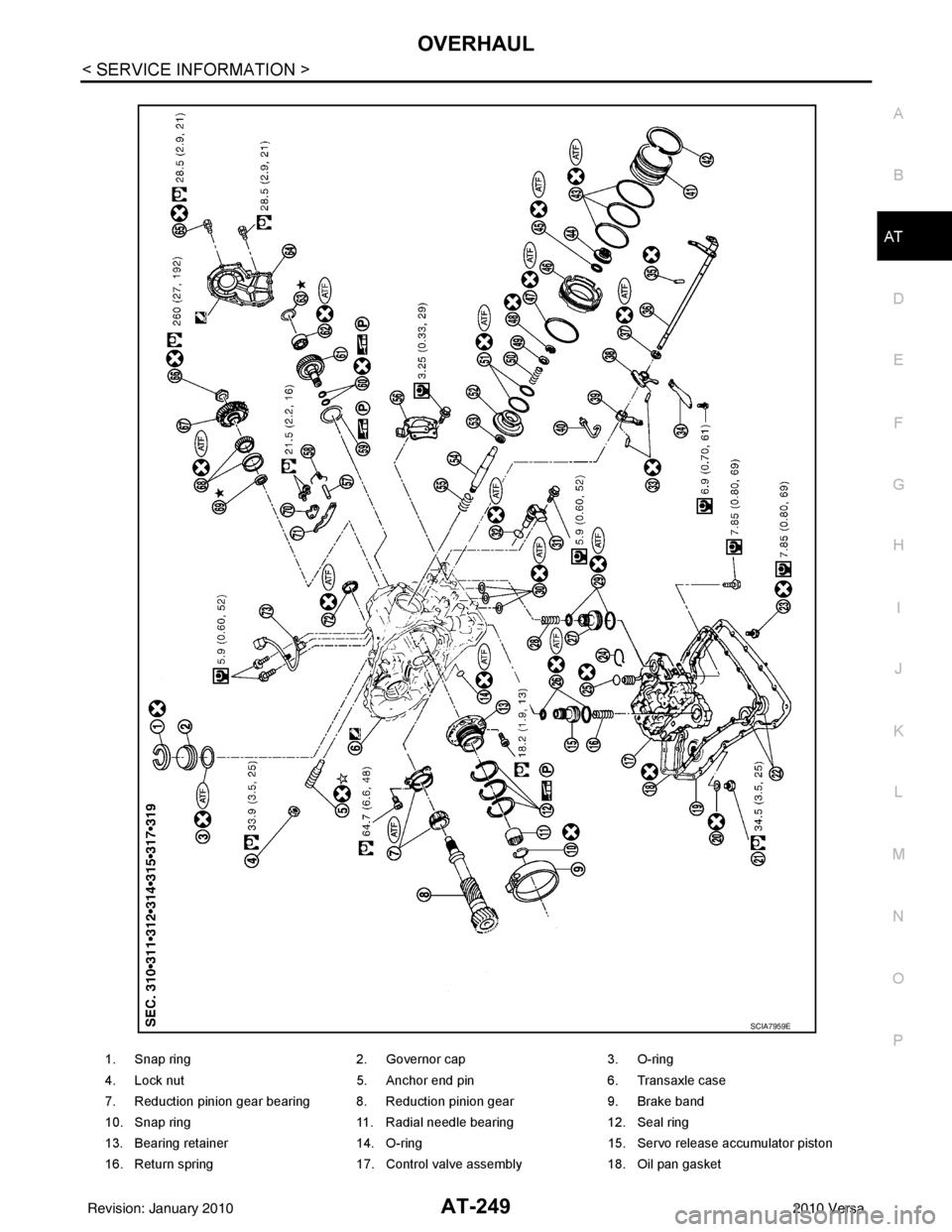

NISSAN LATIO 2010 Service Repair Manual AT-248 < SERVICE INFORMATION > OVERHAUL 19. Retaining plate20. Drive plate21. Snap ring 22. Cancel cover 23. Spring retainer assembly 24. High clutch piston 25. Input shaft assembly (high clutch drum

Page 266 of 3745

NISSAN LATIO 2010 Service Repair Manual OVERHAULAT-249 < SERVICE INFORMATION > DE F G H I J K L M A B AT N O P 1. Snap ring 2. Governor cap3. O-ring 4. Lock nut 5. Anchor end pin6. Transaxle case 7. Reduction pinion gear bearing 8. Reductio

Page 267 of 3745

NISSAN LATIO 2010 Service Repair Manual AT-250 < SERVICE INFORMATION > OVERHAUL Oil Channel INFOID:0000000005397432 HR16DE ENGINE MODELS 19. Oil pan 20. Drain plug gasket21. Drain plug 22. Magnet 23. Oil pan bolt24. Snap ring 25. O-ring 26.

Page 268 of 3745

NISSAN LATIO 2010 Service Repair Manual OVERHAULAT-251 < SERVICE INFORMATION > DE F G H I J K L M A B AT N O P MR18DE ENGINE MODELS SCIA5925E Revision: January 20102010 Versa

Page 269 of 3745

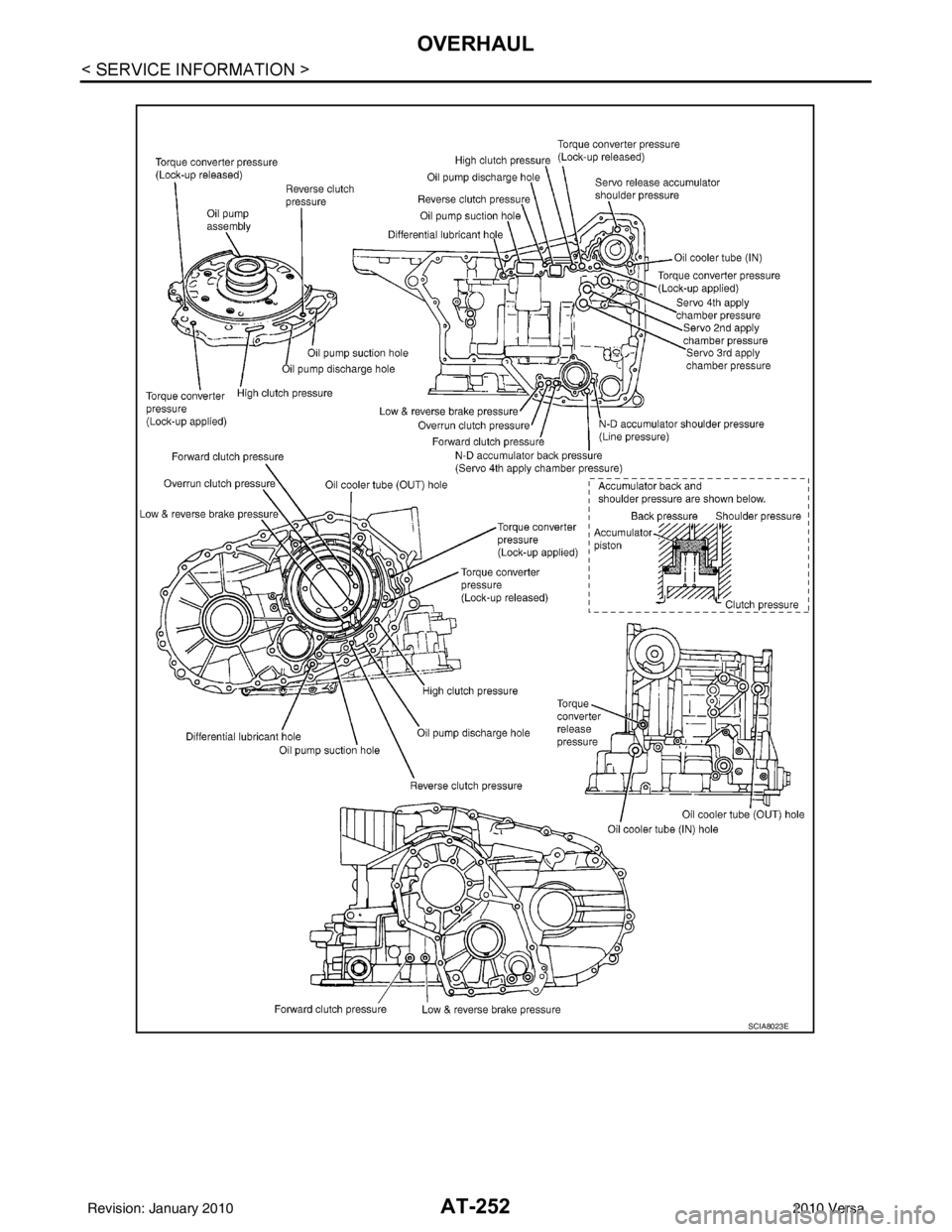

NISSAN LATIO 2010 Service Repair Manual AT-252 < SERVICE INFORMATION > OVERHAUL SCIA8023E Revision: January 20102010 Versa

Page 270 of 3745

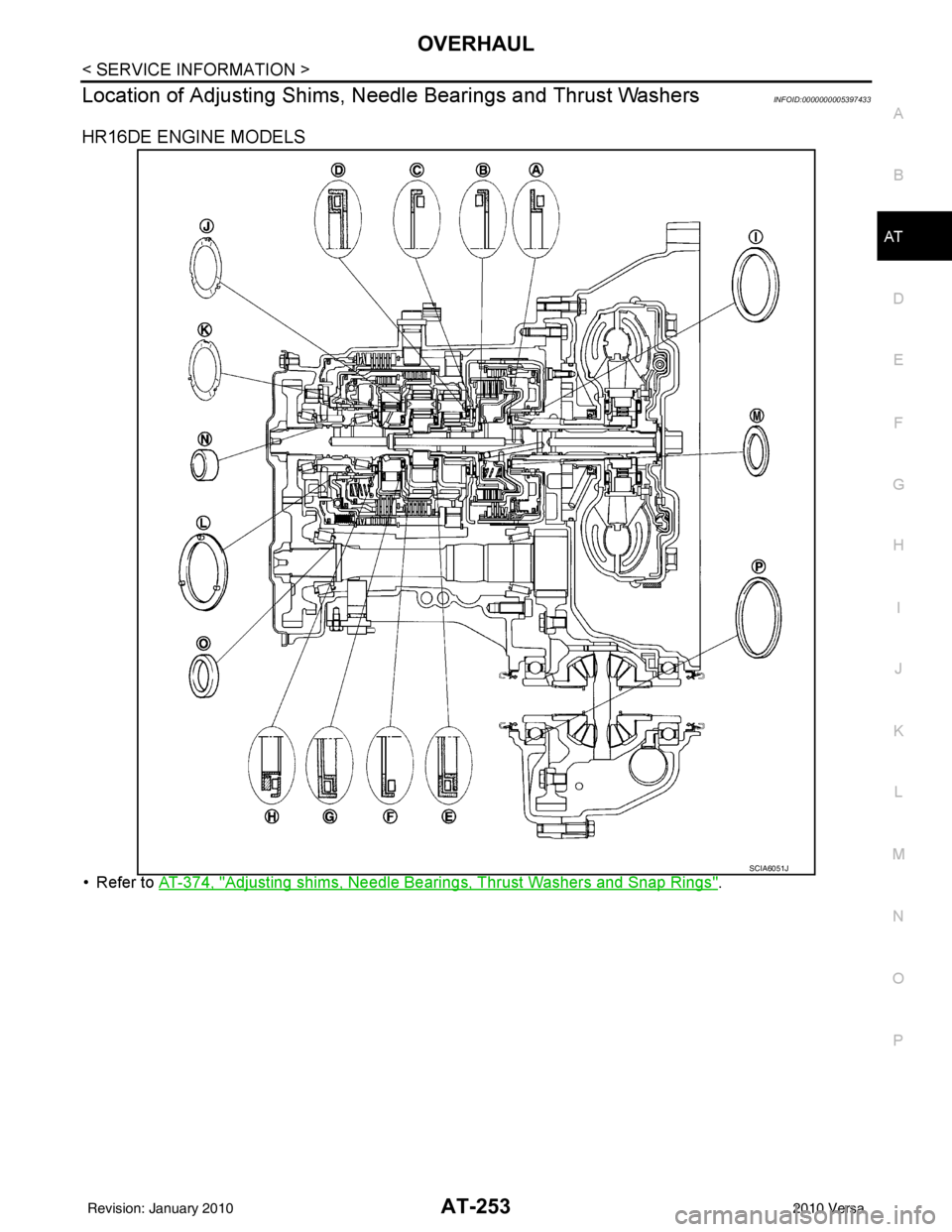

NISSAN LATIO 2010 Service Repair Manual OVERHAULAT-253 < SERVICE INFORMATION > DE F G H I J K L M A B AT N O P Location of Adjusting Shims, Needle Bearings and Thrust WashersINFOID:0000000005397433 HR16DE ENGINE MODELS • Refer to AT-374,

Page 271 of 3745

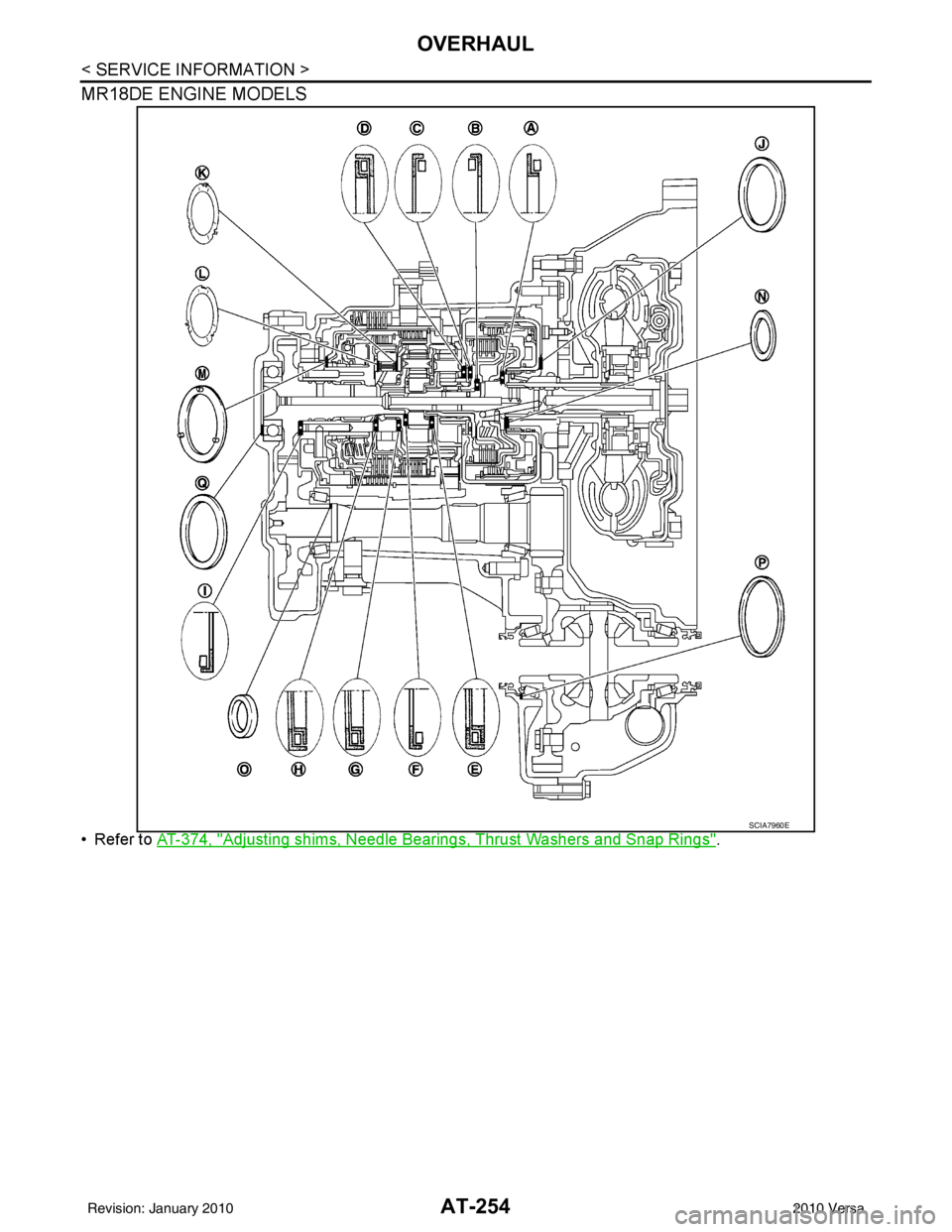

NISSAN LATIO 2010 Service Repair Manual AT-254 < SERVICE INFORMATION > OVERHAUL MR18DE ENGINE MODELS • Refer to AT-374, "Adjusting shims, Needle Bearings, Thrust Washers and Snap Rings". SCIA7960E Revision: January 20102010 Versa

Page 272 of 3745

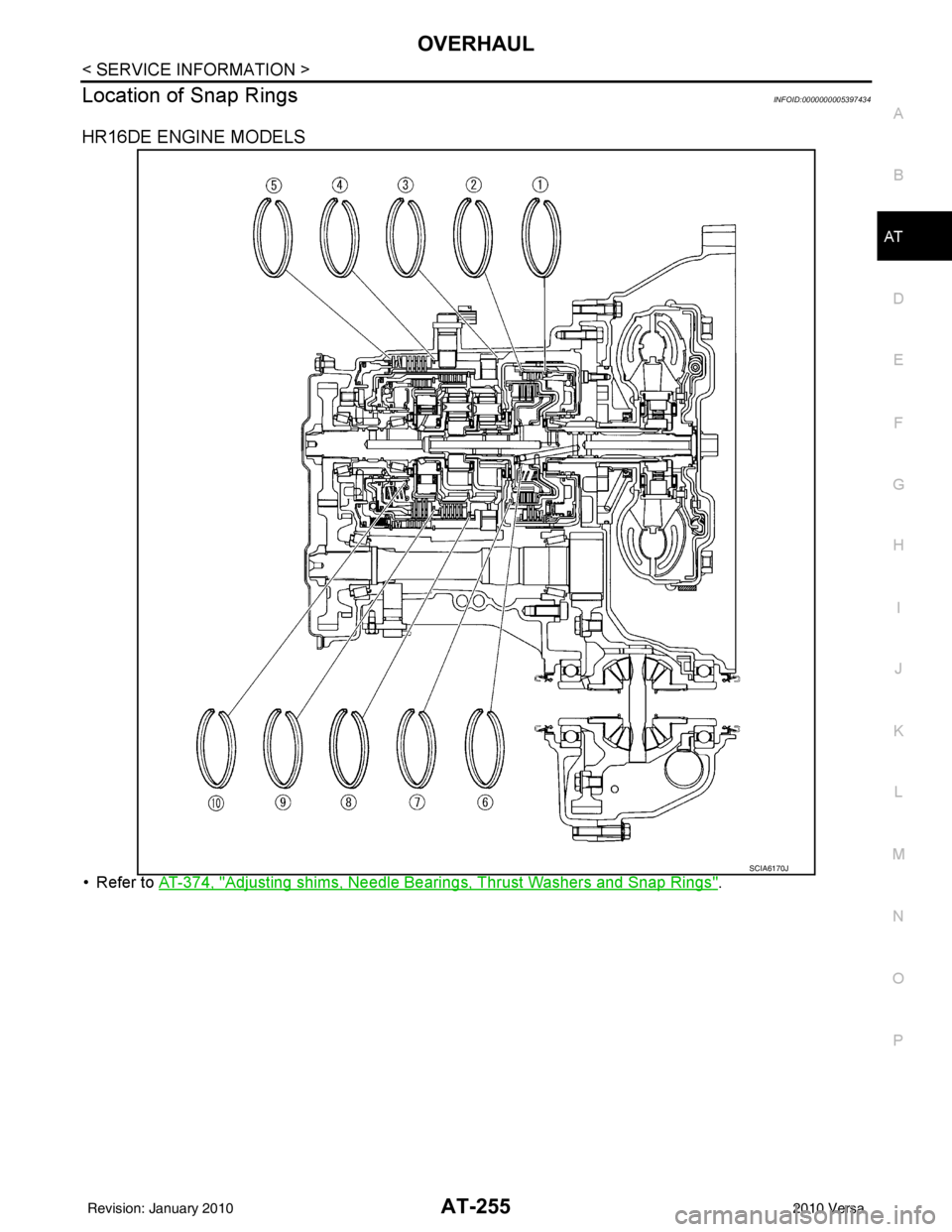

NISSAN LATIO 2010 Service Repair Manual OVERHAULAT-255 < SERVICE INFORMATION > DE F G H I J K L M A B AT N O P Location of Snap RingsINFOID:0000000005397434 HR16DE ENGINE MODELS • Refer to AT-374, "Adjusting shims, Needle Bearings, Thrus
