Page 2569 of 3745

NISSAN LATIO 2010 Service Repair Manual EM-210 < SERVICE INFORMATION >[MR18DE] CYLINDER BLOCK Service part is available as a set of both upper and lower. Main Bearing Selection Table (No. 1, 4 and 5 journals) PBIC4078E Revision: January 201

Page 2570 of 3745

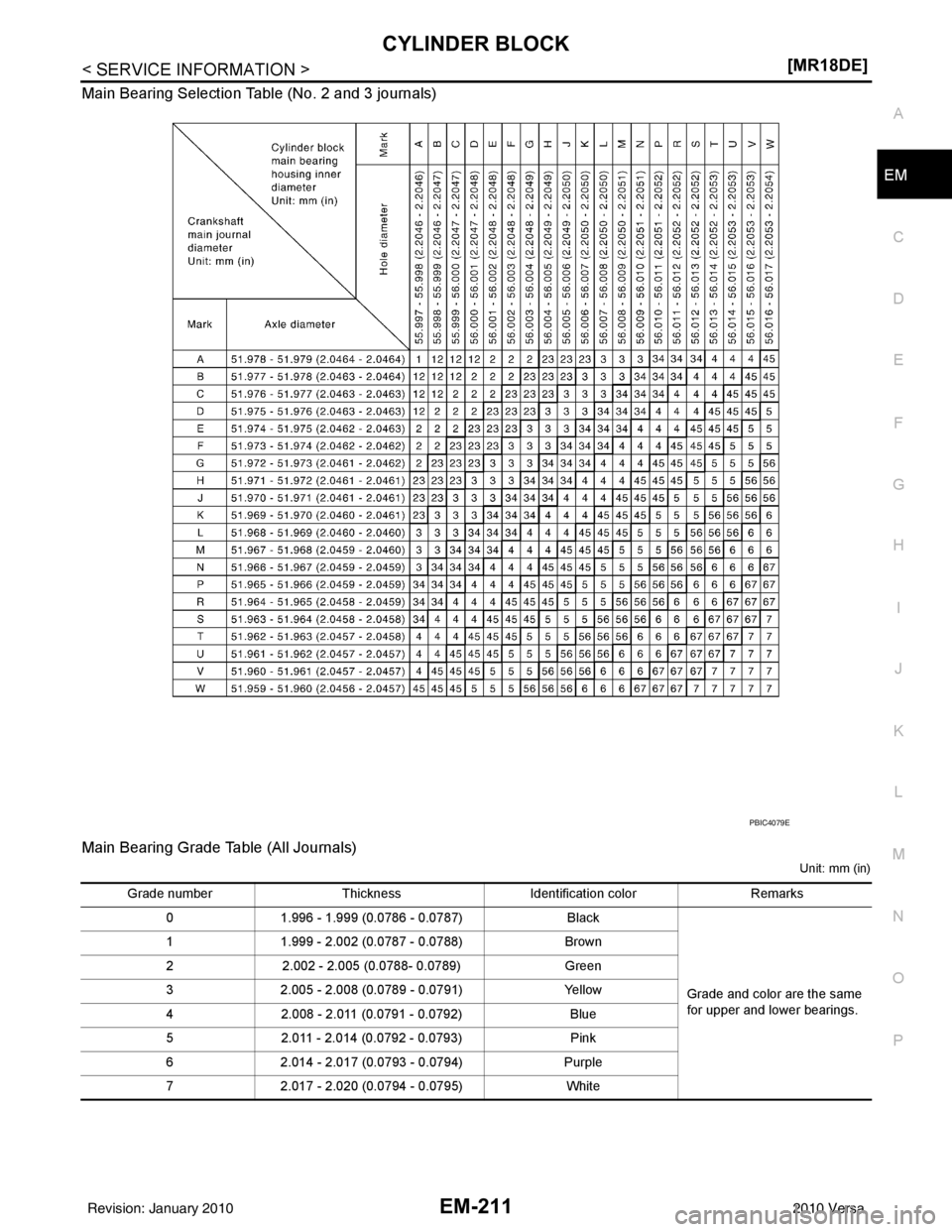

NISSAN LATIO 2010 Service Repair Manual CYLINDER BLOCKEM-211 < SERVICE INFORMATION > [MR18DE] C D E F G H I J K L M A EM NP O Main Bearing Selection Table (No. 2 and 3 journals) Main Bearing Grade Table (All Journals) Unit: mm (in) PBIC4079

Page 2571 of 3745

NISSAN LATIO 2010 Service Repair Manual EM-212 < SERVICE INFORMATION >[MR18DE] CYLINDER BLOCK Use Undersize Bearing Usage Guide • When the specified main bearing oil clearance is not obtained with standard size main bearings, use under- s

Page 2572 of 3745

NISSAN LATIO 2010 Service Repair Manual CYLINDER BLOCKEM-213 < SERVICE INFORMATION > [MR18DE] C D E F G H I J K L M A EM NP O • Measure the side clearance between connecting rod and crank- shaft arm with a feeler gauge (A). • If the mea

Page 2573 of 3745

NISSAN LATIO 2010 Service Repair Manual EM-214 < SERVICE INFORMATION >[MR18DE] CYLINDER BLOCK • Measure the side clearance of piston ring and piston ring groove with a feeler gauge (A). • If the measured value exceeds the limit, replace

Page 2574 of 3745

NISSAN LATIO 2010 Service Repair Manual CYLINDER BLOCKEM-215 < SERVICE INFORMATION > [MR18DE] C D E F G H I J K L M A EM NP O • Check with a connecting rod aligner. • If it exceeds the limit, replace connecting rod assembly. CONNECTING

Page 2575 of 3745

NISSAN LATIO 2010 Service Repair Manual EM-216 < SERVICE INFORMATION >[MR18DE] CYLINDER BLOCK Measure the outer diameter of piston pin with a micrometer (A). Connecting Rod Bushing Oil Clearance (Connecting rod bushing oil clearance) = (Con

Page 2576 of 3745

NISSAN LATIO 2010 Service Repair Manual CYLINDER BLOCKEM-217 < SERVICE INFORMATION > [MR18DE] C D E F G H I J K L M A EM NP O Main bearing caps cannot be replaced as a single part, because it is machined together with cylinder block. PISTON
