WHEEL SENSORSBRC-87
< SERVICE INFORMATION > [VDC/TCS/ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P
• When installing front wheel sensor, press rubber gr ommets of strut bracket and body all the way in
until they get locked, and be careful not to apply a twist to harness. Harness should not be twisted
after installation. (Install it with harness paint mark on body side grommet facing front of vehicle,
and the strut side grommet facing outside of vehicle.)
REAR WHEEL SENSOR
Removal
CAUTION:
• As much as possible, avoid rotating wheel sensor when removing it . Pull wheel sensors out without
pulling on sensor harness.
• Take care to avoid damaging wheel sensor edges or rotor teeth. Remove wheel sensor first before removing front or rear wheel hub. This is to avo id damage to wheel sensor wiring and loss of sensor
function.
1. Disconnect the rear wheel sensor connector.
2. Remove the rear wheel sensor.
Installation
Installation is in the reverse order of removal.
CAUTION:
• When installing, make sure there is no foreign mate rial such as iron chips on and in the mounting
hole of the wheel sensor. Make sure no foreign material has been caught in the sensor rotor. Remove
any foreign material and clean the mount.
• When installing rear wheel sensor, press rubber grommets of suspension arm bracket and harness
of side member all the way in until they get locked , and be careful not to apply a twist to harness.
Harness should not be twisted after installati on. (Aim the paint mark upward of vehicle.)
Revision: January 20102010 Versa
Page 978 of 3745
BRC-88
< SERVICE INFORMATION >[VDC/TCS/ABS]
SENSOR ROTOR
SENSOR ROTOR
Removal and InstallationINFOID:0000000005612258
The front and rear sensor rotors are part of the hub and bearing assembly and cannot be removed separately.
To replace the front or rear sensor rotors, the hub and bearing assembly must be replaced. Refer to
FA X - 6 ,
"Removal and Installation" (front axle), RAX-6, "Removal and Installation" (rear axle).
Revision: January 20102010 Versa
Page 979 of 3745
![NISSAN LATIO 2010 Service Repair Manual ACTUATOR AND ELECTRIC UNIT (ASSEMBLY)BRC-89
< SERVICE INFORMATION > [VDC/TCS/ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P
ACTUATOR AND ELECTRIC UNIT (ASSEMBLY)
Removal and InstallationINFOID:000000000561225 NISSAN LATIO 2010 Service Repair Manual ACTUATOR AND ELECTRIC UNIT (ASSEMBLY)BRC-89
< SERVICE INFORMATION > [VDC/TCS/ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P
ACTUATOR AND ELECTRIC UNIT (ASSEMBLY)
Removal and InstallationINFOID:000000000561225](/manual-img/5/57358/w960_57358-978.png)
ACTUATOR AND ELECTRIC UNIT (ASSEMBLY)BRC-89
< SERVICE INFORMATION > [VDC/TCS/ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P
ACTUATOR AND ELECTRIC UNIT (ASSEMBLY)
Removal and InstallationINFOID:0000000005612259
CAUTION:
• Before servicing, disconnect battery negative terminal.
• To remove brake tube, use flare nut wrench to pr event flare nuts and brake tube from being dam-
aged. To install, use flare nut torque wrench, ti ghten flare nut to the specified torque. Refer to BR-11,
"Hydraulic Circuit".
• Do not apply excessive impact to ABS actuator and elect ric unit (control unit), such as dropping it.
• Do not remove and install actuator by holding harness.
• After work is completed, bleed the air from the brake hydraulic system. Refer to BR-9, "
Bleeding
Brake System".
REMOVAL
1. Disconnect the battery negative terminal.
2. Remove the cowl top. Refer to EI-22, "
Removal and Installation".
3. Disconnect ABS actuator and electric unit (control unit) connector.
4. Loosen brake tube flare nuts, then remove brake tubes from ABS actuator and electric unit (control unit).
5. Remove brake booster hose from engine. Refer to BR-23, "
Removal and Installation".
6. Remove ABS actuator and electric unit (control unit) bracket bolts.
7. Remove ABS actuator and electric unit (control unit).

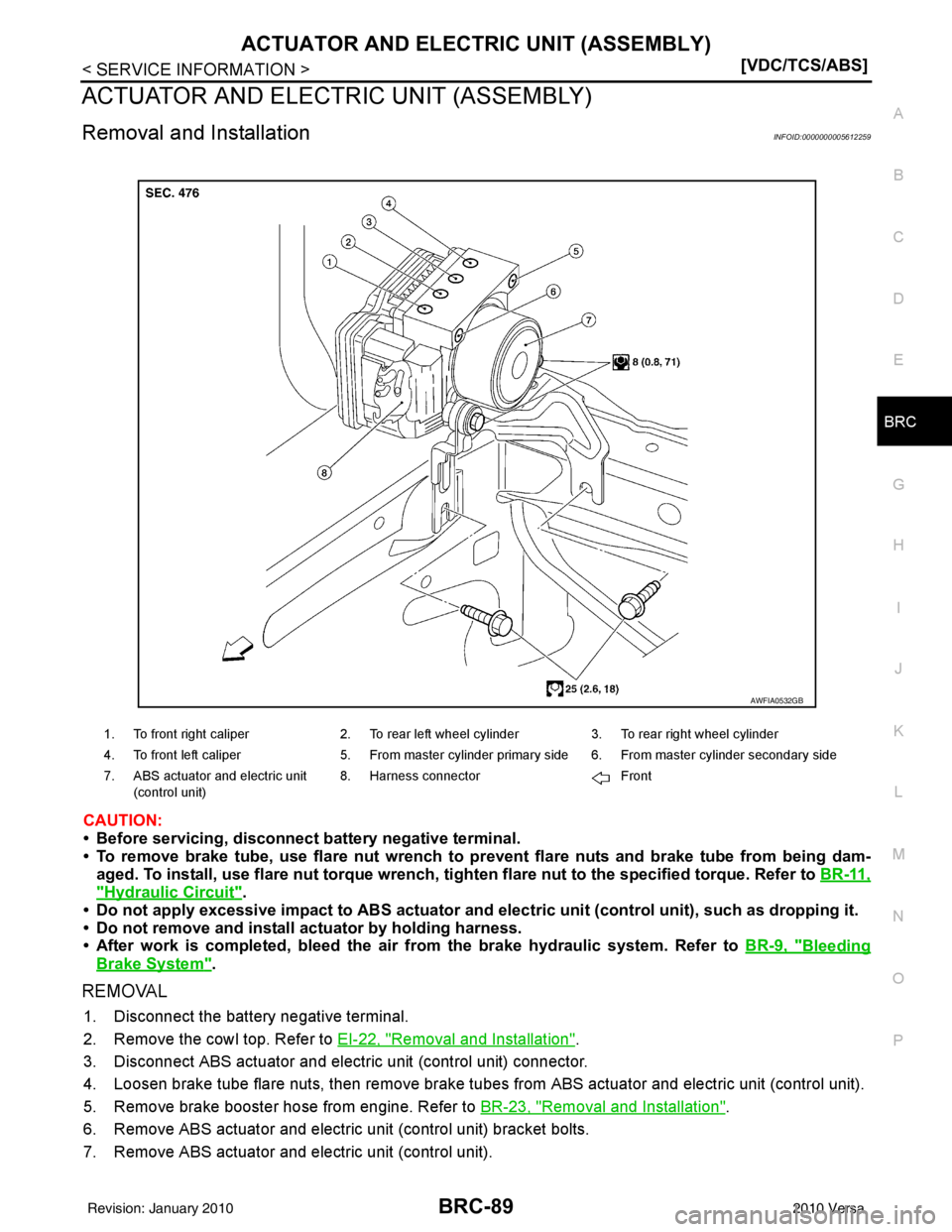

1. To front right caliper 2. To rear left wheel cylinder 3. To rear right wheel cylinder
4. To front left caliper 5. From master cylinder primary side 6. From master cylinder secondary side
7. ABS actuator and electric unit (control unit) 8. Harness connector
Front
AWFIA0532GB
Revision: January 20102010 Versa
Page 980 of 3745
BRC-90
< SERVICE INFORMATION >[VDC/TCS/ABS]
ACTUATOR AND ELECTRIC UNIT (ASSEMBLY)
INSTALLATION
Installation is in the reverse order of removal.
• Bleed the brake system. Refer to
BR-9, "
Bleeding Brake System".
• Adjust steering angle sensor neutral position, if equipped. Refer to BRC-85, "
Adjustment of Steering Angle
Sensor Neutral Position".
CAUTION:
After installing harness connector in the ABS actuato r and electric unit (control unit), make sure the
connector is securely locked.
Revision: January 20102010 Versa
Page 981 of 3745
STEERING ANGLE SENSORBRC-91
< SERVICE INFORMATION > [VDC/TCS/ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P
STEERING ANGLE SENSOR
Removal and InstallationINFOID:0000000005612185
NOTE:
The steering angle sensor is part of the spiral cable assembly and is not available separately.
REMOVAL
Remove the spiral cable. Refer to SRS-37, "Removal and Installation".
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
Perform the neutral position adjustment for the steering angle sensor. Refer to BRC-85, "
Adjustment
of Steering Angle Sensor Neutral Position".
Revision: January 20102010 Versa
Page 982 of 3745
BRC-92
< SERVICE INFORMATION >[VDC/TCS/ABS]
G SENSOR
G SENSOR
Removal and InstallationINFOID:0000000005612186
EXPLODED VIEW
REMOVAL
1. Disconnect battery negative terminal.
2. Remove driver seat. Refer to
SE-12, "
Removal and Installation".
3. Partially remove and reposition carpet from driver seat area. Refer to EI-46, "
Removal and Installation".
4. Disconnect harness connector (A).
5. Remove attaching nuts (B) and remove yaw rate/side/decel G sensor (1).
CAUTION:
• Do not drop or strike the yaw rate/side/decel G sensor.
• Do not use power tools to re move or install yaw rate/side/
decel G sensor.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
• Do not drop or strike the yaw rate/side/decel G sensor.
1. Yaw rate/side/decel G sensor 2. Bracket
SCIA8339J
SCIA8340J
Revision: January 20102010 Versa
