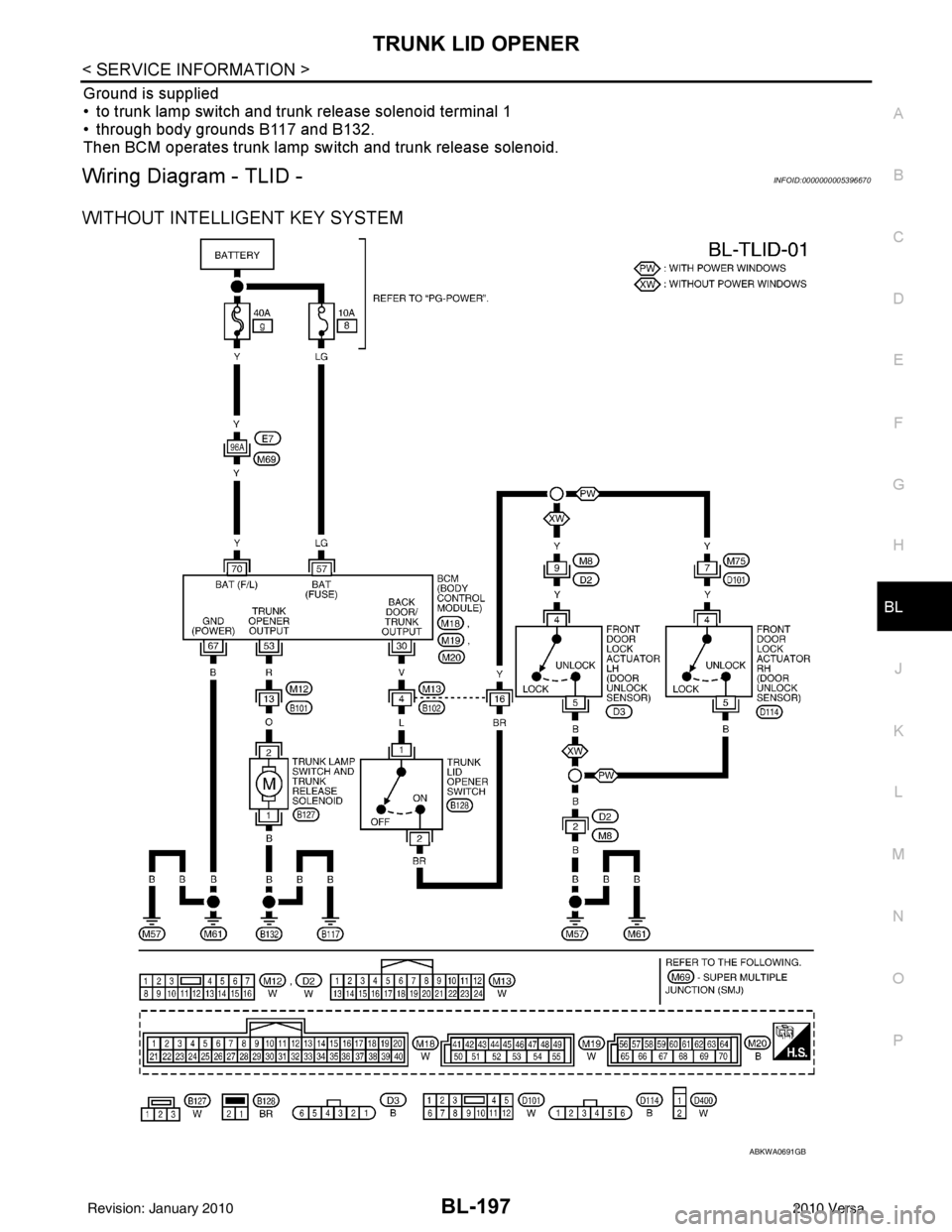

NISSAN LATIO 2010 Service Repair Manual BL-196 < SERVICE INFORMATION > TRUNK LID OPENER TRUNK LID OPENER Component Parts and Harness Connector LocationINFOID:0000000005396668 System DescriptionINFOID:0000000005396669 Power is supplied at al

Page 706 of 3745

NISSAN LATIO 2010 Service Repair Manual TRUNK LID OPENERBL-197 < SERVICE INFORMATION > C DE F G H J K L M A B BL N O P Ground is supplied • to trunk lamp switch and trunk release solenoid terminal 1 • through body grounds B117 and B132.

Page 707 of 3745

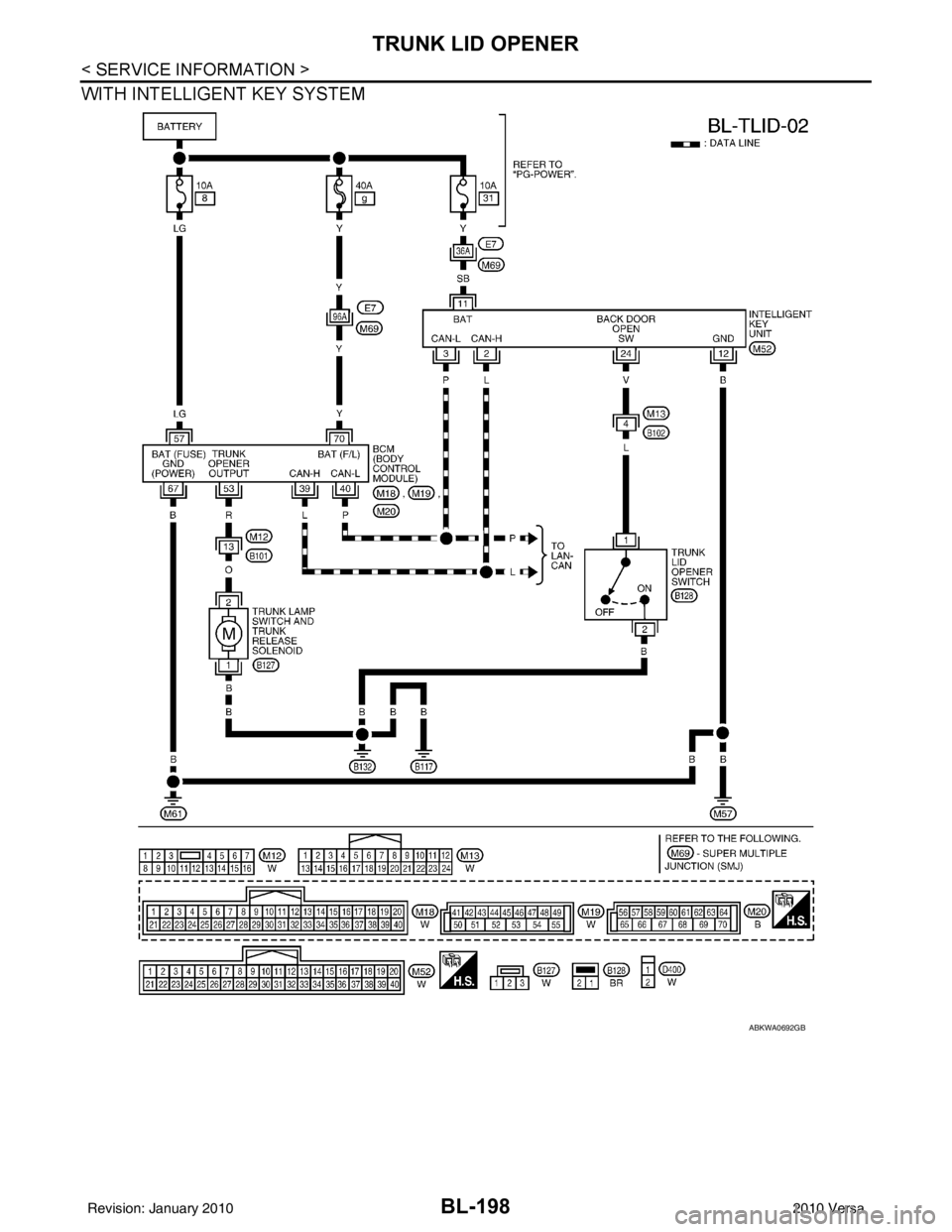

NISSAN LATIO 2010 Service Repair Manual BL-198 < SERVICE INFORMATION > TRUNK LID OPENER WITH INTELLIGENT KEY SYSTEM ABKWA0692GB Revision: January 20102010 Versa

Page 708 of 3745

NISSAN LATIO 2010 Service Repair Manual TRUNK LID OPENERBL-199 < SERVICE INFORMATION > C DE F G H J K L M A B BL N O P Terminal and Reference Value for BCMINFOID:0000000005612420 Te r m i n a l Wire color Signal name Signal input/ output

Page 709 of 3745

NISSAN LATIO 2010 Service Repair Manual BL-200 < SERVICE INFORMATION > TRUNK LID OPENER 15 WTire pressure warning check connector Input OFF —5V 18 V Remote keyless entry receiver (ground) Output OFF —0V 19 BR Remote keyless entry rec

Page 710 of 3745

NISSAN LATIO 2010 Service Repair Manual TRUNK LID OPENERBL-201 < SERVICE INFORMATION > C DE F G H J K L M A B BL N O P 301LG Back door/trunk out- put Output —Back door open (switch closed) 0V Back door closed (switch open) 5V 30 3LG Bac

Page 711 of 3745

NISSAN LATIO 2010 Service Repair Manual BL-202 < SERVICE INFORMATION > TRUNK LID OPENER 435R Back door switch Input OFFON (open) 0V OFF (closed) Battery voltage 44 5LG Rear wiper auto stop Input ON Rear wiper operating 0 Rear wiper stopped

Page 712 of 3745

NISSAN LATIO 2010 Service Repair Manual TRUNK LID OPENERBL-203 < SERVICE INFORMATION > C DE F G H J K L M A B BL N O P 1: With Intelligent Key 2: Without Intelligent Key 3: Hatchback without Intelligent Key 4: Sedan without Intelligent Key
