NISSAN LATIO 2010 Service Repair Manual CVT-56
< SERVICE INFORMATION >[RE0F08B]
U1000 CAN COMM CIRCUIT
U1000 CAN COMM CIRCUIT
DescriptionINFOID:0000000005397799
CAN (Controller Area Network) is a serial communication line for real time appl

Page 1090 of 3745

NISSAN LATIO 2010 Service Repair Manual U1000 CAN COMM CIRCUITCVT-57
< SERVICE INFORMATION > [RE0F08B]
D
E
F
G H
I
J
K L
M A
B
CVT
N
O P

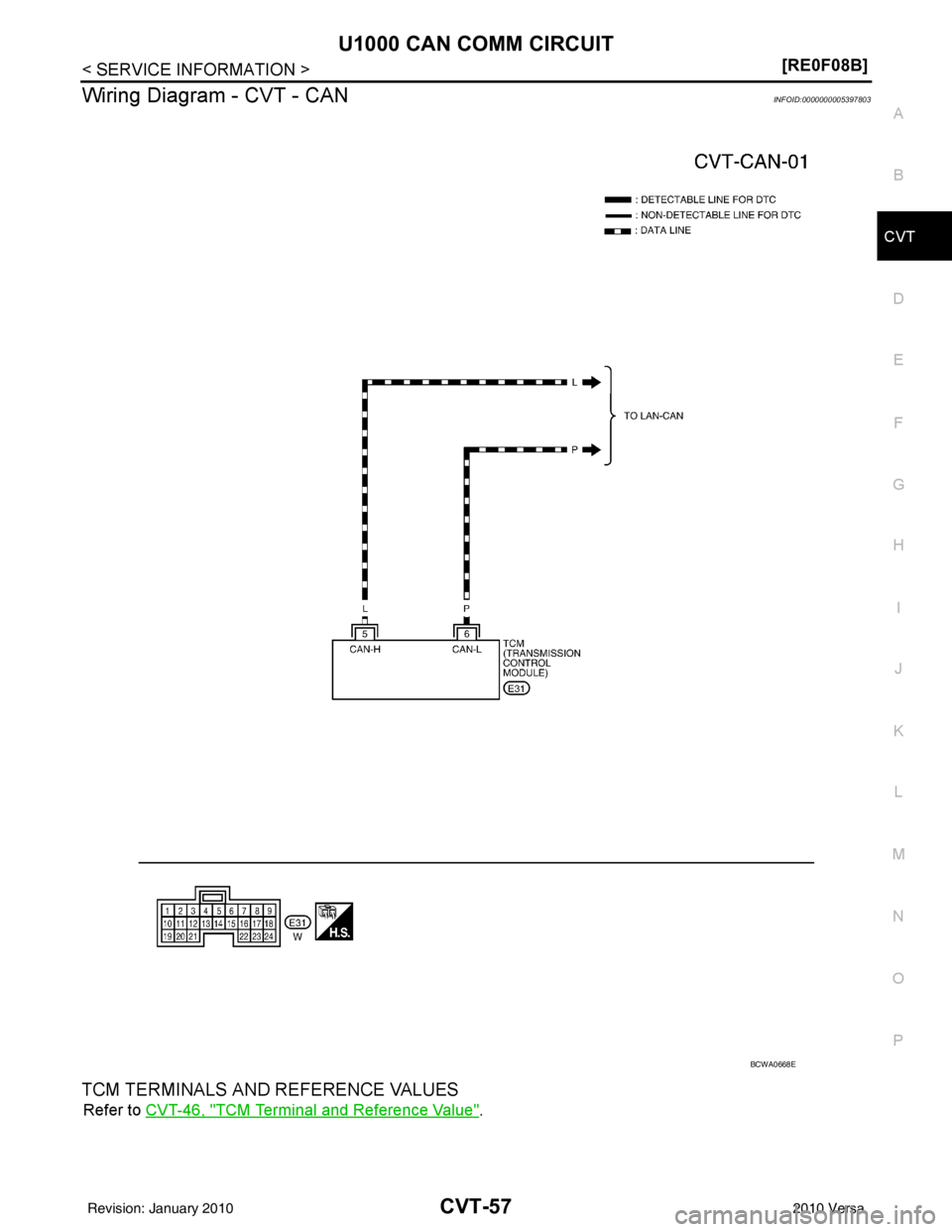

Wiring Diagram - CVT - CANINFOID:0000000005397803
TCM TERMINALS AND REFERENCE VALUES
Refer to CVT-46,

Page 1091 of 3745

NISSAN LATIO 2010 Service Repair Manual CVT-58
< SERVICE INFORMATION >[RE0F08B]
U1000 CAN COMM CIRCUIT
Diagnosis Procedure
INFOID:0000000005397804
1.CHECK CAN COMMUNICATION CIRCUIT
With CONSULT-III1. Turn ignition switch ON and start engine

Page 1092 of 3745

NISSAN LATIO 2010 Service Repair Manual U1010 CONTROL UNIT (CAN)CVT-59
< SERVICE INFORMATION > [RE0F08B]
D
E
F
G H
I
J
K L
M A
B
CVT
N
O P
U1010 CONTROL UNIT (CAN)
DescriptionINFOID:0000000005397805
CAN (Controller Area Network) is a serial

U1010 CONTROL UNIT (CAN)CVT-59
< SERVICE INFORMATION > [RE0F08B]
D
E
F
G H
I
J
K L
M A
B
CVT
N
O P
U1010 CONTROL UNIT (CAN)
DescriptionINFOID:0000000005397805
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communica tion speed and excellent malfunction detection ability.
Many electronic control units are equipped onto a vehicle, and each control unit shares information and links
with other control units during operation (not independent). In CAN communication, control units are con-
nected with 2 communication lines (CAN-H line, CAN-L line) allowing a high rate of information transmission
with less wiring. Each control unit transmits/receives data but selectively reads required data only.
On Board Diagnosis LogicINFOID:0000000005397806
• This is an OBD-II self-diagnostic item.
• Diagnostic trouble code “U1010” with CONSULT-III is detected when TCM cannot communicate to other control units.
Possible CauseINFOID:0000000005397807
Harness or connectors
(CAN communication line is open or shorted.)
DTC Confirmation ProcedureINFOID:0000000005397808
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, touch “ERASE” on “SELF-DIAG RESULTS” and then perform the following procedure to con-
firm the malfunction is eliminated.
WITH CONSULT-III
1. Turn ignition switch ON. (Do not start engine.)
2. Select “DATA MONITOR” mode for “TRANSMISSION” with CONSULT-III.
3. Start engine and wait for at least 6 seconds.
4. If DTC is detected, go to CVT-59, "
Diagnosis Procedure".
WITH GST
Follow the procedure “WITH CONSULT-III”.
Diagnosis ProcedureINFOID:0000000005397809
1.CHECK DTC
With CONSULT-III
1. Turn ignition switch ON. (Do not start engine.)
2. Select “SELF-DIAG RESULTS” mode for “TRANSMISSION” with CONSULT-III.
3. Touch “ERASE”.
4. Turn ignition switch OFF and wait for at least 10 seconds.
5. Perform “DTC confirmation procedure”. Refer to CVT-59, "
DTC Confirmation Procedure".
Is any malfunction of the
“U1010” indicated?
YES >> Replace the TCM. Refer to CVT-159, "Removal and Installation".
NO >> INSPECTION END
Revision: January 20102010 Versa

Page 1093 of 3745

NISSAN LATIO 2010 Service Repair Manual CVT-60
< SERVICE INFORMATION >[RE0F08B]
P0703 BRAKE SWITCH B
P0703 BRAKE SWITCH B
DescriptionINFOID:0000000005397810
ON, OFF status of the stop lamp switch is sent vi
a the CAN communication from the

CVT-60
< SERVICE INFORMATION >[RE0F08B]
P0703 BRAKE SWITCH B
P0703 BRAKE SWITCH B
DescriptionINFOID:0000000005397810
ON, OFF status of the stop lamp switch is sent vi
a the CAN communication from the combination meter to
TCM using the signal.
CONSULT-III Reference Value in Data Monitor ModeINFOID:0000000005397811
On Board Diagn osis LogicINFOID:0000000005397812
• This is not an OBD-II self-diagnostic item.
• Diagnostic trouble code “P0703” with CONSULT-III is det ected when the stop lamp switch does not switch to
ON and OFF.
- The stop lamp switch does not switch to ON, OFF.
Possible CauseINFOID:0000000005397813
• Harness or connectors (Stop lamp switch, and combination meter circuit are open or shorted.)
(CAN communication line is open or shorted.)
• Stop lamp switch
DTC Confirmation ProcedureINFOID:0000000005397814
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, alw ays turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, touch “ERASE” on “SELF-DIAG RESULTS” and then perform the following procedure to con-
firm the malfunction is eliminated.
WITH CONSULT-III
1. Turn ignition switch ON. (Do not start engine.)
2. Select “DATA MONITOR” mode fo r “TRANSMISSION” with CONSULT-III.
3. Start engine.
4. Start vehicle for at least 3 consecutive seconds.
5. If DTC is detected, go to CVT-60, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000005397815
1.CHECK CAN COMMUNICATION LINE
Perform the self-diagnosis check. Refer to CVT-48, "
CONSULT-III Function (TRANSMISSION)".
Is any malfunction of the
“U1000” indicated?
YES >> Check CAN communication line. Refer to CVT-56.
NO >> GO TO 2.
2.CHECK STOP LAMP SWITCH CIRCUIT
With CONSULT-III
1. Turn ignition switch ON. (Do not start engine.)
2. Select “ECU INPUT SIGNALS” in “DATA MONI TOR” mode for “TRANSMISSION” with CONSULT-III.
3. Read out ON/OFF switching action of the “BRAKE SW”.
Item name Condition Display value
BRAKE SW Depressed brake pedal
on
Released brake pedal off
Revision: January 20102010 Versa

Page 1094 of 3745

NISSAN LATIO 2010 Service Repair Manual P0703 BRAKE SWITCH BCVT-61
< SERVICE INFORMATION > [RE0F08B]
D
E
F
G H
I
J
K L
M A
B
CVT
N
O P
OK or NG
OK >> INSPECTION END
NG >> GO TO 3.
3.CHECK STOP LAMP SWITCH
Check continuity between stop lamp

Page 1095 of 3745

NISSAN LATIO 2010 Service Repair Manual CVT-62
< SERVICE INFORMATION >[RE0F08B]
P0705 TRANSMISSION RANGE SWITCH A
P0705 TRANSMISSION RANGE SWITCH A
DescriptionINFOID:0000000005397816
• The transmission range switch assemb
ly includes a tr

CVT-62
< SERVICE INFORMATION >[RE0F08B]
P0705 TRANSMISSION RANGE SWITCH A
P0705 TRANSMISSION RANGE SWITCH A
DescriptionINFOID:0000000005397816
• The transmission range switch assemb
ly includes a transaxle case.
• The transaxle range switch detects the selector lever position and sends a signal to the TCM.
CONSULT-III Reference Value in Data Monitor ModeINFOID:0000000005397817
On Board Diagn osis LogicINFOID:0000000005397818
• This is an OBD-II self-diagnostic item.
• Diagnostic trouble code “P0705” with CONSULT-III is detected when TCM does not receive the correct volt-
age signal (based on the gear position) from the switch.
Possible CauseINFOID:0000000005397819
• Harness or connectors(transmission range switches circuit is open or shorted.)
• transmission range switch
DTC Confirmation ProcedureINFOID:0000000005397820
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, alw ays turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, touch “ERASE” on “SELF-DIAG RESULTS” and then perform the following procedure to con-
firm the malfunction is eliminated.
WITH CONSULT-III
1. Turn ignition switch ON. (Do not start engine.)
2. Select “DATA MONITOR” mode fo r “TRANSMISSION” with CONSULT-III.
3. Start engine.
4. Drive vehicle and maintain the following conditions for at least 2 consecutive seconds. VEHICLE SPEED: More than 10 km/h (6 MPH)
ENG SPEED: More than 450 rpm
ACC PEDAL OPEN: More than 1.0/8
5. If DTC is detected, go to CVT-64, "
Diagnosis Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-III”.
Item name Condition Display value
P POSITION SW Selector lever in “P” position
on
Other than the above position off
R POSITION SW Selector lever in “R” position
on
Other than the above position off
N POSITION SW Selector lever in “N” position
on
Other than the above position off
D POSITION SW Selector lever in “D” position
on
Other than the above position off
L POSITION SW Selector lever in
“L” position on
Other than the above position off
Revision: January 20102010 Versa

Page 1096 of 3745

NISSAN LATIO 2010 Service Repair Manual P0705 TRANSMISSION RANGE SWITCH A
CVT-63
< SERVICE INFORMATION > [RE0F08B]
D
E
F
G H
I
J
K L
M A
B
CVT
N
O P

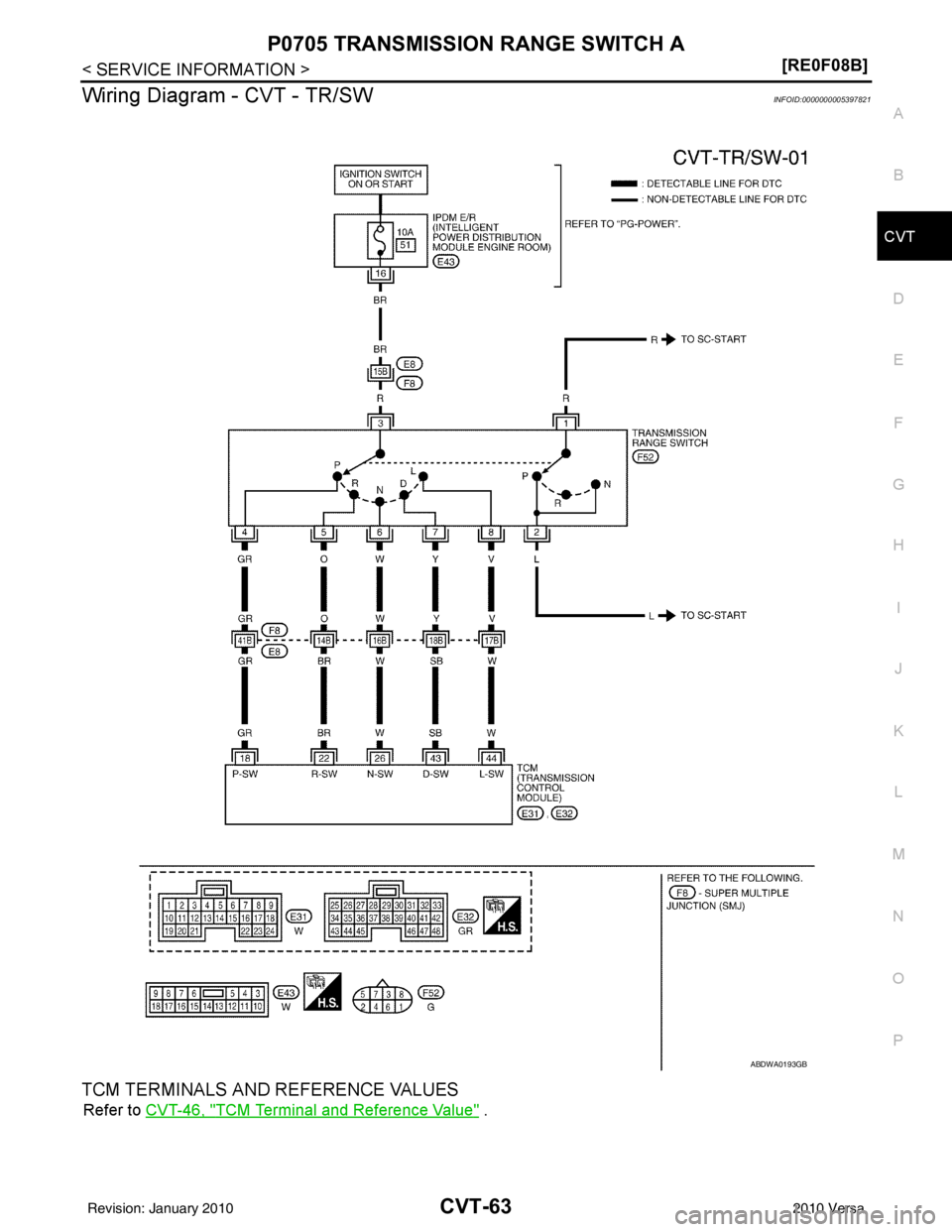

Wiring Diagram - CVT - TR/SWINFOID:0000000005397821
TCM TERMINALS AND REFERENCE VALUES
Refe
