NISSAN LATIO 2010 Service Repair Manual LT-110
< SERVICE INFORMATION >
ILLUMINATION
ILLUMINATION
System DescriptionINFOID:0000000005394998
The control of the illumination lamps operation is dependent upon the position of the lighting switch

LT-110
< SERVICE INFORMATION >
ILLUMINATION
ILLUMINATION
System DescriptionINFOID:0000000005394998
The control of the illumination lamps operation is dependent upon the position of the lighting switch. When the
lighting switch is placed in the 1ST or 2ND position, the BCM (body con\
trol module) receives input signal
requesting the illumination lamps to illuminate. This i nput signal is communicated to IPDM E/R (intelligent
power distribution module engine room) across CAN communication lines. CPU (central processing unit)
located in the IPDM E/R controls the tail lamp relay coil. This relay, when energized, directs power to the illu-
mination lamps, which then illuminate.
Power is supplied at all times
• to ignition relay, located in IPDM E/R,
• to tail lamp relay, located in IPDM E/R,
• through 15A fuse (No. 52, located in IPDM E/R) and
• through 20A fuse (No. 53, located in IPDM E/R)
• to CPU located in IPDM E/R,
• through 40A fusible link (letter g, located in fuse and fusible link box)
• to BCM terminal 70, and
• through 10A fuse [No. 8, located in fuse block (J/B)]
• to BCM terminal 57.
With the ignition switch in the ON or START position, power is supplied
• to ignition relay, located in IPDM E/R, and
• through 10A fuse [No. 6, located in fuse block (J/B)]
• to BCM terminal 38.
With the ignition switch in the ACC or ON position, power is supplied
• through 10A fuse [No. 20, located in fuse block (J/B)]
• to BCM terminal 11.
Ground is supplied
• to BCM terminal 67
• through grounds M57 and M61
• to IPDM E/R terminals 39 and 59, and
• through grounds E15 and E24.
ILLUMINATION OPERATION BY LIGHTING SWITCH
With the lighting switch in the 1ST or 2ND position, BCM receives input signal requesting the illumination
lamps to illuminate. This input signal is communica ted to IPDM E/R across CAN communication lines. CPU
located in the IPDM E/R controls the tail lamp relay coil, which, when energized, directs power
• through 10A fuse (No. 37, located in IPDM E/R)
• through IPDM E/R terminal 29
• to illumination control switch terminal 1
• to VDC OFF switch terminal 3 (with VDC)
• to audio unit (with audio unit) or AV control unit (with premium audio system) terminal 9
• to front air control terminal 5
• to A/T shift selector terminal 3 (with 4-speed A/T)
• to CVT shift selector terminal 3 (with CVT)
• to hazard switch terminal 3
• to combination meter terminal 12
• to door mirror remote control switch terminal 16
• to combination switch (spiral cable) terminal 26 (with steering wheel audio control switches)
• to steering wheel audio control switches through combination switch (spiral cable) terminal 18 (with steering wheel audio control switches).
Ground is supplied
• to VDC OFF switch terminal 4 (with VDC)
• to illumination control switch terminal 3, and
• through grounds M57 and M61.
The illumination control switch controls illumination intensity by varying the ground to the following
• through illumination control switch terminal 2
• to audio unit (with audio unit) or AV control unit (with premium audio system) terminal 8
• to front air control terminal 6
• to A/T shift selector terminal 4 (with 4-speed A/T)
• to CVT shift selector terminal 3 (with CVT)
Revision: January 20102010 Versa

Page 3106 of 3745

NISSAN LATIO 2010 Service Repair Manual ILLUMINATIONLT-111
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
LT
N
O P
• to hazard switch terminal 4
• to combination meter terminal 13
• to door mirror remote control switch terminal 15
•

Page 3107 of 3745

NISSAN LATIO 2010 Service Repair Manual LT-112
< SERVICE INFORMATION >
ILLUMINATION

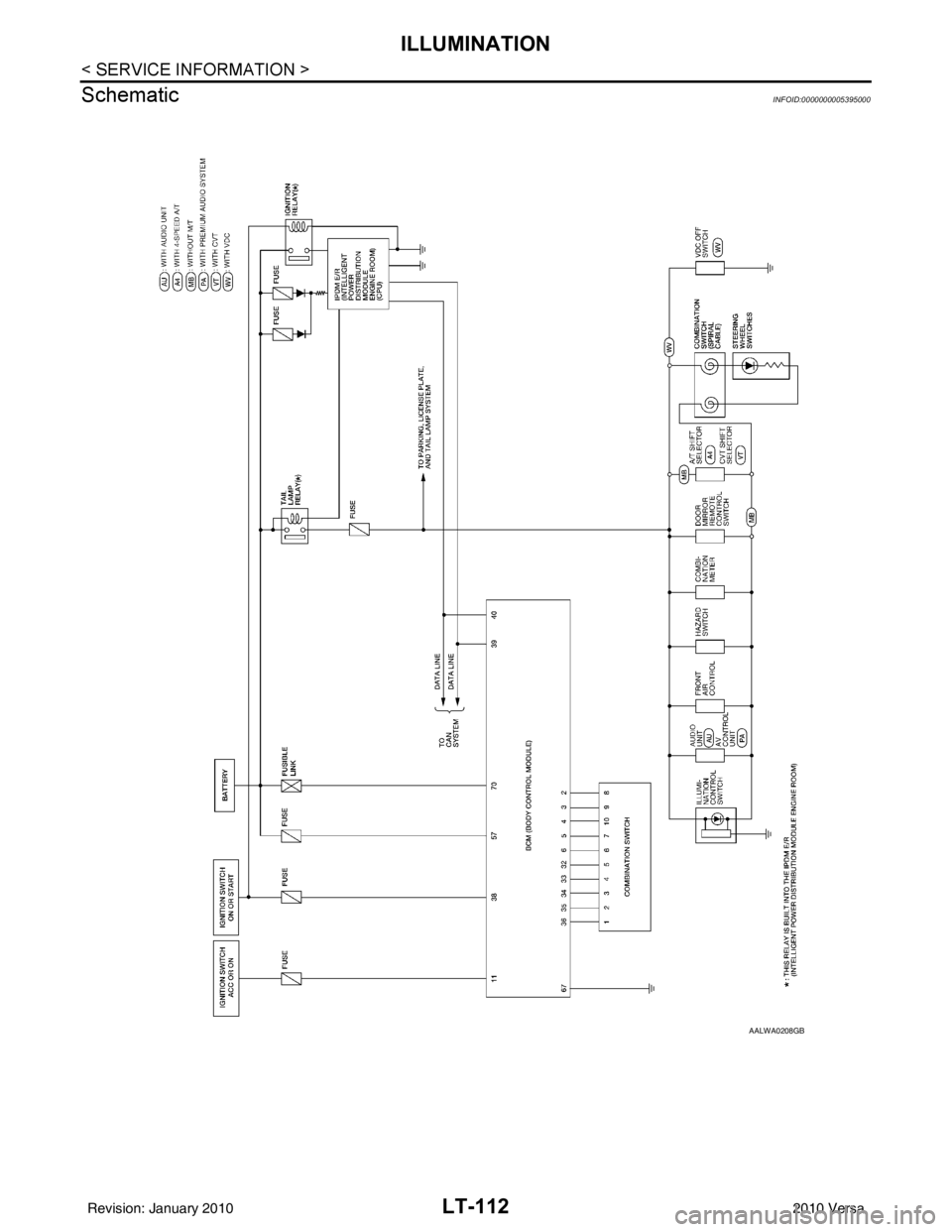

Schematic
INFOID:0000000005395000
AALWA0208GB
Revision: January 20102010 Versa

Page 3108 of 3745

NISSAN LATIO 2010 Service Repair Manual ILLUMINATIONLT-113
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
LT
N
O P

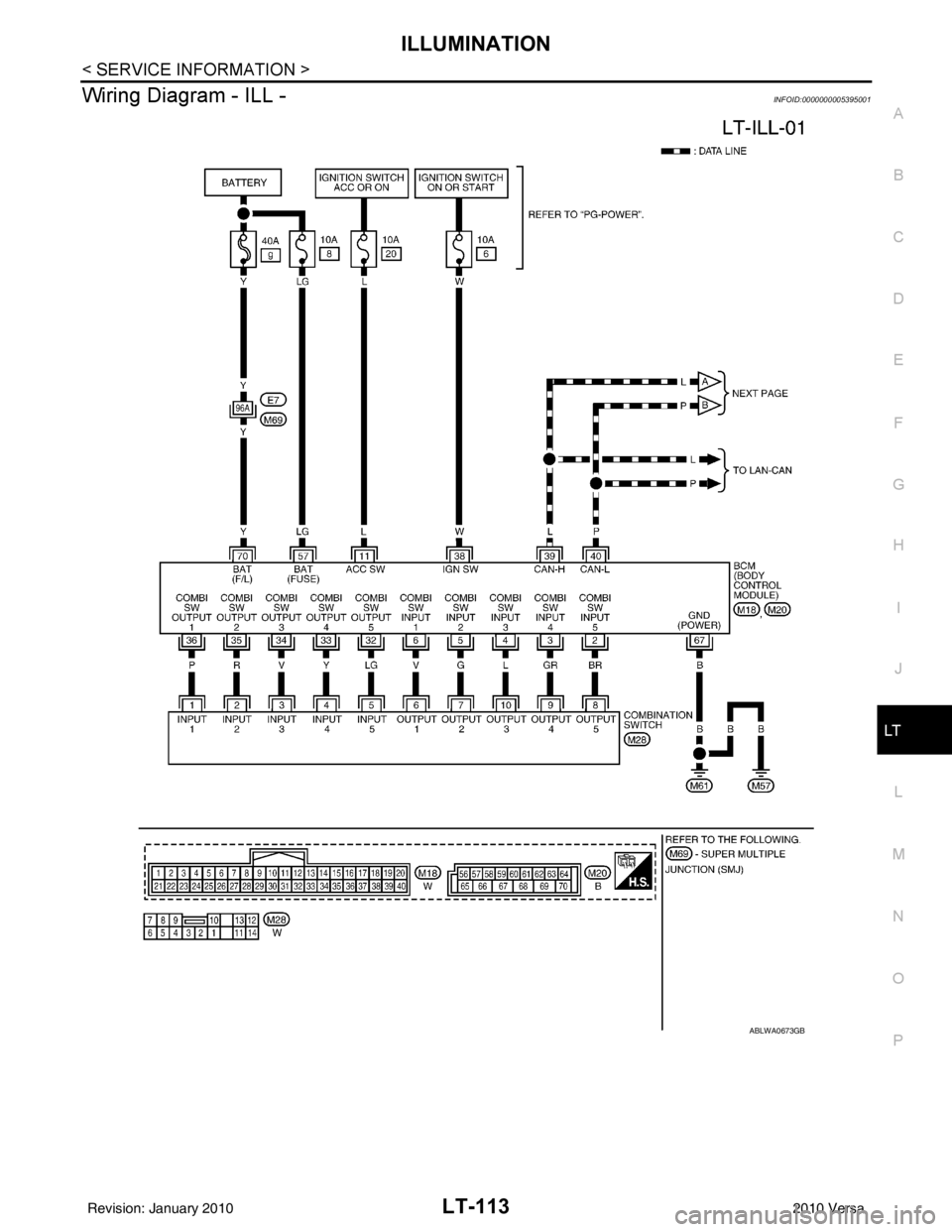

Wiring Diagram - ILL -INFOID:0000000005395001
ABLWA0673GB
Revision: January 20102010 Versa

Page 3109 of 3745

NISSAN LATIO 2010 Service Repair Manual LT-114
< SERVICE INFORMATION >
ILLUMINATION

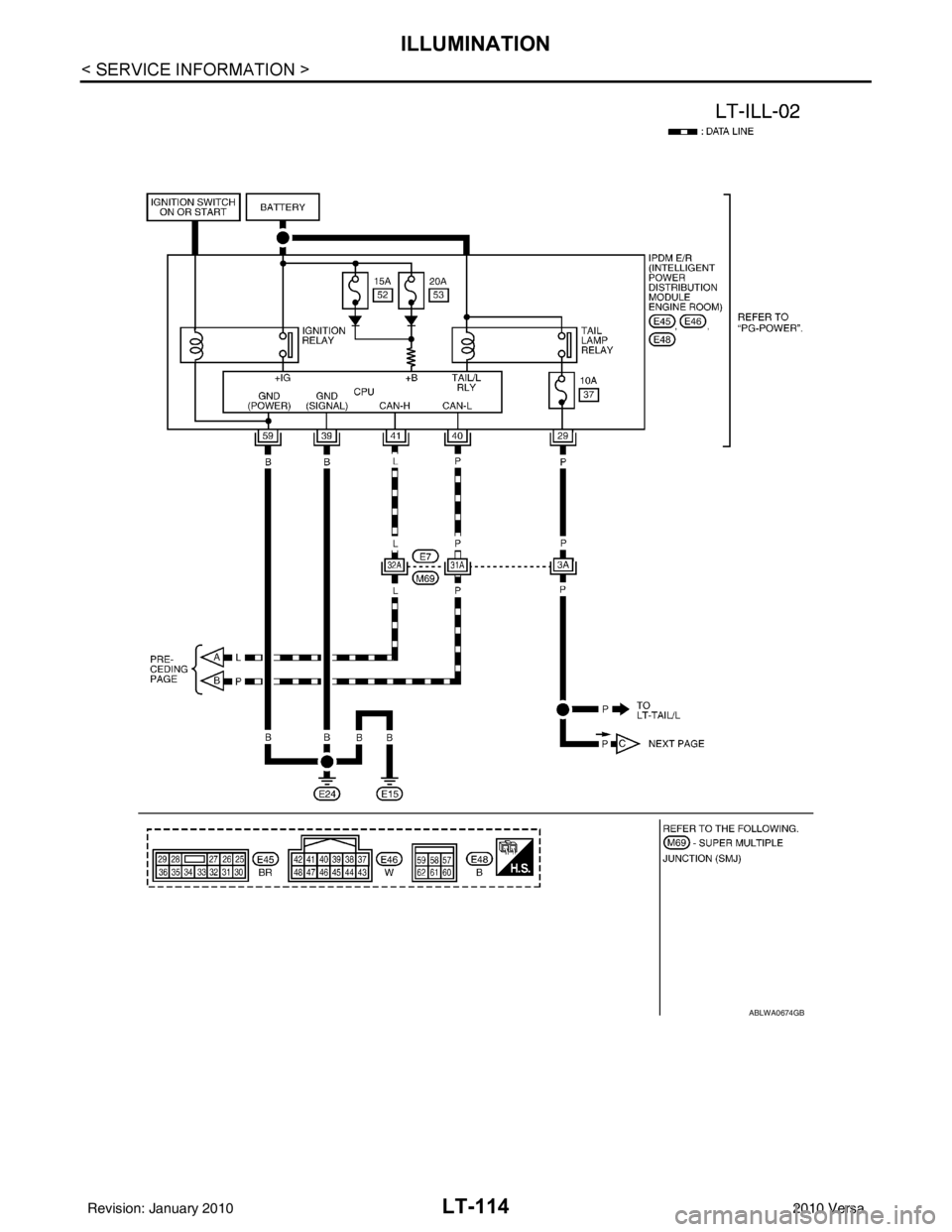

ABLWA0674GB
Revision: January 20102010 Versa

Page 3110 of 3745

NISSAN LATIO 2010 Service Repair Manual ILLUMINATIONLT-115
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
LT
N
O P

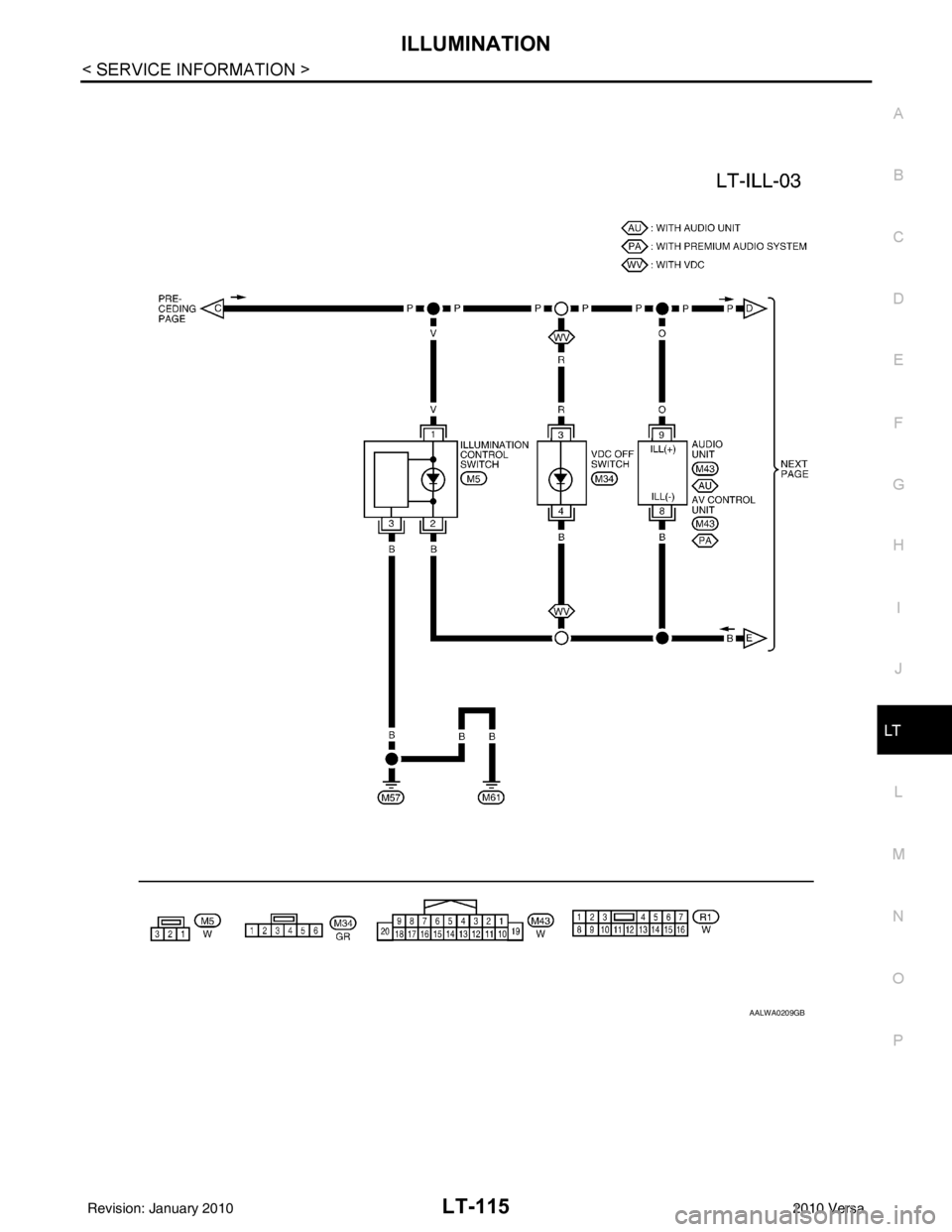

AALWA0209GB
Revision: January 20102010 Versa

Page 3111 of 3745

NISSAN LATIO 2010 Service Repair Manual LT-116
< SERVICE INFORMATION >
ILLUMINATION

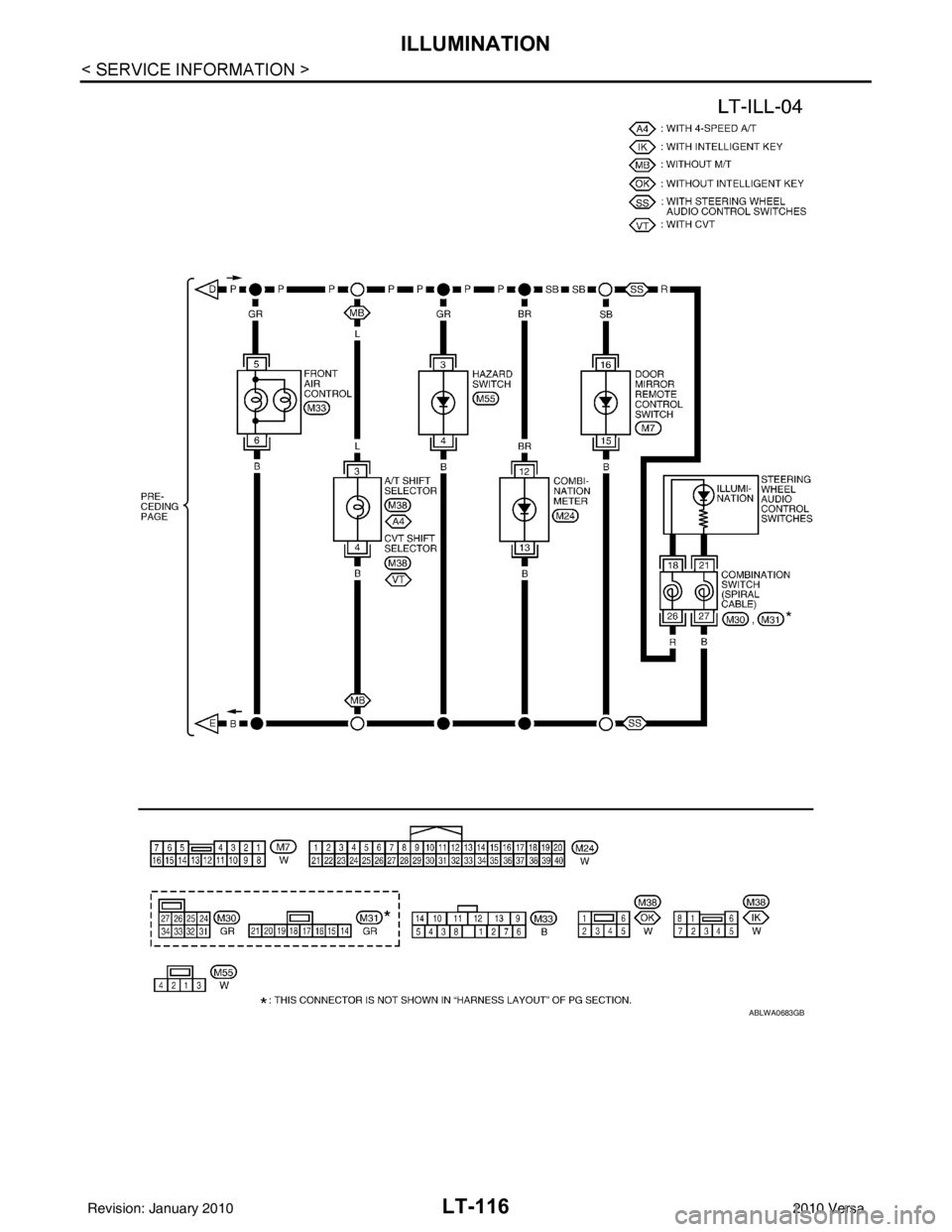

ABLWA0683GB
Revision: January 20102010 Versa

Page 3112 of 3745

NISSAN LATIO 2010 Service Repair Manual BULB SPECIFICATIONSLT-117
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
LT
N
O P
BULB SPECIFICATIONS
HeadlampINFOID:0000000005395003
Exterior LampINFOID:0000000005395004
Interior Lamp/IlluminationINF
