Page 3449 of 3745

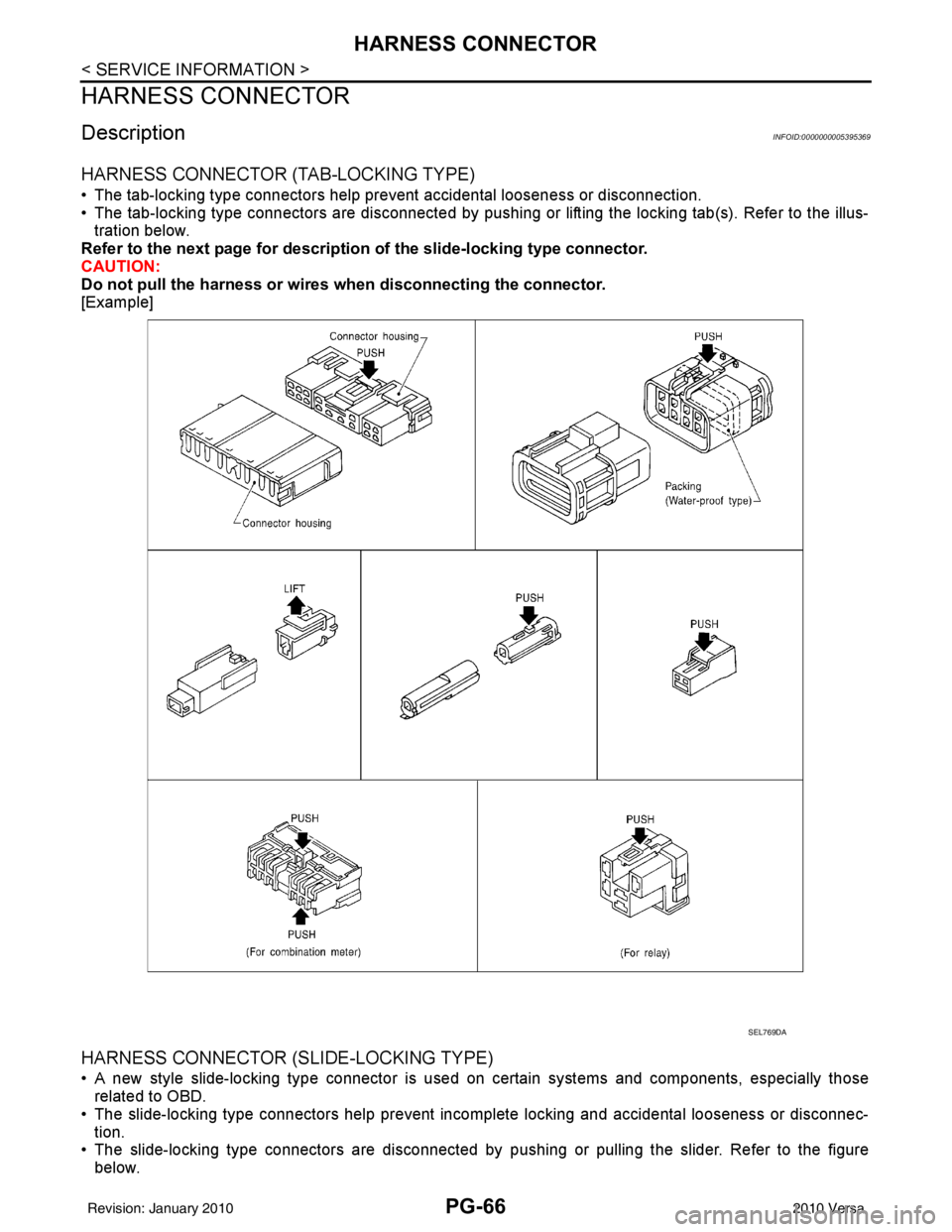

NISSAN LATIO 2010 Service Repair Manual PG-66 < SERVICE INFORMATION > HARNESS CONNECTOR HARNESS CONNECTOR DescriptionINFOID:0000000005395369 HARNESS CONNECTOR (TAB-LOCKING TYPE) • The tab-locking type connectors help prevent accidental lo

Page 3450 of 3745

NISSAN LATIO 2010 Service Repair Manual HARNESS CONNECTORPG-67 < SERVICE INFORMATION > C DE F G H I J L M A B PG N O P CAUTION: • Do not pull the harness or wires when disconnecting the connector. • Be careful not to damage the connect

Page 3451 of 3745

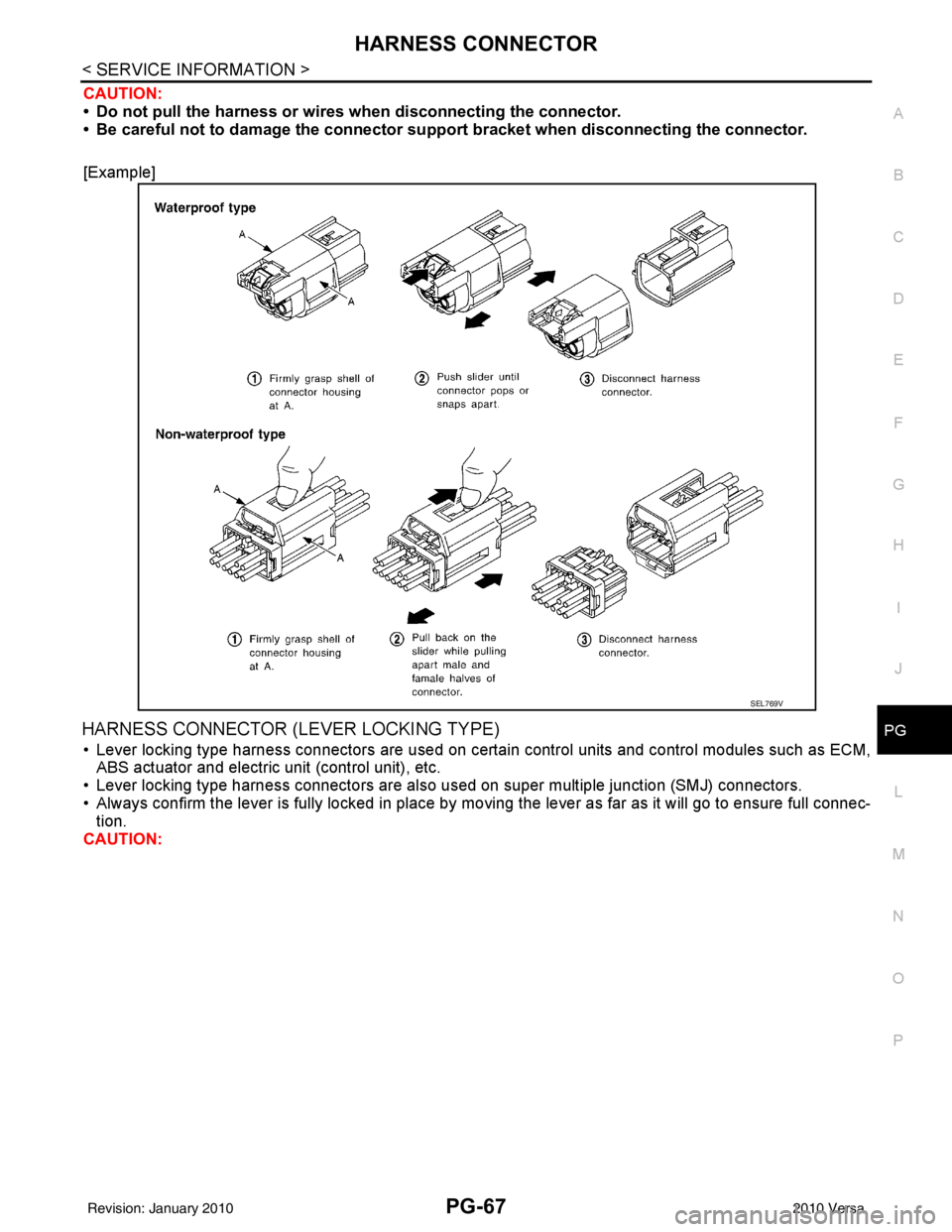

NISSAN LATIO 2010 Service Repair Manual PG-68 < SERVICE INFORMATION > HARNESS CONNECTOR Always confirm the lever is fully released (loosened) before attempti ng to disconnect or connect these connectors to avoid damage to th e connector hou

Page 3452 of 3745

NISSAN LATIO 2010 Service Repair Manual ELECTRICAL UNITSPG-69 < SERVICE INFORMATION > C DE F G H I J L M A B PG N O P ELECTRICAL UNITS Terminal ArrangementINFOID:0000000005395370 LKIA0810E Revision: January 20102010 Versa

Page 3453 of 3745

NISSAN LATIO 2010 Service Repair Manual PG-70 < SERVICE INFORMATION > STANDARDIZED RELAY STANDARDIZED RELAY DescriptionINFOID:0000000005395371 NORMAL OPEN, NORMAL CLOSED AND MIXED TYPE RELAYS Relays can mainly be divided into three types: n

Page 3454 of 3745

NISSAN LATIO 2010 Service Repair Manual STANDARDIZED RELAYPG-71 < SERVICE INFORMATION > C DE F G H I J L M A B PG N O P WKIA0253E Revision: January 20102010 Versa

Page 3455 of 3745

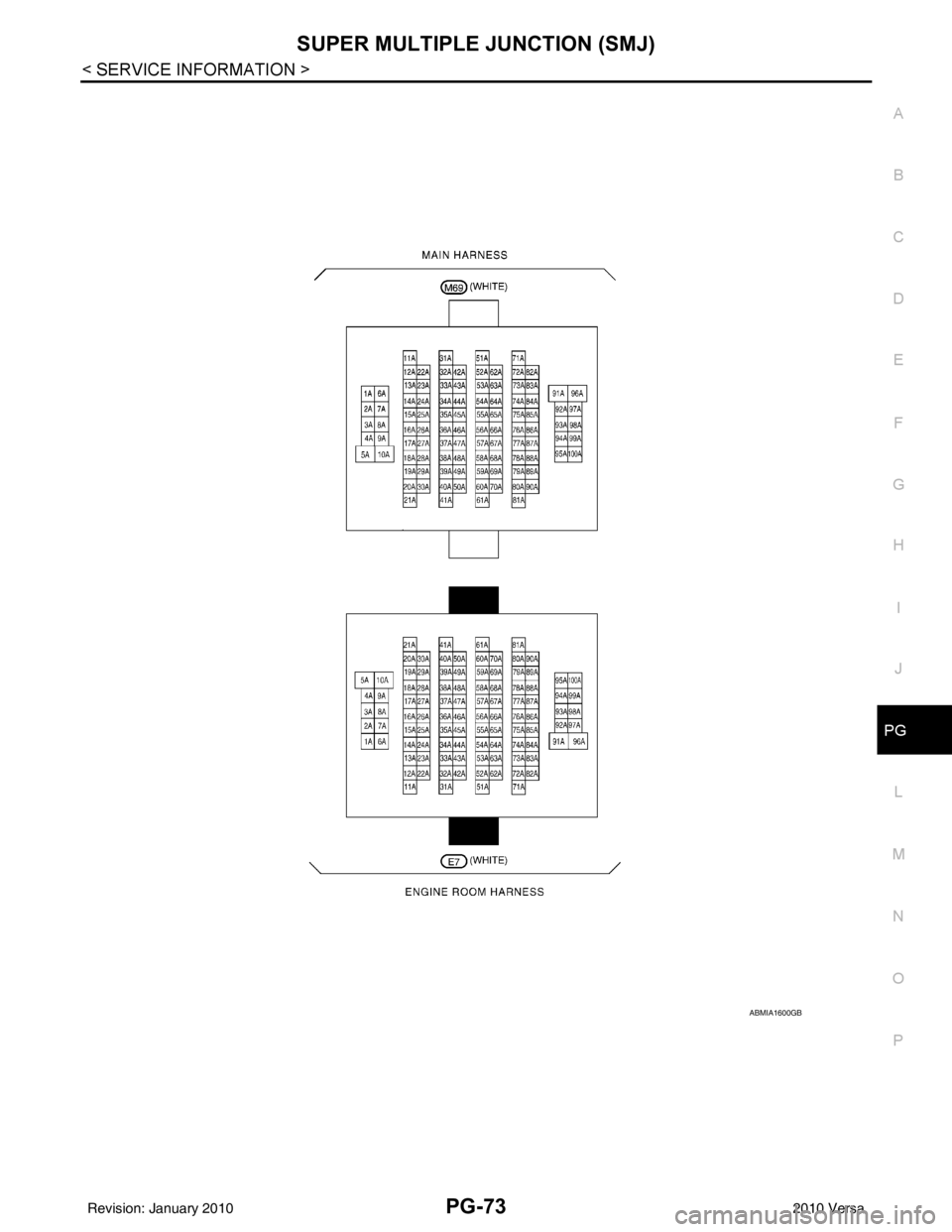

NISSAN LATIO 2010 Service Repair Manual PG-72 < SERVICE INFORMATION > SUPER MULTIPLE JUNCTION (SMJ) SUPER MULTIPLE JUNCTION (SMJ) Terminal ArrangementINFOID:0000000005395372 ABMIA1599GB Revision: January 20102010 Versa

Page 3456 of 3745

NISSAN LATIO 2010 Service Repair Manual SUPER MULTIPLE JUNCTION (SMJ)PG-73 < SERVICE INFORMATION > C DE F G H I J L M A B PG N O P ABMIA1600GB Revision: January 20102010 Versa
