BL-188
< SERVICE INFORMATION >
BACK DOOR LOCK
OK or NG
OK >> GO TO 6
NG >> Repair or replace harness.
6.CHECK UNLOCK SENSOR FUNCTION
1. Connect front door lock actuator RH (door unlock sensor) connector.
2. Check continuity between back door opener switch connector D408 terminal 2 and ground.
OK or NG
OK >> GO TO 7
NG >> Replace front door lock actuator RH (door unlock sen- sor). Refer to BL-166
.
7.CHECK BACK DOOR OPENER SWITCH SIGNAL 2
1. Connect BCM connector.
2. Check voltage between BCM connector and ground.
OK or NG
OK >> Check the condition of harness and connector.
NG >> Replace BCM. Refer to BCS-19, "
Removal and Installa-
tion of BCM".
Check Back Door Opener Switch Circuit (With Intelligent Key)INFOID:0000000005396661
1.CHECK BACK DOOR OPENER SWITCH SIGNAL
With CONSULT-III
Check back door opener switch (“TRNK OPNR SW”) in “DATA MONITOR” mode with CONSULT-III.
Without CONSULT-III
Front door lock actuator
RH (door unlock sensor) connec-
tor Te r m i n a l
GroundContinuity
D114 5 Yes
WIIA1273E
Back door
opener switch connector Te r m i n a l
Front door lock
knob RH position Continuity
D408 2 Ground Unlock
Yes
Lock No
PIIB6472E
Te r m i n a l s
Voltage (V)
(Approx.)
(+)
(–)
BCM connector Terminal
M18 30Ground Battery voltage
PIIB6468E
Test item Condition
TRNK OPNR SW Back door opener switch is pushed: ON
Back door opener switch is released: OFF
Revision: January 20102010 Versa
Page 698 of 3745

BACK DOOR LOCKBL-189
< SERVICE INFORMATION >
C
DE
F
G H
J
K L
M A
B
BL
N
O P
Check voltage between Intelligent Key unit connector M52 terminal
24 and ground.
OK or NG
OK >> Back door opener switch is OK.
NG >> GO TO 2
2.CHECK BACK DOOR OPENER SWITCH CIRCUIT 1
1. Turn ignition switch OFF.
2. Disconnect Intelligent Key unit and back door opener switch connector.

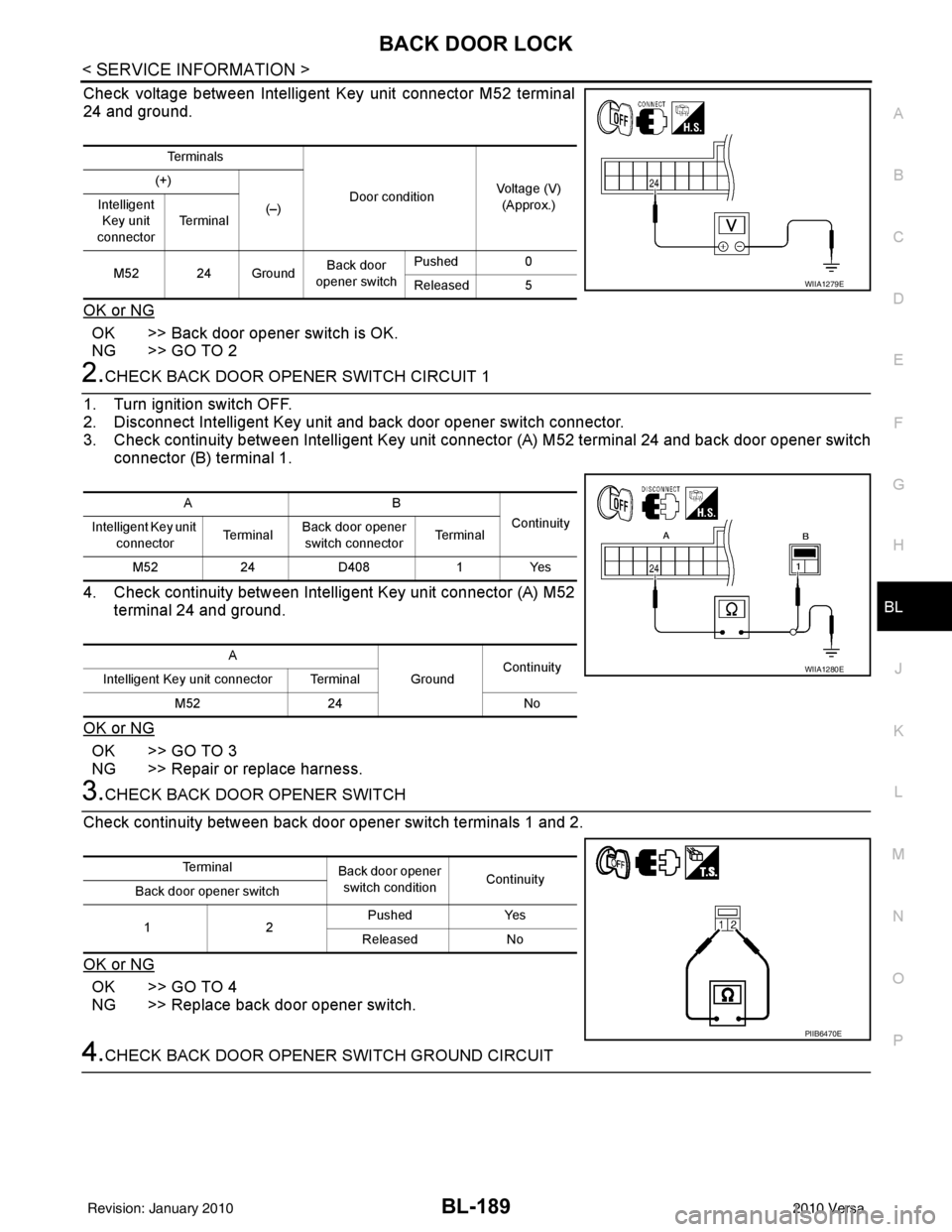

3. Check continuity between Intelligent Key unit c onnector (A) M52 terminal 24 and back door opener switch
connector (B) terminal 1.
4. Check continuity between Intelligent Key unit connector (A) M52 terminal 24 and ground.
OK or NG
OK >> GO TO 3
NG >> Repair or replace harness.
3.CHECK BACK DOOR OPENER SWITCH
Check continuity between back door opener switch terminals 1 and 2.
OK or NG
OK >> GO TO 4
NG >> Replace back door opener switch.
4.CHECK BACK DOOR OPEN ER SWITCH GROUND CIRCUIT
Te r m i n a l s
Door conditionVoltage (V)
(Approx.)
(+)
(–)
Intelligent
Key unit
connector Te r m i n a l
M52 24 Ground Back door
opener switch Pushed
0
Released 5
WIIA1279E
AB Continuity
Intelligent Key unit
connector Te r m i n a l
Back door opener
switch connector Te r m i n a l
M52 24D408 1Yes
A GroundContinuity
Intelligent Key unit connector Terminal
M52 24 No
WIIA1280E
Te r m i n a l
Back door opener
switch condition Continuity
Back door opener switch
12 Pushed
Yes
Released No
PIIB6470E
Revision: January 20102010 Versa
Page 699 of 3745

BL-190
< SERVICE INFORMATION >
BACK DOOR LOCK
Check continuity between back door opener switch connector termi-
nal 2 and ground.
OK or NG
OK >> GO TO 5
NG >> Repair or replace harness.
5.CHECK INTELLIGENT KEY UNIT OUTPUT SIGNAL
1. Connect Intelligent Key unit connector.
2. Check voltage between Intelligent Key unit connector M52 terminal 24 and ground.
OK or NG
OK >> Check the condition of harness and connector.
NG >> Replace Intelligent Key unit. Refer to BL-158, "
Removal
and Installation of Intelligent Key Unit".
Check Back Door Lock Asse mbly (Actuator) CircuitINFOID:0000000005396662
1.CHECK BACK DOOR LOCK ASSE MBLY (ACTUATOR) FUNCTION
With CONSULT-III
Check the operation with (“TRUNK/BACK DOOR”) in the ACTIVE TEST.
YES or NO
YES >> Back door lock assembly (actuator) is OK.
NO >> GO TO 2
2.CHECK BACK DOOR LOCK ASSEMB LY (ACTUATOR) POWER SUPPLY
1. Turn ignition switch OFF.
2. Insure both front door lock knobs are turned to the UNLOCK position.
3. Disconnect back door lock assembly (actuator) connector.
4. Check voltage between back door lock assembly (actuator) connector D405 terminal 1 and ground.
Back door opener switch connector Te r m i n a l
GroundContinuity
D408 2 Yes
PIIB6472E
Te r m i n a l s
Voltage (V)(Approx.)
(+)
(–)
Intelligent Key unit
connector Te r m i n a l
M52 24Ground 5
WIIA1279E
Does back door actuator system operate normally?
Te r m i n a l s
ConditionVoltage (V)
(Approx.)
(+)
(–)
Back door
lock as-
sembly (ac-
tuator)
connector Te r m i n a l
D405 1 Ground Back door
opener switch Pushed 0
↓
Battery voltage ↓0
Released 0
WIIA1275E
Revision: January 20102010 Versa
Page 700 of 3745

BACK DOOR LOCKBL-191
< SERVICE INFORMATION >
C
DE
F
G H
J
K L
M A
B
BL
N
O P
OK or NG
OK >> GO TO 3
NG >> GO TO 4
3.CHECK BACK DOOR LOCK ASSEMBLY (ACTUATOR) GROUND CIRCUIT

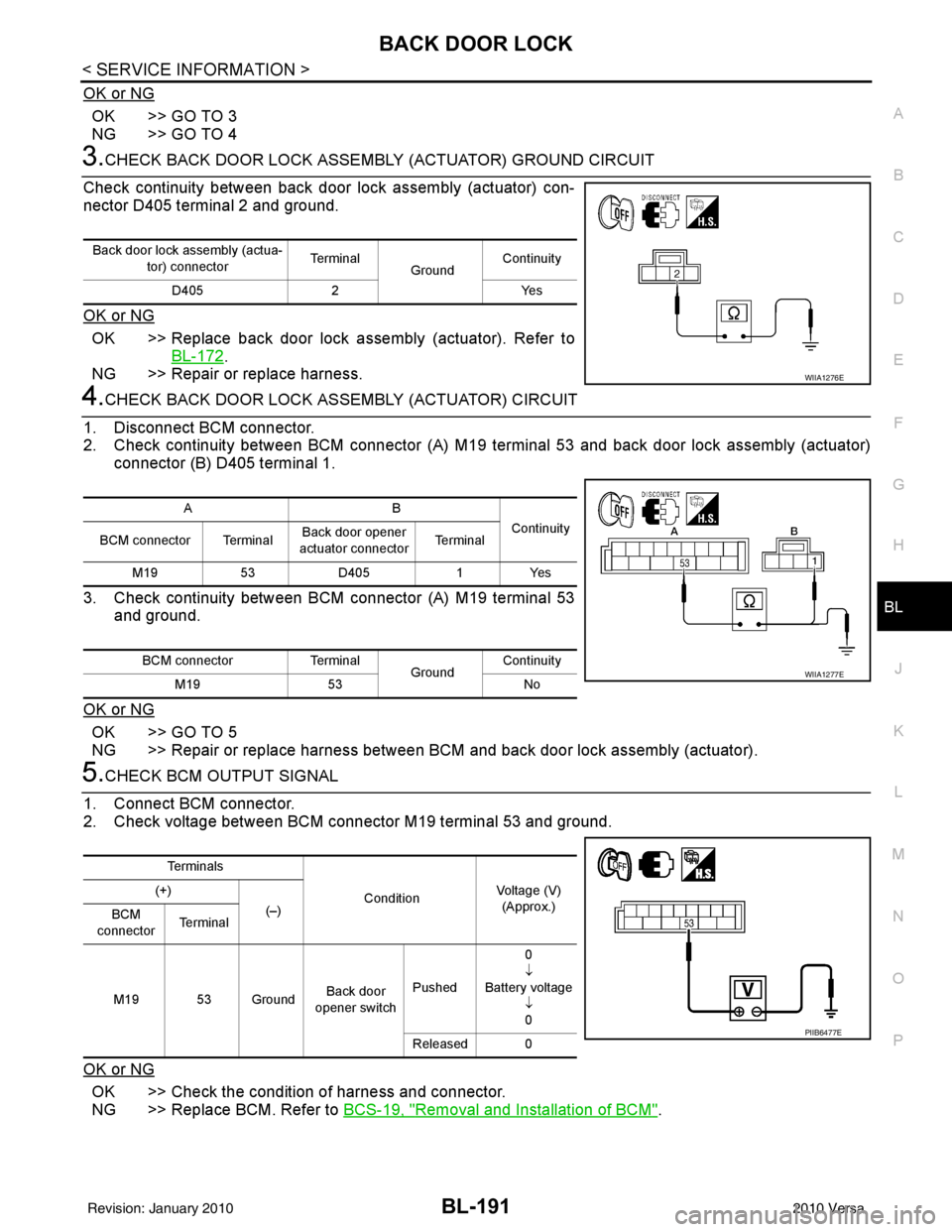

Check continuity between back door lock assembly (actuator) con-
nector D405 terminal 2 and ground.
OK or NG
OK >> Replace back door lock assembly (actuator). Refer to BL-172
.
NG >> Repair or replace harness.
4.CHECK BACK DOOR LOCK AS SEMBLY (ACTUATOR) CIRCUIT
1. Disconnect BCM connector.
2. Check continuity between BCM connector (A) M19 terminal 53 and back door lock assembly (actuator) connector (B) D405 terminal 1.
3. Check continuity between BCM connector (A) M19 terminal 53 and ground.
OK or NG
OK >> GO TO 5
NG >> Repair or replace harness between BCM and back door lock assembly (actuator).
5.CHECK BCM OUTPUT SIGNAL
1. Connect BCM connector.
2. Check voltage between BCM connector M19 terminal 53 and ground.
OK or NG
OK >> Check the condition of harness and connector.
NG >> Replace BCM. Refer to BCS-19, "
Removal and Installation of BCM".
Back door lock assembly (actua-
tor) connector Te r m i n a l
GroundContinuity
D405 2 Yes
WIIA1276E
AB
Continuity
BCM connector Terminal Back door opener
actuator connector Te r m i n a l
M19 53D405 1Yes
BCM connector Terminal
GroundContinuity
M19 53 No
WIIA1277E
Te r m i n a l s
ConditionVoltage (V)
(Approx.)
(+)
(–)
BCM
connector Te r m i n a l
M19 53 Ground Back door
opener switch Pushed 0
↓
Battery voltage ↓0
Released 0
PIIB6477E
Revision: January 20102010 Versa
Page 701 of 3745
BL-192
< SERVICE INFORMATION >
BACK DOOR LOCK
Removal and Installation
INFOID:0000000005396663
BACK DOOR LOCK
Removal
1. Remove the back door finisher lower. Refer to EI-38.
2. Remove the bolts, disconnect the electrical connector and sepa- rate the lock from the door.
Installation
Installation is in the reverse order of removal.
BACK DOOR HANDLE
Removal
1. Remove the back door finisher lower. Refer to EI-38.
2. Disconnect the harness connectors (1), remove the nuts and the back door handle (A).
3. Release the clips and remove the switch from the housing.
Installation
Installation is in the reverse order of removal.
LIIA2607E
LIIA2669E
LIIA2609E
Revision: January 20102010 Versa
Page 702 of 3745

TRUNK LIDBL-193
< SERVICE INFORMATION >
C
DE
F
G H
J
K L
M A
B
BL
N
O P
TRUNK LID
Fitting AdjustmentINFOID:0000000005396664
Longitudinal and latera l clearance adjustment
1. With the striker released, loosen the trunk lid hinge nuts and close the trunk lid.
2. Make the lateral clearance and the clearance to the rear window glass equal. Then open the trunk lid to
tighten the nuts.
Surface height adjustment
1. Loosen the striker bolts. Raise the striker to t he top position, and temporarily tighten the upper bolt.
2. Close the trunk lid lightly and adjust the surface height. Then open the trunk lid and tighten the striker bolts.
Trunk Lid AssemblyINFOID:0000000005396665
REMOVAL
1. Remove the trunk lid finisher. Refer to EI-57 .
2. Remove the trunk lid wire harness.
1. Rear fender 2. Trunk lid3. Rear combination lamp
4. Rear bumper fascia a. 4.0 ± 1.0 mm (0.16 ± 0.04 in) b. 3.5 ± 1.0 mm (0.14 ± 0.04 in)
c. 4.5 ± 1.7 mm (0.03 ± 0.06 in) d. 7.0 ± 2.2 mm (0.28 ± 0.09 in)
LIIA2932E
Revision: January 20102010 Versa
Page 703 of 3745
BL-194
< SERVICE INFORMATION >
TRUNK LID
3. Remove the nuts (a) and the trunk lid assembly (1).
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
After installing, apply touch-up paint (body color) to the head of the hinge nuts.
Trunk Lid LockINFOID:0000000005396666
REMOVAL
1. Remove the trunk lid finisher. Refer to EI-57.
2. If equipped, disconnect the trunk lid lock cylinder rod.
3. Remove the release cable.
4. Disconnect the electrical connector (a), remove the bolts (b) and the trunk lid lock (1).
INSTALLATION
Installation is in the reverse order of removal.
Trunk Lid StrikerINFOID:0000000005396667
REMOVAL
1. Remove the trunk rear plate and trunk rear finisher. Refer to EI-57.
2. Remove the bolts, disconnect the electrical connector and remove the trunk lock actuator.
3. Remove the bolt and disconnect the trunk lid release cable.
LIIA2933E
LIIA2935E
Revision: January 20102010 Versa
Page 704 of 3745
TRUNK LIDBL-195
< SERVICE INFORMATION >
C
DE
F
G H
J
K L
M A
B
BL
N
O P
4. Remove the bolts (a) and the trunk lid striker (1).
INSTALLATION
Installation is in the reverse order of removal.
Trunk Lid Stay DisposalINFOID:0000000006044769
1. Secure trunk lid stay (1) using a vise (C).
2. Using hacksaw (A) slowly make 2 holes in the trunk lid stay, in numerical order as shown in the figure.
CAUTION:
• When cutting a hole on trunk lid stay, always cover ahacksaw using a shop cloth (B) to avoid scattering metal
fragments or oil.
• Wear eye protection (safety glasses).
• Wear gloves.
LIIA2934E
JMKIA3336ZZ
A: 20 mm (0.787 in)
B: Cut at the groove.
JMKIA3609ZZ
