Page 2409 of 3745

NISSAN LATIO 2010 Service Repair Manual EM-50 < ON-VEHICLE REPAIR >[HR16DE] TIMING CHAIN 4. Remove the following parts. • Intake manifold: Refer to EM-28, " Exploded View". • Drive belt: Refer to EM-15, " Removal and Installation". •

Page 2410 of 3745

NISSAN LATIO 2010 Service Repair Manual TIMING CHAINEM-51 < ON-VEHICLE REPAIR > [HR16DE] C D E F G H I J K L M A EM NP O 9. Remove front cover with the following procedure: a. Loosen bolts in the reverse of the order shown. b. Cut liquid ga

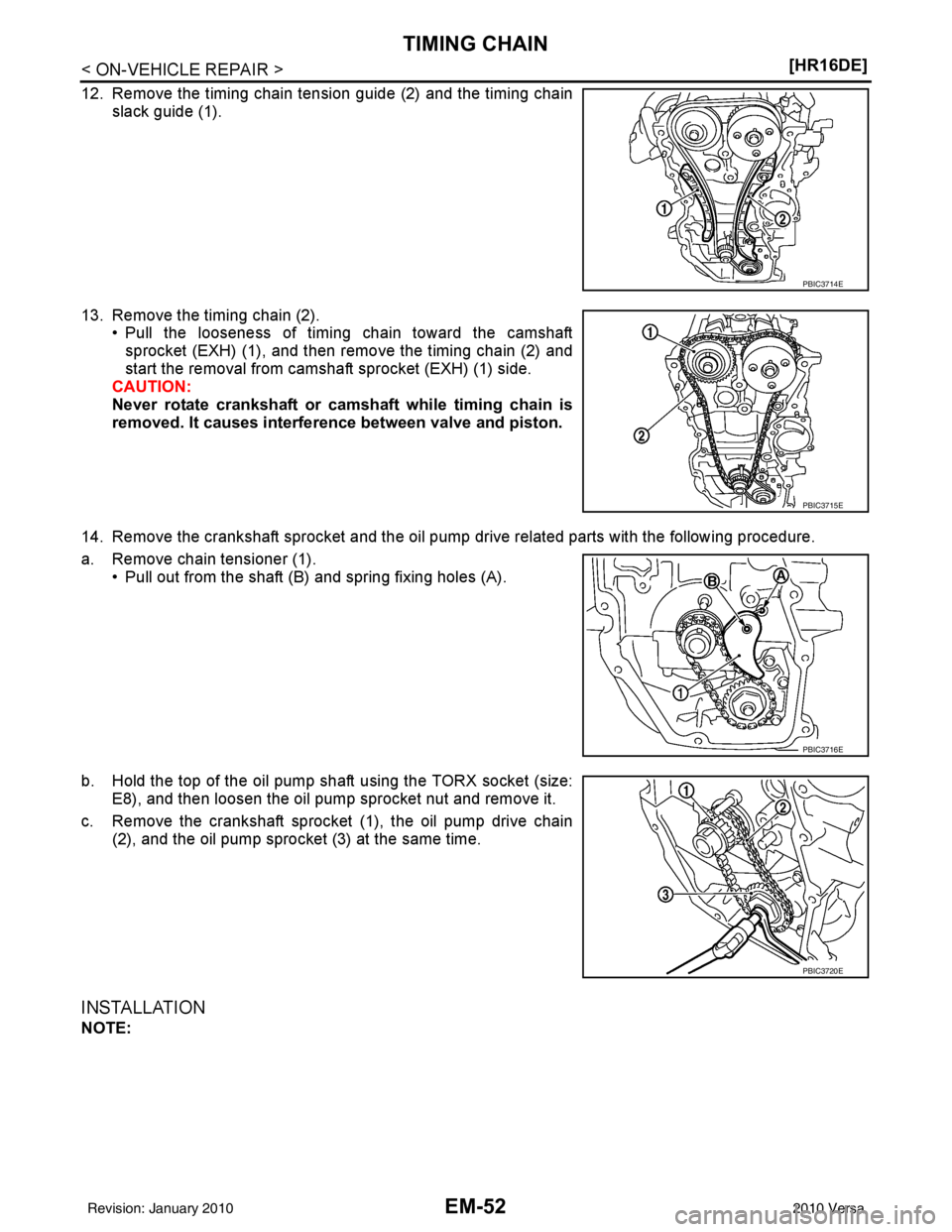

Page 2411 of 3745

NISSAN LATIO 2010 Service Repair Manual EM-52 < ON-VEHICLE REPAIR >[HR16DE] TIMING CHAIN 12. Remove the timing chain tension guide (2) and the timing chain slack guide (1). 13. Remove the timing chain (2). • Pull the looseness of timing c

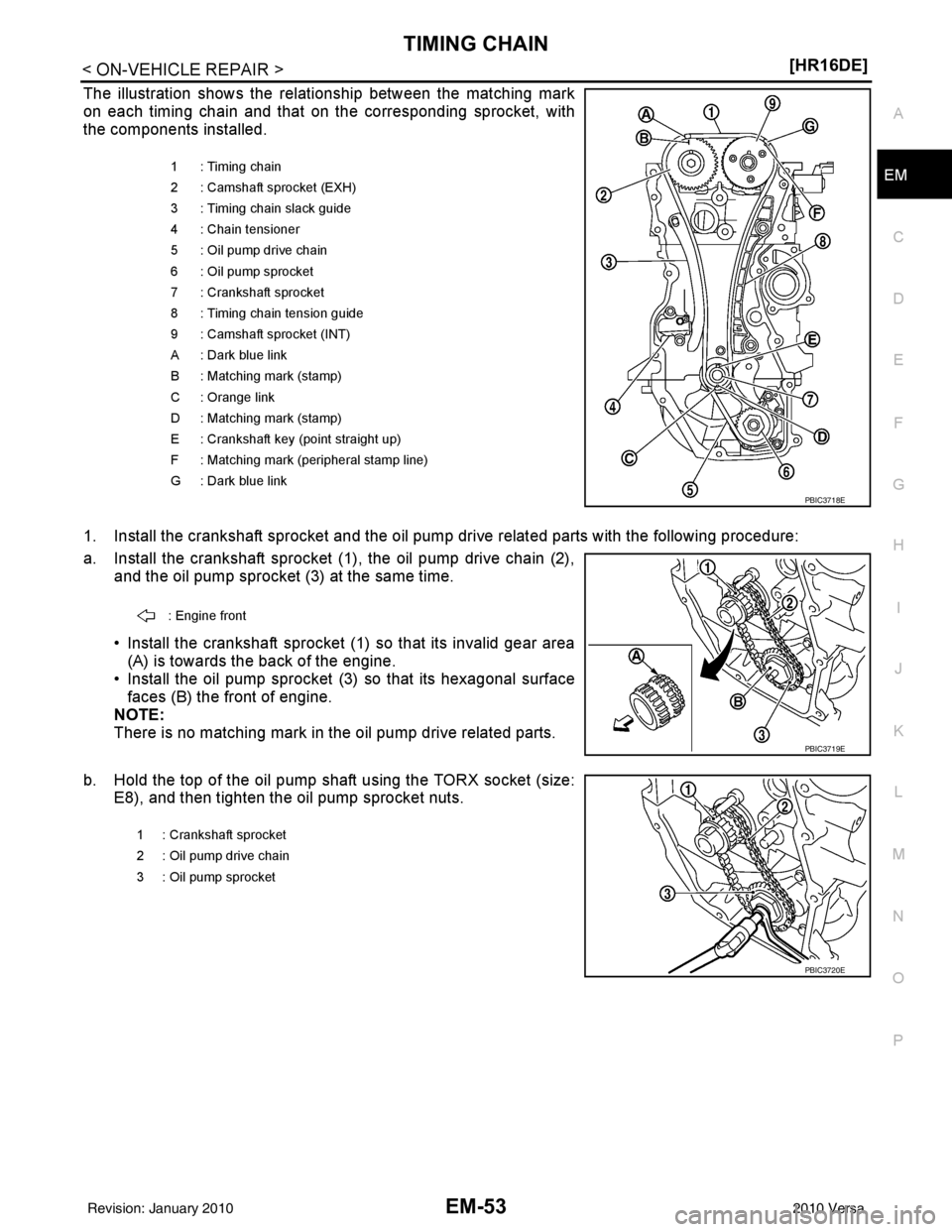

Page 2412 of 3745

NISSAN LATIO 2010 Service Repair Manual TIMING CHAINEM-53 < ON-VEHICLE REPAIR > [HR16DE] C D E F G H I J K L M A EM NP O The illustration shows the relationship between the matching mark on each timing chain and that on the corresponding sp

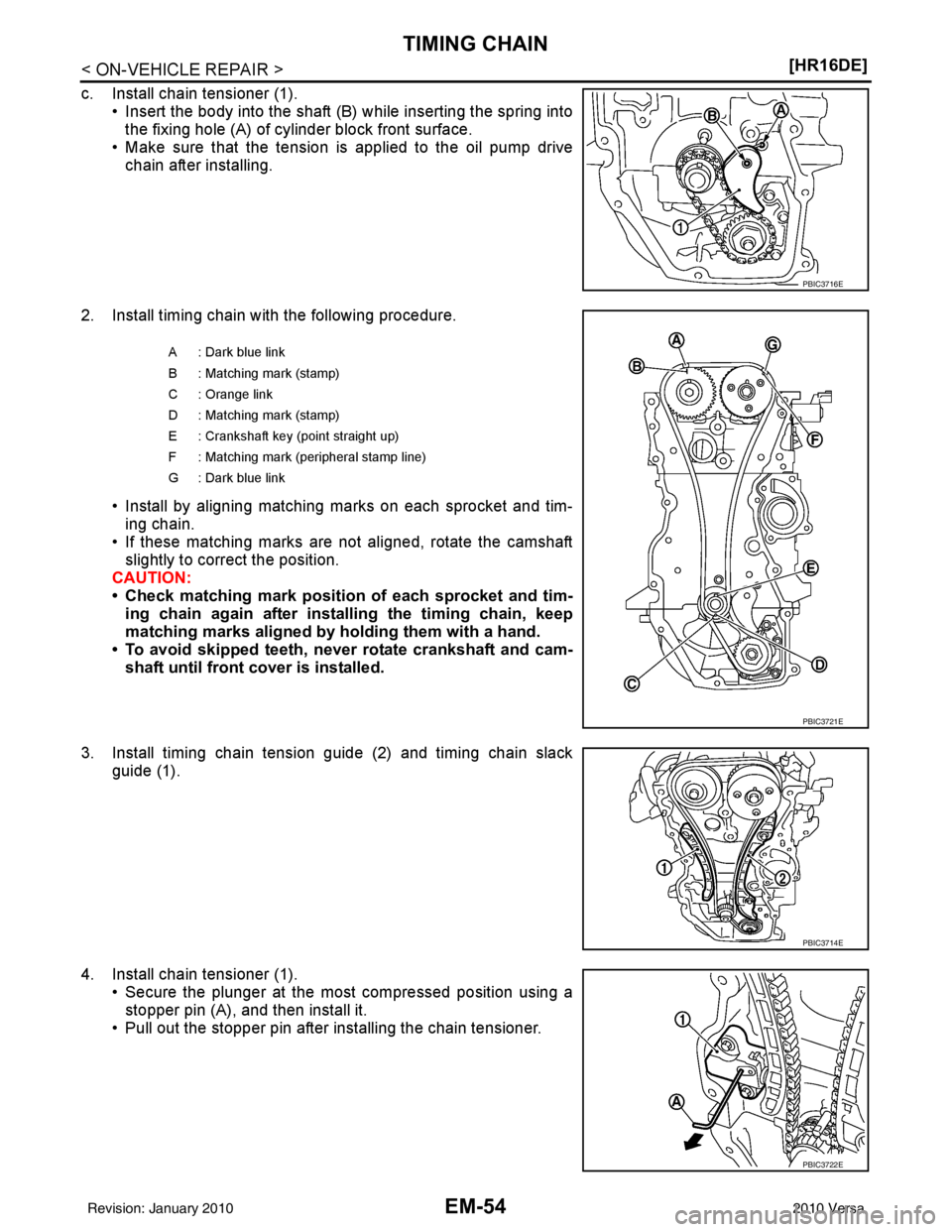

Page 2413 of 3745

NISSAN LATIO 2010 Service Repair Manual EM-54 < ON-VEHICLE REPAIR >[HR16DE] TIMING CHAIN c. Install chain tensioner (1). • Insert the body into the shaft (B) while inserting the spring intothe fixing hole (A) of cylinder block front surfa

Page 2414 of 3745

NISSAN LATIO 2010 Service Repair Manual TIMING CHAINEM-55 < ON-VEHICLE REPAIR > [HR16DE] C D E F G H I J K L M A EM NP O 5. Check matching mark position of timing chain and each sprocket again. 6. Pull out the stopper pin (A), and then appl

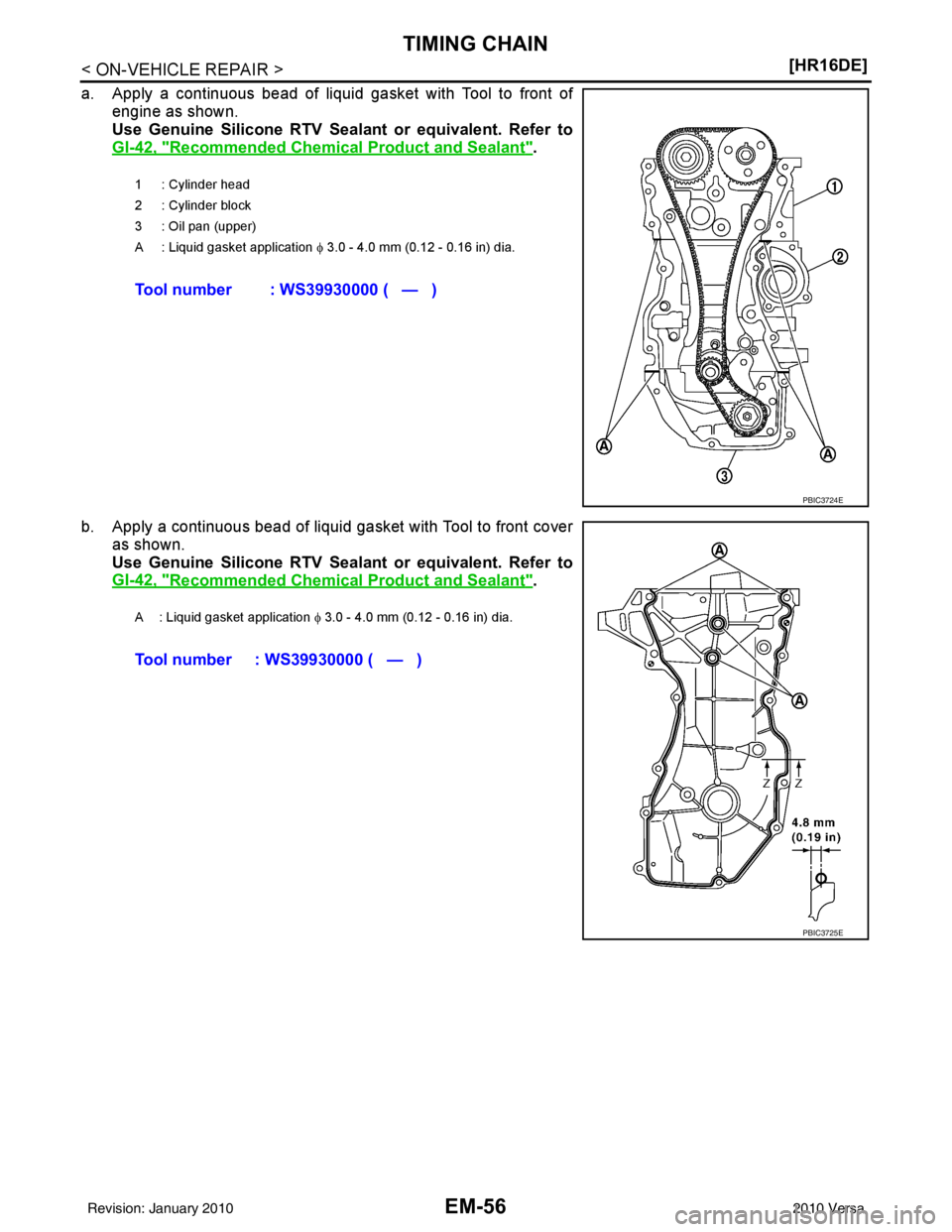

Page 2415 of 3745

NISSAN LATIO 2010 Service Repair Manual EM-56 < ON-VEHICLE REPAIR >[HR16DE] TIMING CHAIN a. Apply a continuous bead of liquid gasket with Tool to front of engine as shown. Use Genuine Silicone RTV Sealant or equivalent. Refer to GI-42, " R

Page 2416 of 3745

NISSAN LATIO 2010 Service Repair Manual TIMING CHAINEM-57 < ON-VEHICLE REPAIR > [HR16DE] C D E F G H I J K L M A EM NP O c. Tighten bolts in the numerical order shown. d. After all bolts are tightened, retighten them to specified torque in
