Page 2401 of 3745

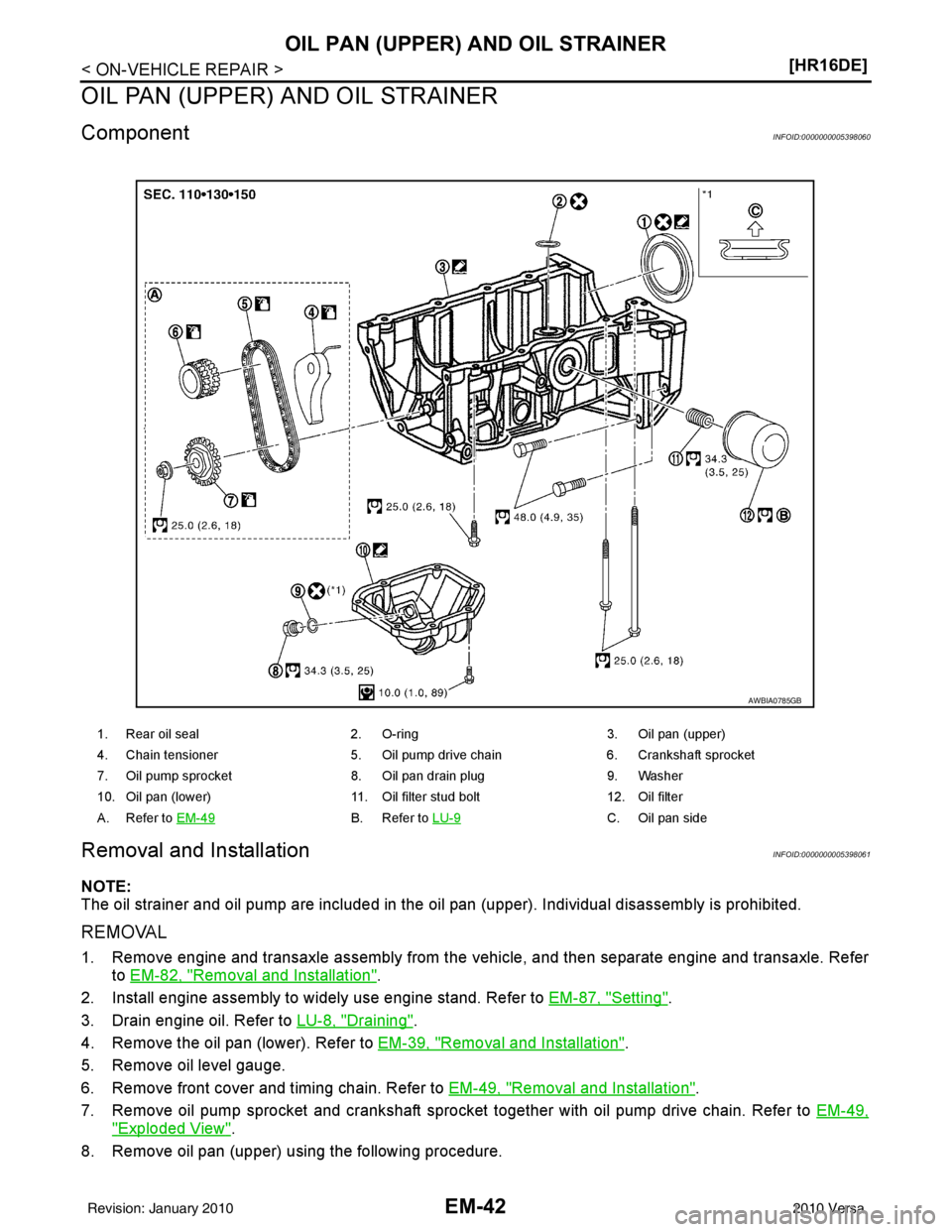

NISSAN LATIO 2010 Service Repair Manual EM-42 < ON-VEHICLE REPAIR >[HR16DE] OIL PAN (UPPER) AND OIL STRAINER OIL PAN (UPPER) AND OIL STRAINER ComponentINFOID:0000000005398060 Removal and InstallationINFOID:0000000005398061 NOTE: The oil str

Page 2402 of 3745

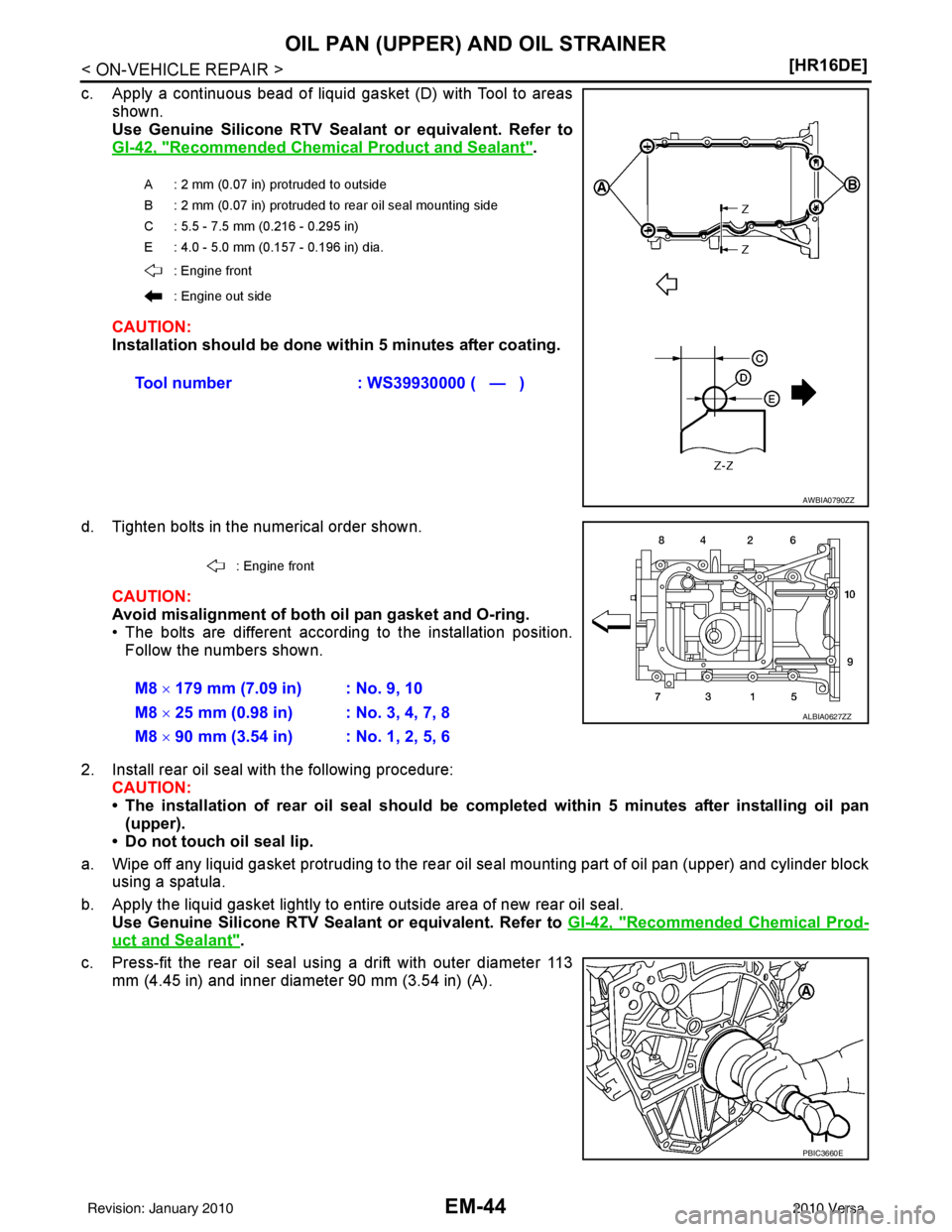

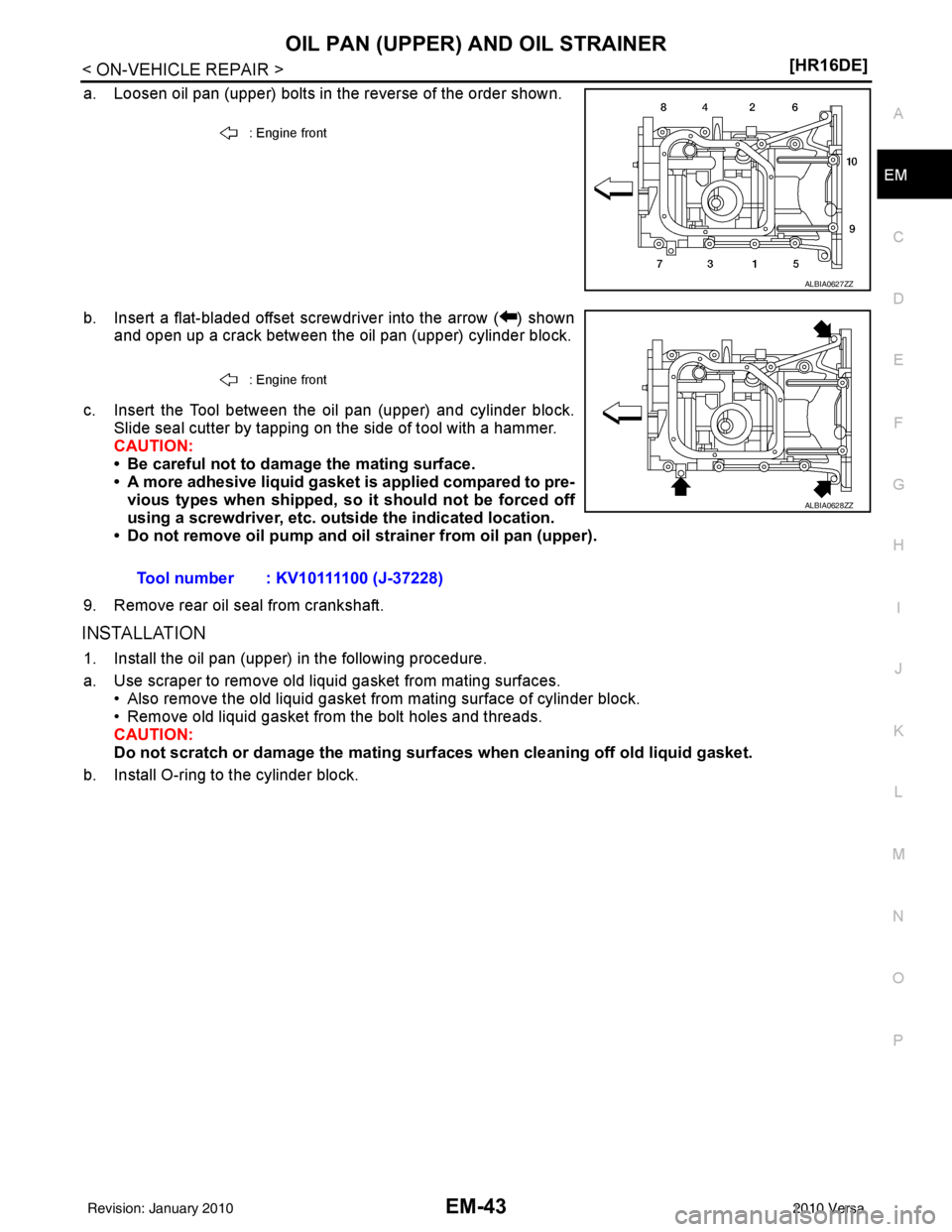

NISSAN LATIO 2010 Service Repair Manual OIL PAN (UPPER) AND OIL STRAINEREM-43 < ON-VEHICLE REPAIR > [HR16DE] C D E F G H I J K L M A EM NP O a. Loosen oil pan (upper) bolts in the reverse of the order shown. b. Insert a flat-bladed offset s

Page 2403 of 3745

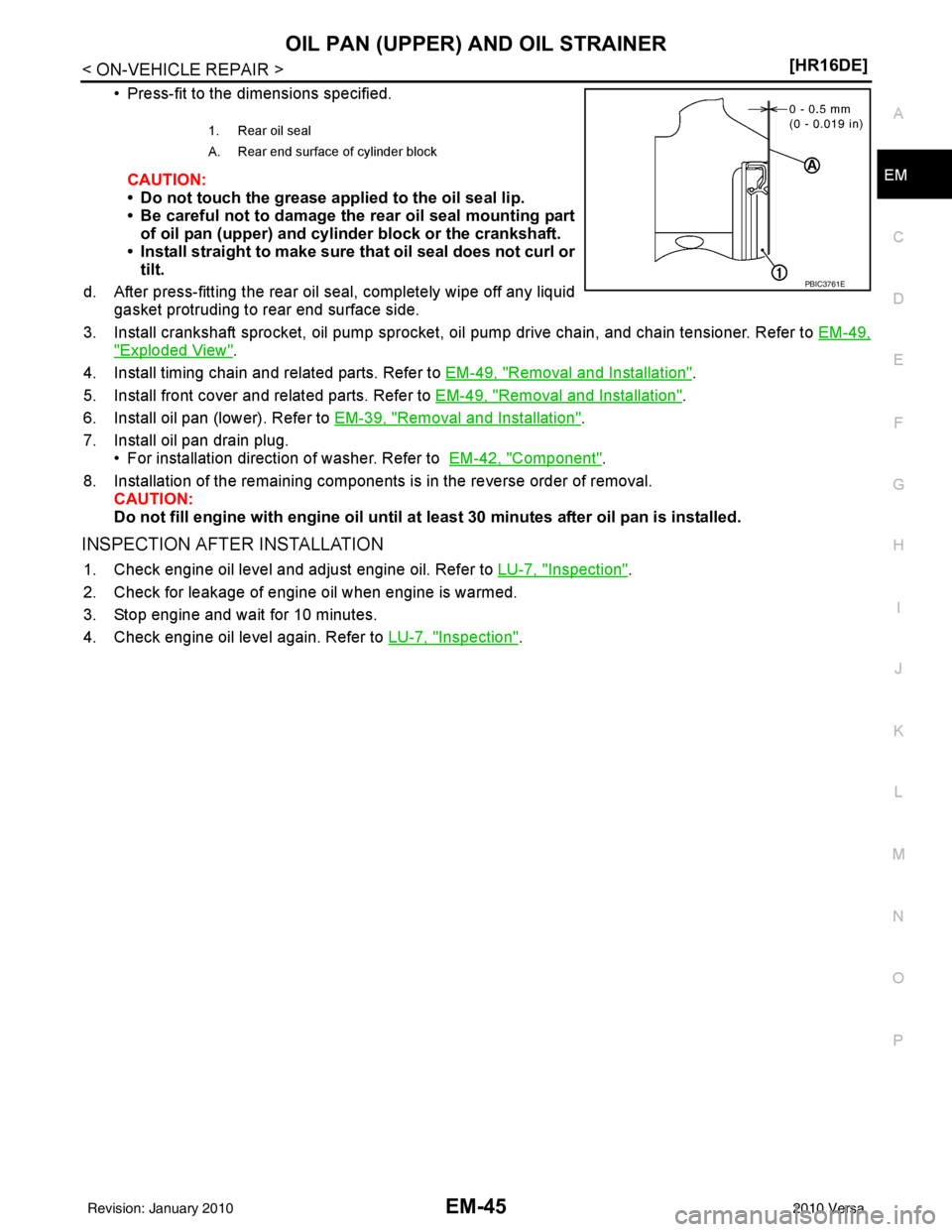

NISSAN LATIO 2010 Service Repair Manual EM-44 < ON-VEHICLE REPAIR >[HR16DE] OIL PAN (UPPER) AND OIL STRAINER c. Apply a continuous bead of liquid gasket (D) with Tool to areas shown. Use Genuine Silicone RTV Sealant or equivalent. Refer to

Page 2404 of 3745

NISSAN LATIO 2010 Service Repair Manual OIL PAN (UPPER) AND OIL STRAINEREM-45 < ON-VEHICLE REPAIR > [HR16DE] C D E F G H I J K L M A EM NP O • Press-fit to the dimensions specified. CAUTION: • Do not touch the grease applied to the oil

Page 2405 of 3745

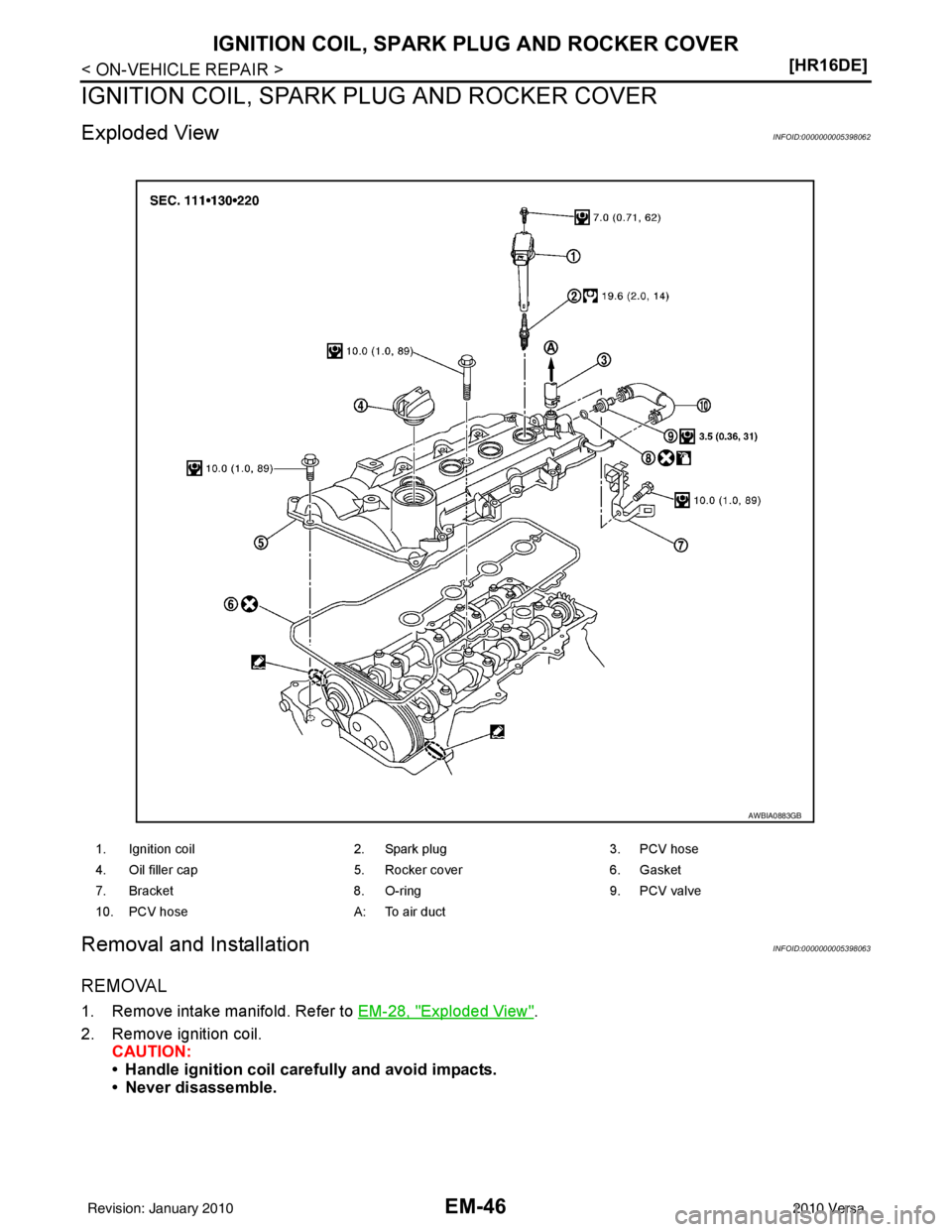

NISSAN LATIO 2010 Service Repair Manual EM-46 < ON-VEHICLE REPAIR >[HR16DE] IGNITION COIL, SPARK PLUG AND ROCKER COVER IGNITION COIL, SPARK PLUG AND ROCKER COVER Exploded ViewINFOID:0000000005398062 Removal and InstallationINFOID:000000000

Page 2406 of 3745

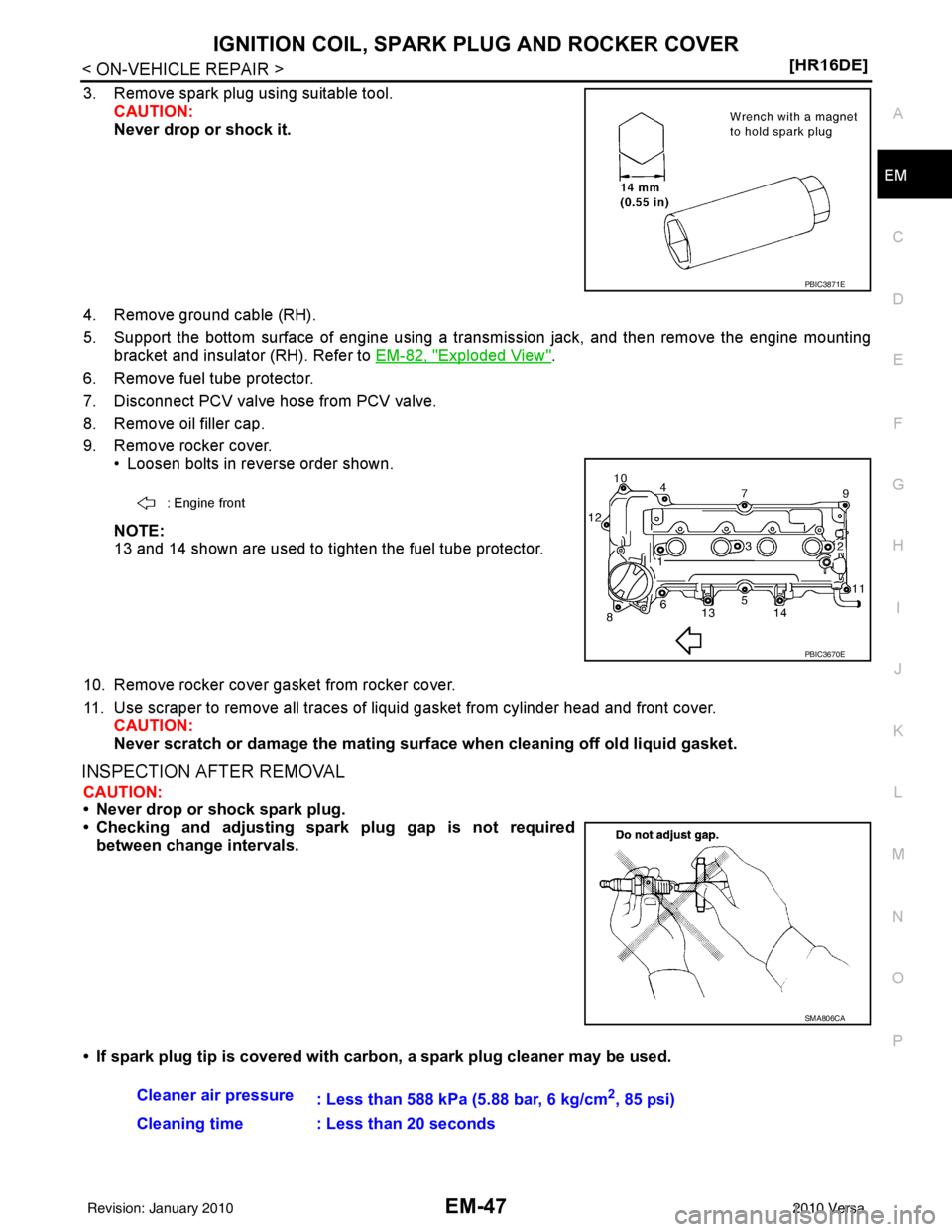

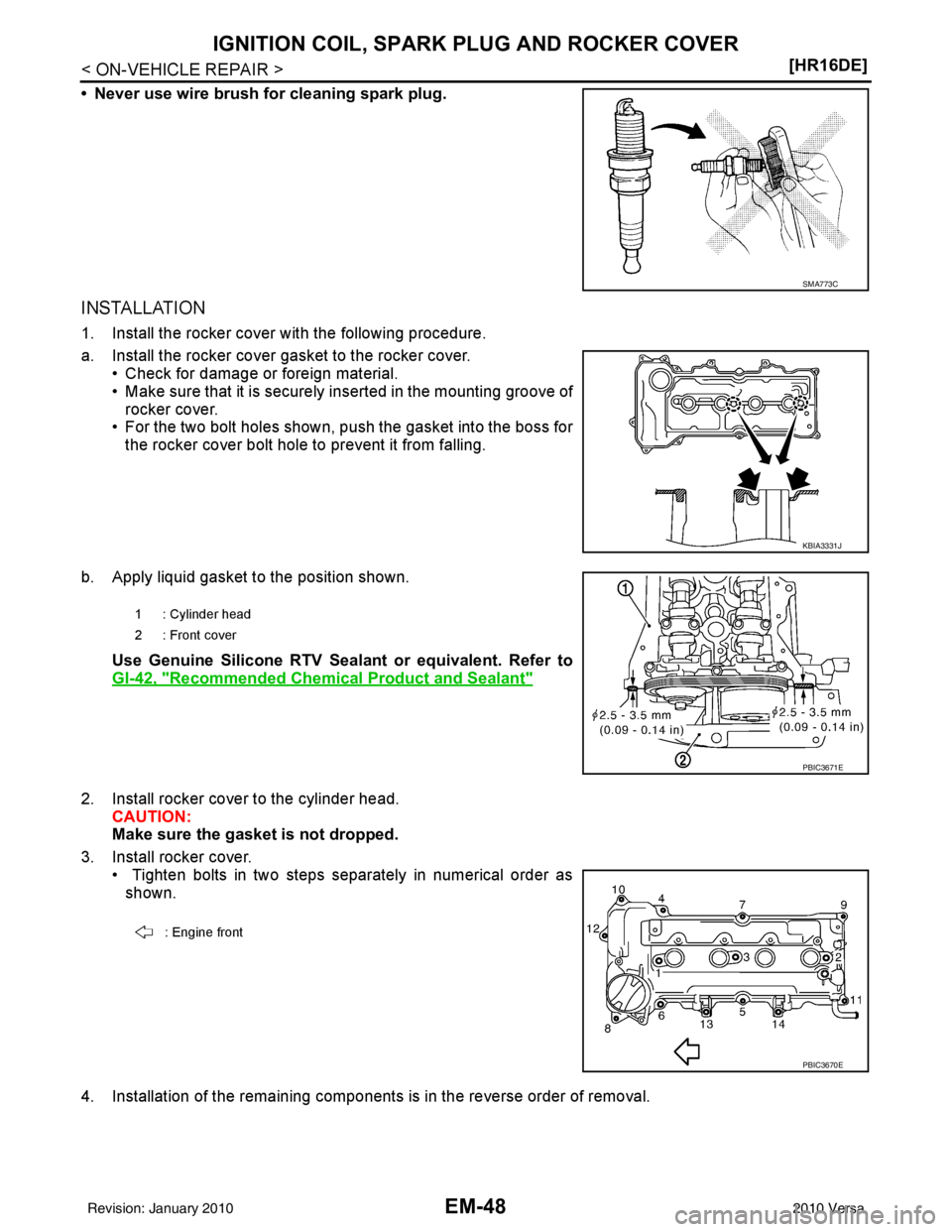

NISSAN LATIO 2010 Service Repair Manual IGNITION COIL, SPARK PLUG AND ROCKER COVER EM-47 < ON-VEHICLE REPAIR > [HR16DE] C D E F G H I J K L M A EM NP O 3. Remove spark plug using suitable tool. CAUTION: Never drop or shock it. 4. Remove gro

Page 2407 of 3745

NISSAN LATIO 2010 Service Repair Manual EM-48 < ON-VEHICLE REPAIR >[HR16DE] IGNITION COIL, SPARK PLUG AND ROCKER COVER • Never use wire brush for cleaning spark plug. INSTALLATION 1. Install the rocker cover with the following procedure.

Page 2408 of 3745

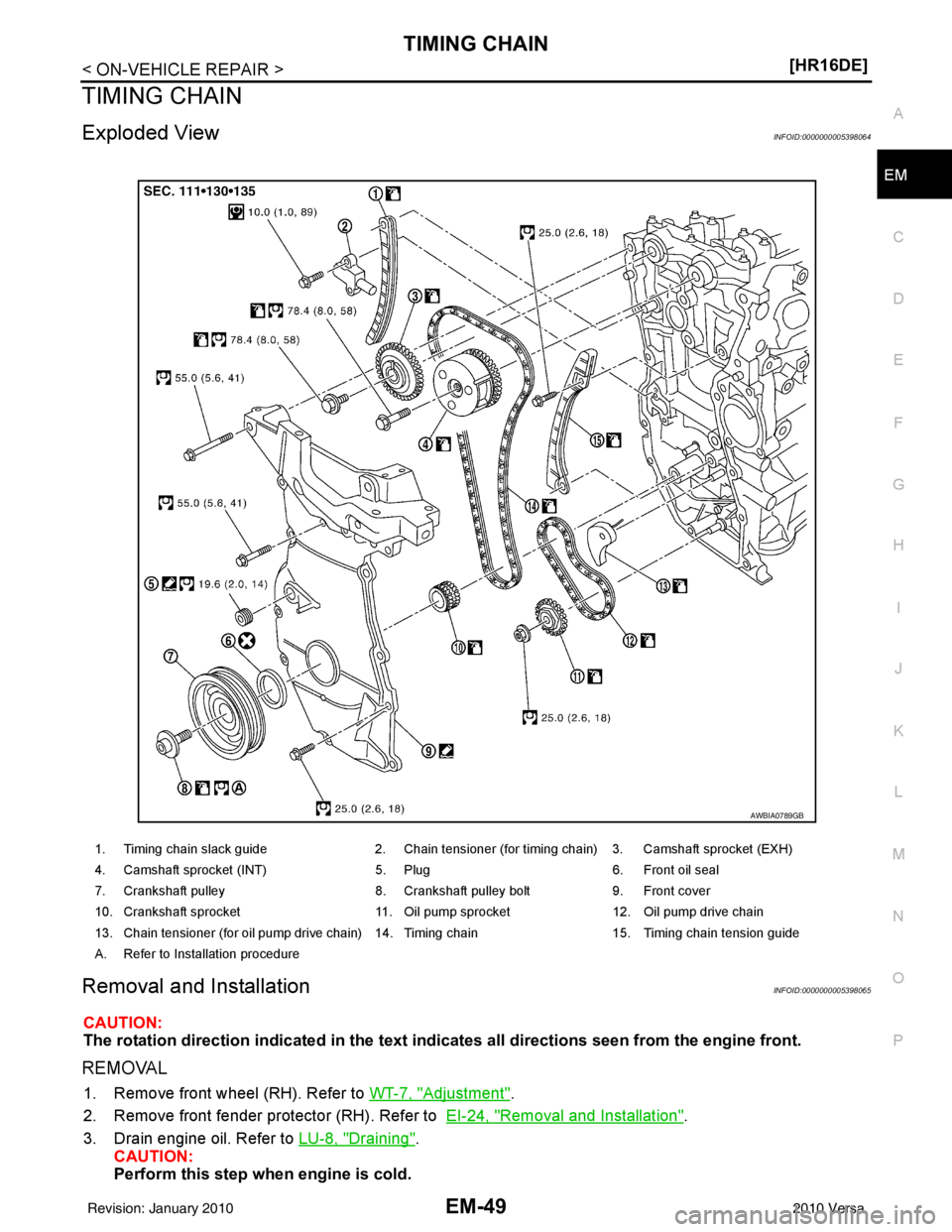

NISSAN LATIO 2010 Service Repair Manual TIMING CHAINEM-49 < ON-VEHICLE REPAIR > [HR16DE] C D E F G H I J K L M A EM NP O TIMING CHAIN Exploded ViewINFOID:0000000005398064 Removal and InstallationINFOID:0000000005398065 CAUTION: The rotation
