Page 1649 of 3745

NISSAN LATIO 2010 Service Repair Manual EC-384
< COMPONENT DIAGNOSIS >[HR16DE]
P2101 ELECTRIC THROTTLE CONTROL FUNCTION
7.CHECK FUSE
1. Disconnect 15 A fuse (No. 52) from IPDM E/R.
2. Check 15 A fuse for blown.
Is the inspection result norm

Page 1650 of 3745

NISSAN LATIO 2010 Service Repair Manual P2101 ELECTRIC THROTTLE CONTROL FUNCTIONEC-385
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
NO >> Repair or replace harness or connectors.
13.REPLACE ELECTRIC THROTTLE CONTROL ACTU

Page 1651 of 3745

NISSAN LATIO 2010 Service Repair Manual EC-386
< COMPONENT DIAGNOSIS >[HR16DE]
P2118 THROTTLE CONTROL MOTOR
P2118 THROTTLE CONTROL MOTOR
DescriptionINFOID:0000000005398558
The throttle control motor is operated by the ECM and it opens and c

Page 1652 of 3745

NISSAN LATIO 2010 Service Repair Manual P2118 THROTTLE CONTROL MOTOREC-387
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

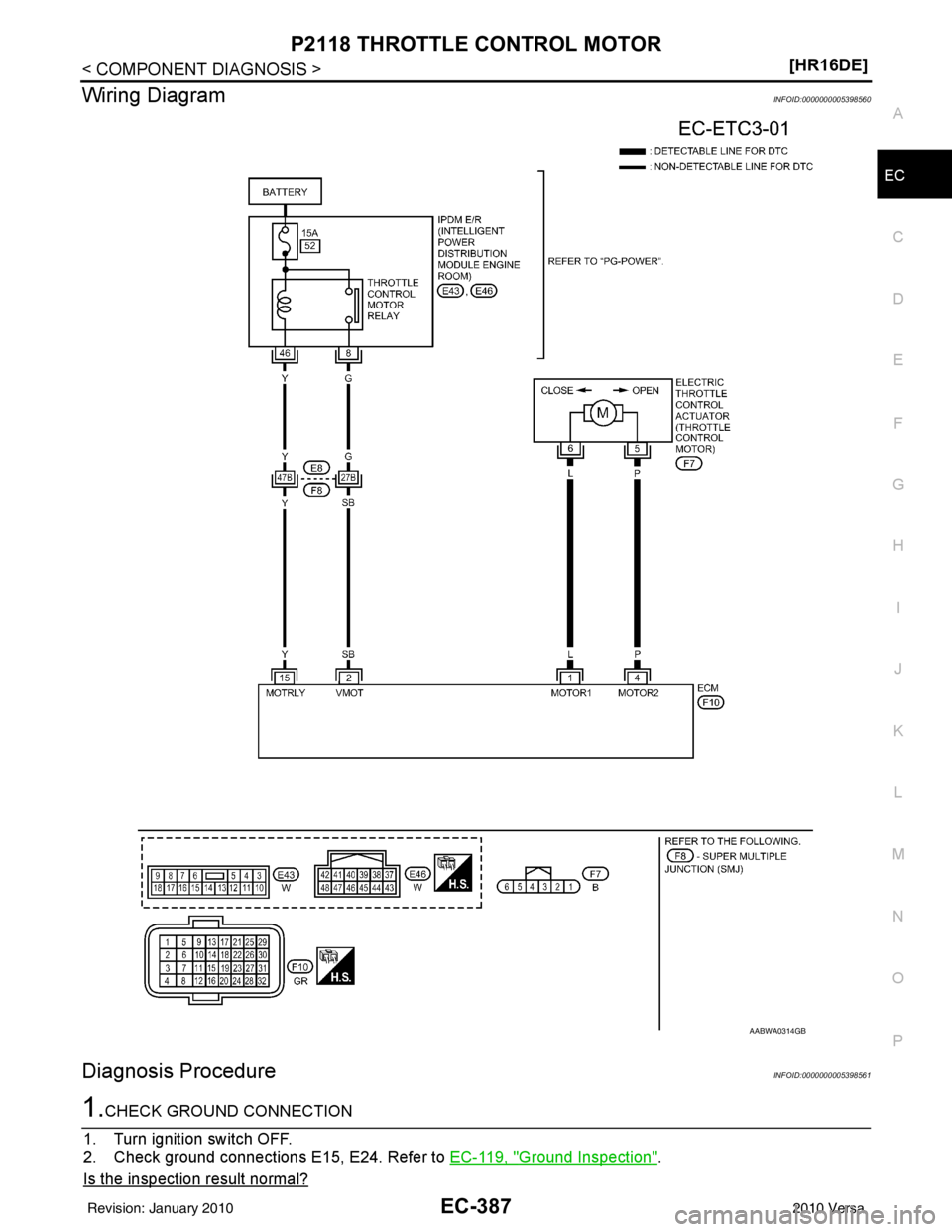

Wiring DiagramINFOID:0000000005398560
Diagnosis ProcedureINFOID:0000000005398561
1.CHECK GROUND CONN

Page 1653 of 3745

NISSAN LATIO 2010 Service Repair Manual EC-388
< COMPONENT DIAGNOSIS >[HR16DE]
P2118 THROTTLE CONTROL MOTOR
YES >> GO TO 2.
NO >> Repair or replace ground connection.
2.CHECK THROTTLE CONTROL MOTOR OUTPUT
SIGNAL CIRCUIT FOR OPEN AND SHORT

Page 1654 of 3745

NISSAN LATIO 2010 Service Repair Manual P2118 THROTTLE CONTROL MOTOREC-389
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
1. Replace electric throttle control actuator.
2. Perform
EC-389, "
Special Repair Requirement".
>>

Page 1655 of 3745

NISSAN LATIO 2010 Service Repair Manual EC-390
< COMPONENT DIAGNOSIS >[HR16DE]
P2119 ELECTRIC THROTTLE CONTROL ACTUATOR
P2119 ELECTRIC THROTTLE CONTROL ACTUATOR
DescriptionINFOID:0000000005398564
Electric throttle control actuator consists

EC-390
< COMPONENT DIAGNOSIS >[HR16DE]
P2119 ELECTRIC THROTTLE CONTROL ACTUATOR
P2119 ELECTRIC THROTTLE CONTROL ACTUATOR
DescriptionINFOID:0000000005398564
Electric throttle control actuator consists of th
rottle control motor, throttle position sensor, etc.
The throttle control motor is operated by the ECM and it opens and closes the throttle valve.
The throttle position sensor detects the throttle valv e position, and feeds the voltage signal to the ECM. The
ECM judges the current opening angle of the throttle valve and controls the throttle valve opening angle in
response to driving conditions via the throttle control motor.
DTC LogicINFOID:0000000005398565
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
>> GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE FOR MALFUNCTION A AND B
1. Turn ignition switch ON and wait at least 1 second.
2. Set selector lever to D (A/T) or 1st (M/T) position and wait at least 3 seconds.
3. Set selector lever to P (A/T) or Neutral (M/T) position.
4. Turn ignition switch OFF and wait at least 10 seconds.
5. Turn ignition switch ON and wait at least 1 second.
6. Set selector lever to D (A/T) or 1st (M/T) position and wait at least 3 seconds.
7. Set selector lever to P (A/T) or Neutral (M/T) position.
8. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
9. Check DTC.
Is DTC detected?
YES >> Go to EC-390, "Diagnosis Procedure".
NO >> GO TO 3.
3.PERFORM DTC CONFIRMATION PROCEDURE FOR MALFUNCTION C
1. Turn ignition switch ON and wait at least 1 second.
2. Set selector lever to D (A/T) or 1st (M/T) position and wait at least 3 seconds.
3. Set selector lever to P (A/T) or Neutral (M/T) position.
4. Start engine and let it idle for 3 seconds.
5. Check DTC.
Is DTC detected?
YES >> Go to EC-390, "Diagnosis Procedure".
NO >> INSPECTION END
Diagnosis ProcedureINFOID:0000000005398566
1.CHECK ELECTRIC THROTTLE CONTROL ACTUATOR VISUALLY
1. Turn ignition switch OFF.
2. Remove the intake air duct.
DTC No. Trouble diagnosis name DTC detecting conditionPossible cause
P2119 Electric throttle control
actuator A
Electric throttle control actuator does not function
properly due to the return spring malfunction.
• Electric throttle control actuator
B Throttle valve opening angle in fail-safe mode is
not in specified range.
C ECM detect the throttle valve is stuck open.
Revision: January 20102010 Versa

Page 1656 of 3745

NISSAN LATIO 2010 Service Repair Manual P2119 ELECTRIC THROTTLE CONTROL ACTUATOREC-391
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
3. Check if foreign matter is c
aught between the throttle valve (1)
and the housing.
-

Load next 8 pages
