Page 1593 of 3745

NISSAN LATIO 2010 Service Repair Manual EC-328
< COMPONENT DIAGNOSIS >[HR16DE]
P0455 EVAP CONTROL SYSTEM
4. Install fuel filler cap adapter (commercial service tool) to fuel
filler cap.
5. Check valve opening pressure and vacuum.
Is the ins

Page 1594 of 3745

NISSAN LATIO 2010 Service Repair Manual P0456 EVAP CONTROL SYSTEMEC-329
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
P0456 EVAP CONTROL SYSTEM
DTC LogicINFOID:0000000005398483
DTC DETECTION LOGIC
This diagnosis detects v

P0456 EVAP CONTROL SYSTEMEC-329
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
P0456 EVAP CONTROL SYSTEM
DTC LogicINFOID:0000000005398483
DTC DETECTION LOGIC
This diagnosis detects very small leaks in the EVAP line between fuel tank and EVAP canister purge volume
control solenoid valve, using the intake manifold vacuum in the same way as conventional EVAP small leak
diagnosis.
If ECM judges a leak which corresponds to a very
small leak, the very small leak P0456 will be detected.
If ECM judges a leak equivalent to a small leak, EVAP small leak P0442 will be detected.
If ECM judges there are no leaks, the diagnosis will be OK.
CAUTION:
• Use only a genuine NISSAN fuel filler cap as a replacemen t. If an incorrect fuel filler cap is used, the
MIL may come on.
• If the fuel filler cap is not tigh tened properly, the MIL may come on.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0456 Evaporative emission
control system very
small leak (negative
pressure check) • EVAP system has a very small leak.
• EVAP system does not operate prop-
erly. • Incorrect fuel tank vacuum relief valve
• Incorrect fuel filler cap used
• Fuel filler cap remains open or fails to close.
• Foreign matter caught in fuel filler cap.
• Leak is in line between intake manifold and EVAP
canister purge volume control solenoid valve.
• Foreign matter caught in EVAP canister vent con- trol valve.
• EVAP canister or fuel tank leaks
• EVAP purge line (pipe and rubber tube) leaks
• EVAP purge line rubber tube bent
• Loose or disconnected rubber tube
• EVAP canister vent control valve and the circuit
• EVAP canister purge volume control solenoid valve and the circuit
• Fuel tank temperature sensor
• O-ring of EVAP canister vent control valve is miss- ing or damaged
• EVAP canister is saturated with water
• EVAP control system pressure sensor
• Refueling EVAP vapor cut valve
• ORVR system leaks
• Fuel level sensor and the circuit
• Foreign matter caught in EVAP canister purge vol- ume control solenoid valve
• Drain filter
PBIB1026E
Revision: January 20102010 Versa

Page 1595 of 3745

NISSAN LATIO 2010 Service Repair Manual EC-330
< COMPONENT DIAGNOSIS >[HR16DE]
P0456 EVAP CONTROL SYSTEM
• Use only a genuine NISSAN rubber tube as a replacement.
DTC CONFIRMATION PROCEDURE
1.INSPECTION START
Do you have CONSULT-III?
Do y

EC-330
< COMPONENT DIAGNOSIS >[HR16DE]
P0456 EVAP CONTROL SYSTEM
• Use only a genuine NISSAN rubber tube as a replacement.
DTC CONFIRMATION PROCEDURE
1.INSPECTION START
Do you have CONSULT-III?
Do you have CONSULT-III?
YES >> GO TO 2.
NO >> GO TO 4.
2.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
NOTE:
• If DTC P0456 is displayed with P0442, firs t perform trouble diagnosis for DTC P0456.
• After repair, make sure that the hoses and clips are installed properly.
• Make sure that EVAP hoses are connected to EVAP canister purge volume control solenoid valve
properly.
TESTING CONDITION:
• Open engine hood before conducting following procedure.
• If any of following conditions are met just be fore the DTC CONFIRMATION PROCEDURE, leave the
vehicle for more than 1 hour.
- Fuel filler cap is removed.
- Fuel is refilled or drained.
- EVAP component parts is/are removed.
• Before performing the following procedure, confirm th at battery voltage is more than 11 V at idle.
>> GO TO 3.
3.PERFORM DTC CONFIRMATION PROCEDURE
With CONSULT-III
1. Turn ignition switch ON and select “DATA MONITOR” mode with CONSULT-III.
2. Make sure the following conditions are met.
FUEL LEVEL SE: 0.25 - 1.4 V
COOLAN TEMP/S: 0 - 32 °C (32 - 90° F)
FUEL T/TMP SE: 0 - 35° C (32 - 95°F)
INT A/TEMP SE: More than 0° C (32°F)
If NG, turn ignition switch OFF and leave the vehicle in a cool place (soak the vehicle) or refilling/draining
fuel until the output voltage condition of the “FUEL LEVEL SE” meets within the range above and leave
the vehicle for more than 1 hour. Then start from step 1.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON.
5. Select “EVAP V/S LEAK P0456/P1456” of “EVAPO RATIVE SYSTEM” in “DTC WORK SUPPORT” mode
with CONSULT-III.
Follow the instruction displayed.
NOTE:
If the engine speed canno t be maintained within the range displayed on CONSULT-III screen, go to
EC-20, "
BASIC INSPECTION : Special Repair Requirement".
Which is displayed on CONSULT-III?
OK >> INSPECTION END
NG >> Go to EC-331, "
Diagnosis Procedure".
4.PERFORM COMPONENT FUNCTION CHECK
Perform component function check. Refer to EC-331, "
Component Function Check".
NOTE:
Use component function check to check the overall function of the EVAP very small leak function. During this
check, a 1st trip DTC might not be confirmed.
Is the inspection result normal?
YES >> INSPECTION END
Revision: January 20102010 Versa

Page 1596 of 3745

NISSAN LATIO 2010 Service Repair Manual P0456 EVAP CONTROL SYSTEMEC-331
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
NO >> Go to
EC-331, "Diagnosis Procedure".
Component Function CheckINFOID:0000000005398484
1.PERFORM C

Page 1597 of 3745

NISSAN LATIO 2010 Service Repair Manual EC-332
< COMPONENT DIAGNOSIS >[HR16DE]
P0456 EVAP CONTROL SYSTEM
Is the inspection result normal?
YES >> GO TO 3.
NO >> Open fuel filler cap, then clean cap and fuel filler neck threads using air blow

Page 1598 of 3745

NISSAN LATIO 2010 Service Repair Manual P0456 EVAP CONTROL SYSTEMEC-333
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Is the inspection result normal?
YES-1 >> With CONSULT-III: GO TO 11.
YES-2 >> Without CONSULT-III: GO

P0456 EVAP CONTROL SYSTEMEC-333
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Is the inspection result normal?
YES-1 >> With CONSULT-III: GO TO 11.
YES-2 >> Without CONSULT-III: GO TO 12.
NO >> GO TO 10.
10.DETECT MALFUNCTIONING PART
Check the following.
• EVAP canister for damage
• EVAP hose between EVAP canister and vehi cle frame for clogging or poor connection
>> Repair hose or replace EVAP canister.
11 .CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE OPERATION
With CONSULT-III
1. Disconnect vacuum hose to EVAP canister purge volu me control solenoid valve at EVAP service port.
2. Start engine.
3. Perform “PURG VOL CONT/V ” in “ACTIVE TEST” mode.
4. Touch “Qu” on CONSULT-III screen to increase “PURG VOL CONT/V” opening to 100%.
5. Check vacuum hose for vacuum.
Is the inspection result normal?
YES >> GO TO 14.
NO >> GO TO 13.
12.CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE OPERATION
Without CONSULT-III
1. Start engine and warm it up to normal operating temperature.
2. Stop engine.
3. Disconnect vacuum hose to EVAP canister purge volu me control solenoid valve at EVAP service port.
4. Start engine and let it idle for at least 80 seconds.
5. Check vacuum hose for vacuum when revving engine up to 2,000 rpm.
Is the inspection result normal?
YES >> GO TO 15.
NO >> GO TO 13.
13.CHECK VACUUM HOSE
Check vacuum hoses for clogging or disconnection. Refer to EC-68, "
System Description".
Is the inspection result normal?
YES >> GO TO 14.
NO >> Repair or reconnect the hose.
14.CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
Refer to EC-287, "
Diagnosis Procedure".
Is the inspection result normal?
YES >> GO TO 15.
NO >> Replace EVAP canister purge volume control solenoid valve.
15.CHECK FUEL TANK TEMPERATURE SENSOR
Refer to EC-238, "
Component Inspection".
Is the inspection result normal?
YES >> GO TO 16.
NO >> Replace fuel level sensor unit.
16.CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR Vacuum should exist.
Vacuum should exist.
Revision: January 20102010 Versa

Page 1599 of 3745

NISSAN LATIO 2010 Service Repair Manual EC-334
< COMPONENT DIAGNOSIS >[HR16DE]
P0456 EVAP CONTROL SYSTEM
Refer to
EC-308, "Component Inspection".
Is the inspection result normal?
YES >> GO TO 17.
NO >> Replace EVAP control system pressure

Page 1600 of 3745

NISSAN LATIO 2010 Service Repair Manual P0456 EVAP CONTROL SYSTEMEC-335
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

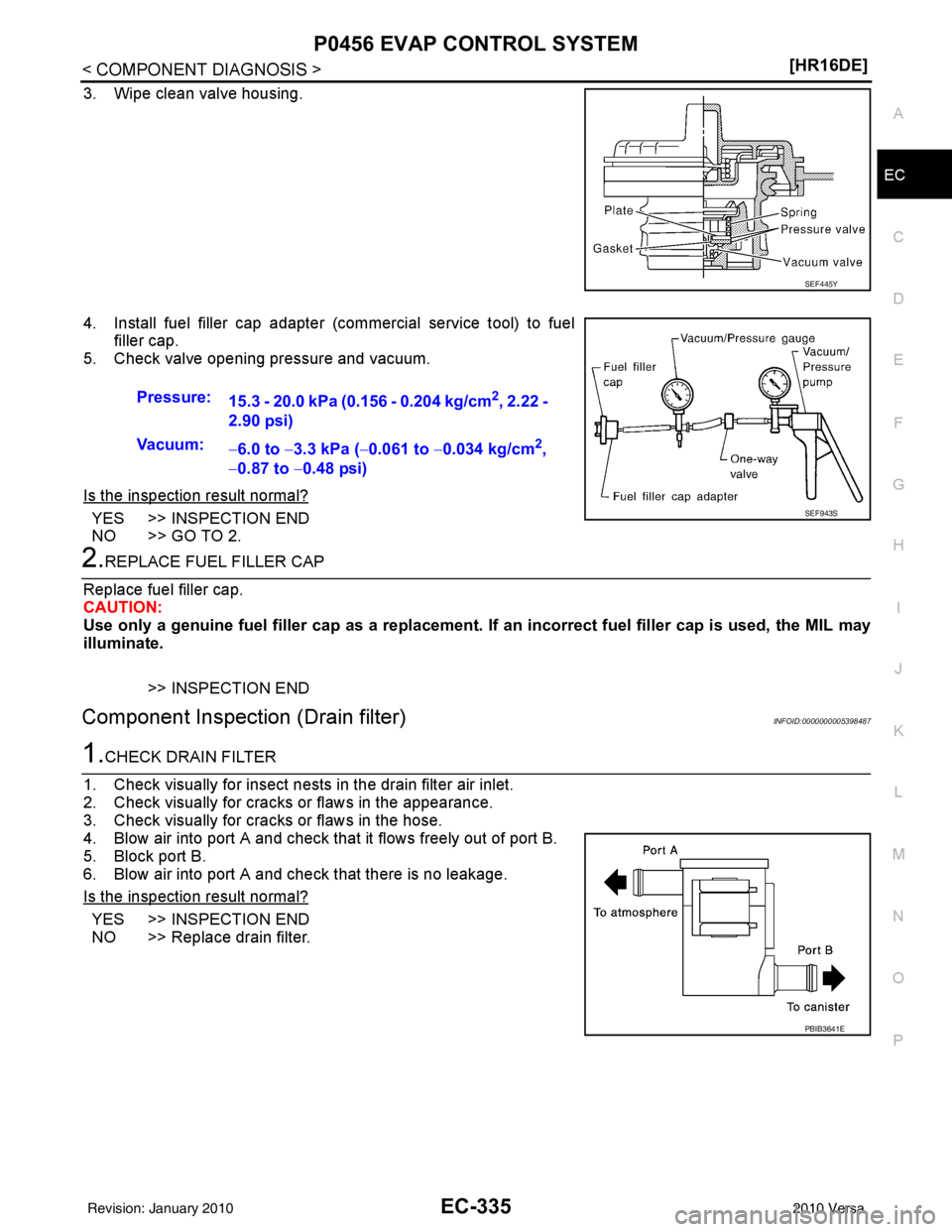

3. Wipe clean valve housing.
4. Install fuel filler cap adapter (commercial service tool) to fuel
fille
