Page 3169 of 3745

NISSAN LATIO 2010 Service Repair Manual MA-34
< SERVICE INFORMATION >
ENGINE MAINTENANCE (MR18DE)

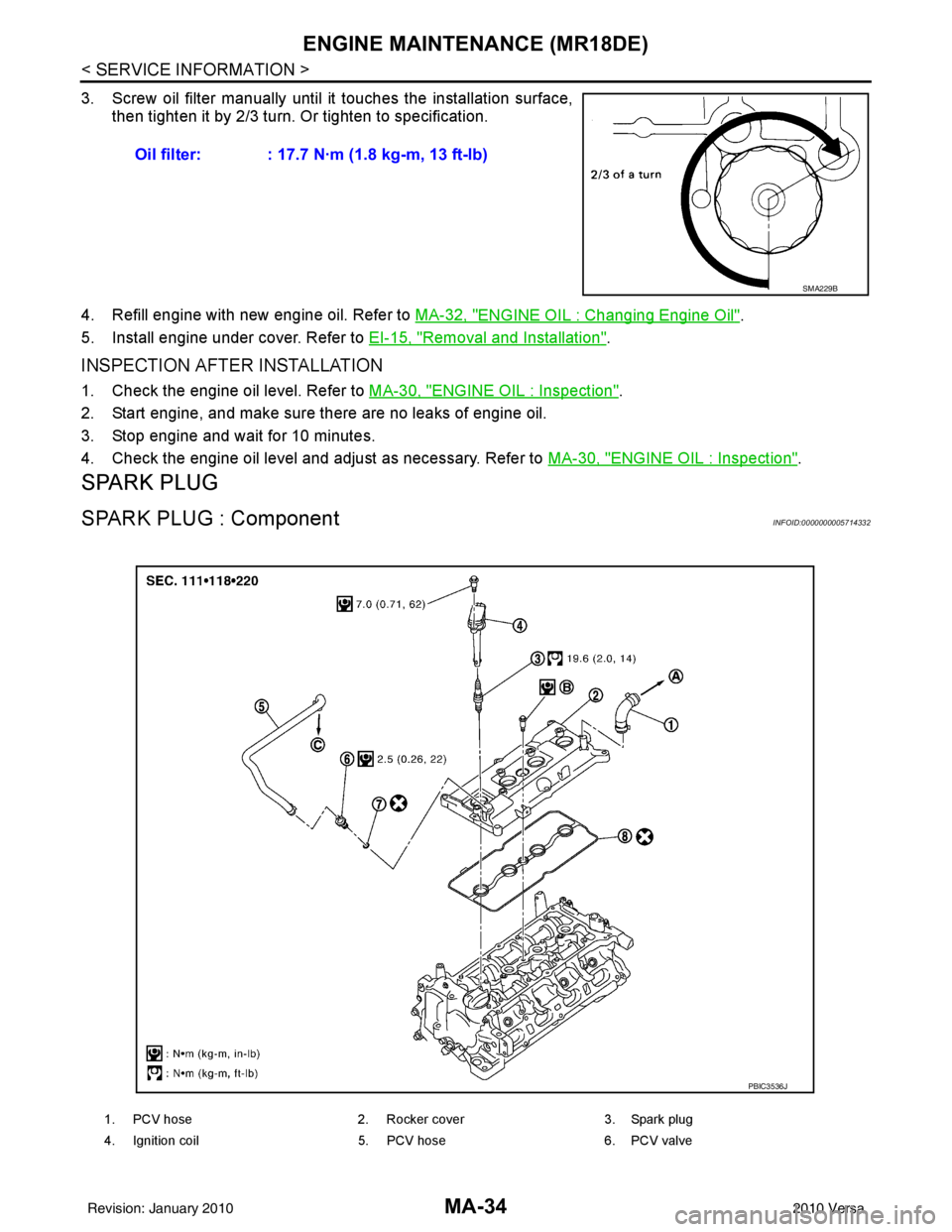

3. Screw oil filter manually until it touches the installation surface,
then tighten it by 2/3 turn. Or tighten to specification.
4. Refill en

Page 3170 of 3745

NISSAN LATIO 2010 Service Repair Manual ENGINE MAINTENANCE (MR18DE)MA-35
< SERVICE INFORMATION >
C
DE
F
G H
I
J
K
M A
B
MA
N
O P
SPARK PLUG : Removal and InstallationINFOID:0000000005714333
REMOVAL
1. Remove intake manifold. Refer to EM-137

Page 3171 of 3745

NISSAN LATIO 2010 Service Repair Manual MA-36
< SERVICE INFORMATION >
ENGINE MAINTENANCE (MR18DE)

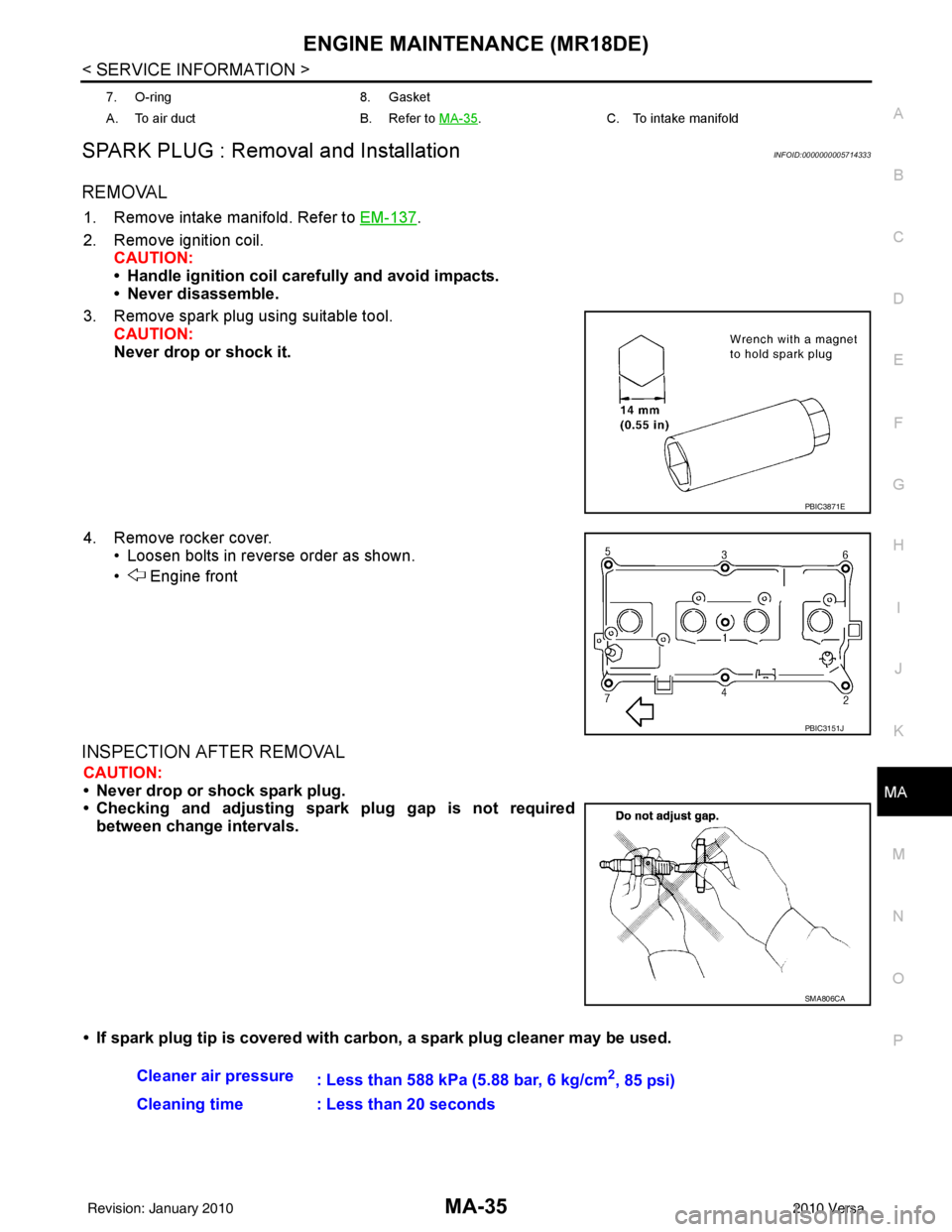

• Never use wire brush for cleaning spark plug.

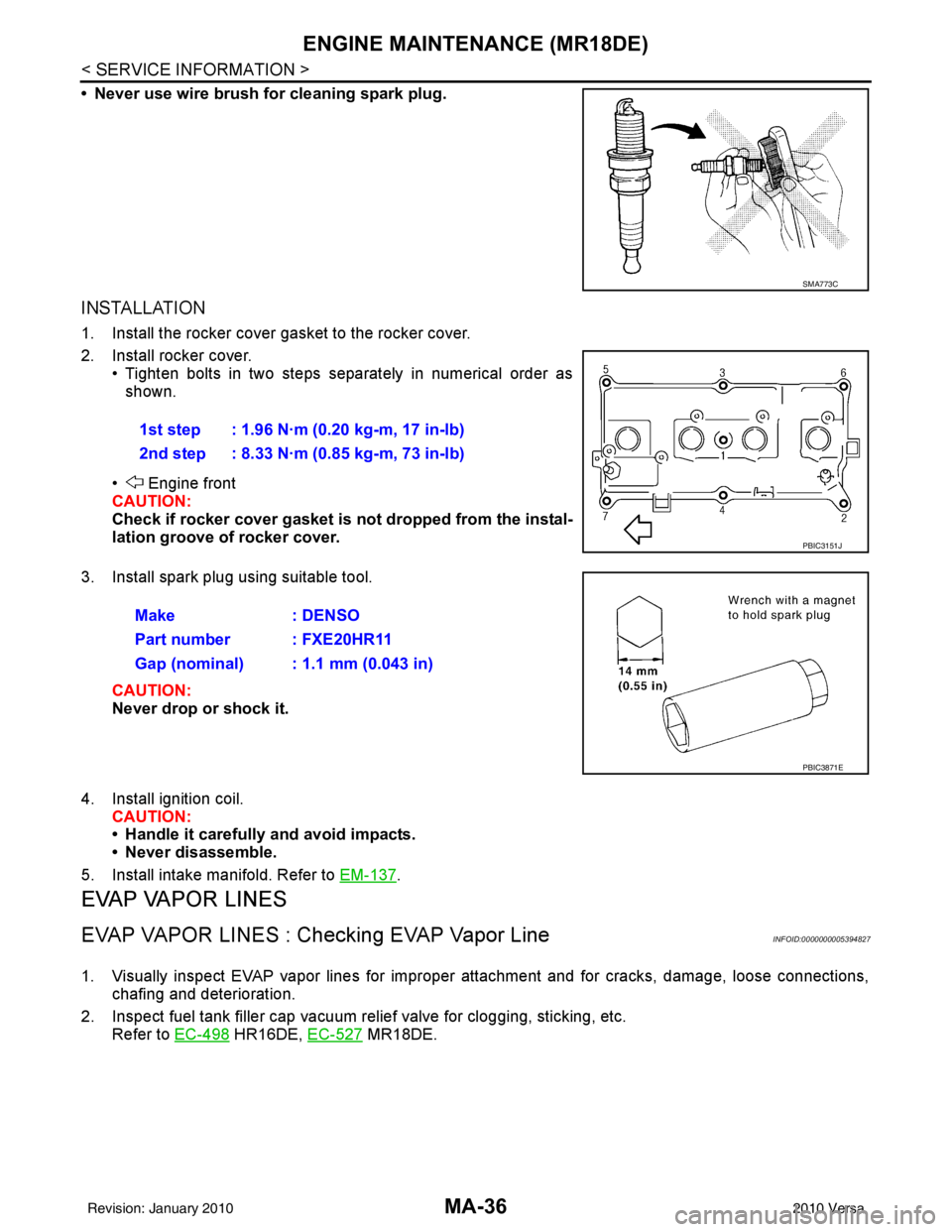

INSTALLATION
1. Install the rocker cover gasket to the rocker cover.
2. Install rocker cover

Page 3172 of 3745

NISSAN LATIO 2010 Service Repair Manual CHASSIS AND BODY MAINTENANCEMA-37
< SERVICE INFORMATION >
C
DE
F
G H
I
J
K
M A
B
MA
N
O P
CHASSIS AND BODY MAINTENANCE
IN-CABIN MICROFILTER
IN-CABIN MICROFILTER : Removal and InstallationINFOID:00000

Page 3173 of 3745

NISSAN LATIO 2010 Service Repair Manual MA-38
< SERVICE INFORMATION >
CHASSIS AND BODY MAINTENANCE
EXHAUST SYSTEM : Checki ng Exhaust System MR18DE
INFOID:0000000005714336
Check exhaust pipes, muffler and m ounting for improper attachment,

Page 3174 of 3745

NISSAN LATIO 2010 Service Repair Manual CHASSIS AND BODY MAINTENANCEMA-39
< SERVICE INFORMATION >
C
DE
F
G H
I
J
K
M A
B
MA
N
O P

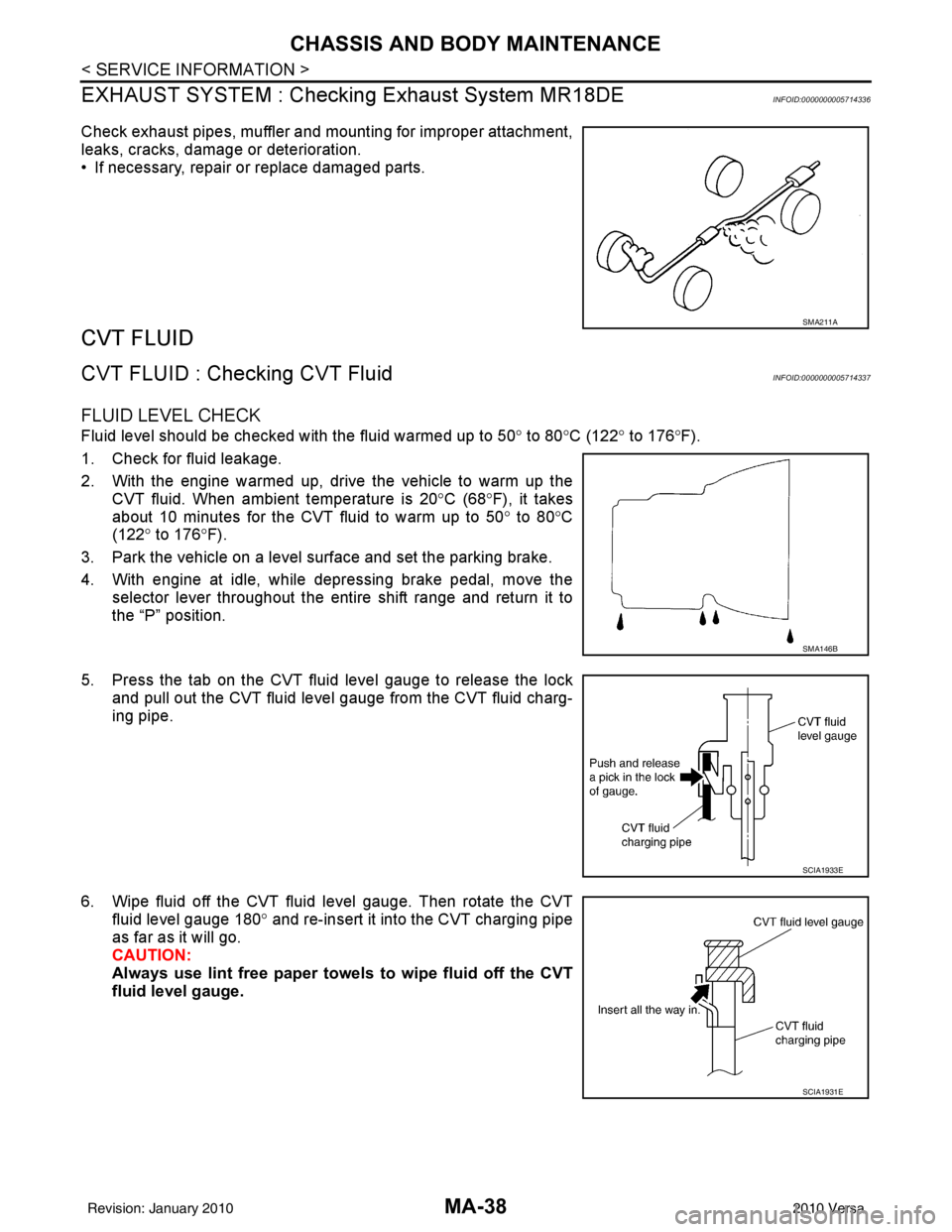

7. Remove the CVT fluid level gauge and check that the fluid level is within the specified range as shown. If

CHASSIS AND BODY MAINTENANCEMA-39
< SERVICE INFORMATION >
C
DE
F
G H
I
J
K
M A
B
MA
N
O P
7. Remove the CVT fluid level gauge and check that the fluid level is within the specified range as shown. If the fluid level is at or
below the low side of the range, add the necessary specified
NISSAN CVT fluid through the CVT charging pipe.
CAUTION:
• Only use specified NISSAN CVT fluid.
• Do not overfill the CVT.
8. Install the CVT fluid level gauge to the CVT fluid charging pipe until it locks. CAUTION:
When CVT fluid level gauge is installed into the CVT fluid charging pipe, make sure that the CVT
fluid level gauge is securely locked in place.
FLUID CONDITION CHECK
CVT FLUID : Changing CVT FluidINFOID:0000000005714338
1. Warm up CVT fluid by driving the vehicle for 10 minutes.
• : Vehicle front
• Radiator (2)
• CVT fluid cooler hose [inlet side (3)]
• Transaxle assembly (4)
2. Drain CVT fluid from CVT fluid cooler hose [outlet side (1)] and refill with new specified NISSAN CVT fluid in the CVT fluid
charging pipe with the engine running at idle speed.
CAUTION:
Only use the specifi ed NISSAN CVT fluid.
3. Refill until new CVT fluid comes out from CVT fluid cooler hose [outlet side (1)]. NOTE:
About 30 to 50% extra fluid will be required for this procedure.
4. Check fluid level and condition. Refer to MA-38, "
CVT FLUID : Checking CVT Fluid".
CAUTION:
Delete CVT fluid deterioration date with CONSULT-III after changing CVT fluid. Refer to CVT-48,
"CONSULT-III Function (TRANSMISSION)".
CLUTCH FLUID
CLUTCH FLUID : Air Bleeding ProcedureINFOID:0000000005714339
CAUTION:Fluid grade: Refer to
MA-14, "
Fluids and Lubri-
cants".
SCIA1932E
Fluid status Conceivable cause Required operation
Varnished (viscous
varnish state) Clutch, brake
scorchedReplace the CVT fluid and check the
CVT main unit and the vehicle for
malfunctions (wire harness, cooler
pipes, etc.)
Milky white or cloudy Water in the fluid Replace the CVT fluid and check for places where water is getting in.
Large amount of
metal powder mixed
in fluid Unusual wear of
sliding parts within
CVTReplace the CVT fluid and check for
improper operation of the CVT.
ATA0022D
Fluid capacity and grade: Refer to
MA-14, "Fluids
and Lubricants".SCIA6088E
Revision: January 20102010 Versa

Page 3175 of 3745

NISSAN LATIO 2010 Service Repair Manual MA-40
< SERVICE INFORMATION >
CHASSIS AND BODY MAINTENANCE
Do not spill clutch fluid onto painted surfaces. If it spills, wipe up immediately and wash the affected
area with water.
NOTE:
• Do not us

Page 3176 of 3745

NISSAN LATIO 2010 Service Repair Manual CHASSIS AND BODY MAINTENANCEMA-41
< SERVICE INFORMATION >
C
DE
F
G H
I
J
K
M A
B
MA
N
O P

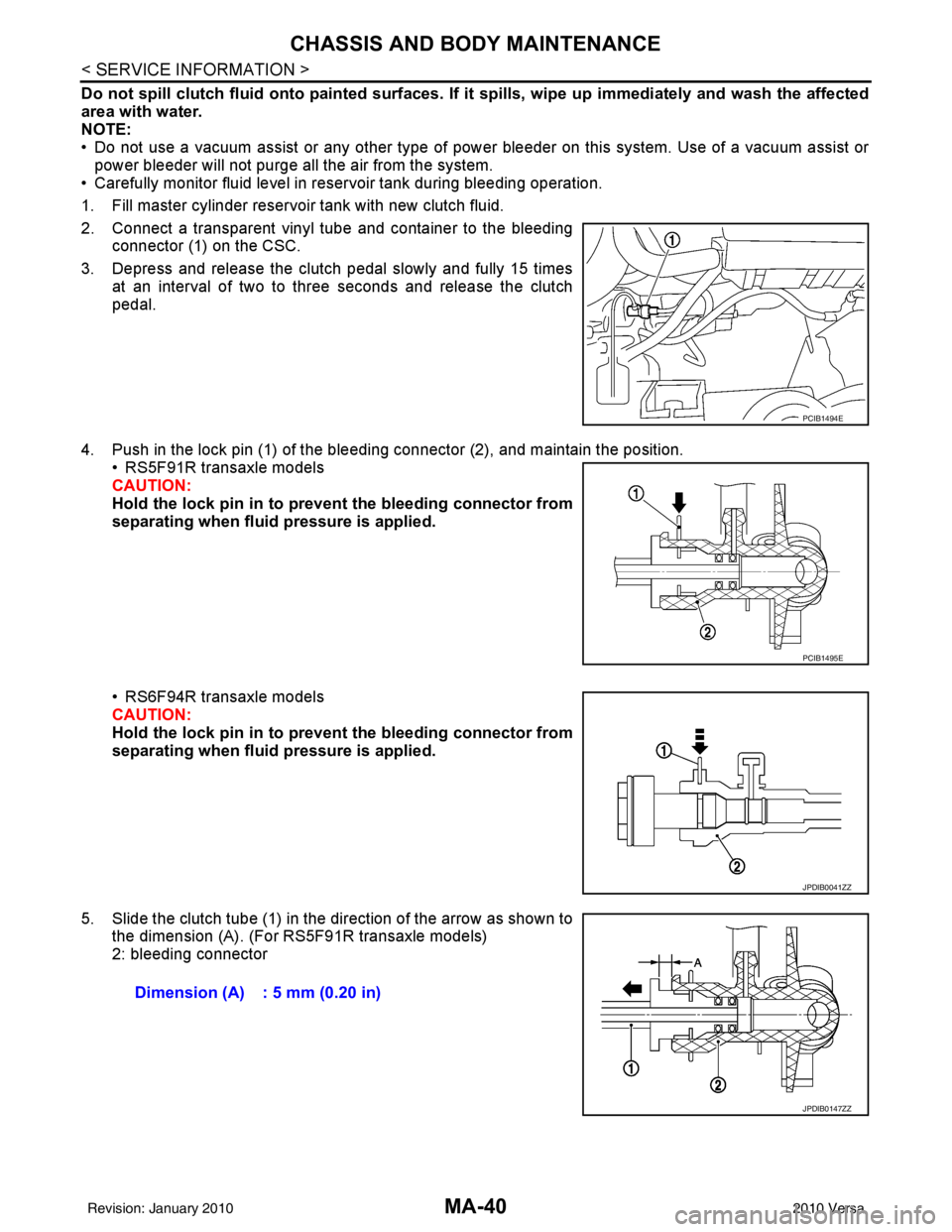

6. Slide bleeding connector (1) in the direction of the arrow as shown to the dimension (A). (For RS6F94R tran
