Page 2465 of 3061

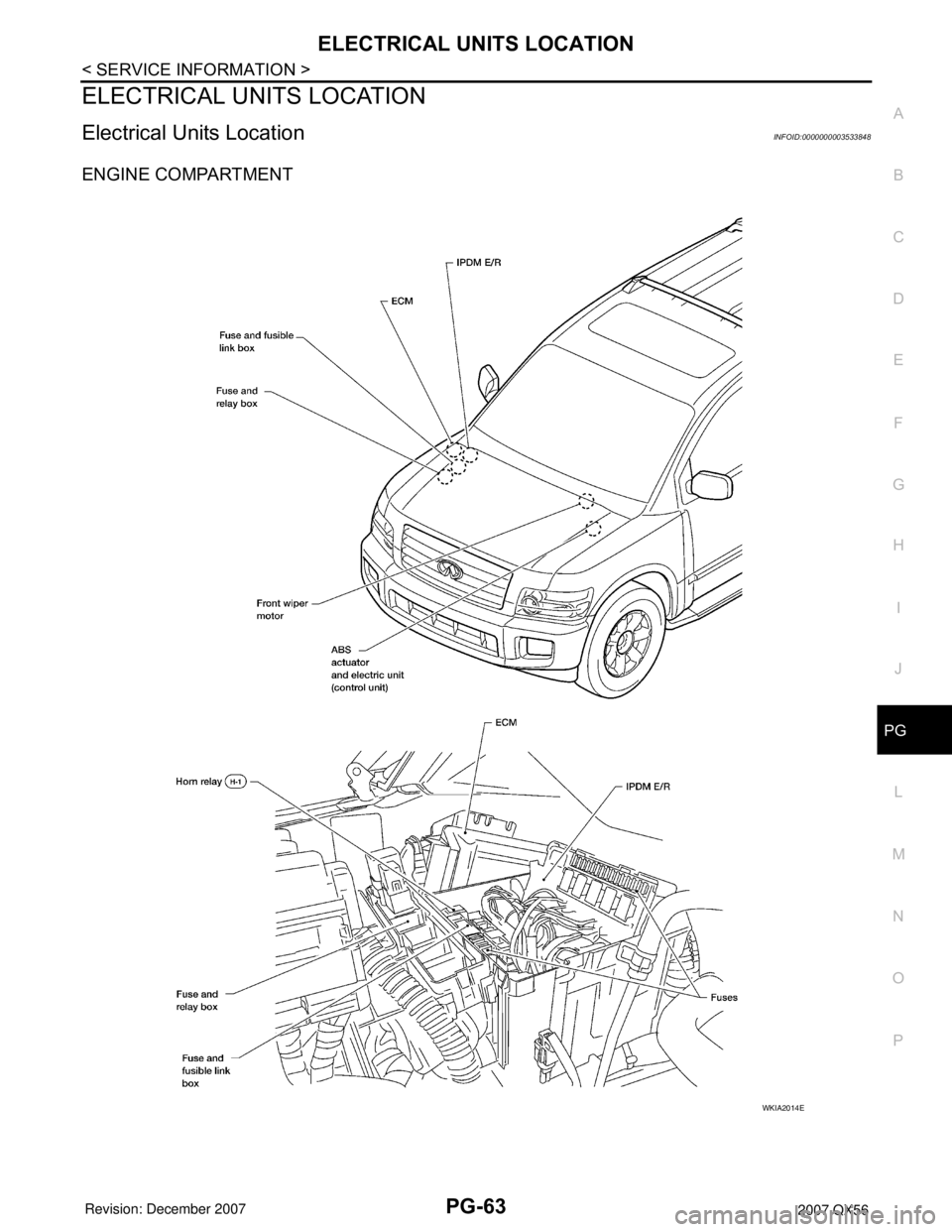

INFINITI QX56 2007 Factory Service Manual ELECTRICAL UNITS LOCATION PG-63 < SERVICE INFORMATION > C D E F G H I J L MA B PG N O P ELECTRICAL UNITS LOCATION Electrical Units LocationINFOID:0000000003533848 ENGINE COMPARTMENT WKIA2014E

Page 2466 of 3061

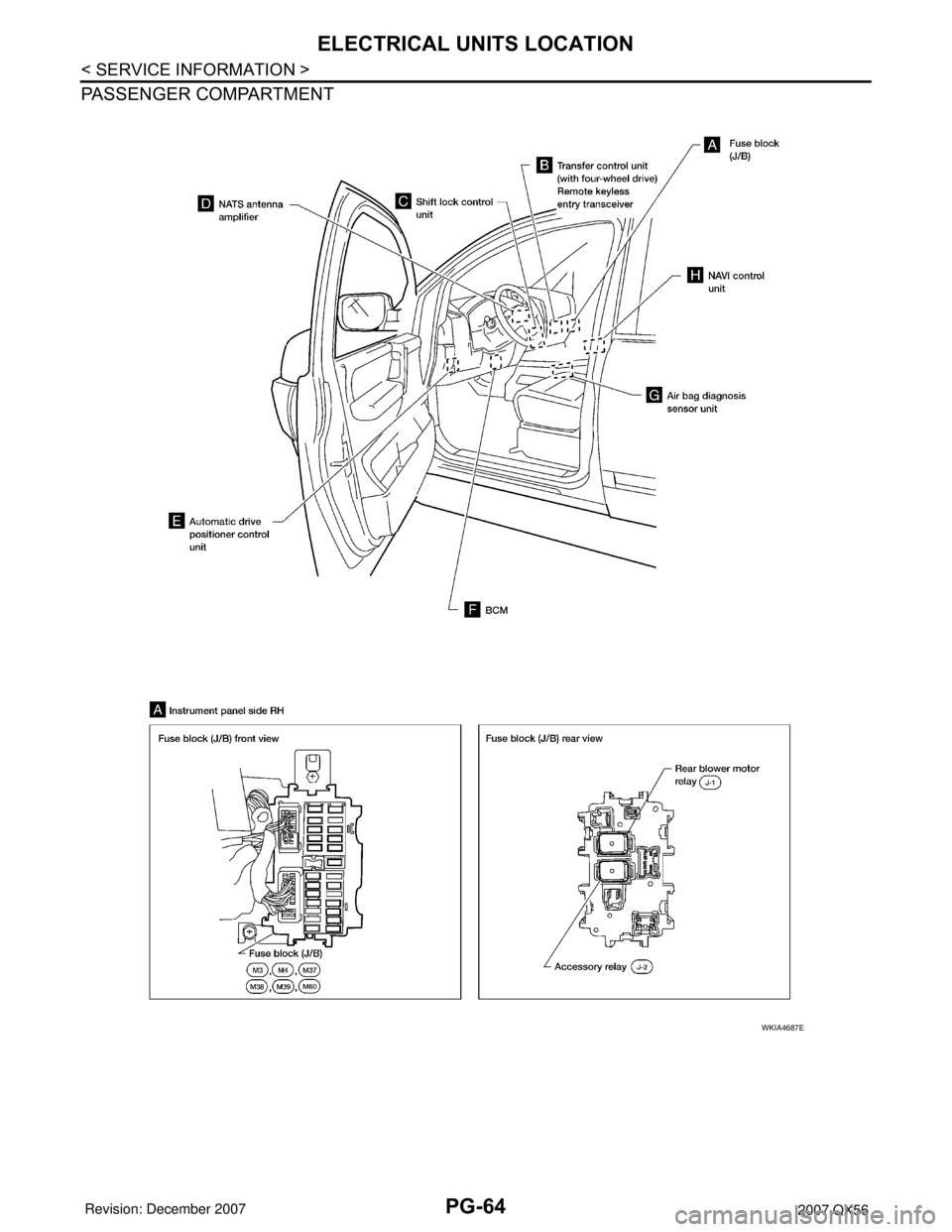

INFINITI QX56 2007 Factory Service Manual PG-64 < SERVICE INFORMATION > ELECTRICAL UNITS LOCATION PASSENGER COMPARTMENT WKIA4687E

Page 2467 of 3061

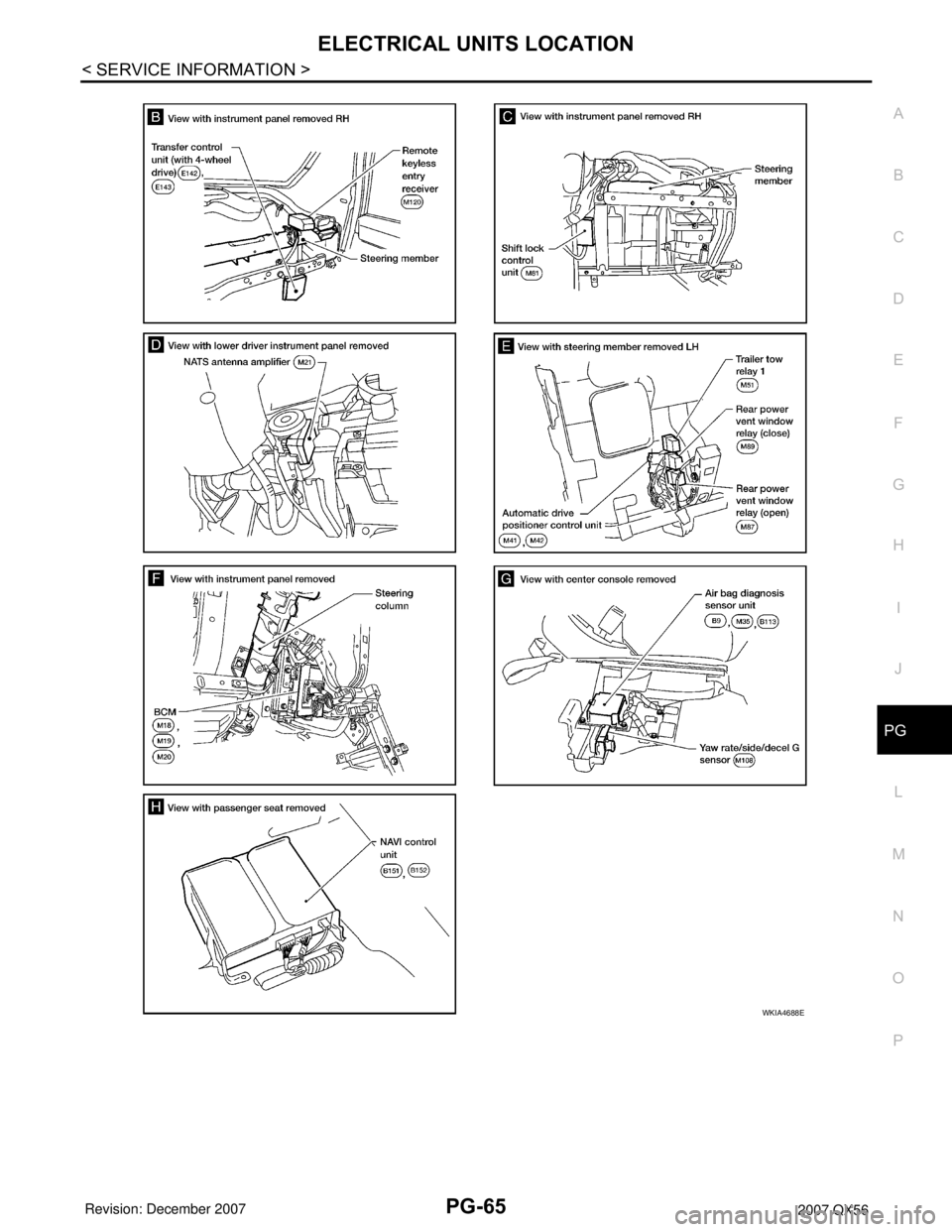

INFINITI QX56 2007 Factory Service Manual ELECTRICAL UNITS LOCATION PG-65 < SERVICE INFORMATION > C D E F G H I J L MA B PG N O P WKIA4688E

Page 2468 of 3061

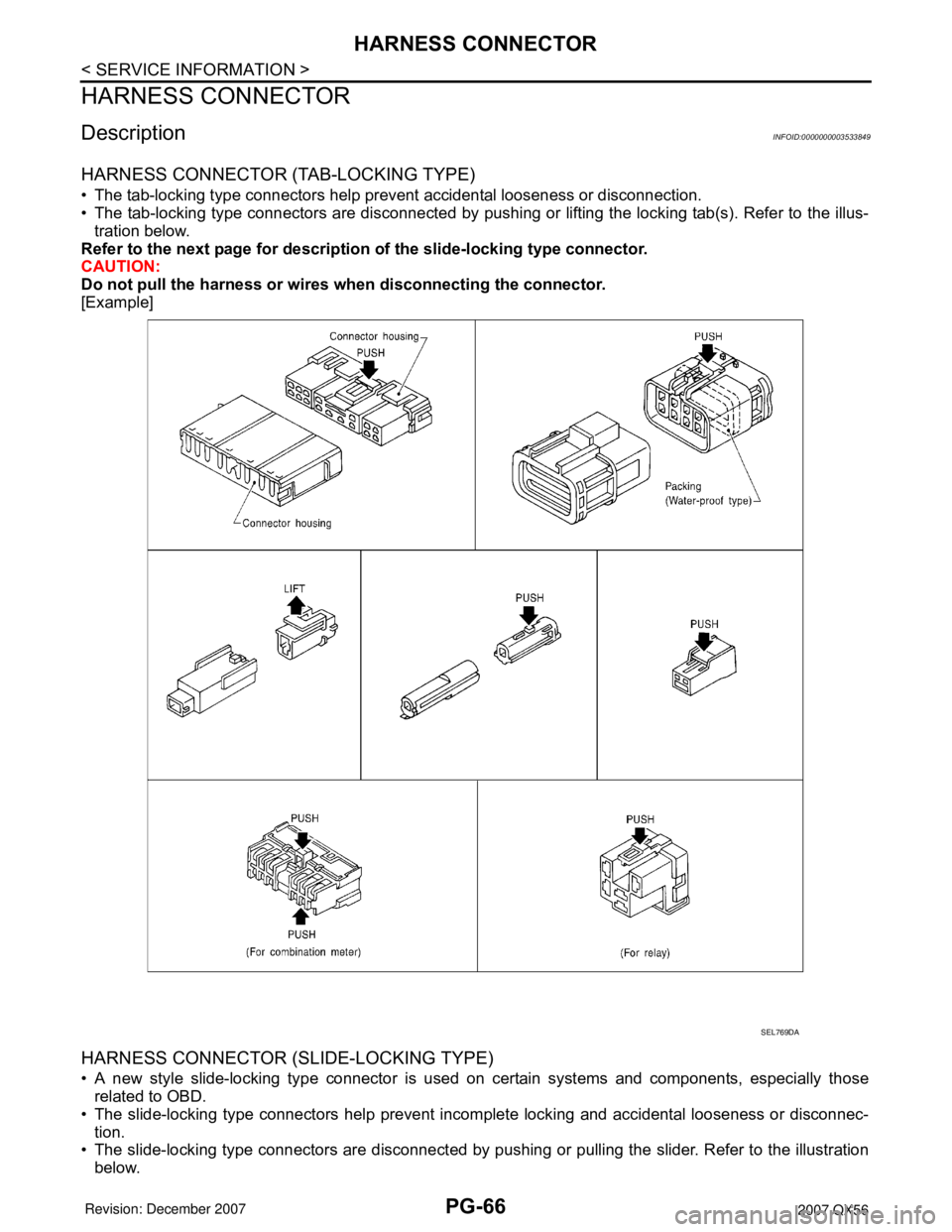

INFINITI QX56 2007 Factory Service Manual PG-66 < SERVICE INFORMATION > HARNESS CONNECTOR HARNESS CONNECTOR DescriptionINFOID:0000000003533849 HARNESS CONNECTOR (TAB-LOCKING TYPE) • The tab-locking type connectors help prevent accidental lo

Page 2469 of 3061

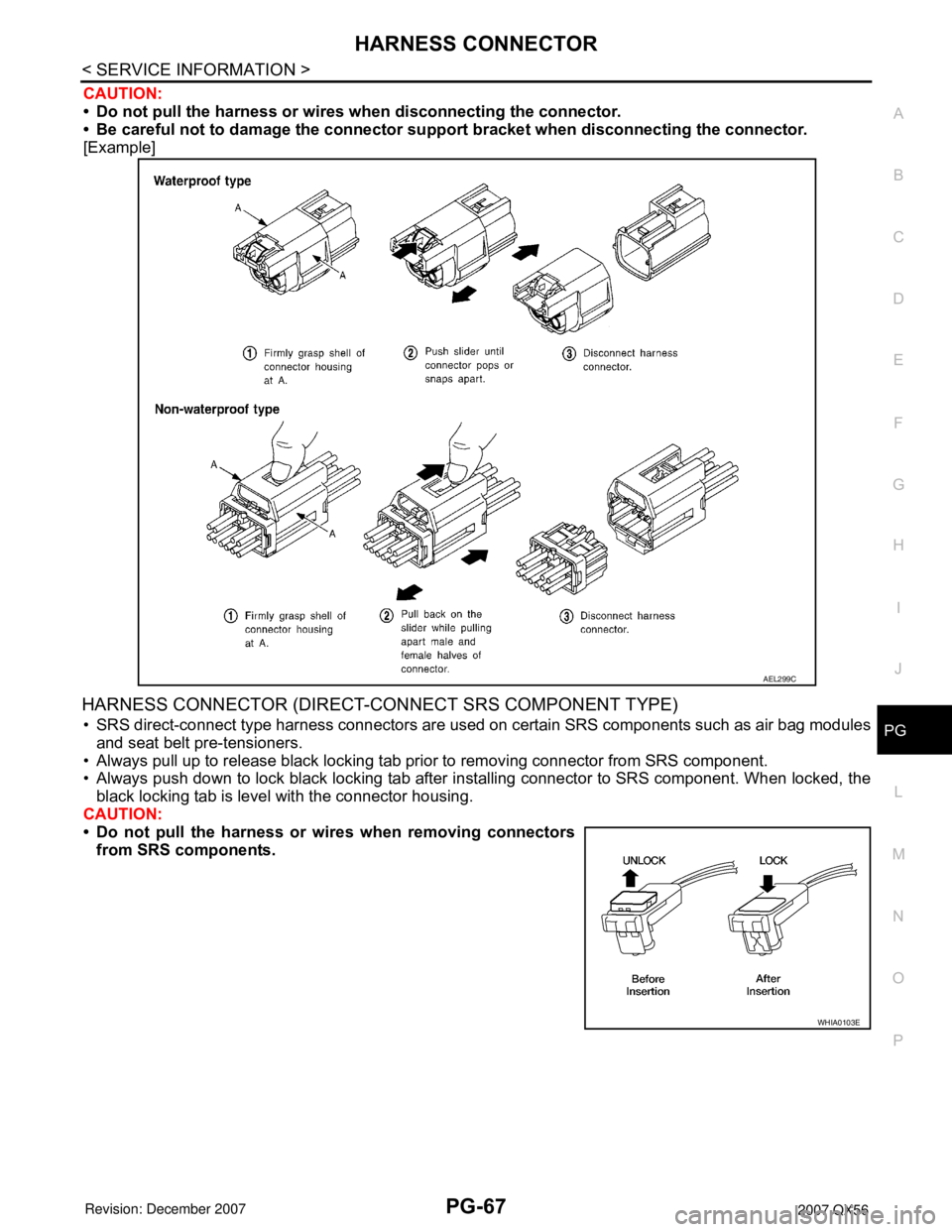

INFINITI QX56 2007 Factory Service Manual HARNESS CONNECTOR PG-67 < SERVICE INFORMATION > C D E F G H I J L MA B PG N O P CAUTION: • Do not pull the harness or wires when disconnecting the connector. • Be careful not to damage the connect

Page 2470 of 3061

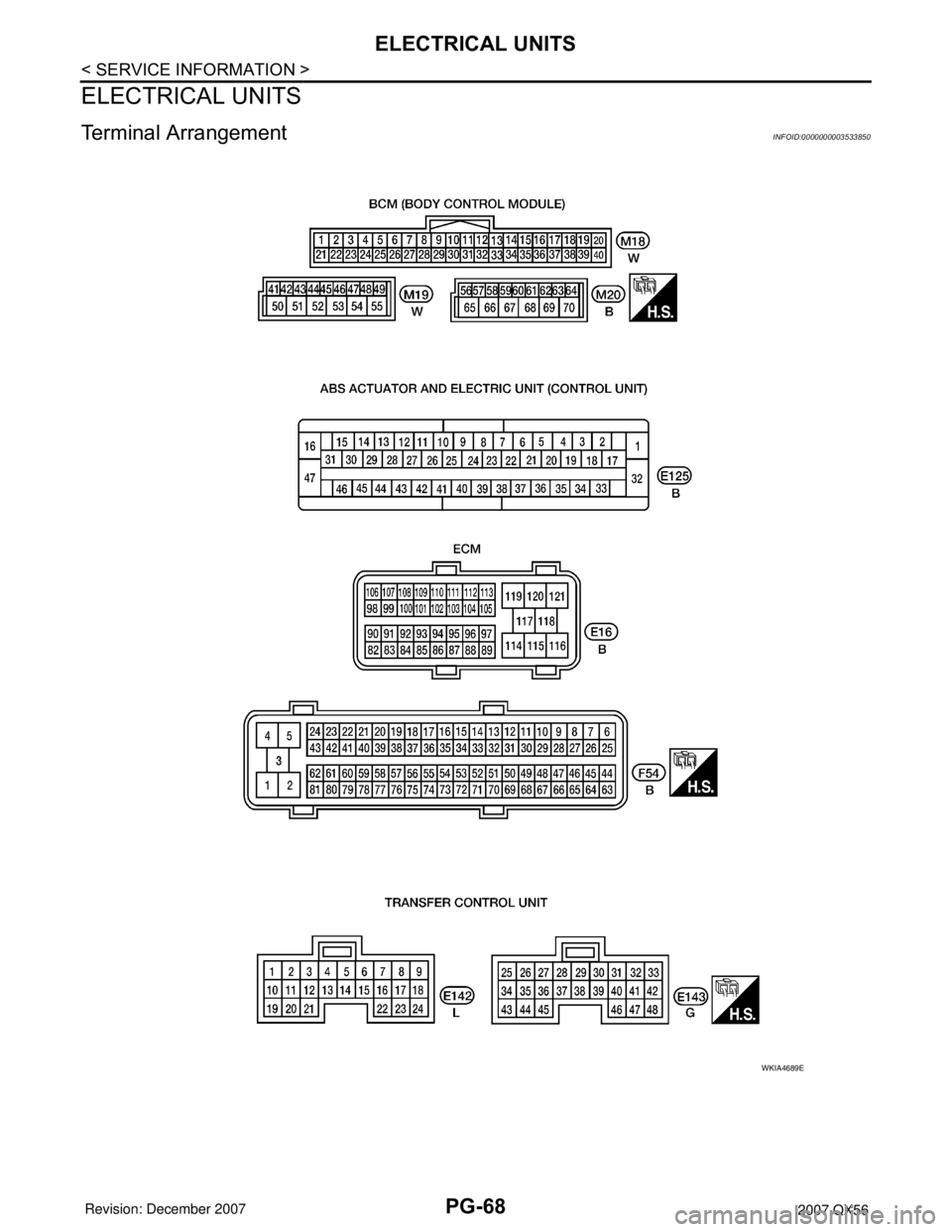

INFINITI QX56 2007 Factory Service Manual PG-68 < SERVICE INFORMATION > ELECTRICAL UNITS ELECTRICAL UNITS Terminal ArrangementINFOID:0000000003533850 WKIA4689E

Page 2471 of 3061

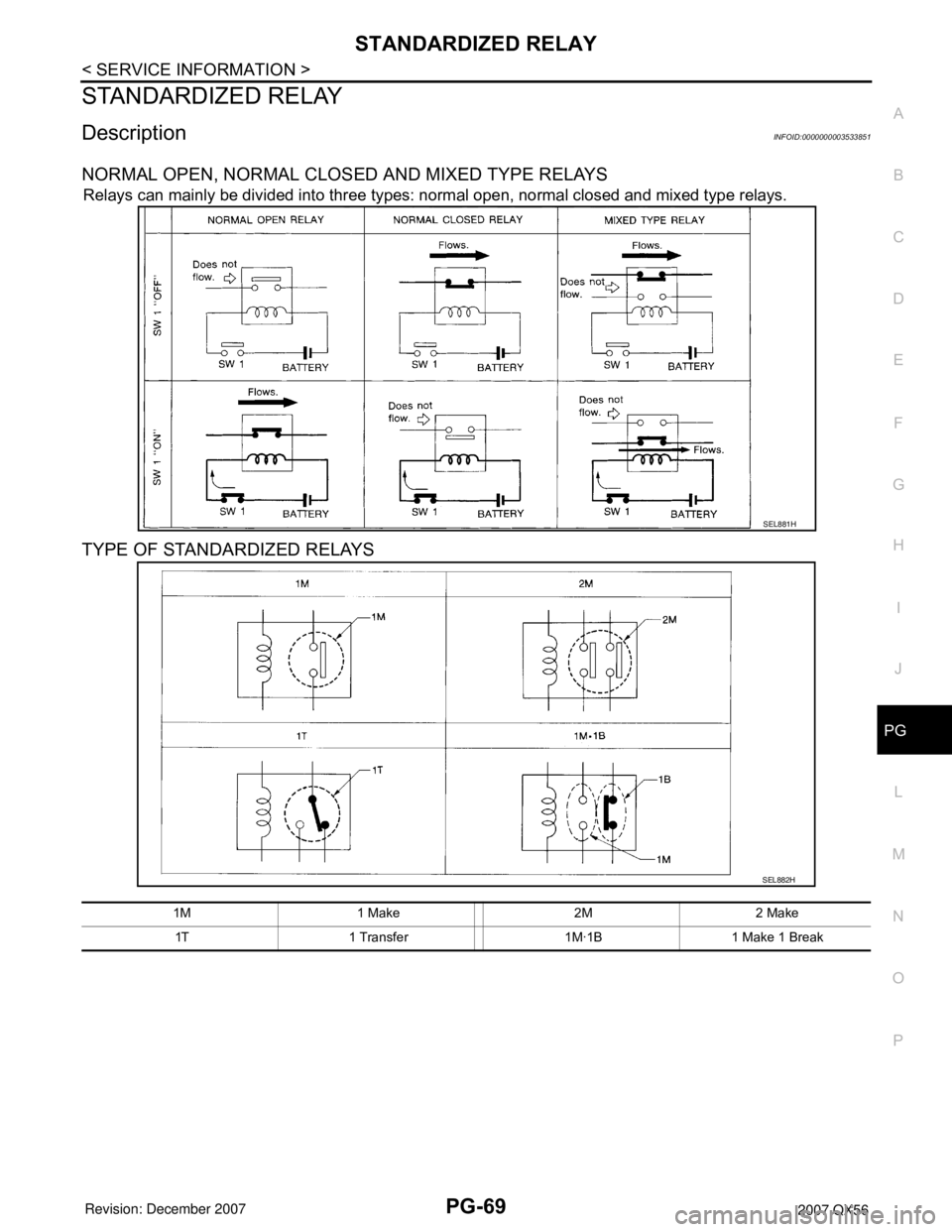

INFINITI QX56 2007 Factory Service Manual STANDARDIZED RELAY PG-69 < SERVICE INFORMATION > C D E F G H I J L MA B PG N O P STANDARDIZED RELAY DescriptionINFOID:0000000003533851 NORMAL OPEN, NORMAL CLOSED AND MIXED TYPE RELAYS Relays can mainl

Page 2472 of 3061

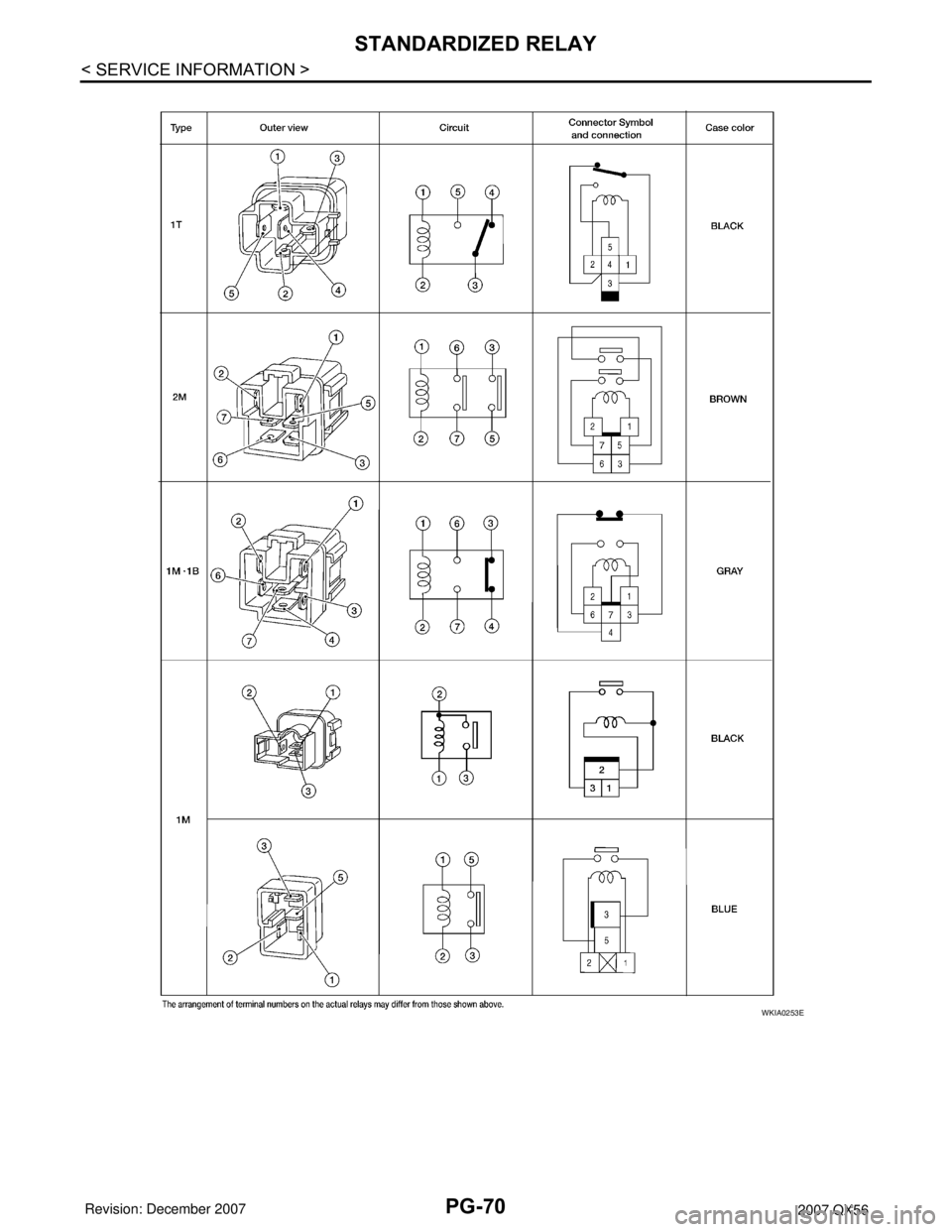

INFINITI QX56 2007 Factory Service Manual PG-70 < SERVICE INFORMATION > STANDARDIZED RELAY WKIA0253E
