INFINITI QX56 2007 Factory Service Manual HARNESS PG-39 < SERVICE INFORMATION > C D E F G H I J L MA B PG N O P HARNESS Harness LayoutINFOID:0000000003533846 HOW TO READ HARNESS LAYOUT The following Harness Layouts use a map style grid to he

Page 2442 of 3061

INFINITI QX56 2007 Factory Service Manual PG-40 < SERVICE INFORMATION > HARNESS OUTLINE WKIA4667E

Page 2443 of 3061

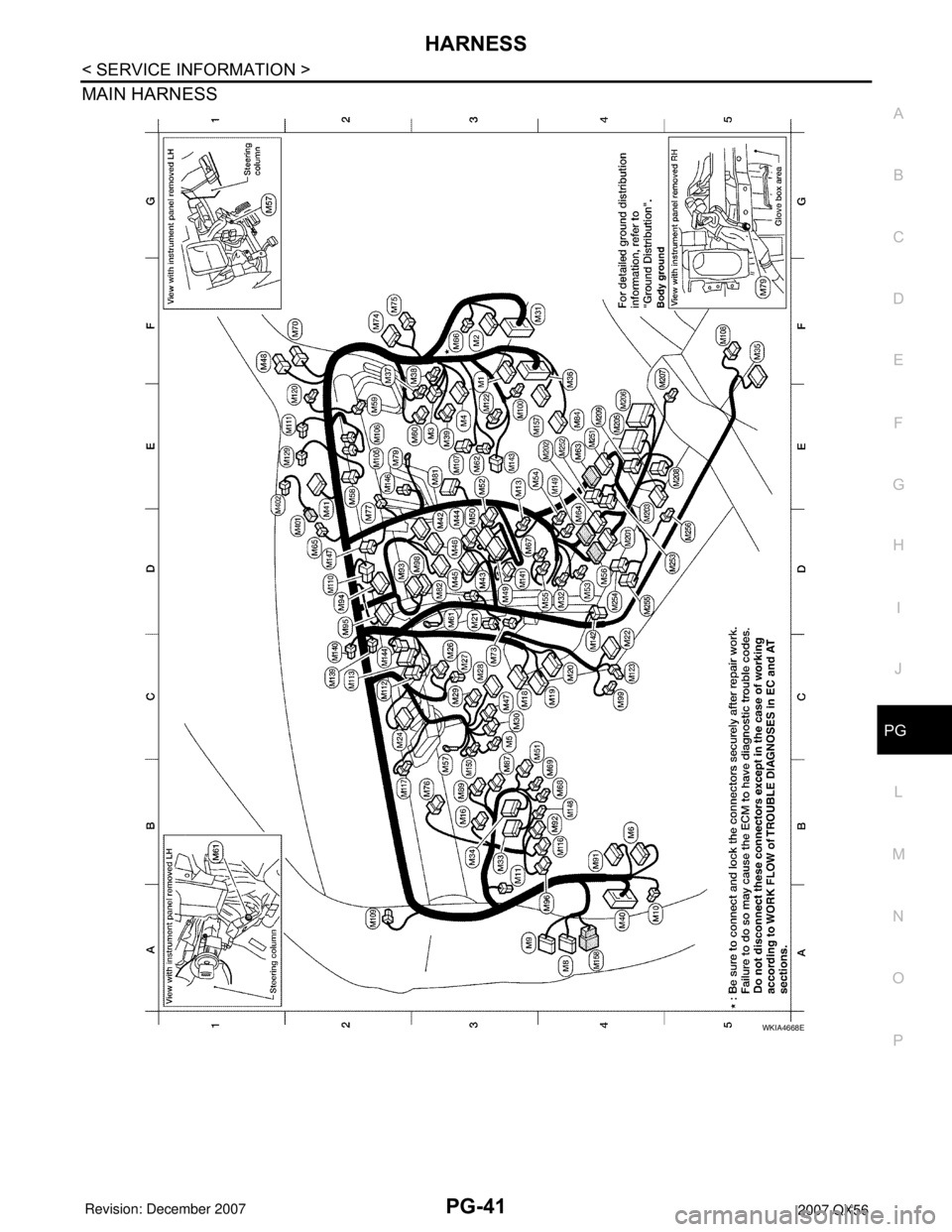

INFINITI QX56 2007 Factory Service Manual HARNESS PG-41 < SERVICE INFORMATION > C D E F G H I J L MA B PG N O P MAIN HARNESS WKIA4668E

Page 2444 of 3061

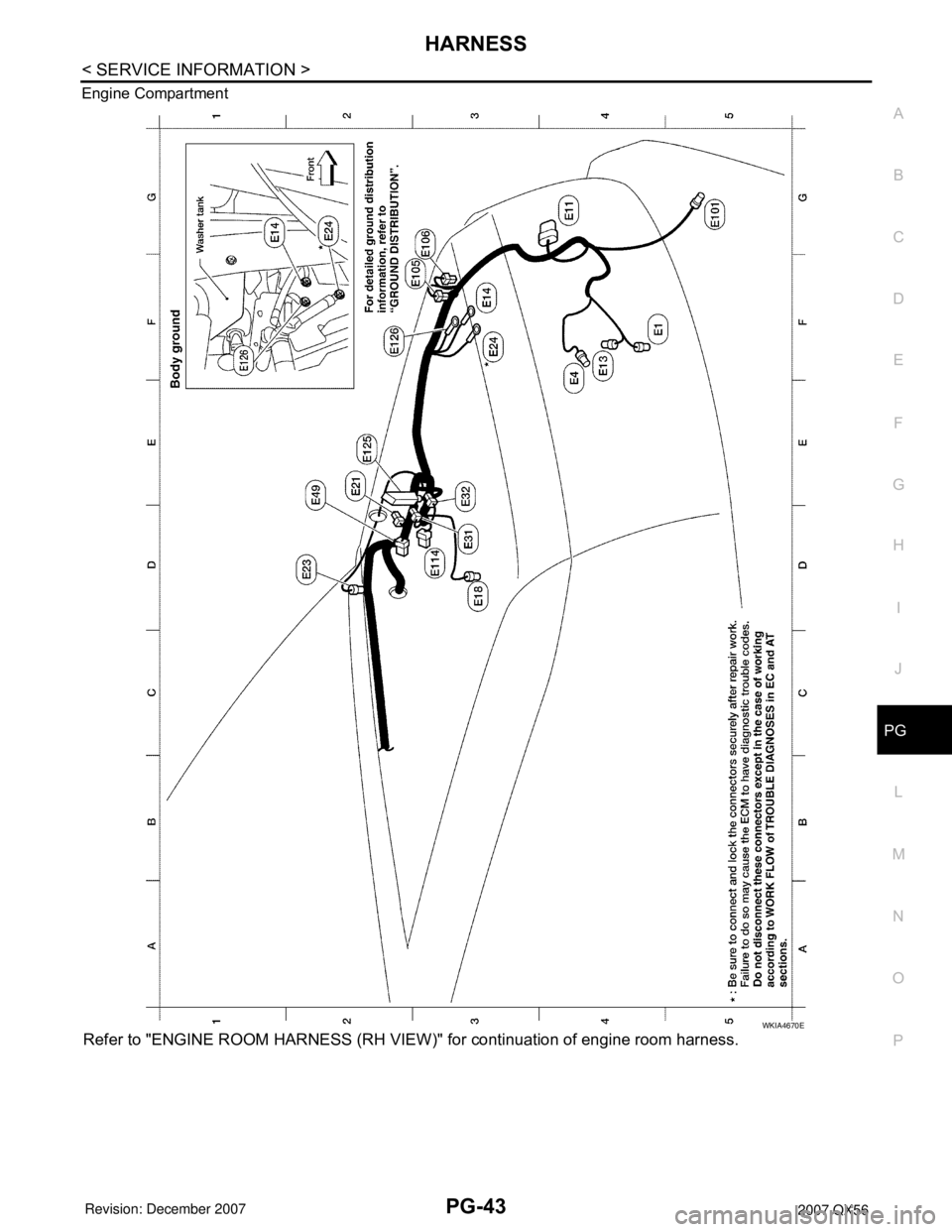

INFINITI QX56 2007 Factory Service Manual PG-42 < SERVICE INFORMATION > HARNESS ENGINE ROOM HARNESS (LH VIEW) WKIA5809E

Page 2445 of 3061

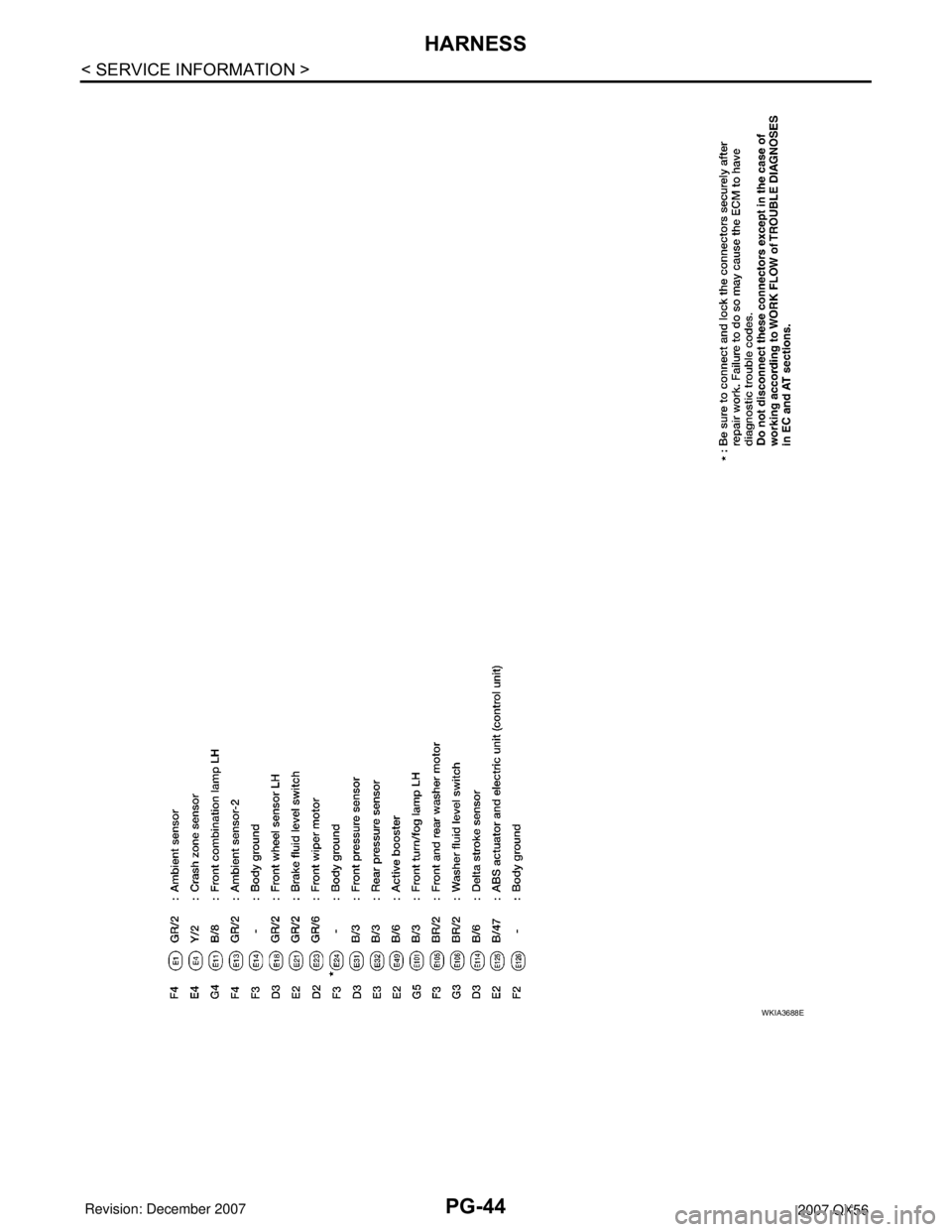

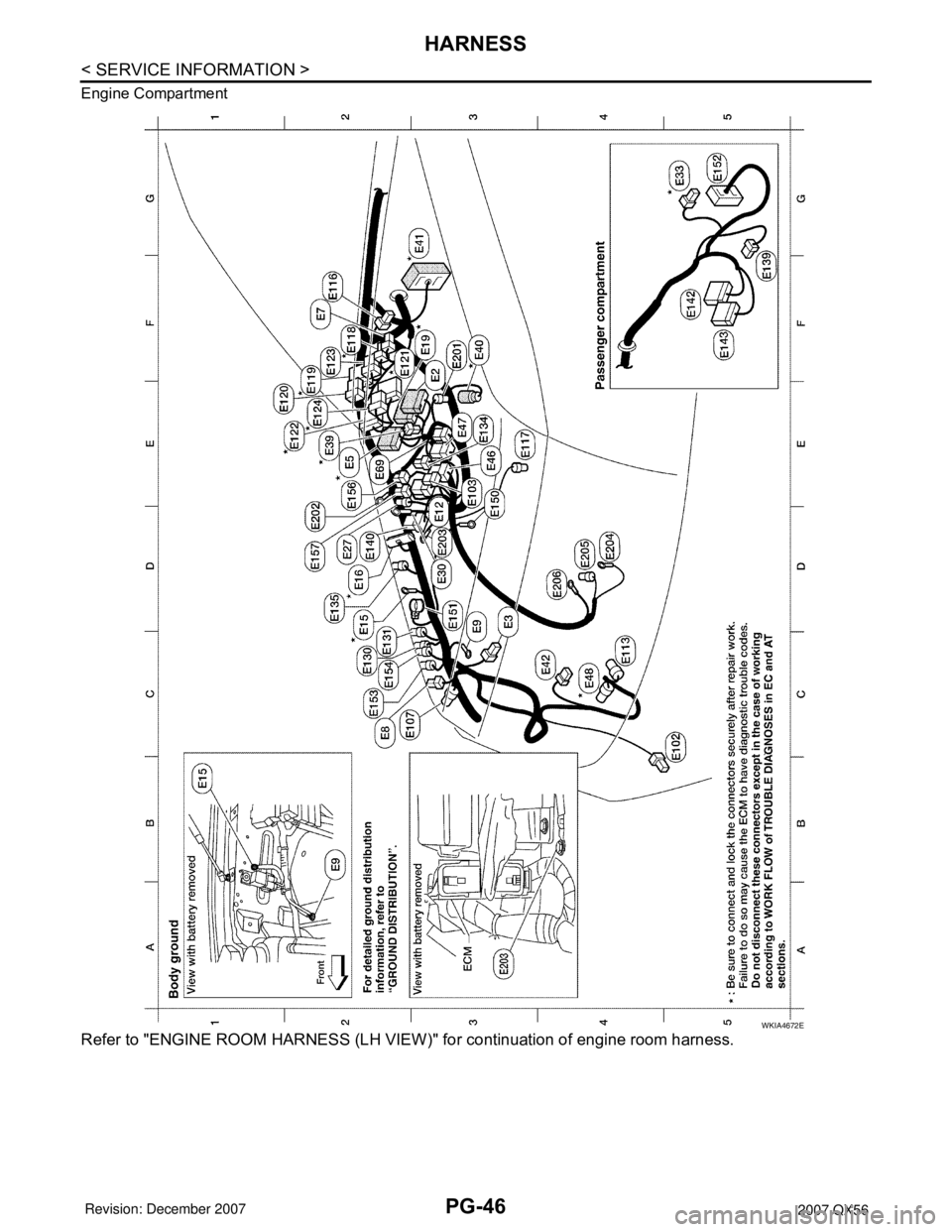

INFINITI QX56 2007 Factory Service Manual HARNESS PG-43 < SERVICE INFORMATION > C D E F G H I J L MA B PG N O P Engine Compartment Refer to "ENGINE ROOM HARNESS (RH VIEW)" for continuation of engine room harness. WKIA4670E

Page 2446 of 3061

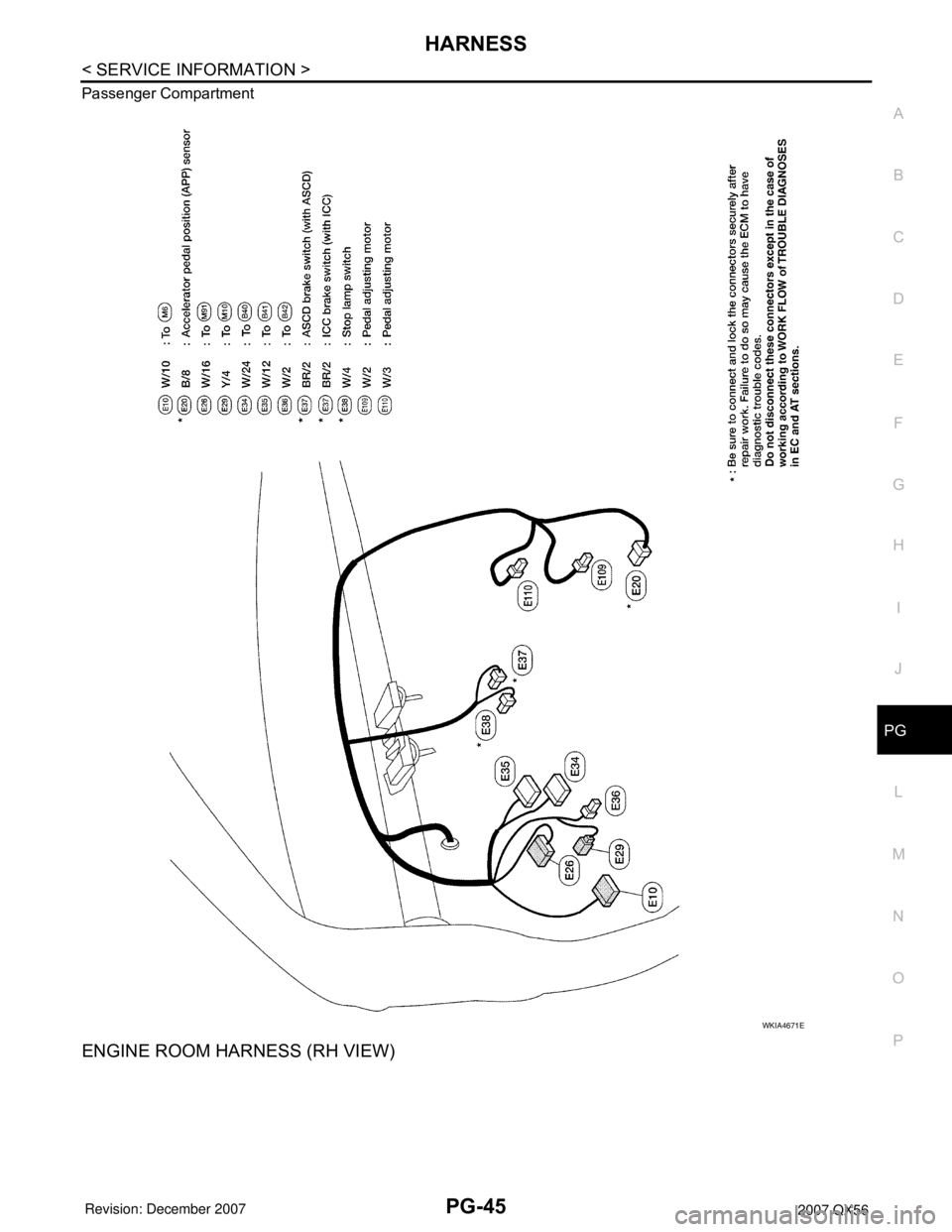

INFINITI QX56 2007 Factory Service Manual PG-44 < SERVICE INFORMATION > HARNESS WKIA3688E

Page 2447 of 3061

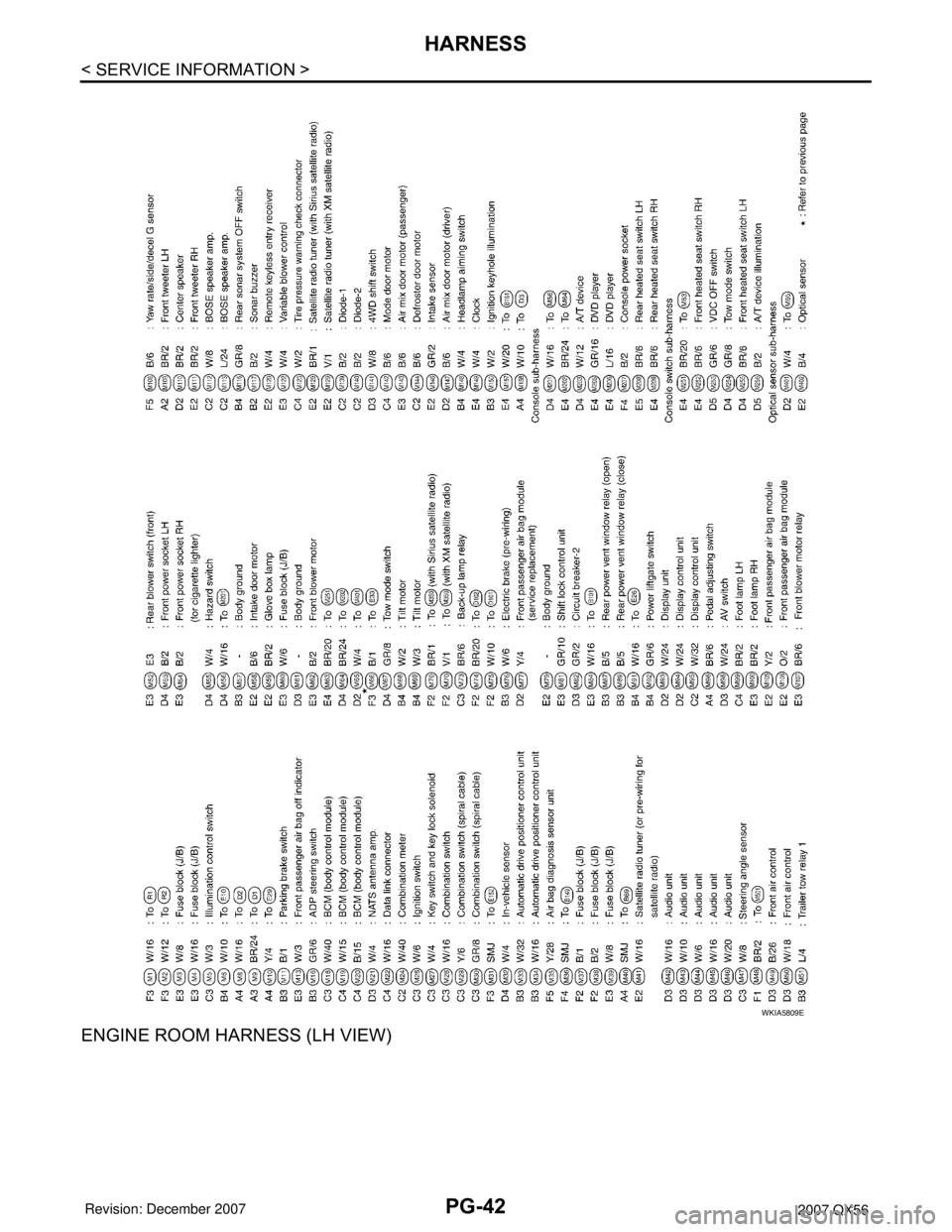

INFINITI QX56 2007 Factory Service Manual HARNESS PG-45 < SERVICE INFORMATION > C D E F G H I J L MA B PG N O P Passenger Compartment ENGINE ROOM HARNESS (RH VIEW) WKIA4671E

Page 2448 of 3061

INFINITI QX56 2007 Factory Service Manual PG-46 < SERVICE INFORMATION > HARNESS Engine Compartment Refer to "ENGINE ROOM HARNESS (LH VIEW)" for continuation of engine room harness. WKIA4672E
