Page 3057 of 3061

INFINITI QX56 2007 Factory Service Manual WW-40 < SERVICE INFORMATION > REAR WIPER AND WASHER SYSTEM Washer Fluid Reservoir INFOID:0000000003533588 REMOVAL AND INSTALLATION Refer to WW-24, "Washer Fluid Reservoir". Washer MotorINFOID:00000000

Page 3058 of 3061

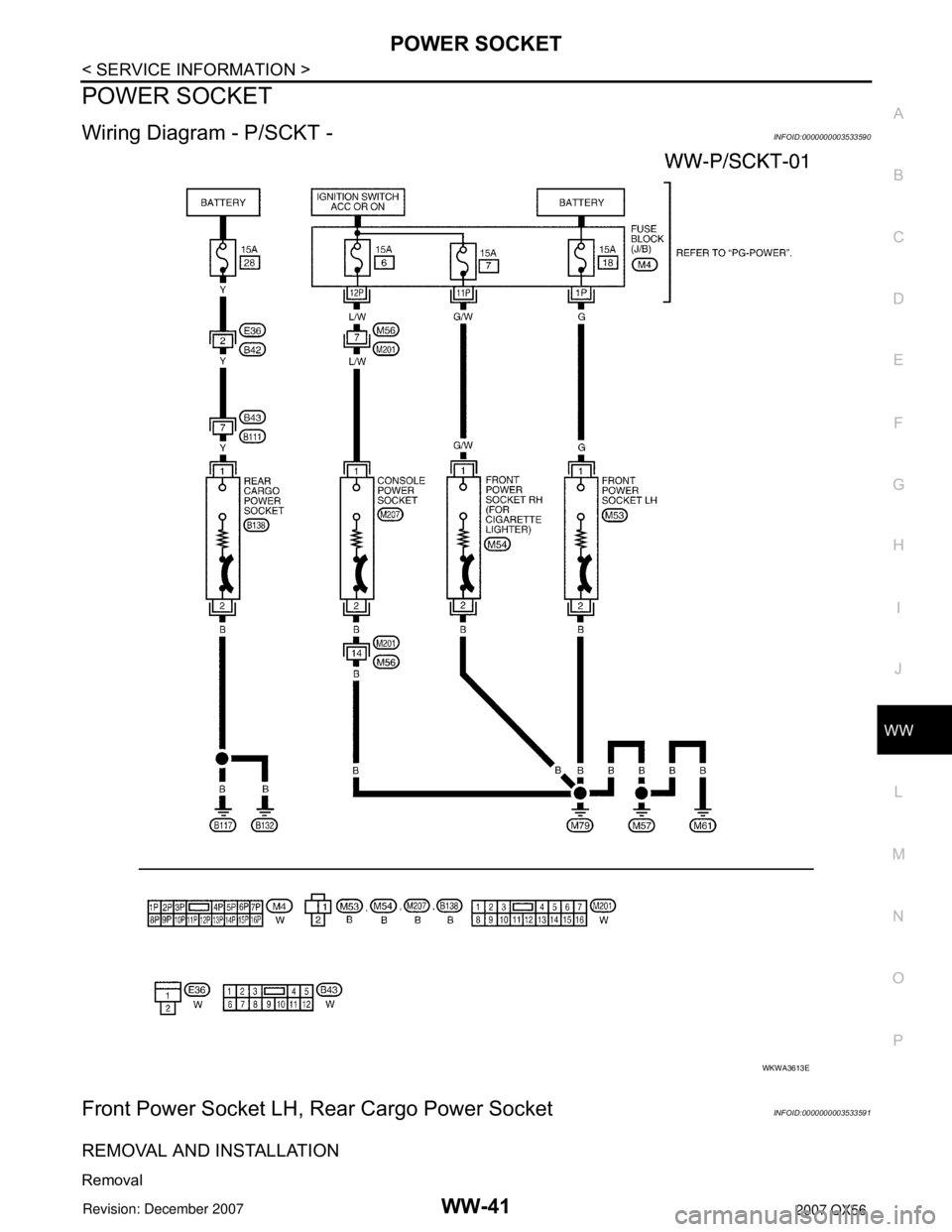

INFINITI QX56 2007 Factory Service Manual POWER SOCKET WW-41 < SERVICE INFORMATION > C D E F G H I J L MA B WW N O P POWER SOCKET Wiring Diagram - P/SCKT -INFOID:0000000003533590 Front Power Socket LH, Rear Cargo Power SocketINFOID:0000000003

Page 3059 of 3061

INFINITI QX56 2007 Factory Service Manual WW-42 < SERVICE INFORMATION > POWER SOCKET 1. Disconnect battery negative terminal. 2. Remove inner socket from the ring, while pressing the hook on the ring out from square hole. 3. Disconnect power

Page 3060 of 3061

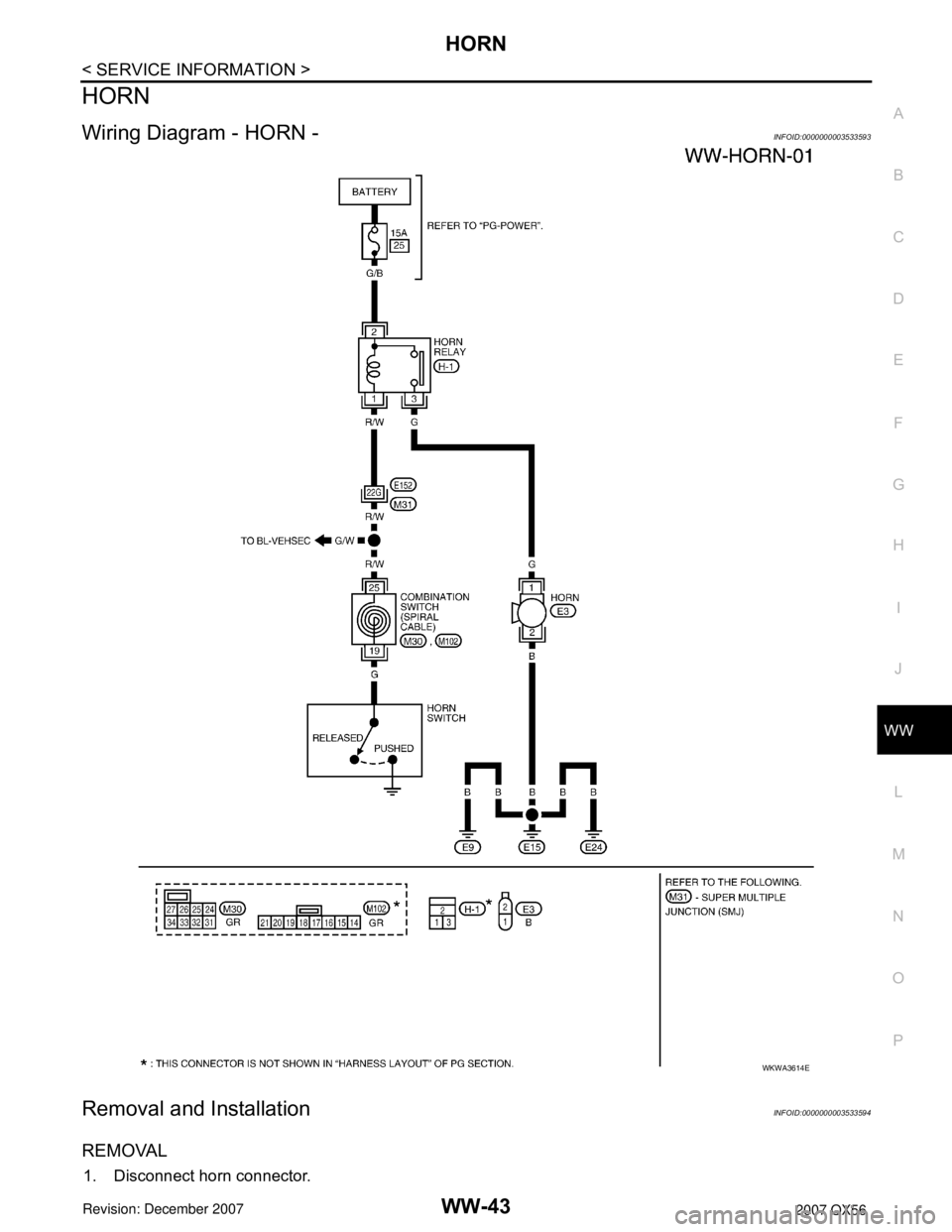

INFINITI QX56 2007 Factory Service Manual HORN WW-43 < SERVICE INFORMATION > C D E F G H I J L MA B WW N O P HORN Wiring Diagram - HORN -INFOID:0000000003533593 Removal and InstallationINFOID:0000000003533594 REMOVAL 1. Disconnect horn connec

Page 3061 of 3061

INFINITI QX56 2007 Factory Service Manual WW-44 < SERVICE INFORMATION > HORN 2. Remove horn bolt and remove horn from vehicle. INSTALLATION Installation is in the reverse order of removal. LKIA0419E
