Page 2041 of 3061
GW-22
< SERVICE INFORMATION >
POWER WINDOW SYSTEM

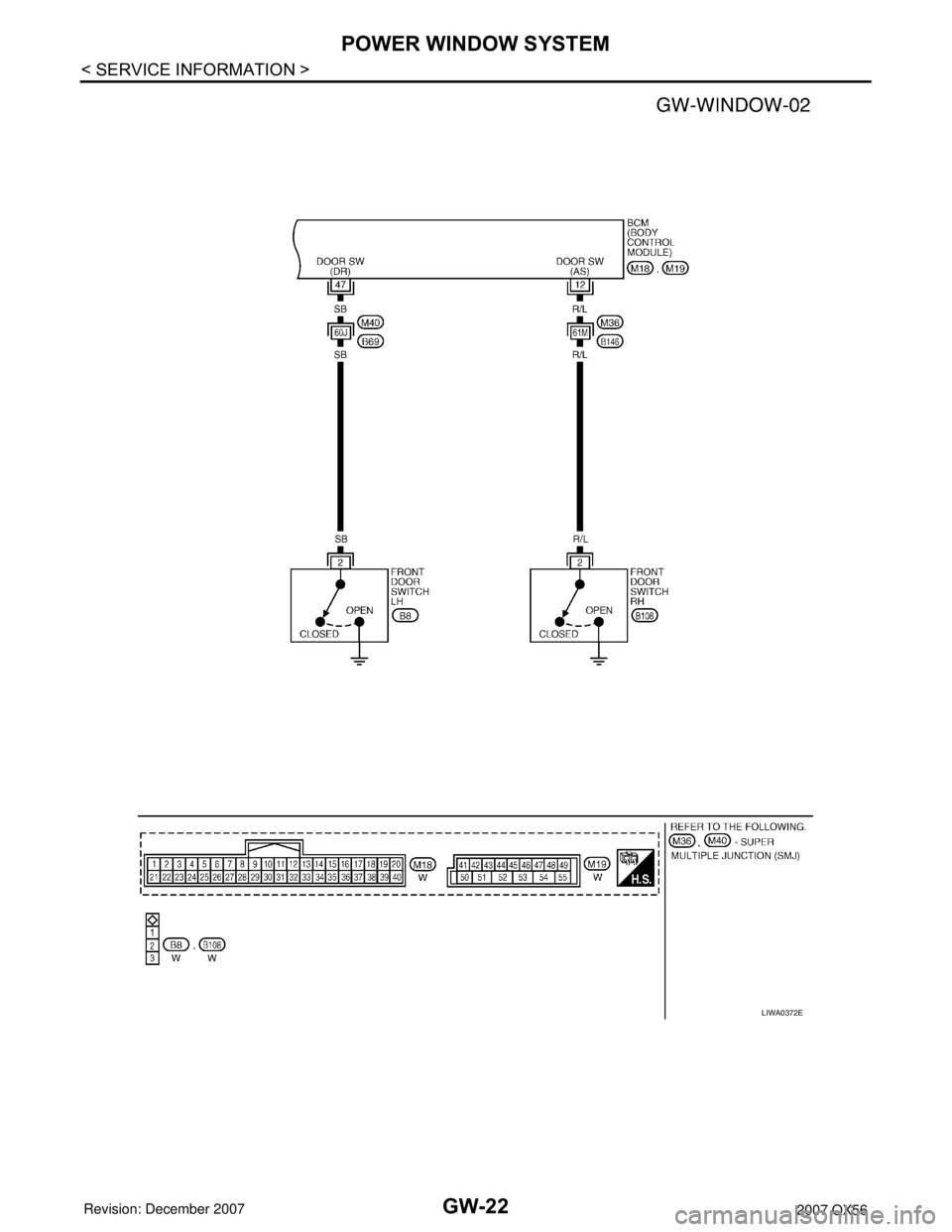

LIWA0372E
Page 2042 of 3061
POWER WINDOW SYSTEM
GW-23
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
GW
N
O
P

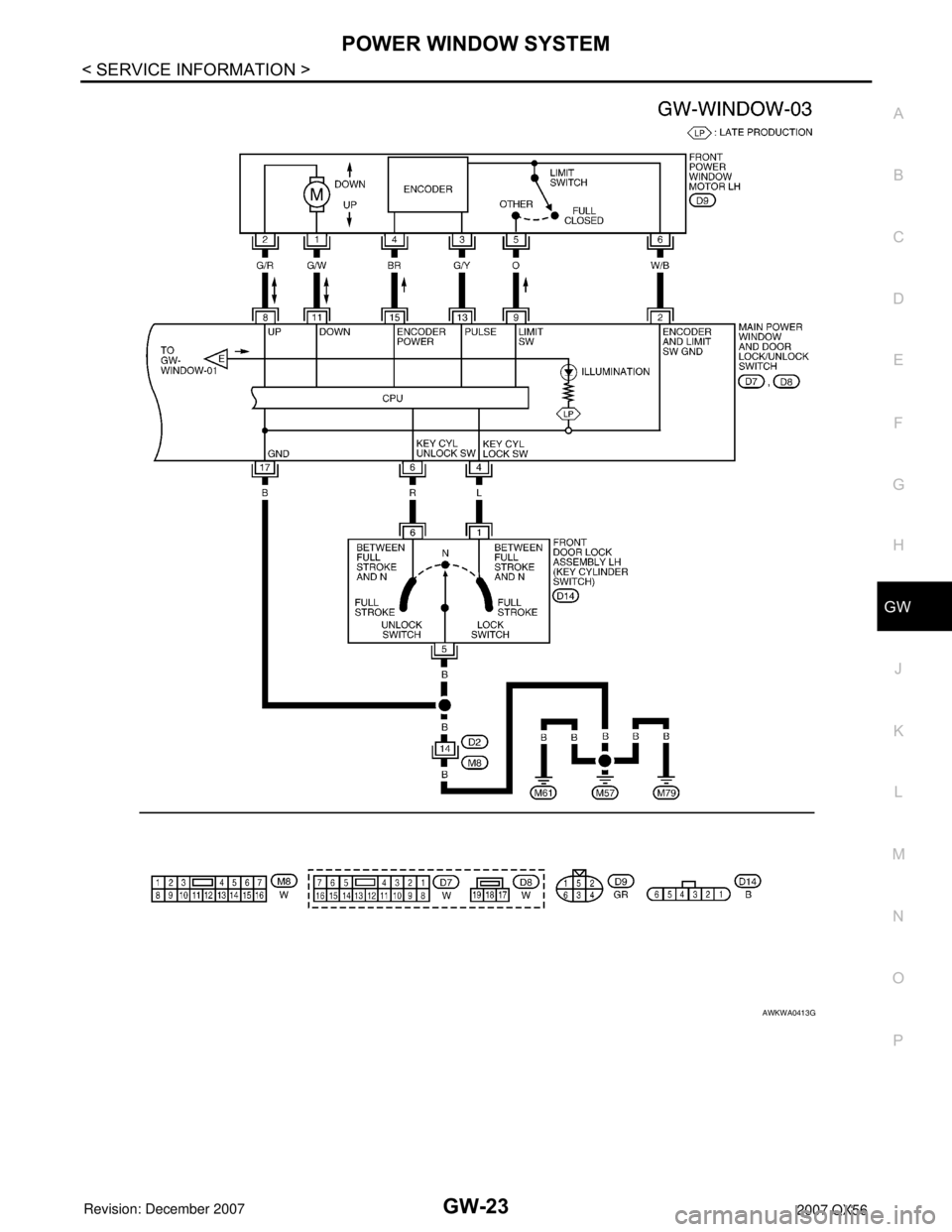

AWKWA0413G
Page 2043 of 3061
GW-24
< SERVICE INFORMATION >
POWER WINDOW SYSTEM

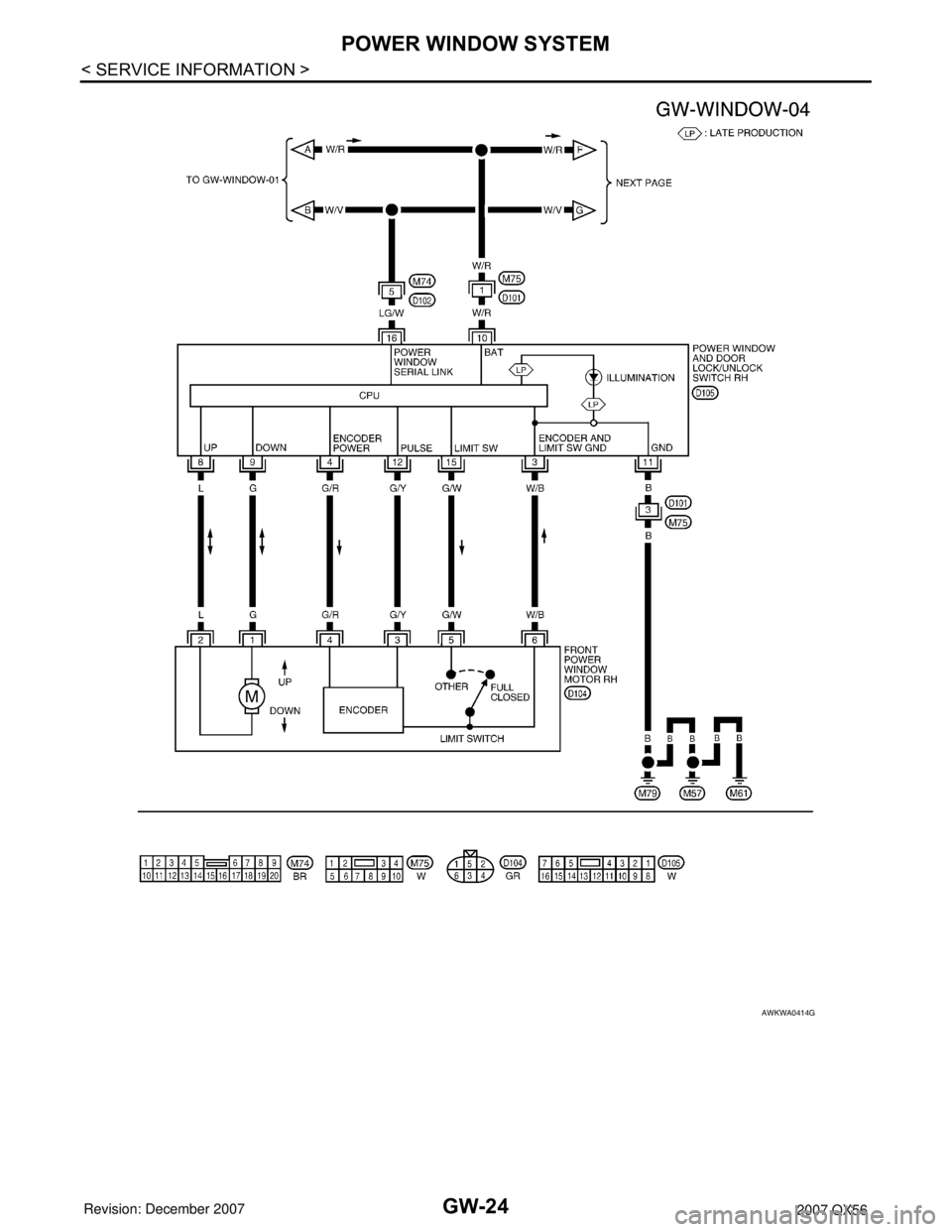

AWKWA0414G
Page 2044 of 3061
POWER WINDOW SYSTEM
GW-25
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
GW
N
O
P

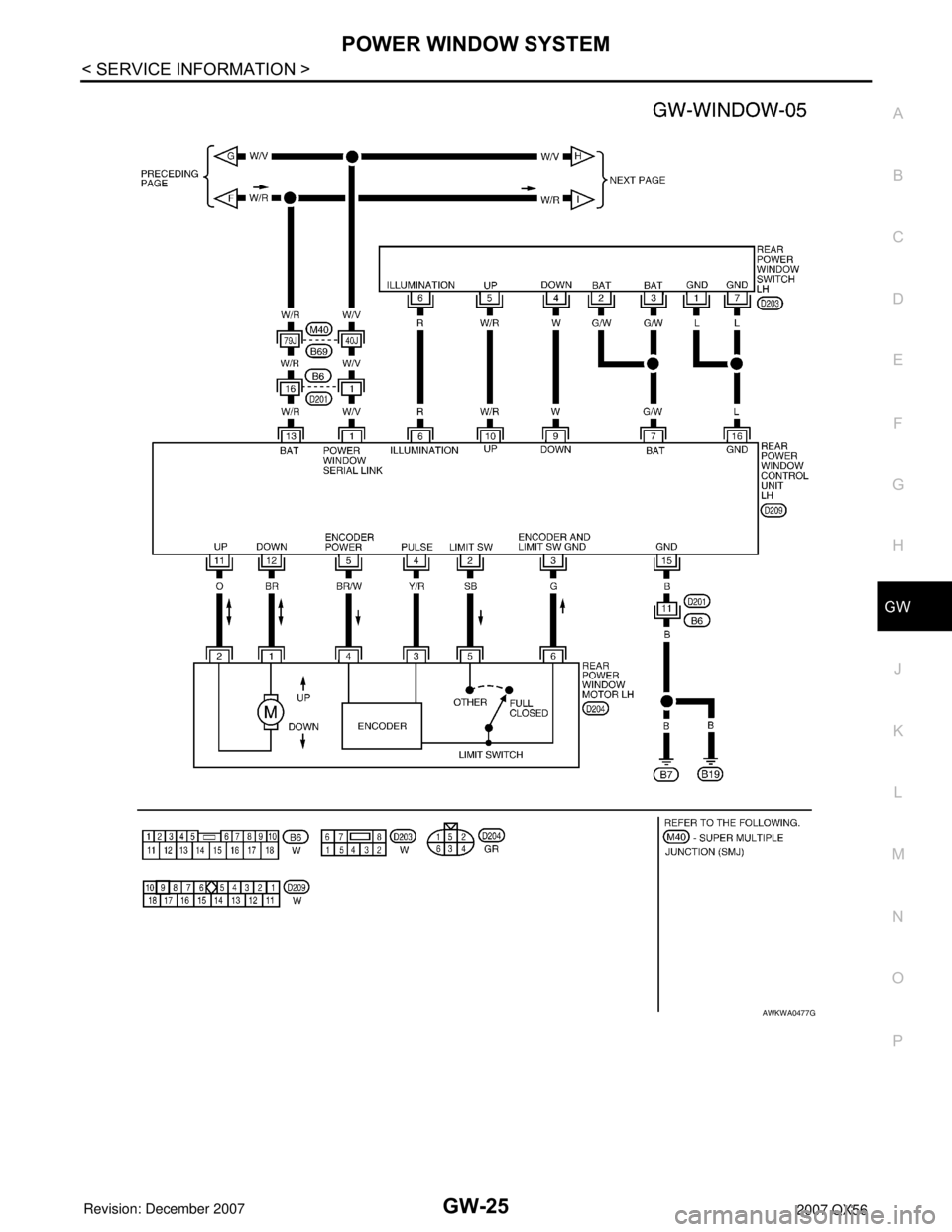

AWKWA0477G
Page 2045 of 3061
GW-26
< SERVICE INFORMATION >
POWER WINDOW SYSTEM

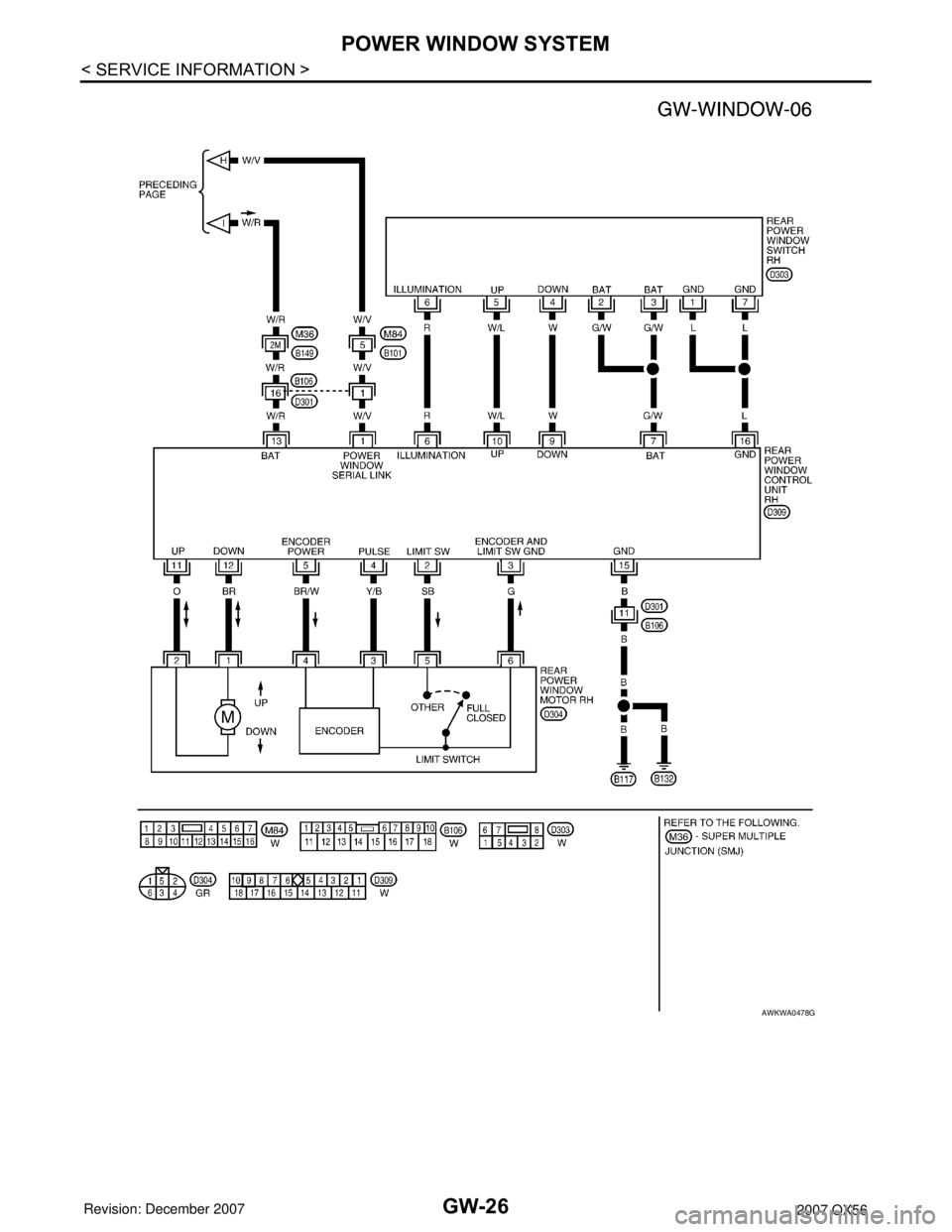

AWKWA0478G
Page 2046 of 3061
POWER WINDOW SYSTEM
GW-27
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
GW
N
O
P

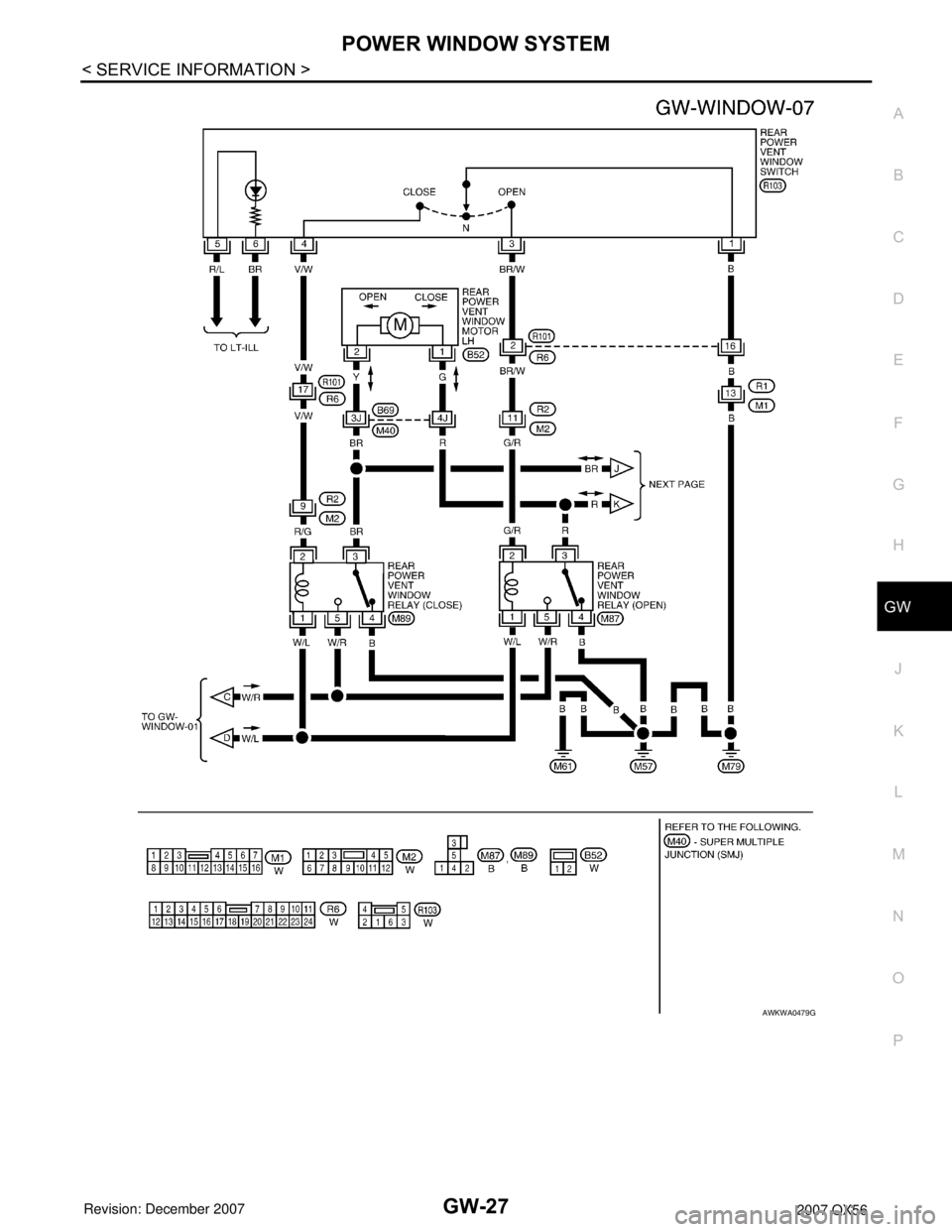

AWKWA0479G
Page 2047 of 3061
GW-28
< SERVICE INFORMATION >
POWER WINDOW SYSTEM
Main Power Window and Door Lock/Unlock Switch Harness Connector Terminal Lay-
AWKWA0480G
Page 2048 of 3061

POWER WINDOW SYSTEM
GW-29
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
GW
N
O
P
outINFOID:0000000003533029
Terminal and Reference Value for Main Power Window and Door Lock/Unlock Switch
INFOID:0000000003533030
LIIA2455E
Terminal Wire Color Item ConditionVoltage (V)
(Approx.)
2 W/B Limit switch and encoder ground — 0
4LFront door key cylinder switch LH
lock signalKey position
(Neutral → Unlocked)5 → 0
6RFront door key cylinder LH switch
unlock signalKey position
(Neutral → Locked)5 → 0
8G/RFront power window motor LH UP
signalWhen power window motor is op-
erated UP Battery voltage
9 O Limit switch signalFront power window LH is be-
tween fully-open and just before
fully-closed position (ON)0
Front power window LH is be-
tween just before fully-closed po-
sition and fully-closed position
(OFF)5
10 W/L RAP signalWhen ignition switch ON Battery voltage
Within 45 seconds after ignition
switch is turned to OFFBattery voltage
More than 45 seconds after igni-
tion switch is turned to OFF0
When front door LH or RH open
or power window timer operates0
11 G / WFront power window motor LH
DOWN signalWhen power window motor is op-
erated DOWN Battery voltage
13 G/Y Encoder pulse signalWhen power window motor oper-
ates
14 LG/W Power window serial linkWhen ignition switch ON or power
window timer operates
OCC3383D
PIIA2344J
