INFINITI QX56 2007 Factory Service Manual EC-574
< SERVICE INFORMATION >
DTC P2135 TP SENSOR
DTC P2135 TP SENSOR
Component DescriptionINFOID:0000000003532125
Electric throttle control actuator consists of throttle control motor,
throttle posi

EC-574
< SERVICE INFORMATION >
DTC P2135 TP SENSOR
DTC P2135 TP SENSOR
Component DescriptionINFOID:0000000003532125
Electric throttle control actuator consists of throttle control motor,
throttle position sensor, etc. The throttle position sensor responds to
the throttle valve movement.
The throttle position sensor has the two sensors. These sensors are
a kind of potentiometers which transform the throttle valve position
into output voltage, and emit the voltage signal to the ECM. In addi-
tion, these sensors detect the opening and closing speed of the
throttle valve and feed the voltage signals to the ECM. The ECM
judges the current opening angle of the throttle valve from these sig-
nals and the ECM controls the throttle control motor to make the
throttle valve opening angle properly in response to driving condi-
tion.
CONSULT-II Reference Value in Data Monitor ModeINFOID:0000000003532126
Specification data are reference values.
*: Throttle position sensor 2 signal is converted by ECM internally. Thus, it differs from ECM terminal voltage signal.
On Board Diagnosis LogicINFOID:0000000003532127
This self-diagnosis has the one trip detection logic.
FA I L - S A F E M O D E
When the malfunction is detected, the ECM enters fail-safe mode and the MIL lights up.
DTC Confirmation ProcedureINFOID:0000000003532128
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 8V at idle.
WITH CONSULT-II
1. Turn ignition switch ON.
PBIB0145E
MONITOR ITEM CONDITION SPECIFICATION
THRTL SEN 1
THRTL SEN 2*• Ignition switch: ON
(Engine stopped)
• Selector lever: DAccelerator pedal: Fully released More than 0.36V
Accelerator pedal: Fully depressed Less than 4.75V
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P2135
2135Throttle position sensor
circuit range/performanceRationally incorrect voltage is sent to ECM
compared with the signals from TP sensor 1
and TP sensor 2.• Harness or connector
(TP sensor 1 and 2 circuit is open or
shorted.)
(APP sensor 2 circuit is shorted.)
• Electric throttle control actuator
(TP sensor 1 and 2)
• Accelerator pedal position sensor
(APP sensor 2)
Engine operation condition in fail-safe mode
The ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle position to be within +10
degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal condition.
So, the acceleration will be poor.

Page 1658 of 3061

INFINITI QX56 2007 Factory Service Manual DTC P2135 TP SENSOR
EC-575
< SERVICE INFORMATION >
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for 1 second.
4. If DTC is detecte

Page 1659 of 3061

INFINITI QX56 2007 Factory Service Manual EC-576
< SERVICE INFORMATION >
DTC P2135 TP SENSOR

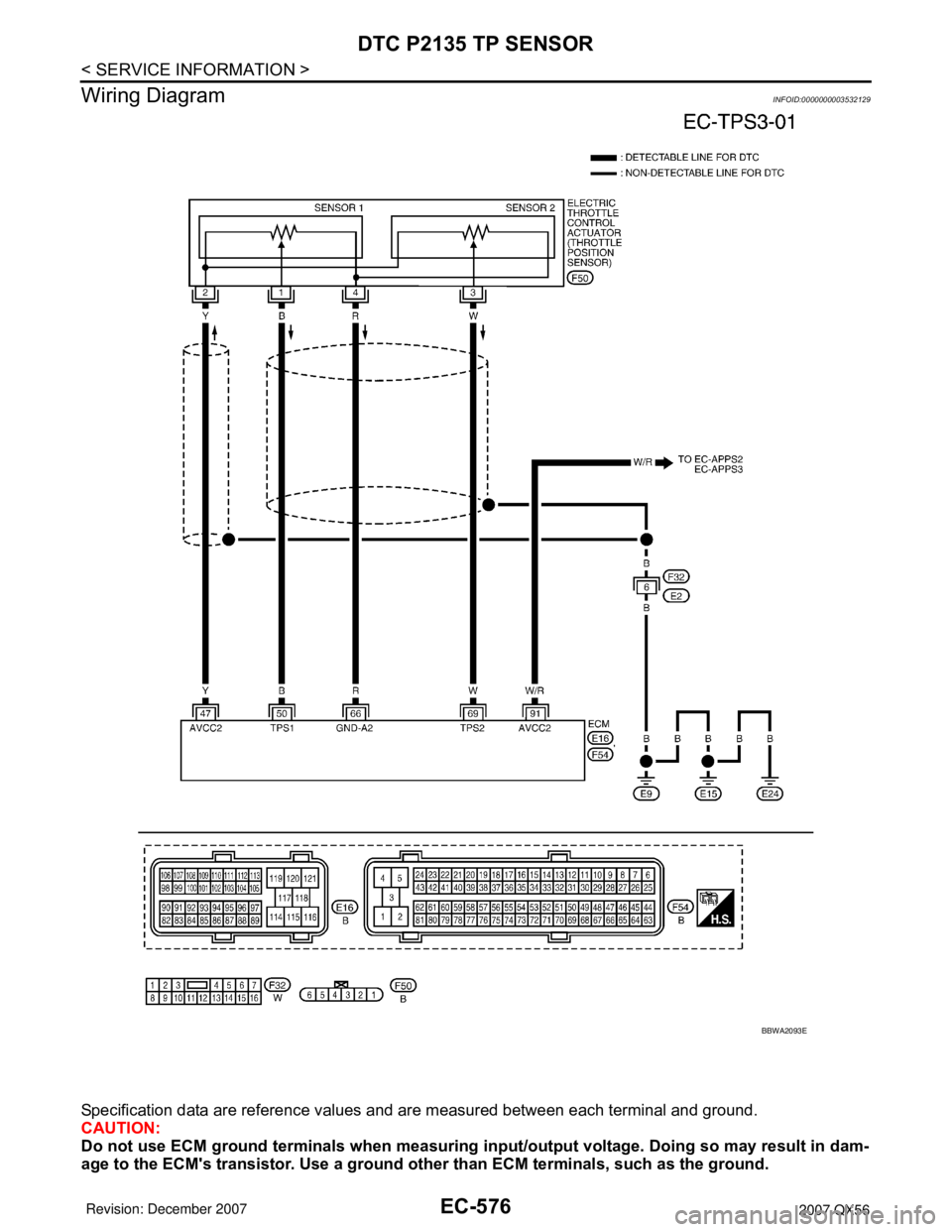

Wiring Diagram
INFOID:0000000003532129
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use

Page 1660 of 3061

INFINITI QX56 2007 Factory Service Manual DTC P2135 TP SENSOR
EC-577
< SERVICE INFORMATION >
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
Diagnosis ProcedureINFOID:0000000003532130
1.CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and reti

Page 1661 of 3061

INFINITI QX56 2007 Factory Service Manual EC-578
< SERVICE INFORMATION >
DTC P2135 TP SENSOR
1. Disconnect electric throttle control actuator (1) harness connec-
tor.
- Illustration shows the view with intake air duct removed.
2. Turn ignitio

Page 1662 of 3061

INFINITI QX56 2007 Factory Service Manual DTC P2135 TP SENSOR
EC-579
< SERVICE INFORMATION >
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
>>INSPECTION END
7.CHECK THROTTLE POSITION SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. D

Page 1663 of 3061

INFINITI QX56 2007 Factory Service Manual EC-580
< SERVICE INFORMATION >
DTC P2135 TP SENSOR
5. Check voltage between ECM terminals 50 (TP sensor 1 signal),
69 (TP sensor 2 signal) and ground under the following condi-
tions.
6. If NG, replac

Page 1664 of 3061

INFINITI QX56 2007 Factory Service Manual DTC P2138 APP SENSOR
EC-581
< SERVICE INFORMATION >
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
DTC P2138 APP SENSOR
Component DescriptionINFOID:0000000003532133
The accelerator pedal position sensor is installed

DTC P2138 APP SENSOR
EC-581
< SERVICE INFORMATION >
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
DTC P2138 APP SENSOR
Component DescriptionINFOID:0000000003532133
The accelerator pedal position sensor is installed on the upper end
of the accelerator pedal assembly. The sensor detects the accelera-
tor position and sends a signal to the ECM.
Accelerator pedal position sensor has two sensors. These sensors
are a kind of potentiometers which transform the accelerator pedal
position into output voltage, and emit the voltage signal to the ECM.
In addition, these sensors detect the opening and closing speed of
the accelerator pedal and feed the voltage signals to the ECM. The
ECM judges the current opening angle of the accelerator pedal from
these signals and controls the throttle control motor based on these
signals.
Idle position of the accelerator pedal is determined by the ECM
receiving the signal from the accelerator pedal position sensor. The ECM uses this signal for the engine oper-
ation such as fuel cut.
CONSULT-II Reference Value in Data Monitor ModeINFOID:0000000003532134
Specification data are reference values.
*: Accelerator pedal position sensor 2 signal is converted by ECM internally. Thus, it differ from ECM terminal voltage.
On Board Diagnosis LogicINFOID:0000000003532135
This self-diagnosis has the one trip detection logic.
NOTE:
If DTC P2138 is displayed with DTC P0643, first perform the trouble diagnosis for DTC P0643. Refer to
EC-447
.
FA I L - S A F E M O D E
When the malfunction is detected, ECM enters fail-safe mode and the MIL lights up.
PBIB1741E
MONITOR ITEM CONDITION SPECIFICATION
ACCEL SEN 1• Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released 0.5 - 1.0V
Accelerator pedal: Fully depressed 4.2 - 4.8V
ACCEL SEN 2*• Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released 0.5 - 1.0V
Accelerator pedal: Fully depressed 4.2 - 4.8V
CLSD THL POS• Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released ON
Accelerator pedal: Slightly depressed OFF
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P2138
2138Accelerator pedal position
sensor circuit range/per-
formanceRationally incorrect voltage is sent to ECM
compared with the signals from APP sensor 1
and APP sensor 2.• Harness or connector
(APP sensor 1 and 2 circuit is open or
shorted.)
(TP sensor circuit is shorted.)
• Accelerator pedal position sensor 1 and 2
• Electric throttle control actuator
(TP sensor)
Engine operating condition in fail-safe mode
The ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle position to be within +10
degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal condition.
So, the acceleration will be poor.
