Page 2233 of 3061

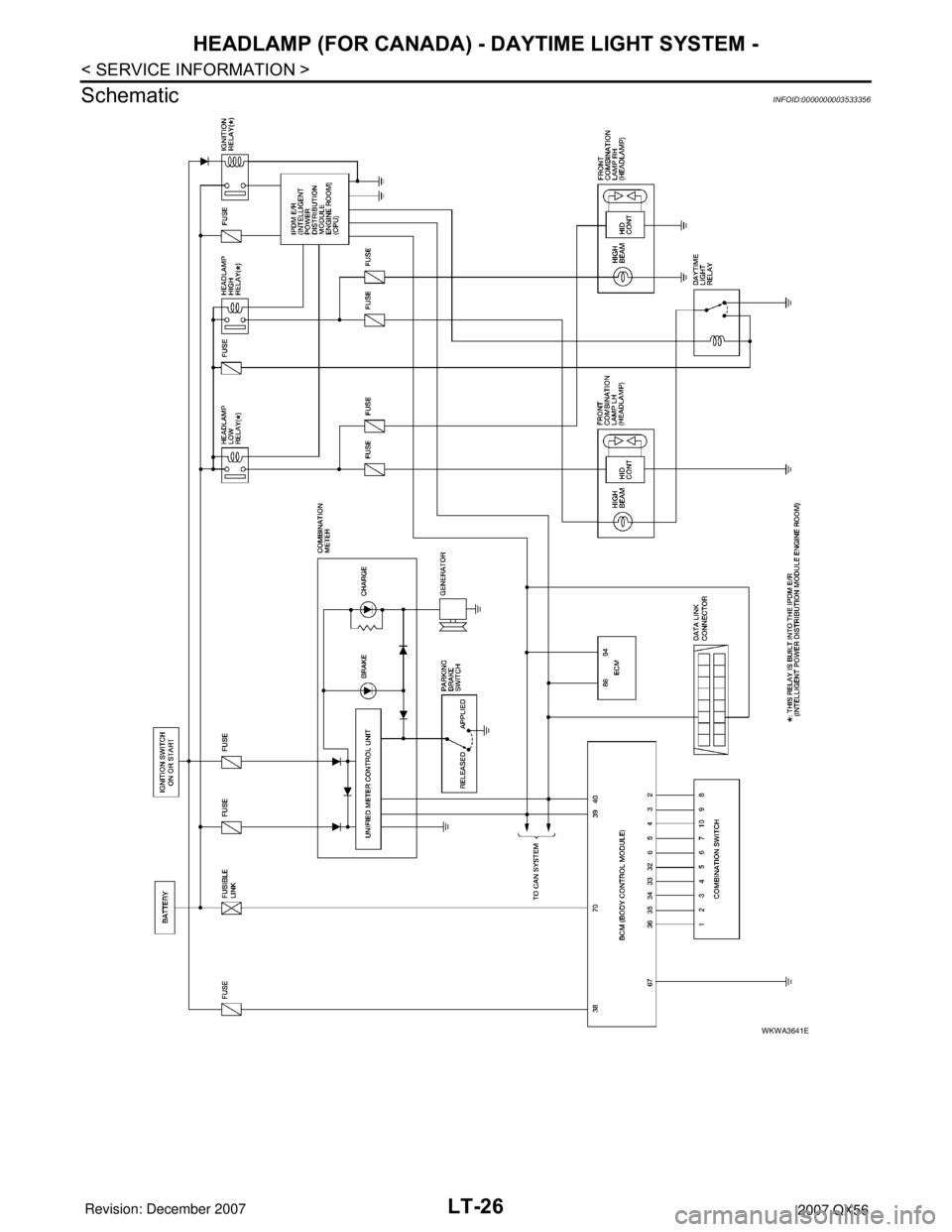

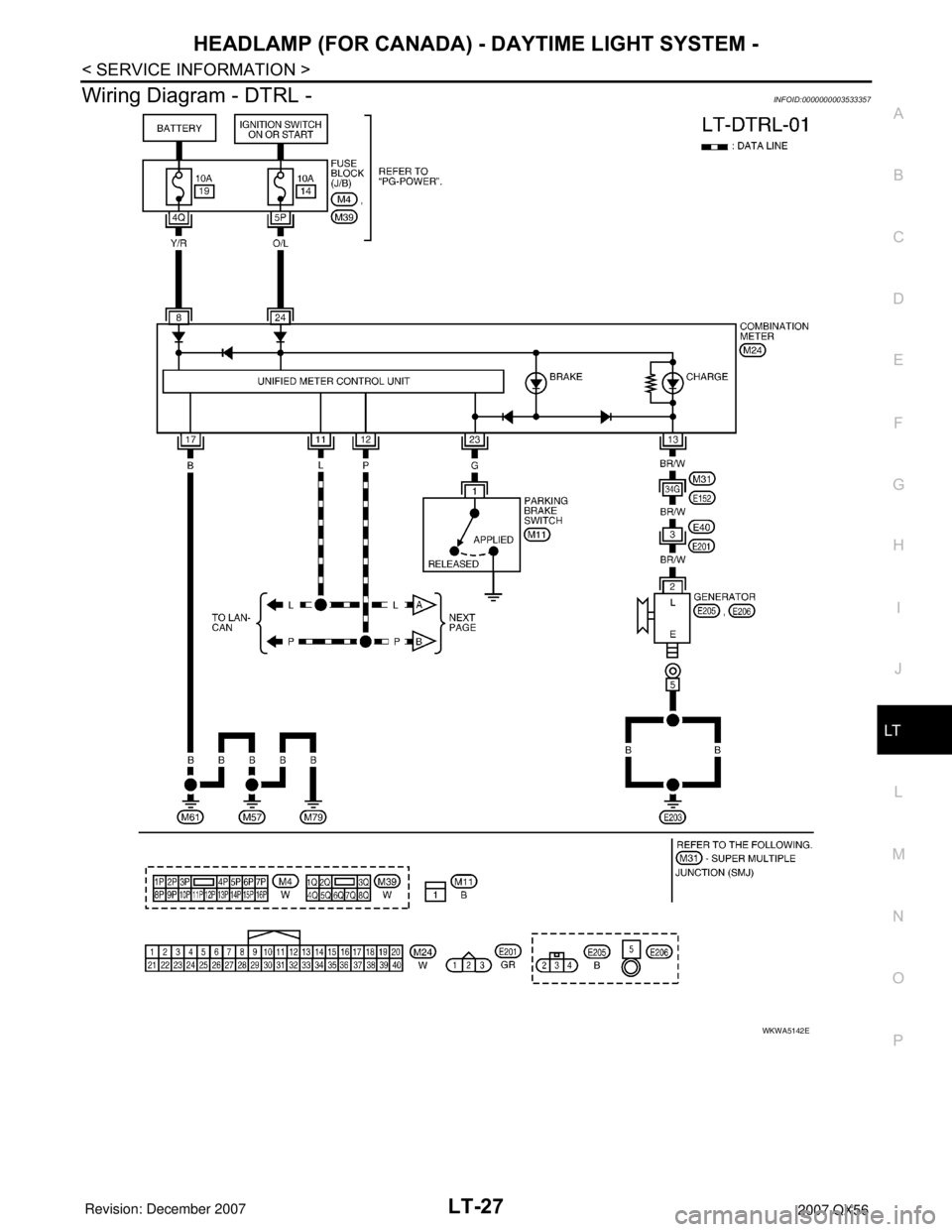

INFINITI QX56 2007 Factory Service Manual LT-26 < SERVICE INFORMATION > HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM - Schematic INFOID:0000000003533356 WKWA3641E

Page 2234 of 3061

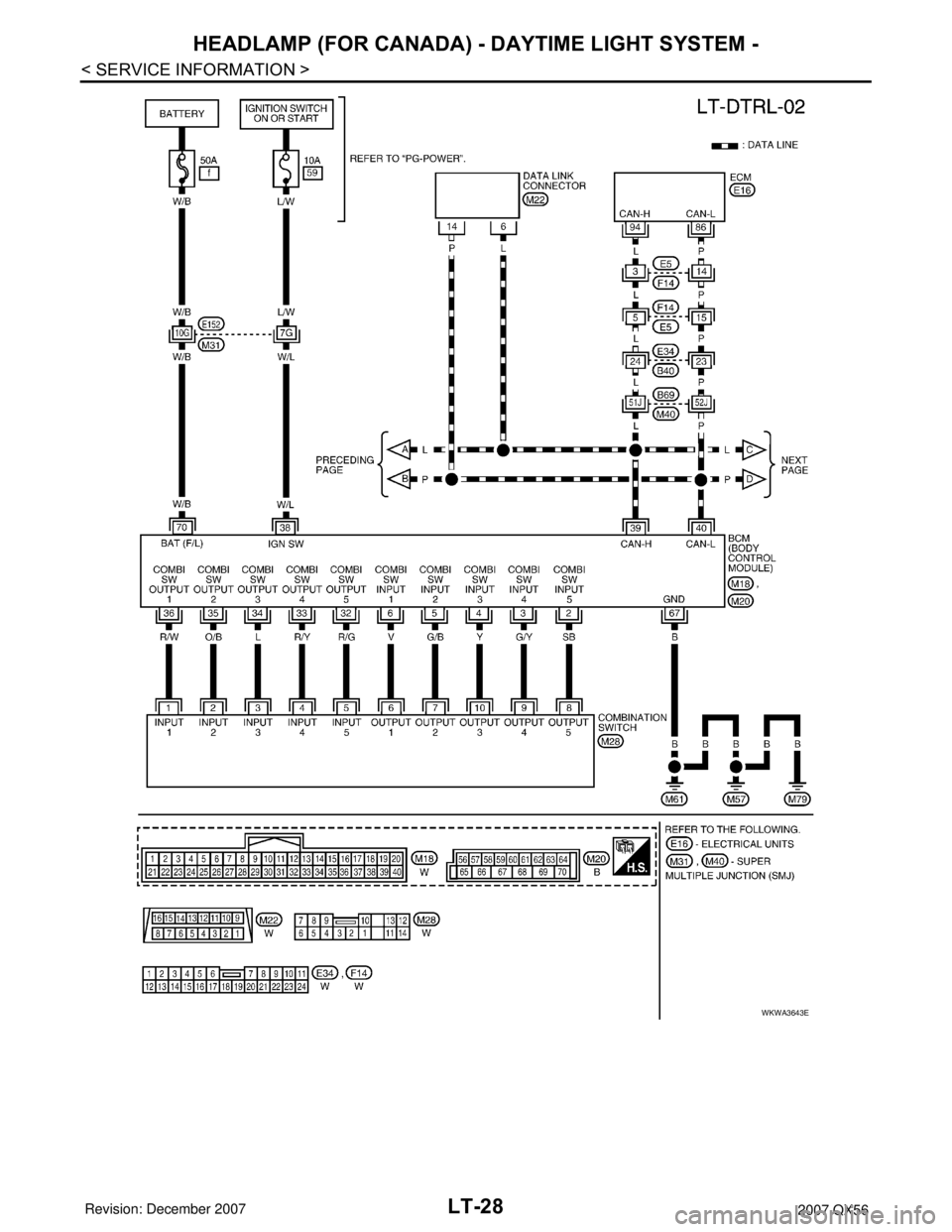

INFINITI QX56 2007 Factory Service Manual HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM - LT-27 < SERVICE INFORMATION > C D E F G H I J L MA B LT N O P Wiring Diagram - DTRL -INFOID:0000000003533357 WKWA5142E

Page 2235 of 3061

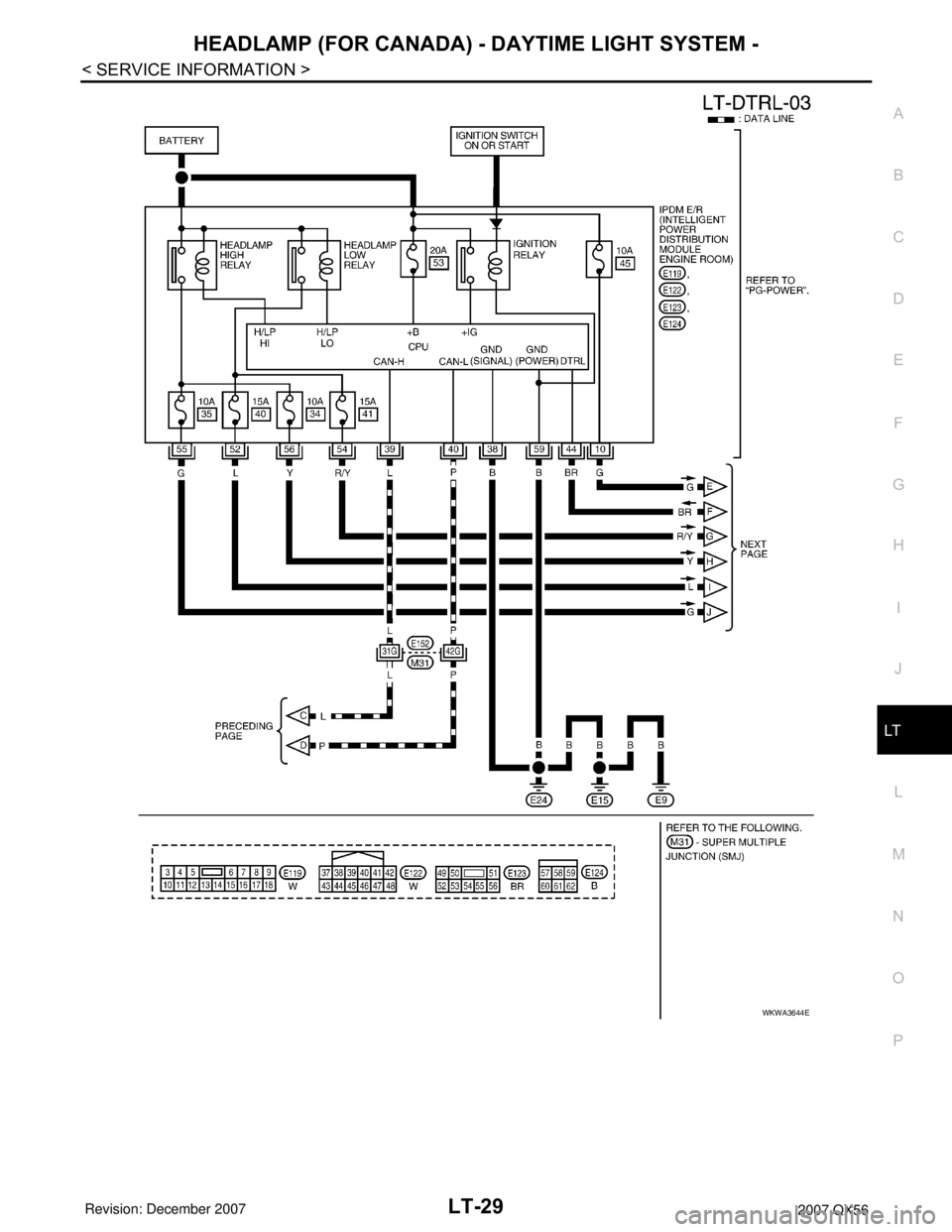

INFINITI QX56 2007 Factory Service Manual LT-28 < SERVICE INFORMATION > HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM - WKWA3643E

Page 2236 of 3061

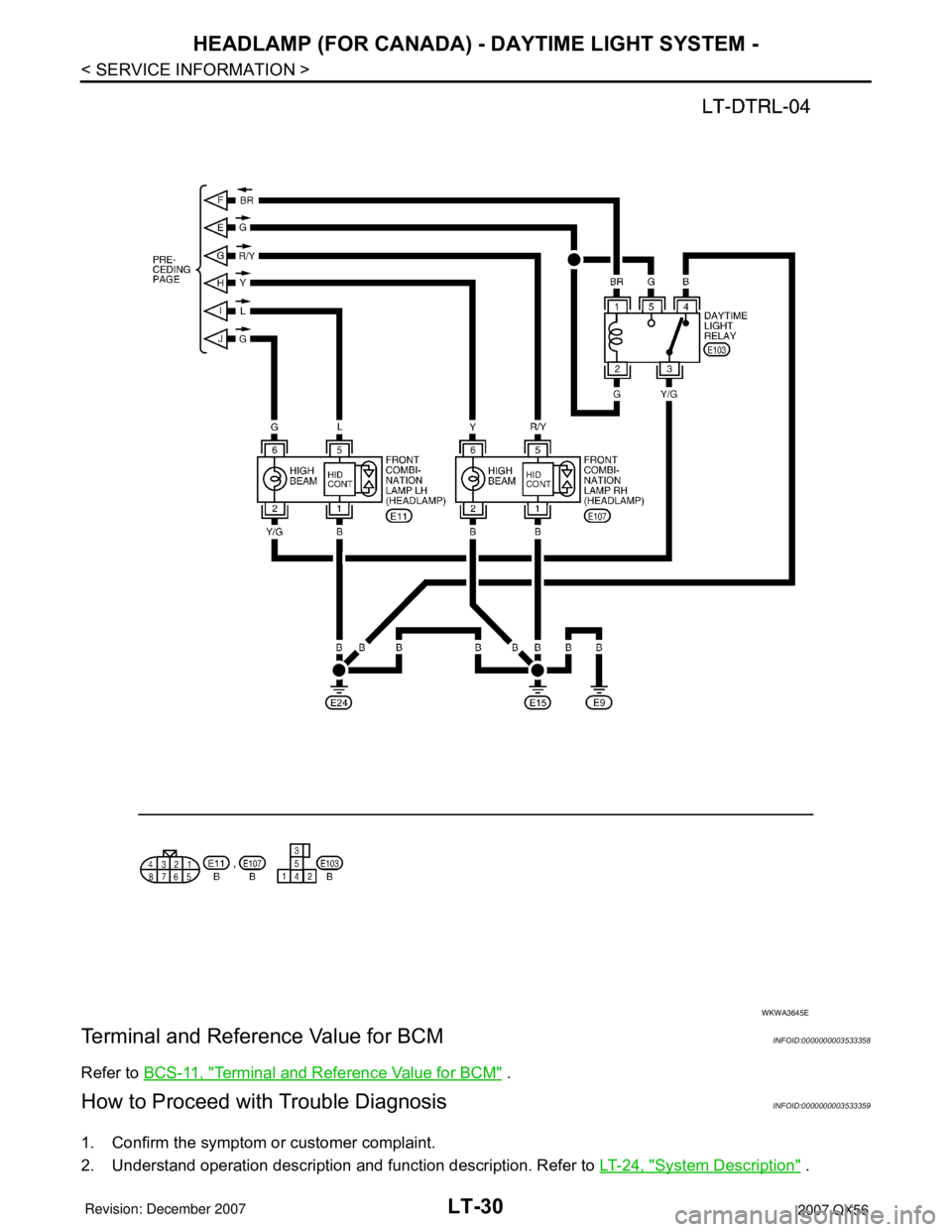

INFINITI QX56 2007 Factory Service Manual HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM - LT-29 < SERVICE INFORMATION > C D E F G H I J L MA B LT N O P WKWA3644E

Page 2237 of 3061

INFINITI QX56 2007 Factory Service Manual LT-30 < SERVICE INFORMATION > HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM - Terminal and Reference Value for BCM INFOID:0000000003533358 Refer to BCS-11, "Terminal and Reference Value for BCM" . How

Page 2238 of 3061

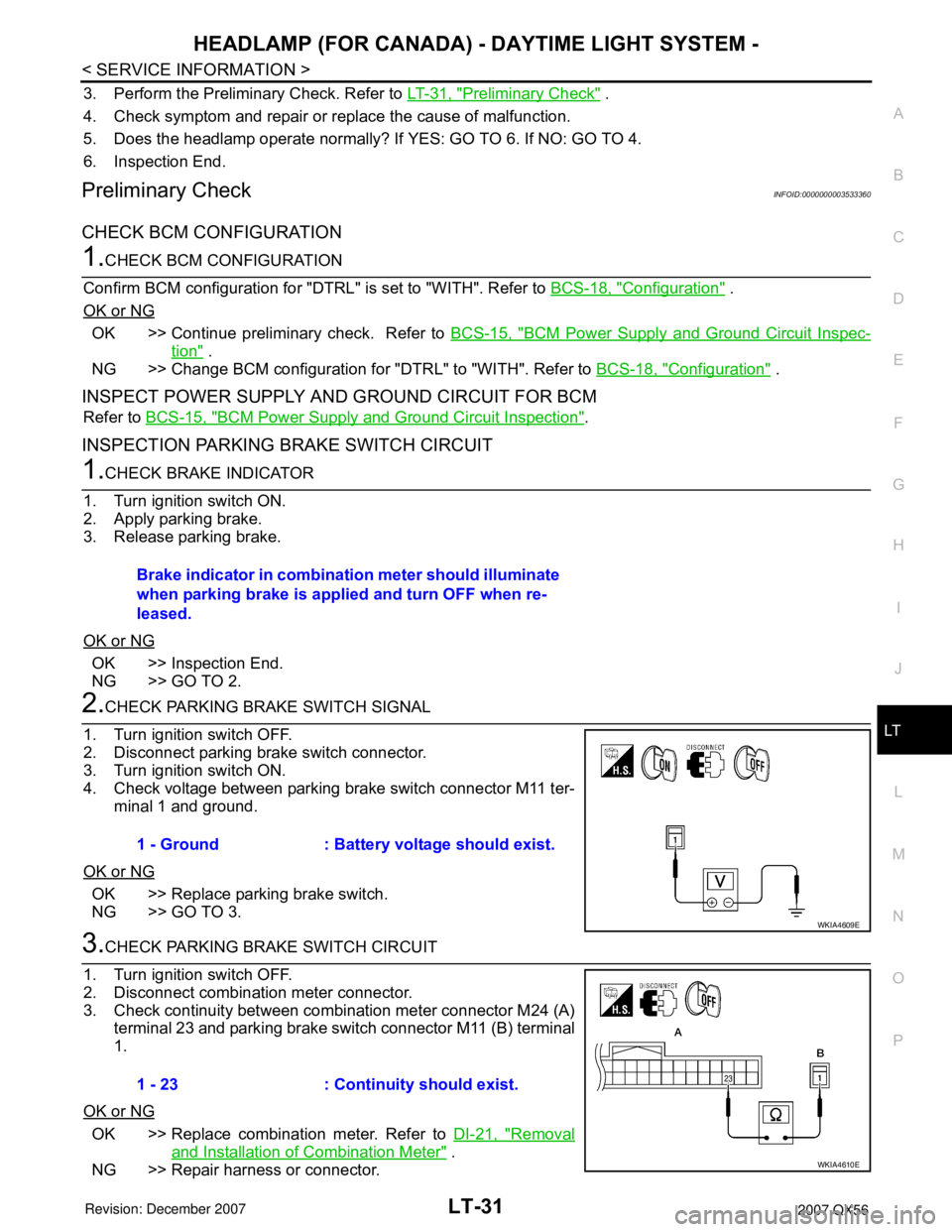

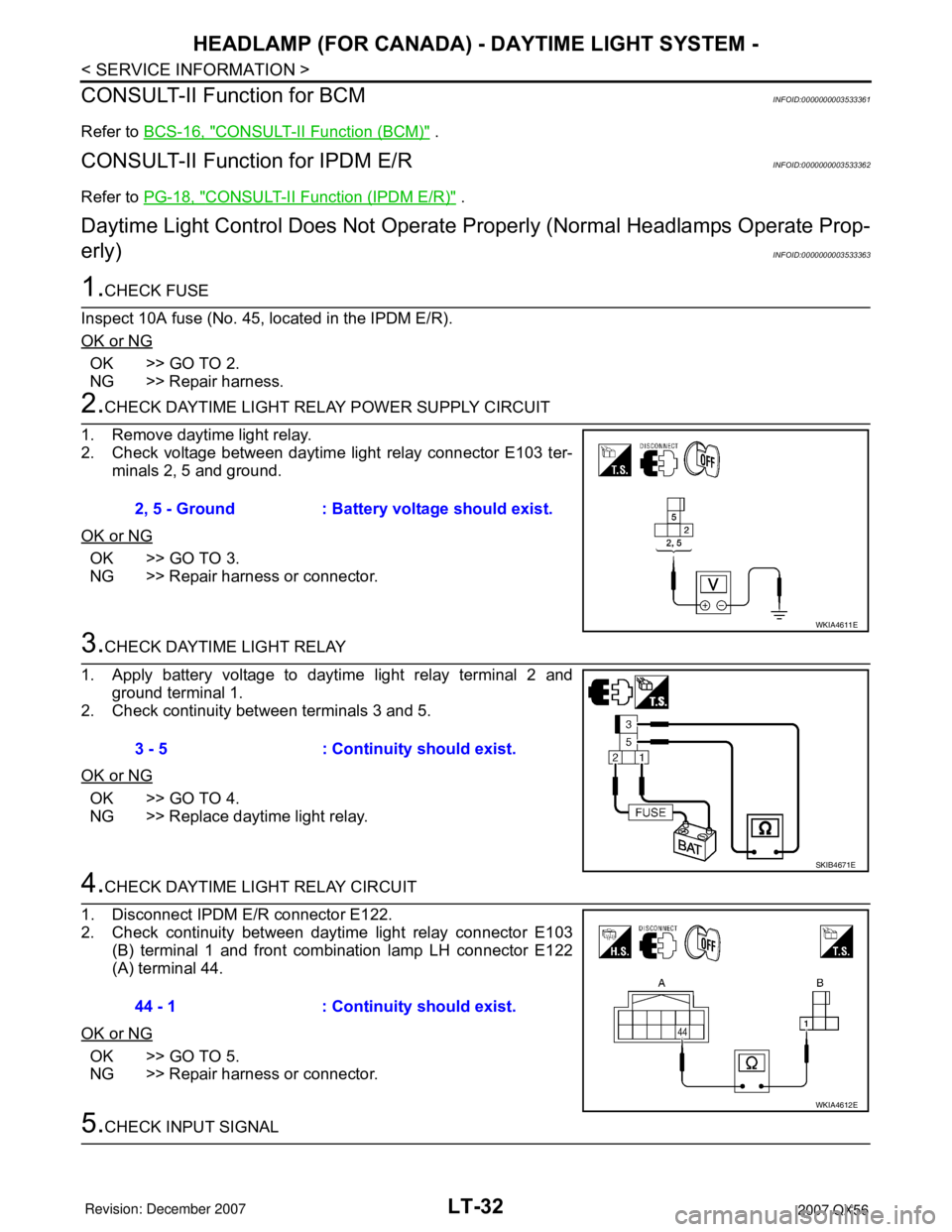

INFINITI QX56 2007 Factory Service Manual HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM - LT-31 < SERVICE INFORMATION > C D E F G H I J L MA B LT N O P 3. Perform the Preliminary Check. Refer to LT-31, "Preliminary Check" . 4. Check symptom an

Page 2239 of 3061

INFINITI QX56 2007 Factory Service Manual LT-32 < SERVICE INFORMATION > HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM - CONSULT-II Function for BCM INFOID:0000000003533361 Refer to BCS-16, "CONSULT-II Function (BCM)" . CONSULT-II Function for

Page 2240 of 3061

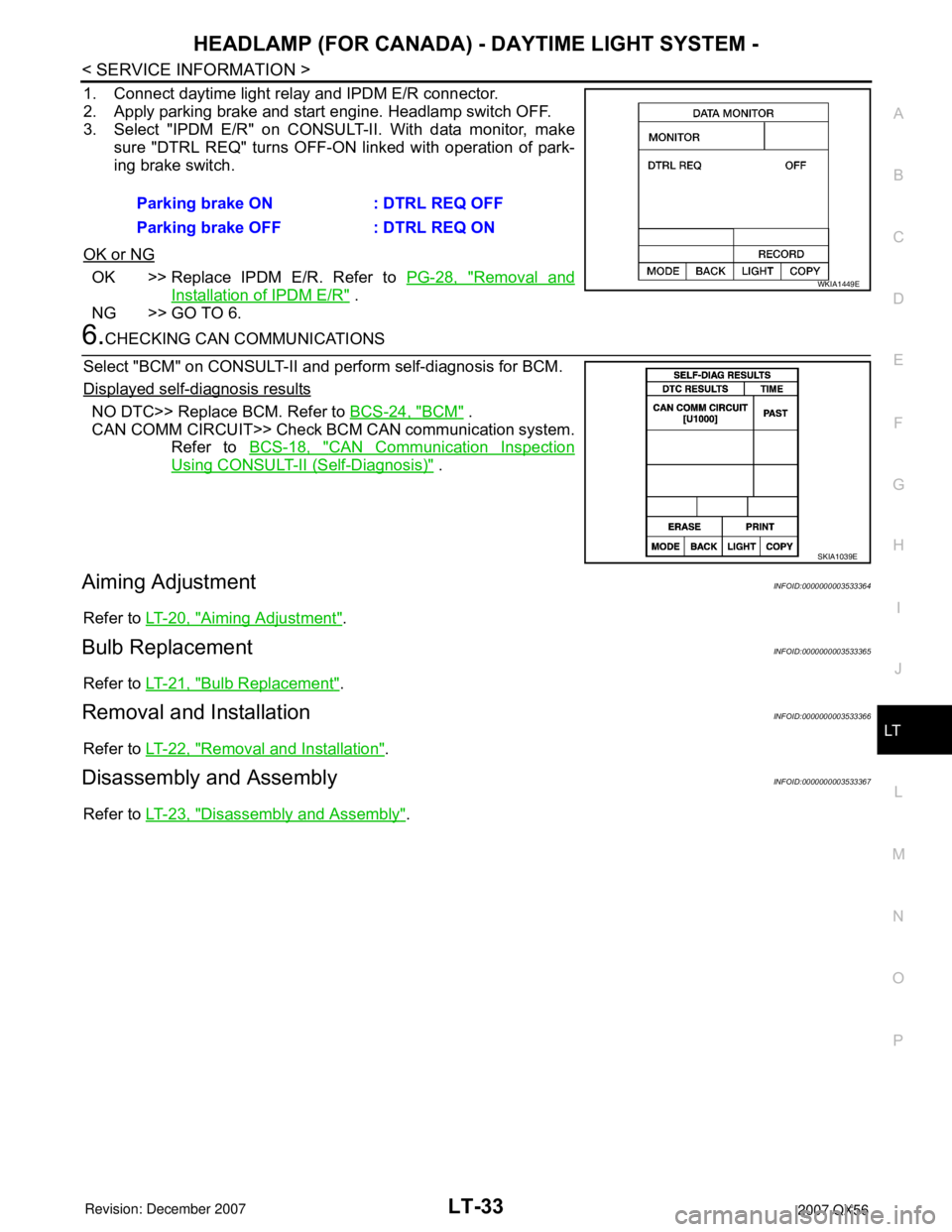

INFINITI QX56 2007 Factory Service Manual HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM - LT-33 < SERVICE INFORMATION > C D E F G H I J L MA B LT N O P 1. Connect daytime light relay and IPDM E/R connector. 2. Apply parking brake and start eng
