Page 1745 of 3061
EI-16
< SERVICE INFORMATION >
FRONT GRILLE
FRONT GRILLE
Removal and InstallationINFOID:0000000003533124
REMOVAL
1. Remove bolts and nuts attaching grille.
2. Remove grille.
INSTALLATION
Installation is in the reverse order of removal.
1. Front grille 2. J-Clip 3. Clip C101
WIIA0954E
Page 1746 of 3061

COWL TOP
EI-17
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
EI
N
O
P
COWL TOP
Removal and InstallationINFOID:0000000003533125
REMOVAL
1. Disconnect the negative and positive battery cables, then wait at least 3 minutes.
2. Remove right and left wiper arms. Refer to WW-21, "
Front Wiper Arms" .
3. Remove cowl top seal.
• Release plastics clips on cowl top seal which go through cowl tops LH and RH and cowl top extension.
4. Remove cowl top covers LH and RH.
• Release plastic clips under cowl top covers attaching to grommets on hoodledge.
• Disconnect washer tubes from washer nozzles under cowl top covers.
5. Remove cowl top extension brackets LH and RH.
• Disconnect wiper motor harness from cowl top extension bracket LH.
• Cowl top extension bracket LH must be removed prior to removal of wiper motor and connecting rod
assembly.
6. Remove wiper motor and connecting rod linkage. Refer to WW-22, "
Wiper Motor and Linkage" .

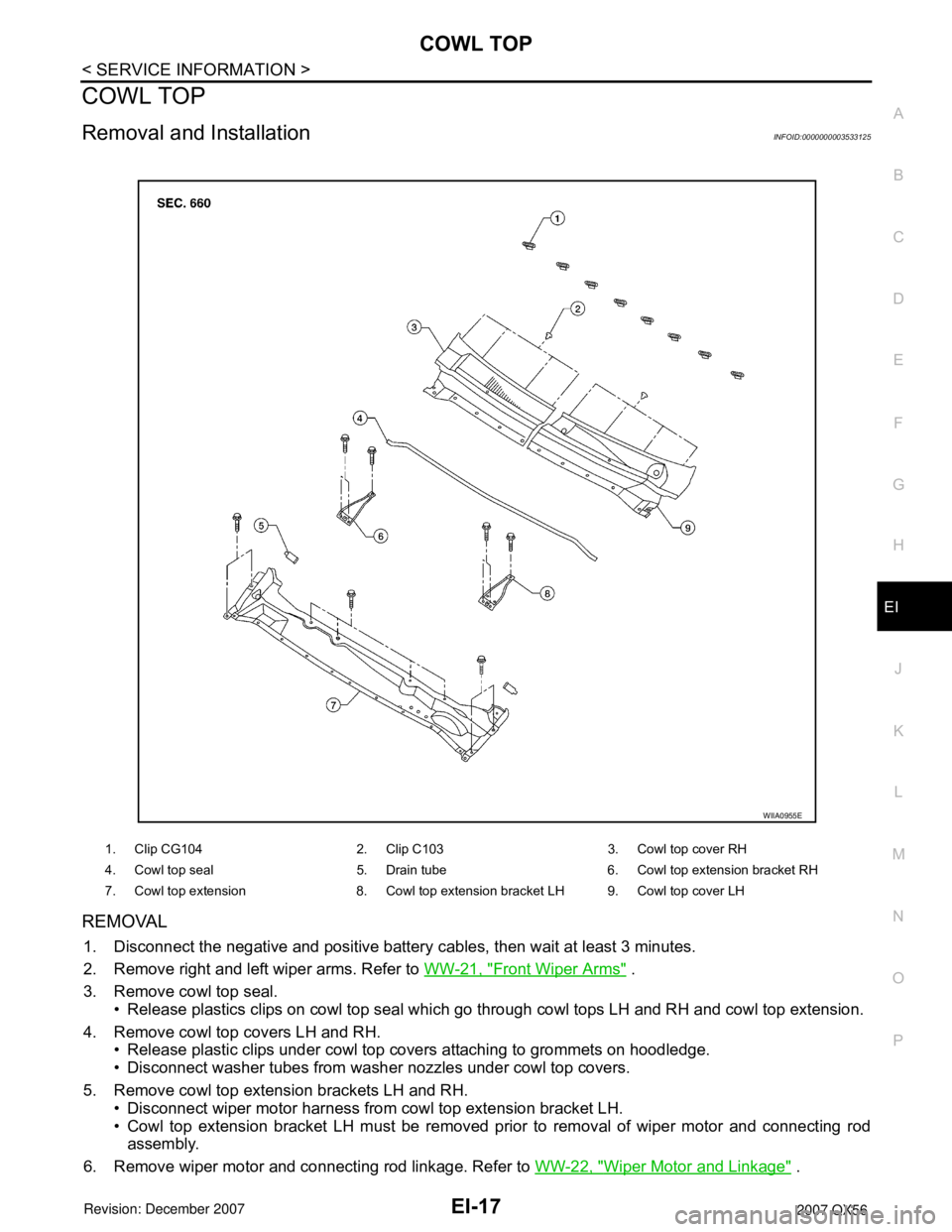

1. Clip CG104 2. Clip C103 3. Cowl top cover RH
4. Cowl top seal 5. Drain tube 6. Cowl top extension bracket RH
7. Cowl top extension 8. Cowl top extension bracket LH 9. Cowl top cover LH
WIIA0955E
Page 1747 of 3061
EI-18
< SERVICE INFORMATION >
COWL TOP
7. Disconnect windshield washer tube. Refer to WW-23, "Washer Tube Layout" .
8. Remove water cut valve bracket from cowl top extension. Refer to CO-20
.
9. Remove A/C line bracket from cowl top extension. Refer to ATC-150
.
10. Remove drain tube from each side of cowl top extension.
11. Remove cowl top extension.
INSTALLATION
Installation is in the reverse order of removal.
Page 1748 of 3061
FRONT FENDER
EI-19
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
EI
N
O
P
FRONT FENDER
Removal and InstallationINFOID:0000000003533126
REMOVAL
1. Remove headlamp assembly. Refer to LT-22, "Removal and Installation" .
2. Remove over fender. Refer to EI-20
.
3. Remove fender protector. Refer to EI-22
.
4. Remove hood stay. Refer to BL-11
.
5. Remove front fender.
INSTALLATION
Installation is in the reverse order of removal.

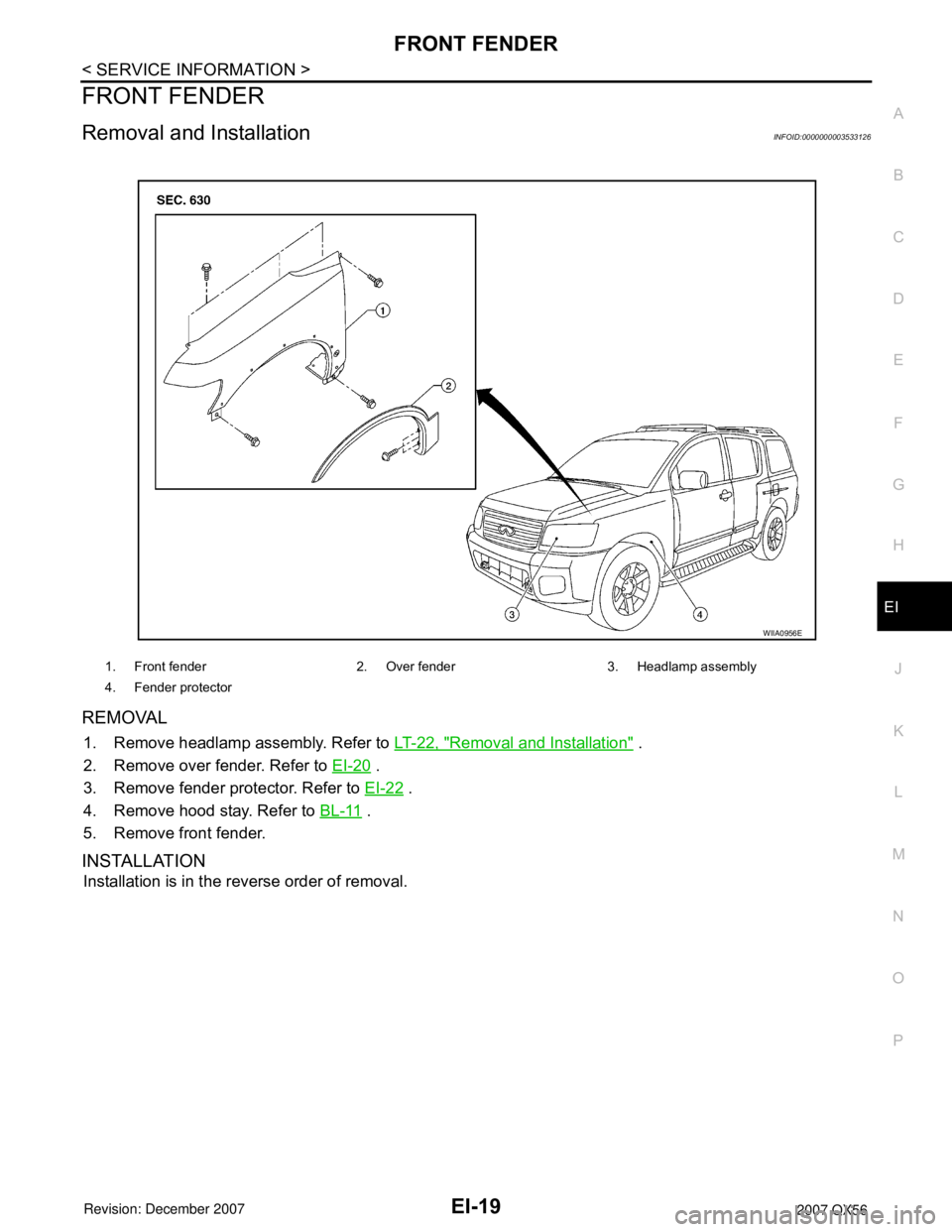

1. Front fender 2. Over fender 3. Headlamp assembly
4. Fender protector
WIIA0956E
Page 1749 of 3061

EI-20
< SERVICE INFORMATION >
OVER FENDER
OVER FENDER
Removal and InstallationINFOID:0000000003533127
REMOVAL
1. Remove screws from front and/or rear over fender.
CAUTION:
Never apply tack-paper adhesive remover to body panel surface finished with lacquer-based paints.
• Original over fenders are affixed to body panel with double-faced adhesive tape.
2. Heat over fender to between 30° and 40°C (86° to 104°F) with a heat gun.
3. Raise end of over fender and cut away tape, release plastic clips and remove over fender. Remove all
traces of tape.
INSTALLATION
• On vehicles coated with Hard Clear Coat, use double-faced 3M adhesive tape Product No, 4210 or equiva-
lent, after priming with 3M primer Product No. N200, C-100 or equivalent.
• The repair parts are also affixed with double-faced adhesive tape.
• To re-use existing over fender, clean all traces of double-faced tape from the over fender and apply new dou-
ble-faced tape to the over fender.
1. Clean the panel surface with isopropyl alcohol or equivalent to degrease the surface.
2. Heat the panel and double-faced tape surface to 30° to 40°C (86° to 104°F).
3. Remove the backing sheet from the tape surface.
4. Align the plastic clips on the back side of the front and/or rear over fender to the mounting grommets.
5. Press ends by hand and use a roller to apply 5 kg-f (11lbs-f) to press over fender surface to body panel.
CAUTION:
To secure contact, do not wash vehicle for 24 hours after installation.

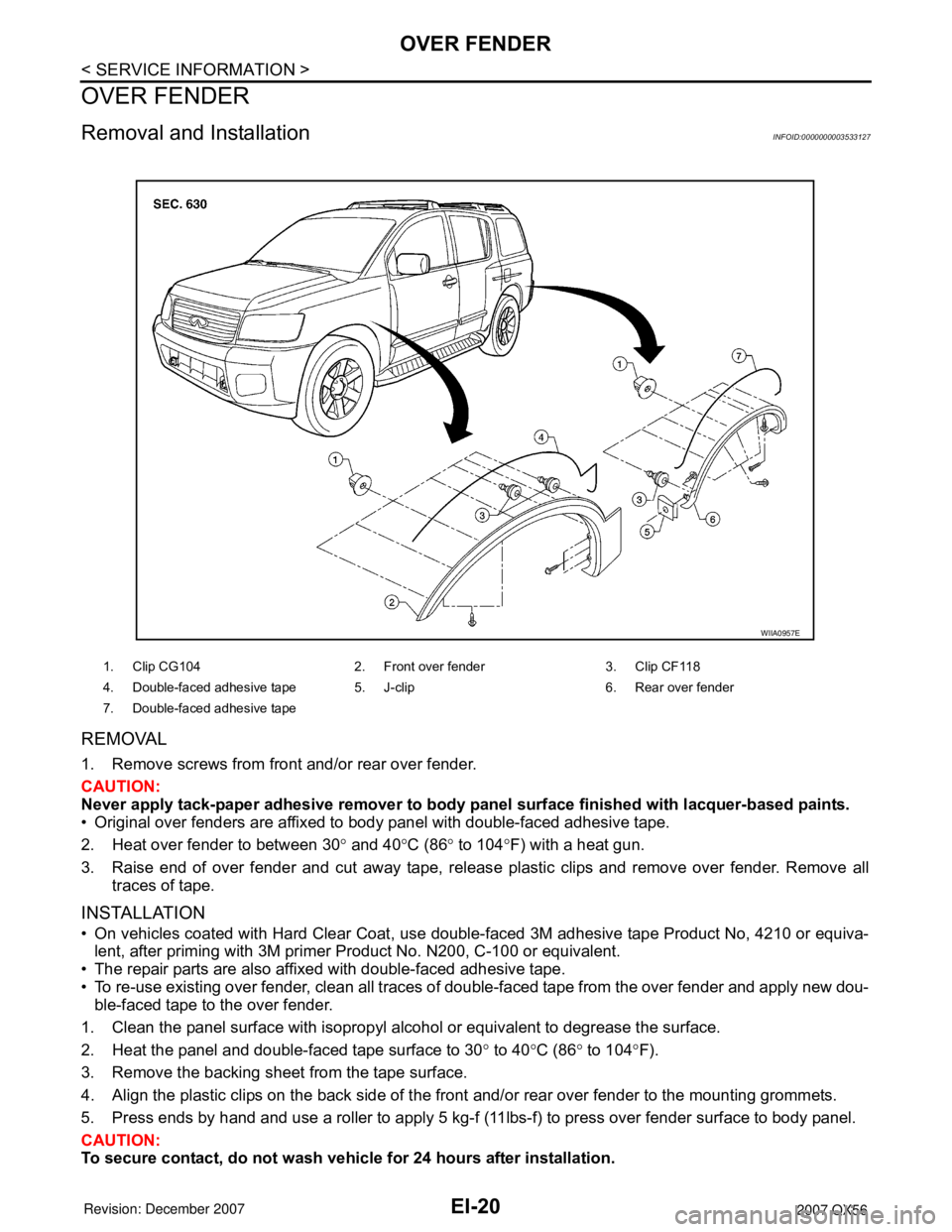

1. Clip CG104 2. Front over fender 3. Clip CF118
4. Double-faced adhesive tape 5. J-clip 6. Rear over fender
7. Double-faced adhesive tape
WIIA0957E
Page 1750 of 3061
OVER FENDER
EI-21
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
EI
N
O
P
6. Install front and/or rear over fender screws.
Page 1751 of 3061
EI-22
< SERVICE INFORMATION >
FENDER PROTECTOR
FENDER PROTECTOR
Removal and InstallationINFOID:0000000003533128
REMOVAL
1. Remove screws.
2. Remove plastic clips.
3. Remove front fender protector.
4. Remove clips from fender protector.
INSTALLATION
Installation is in the reverse order of removal.

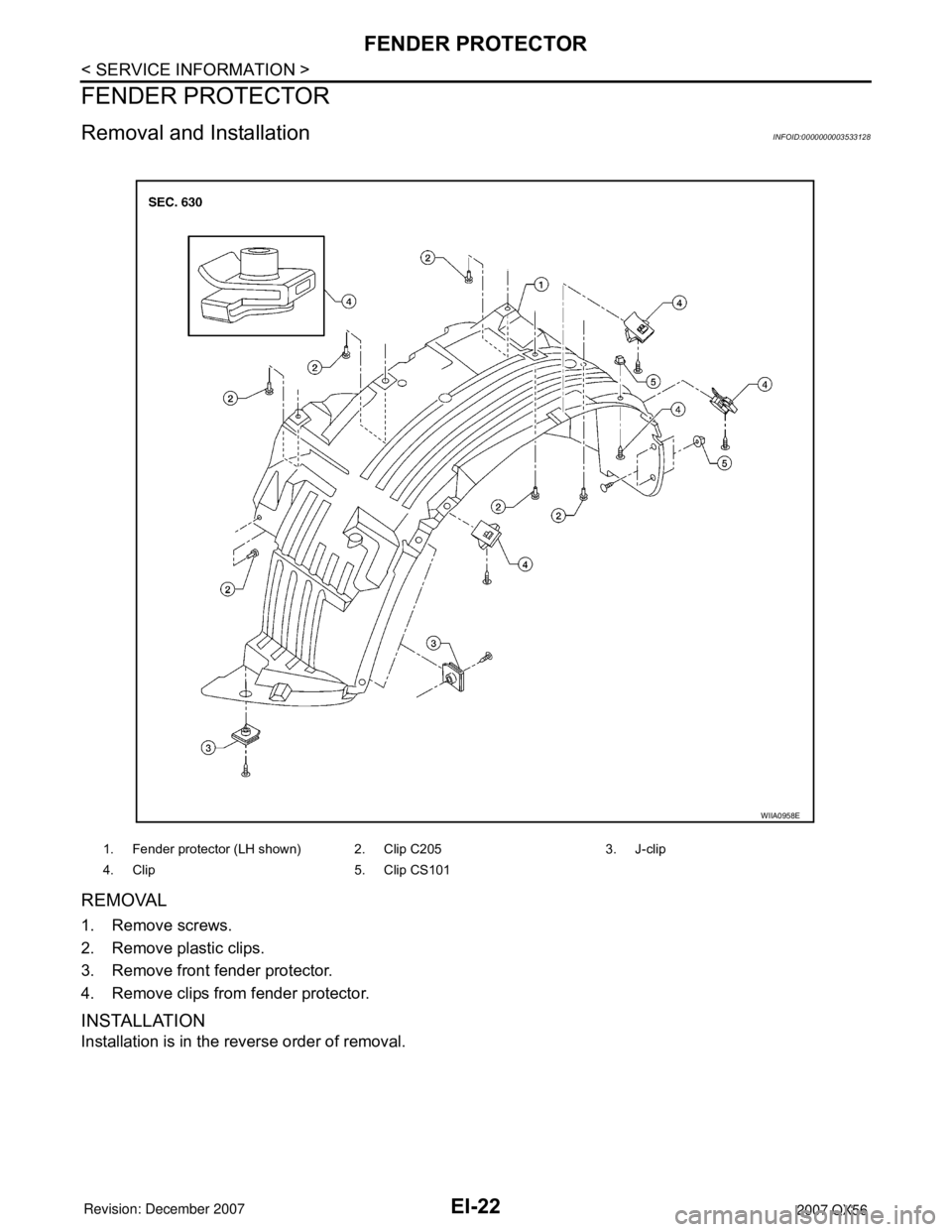

1. Fender protector (LH shown) 2. Clip C205 3. J-clip
4. Clip 5. Clip CS101
WIIA0958E
Page 1752 of 3061
LICENSE LAMP FINISHER
EI-23
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
EI
N
O
P
LICENSE LAMP FINISHER
Removal and InstallationINFOID:0000000003533129
REMOVAL
1. Disconnect the negative and positive battery cables, then wait at least 3 minutes.
2. Remove back door trim. Refer to EI-41
.
3. Disconnect harness connectors and remove with bulbs from license lamps.
4. Remove nuts and screws from license lamp finisher.
5. Release clips and remove license lamp finisher.
INSTALLATION
Installation is in the reverse order of removal.

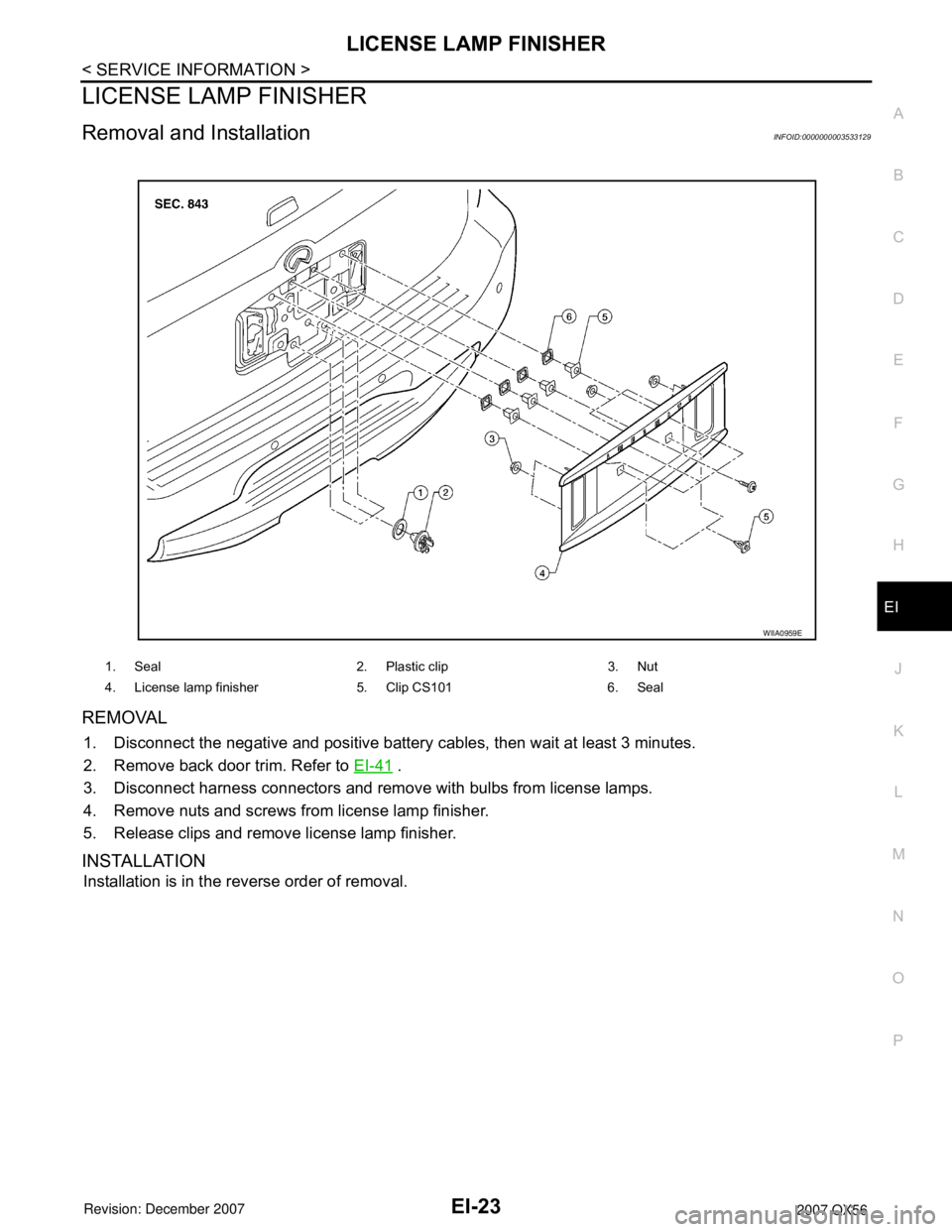

1. Seal 2. Plastic clip 3. Nut
4. License lamp finisher 5. Clip CS101 6. Seal
WIIA0959E
