Page 1177 of 3061

INFINITI QX56 2007 Factory Service Manual EC-94 < SERVICE INFORMATION > TROUBLE DIAGNOSIS Engine Control Component Parts Location INFOID:0000000003531621 1. ECM 2. Battery current sensor 3. Power steering pressure sensor 4. Ignition coil (wit

Page 1178 of 3061

INFINITI QX56 2007 Factory Service Manual TROUBLE DIAGNOSIS EC-95 < SERVICE INFORMATION > C D E F G H I J K L MA EC N P O 1. Body ground (view with battery re- moved)2. Body ground (view with battery re- moved)3. Body ground 4. No. 1 ignition

Page 1179 of 3061

INFINITI QX56 2007 Factory Service Manual EC-96 < SERVICE INFORMATION > TROUBLE DIAGNOSIS 1. EVAP canister purge volume control solenoid valve (view with engine cover removed)2. EVAP service port (view with engine cover removed)3. Cranksha

Page 1180 of 3061

INFINITI QX56 2007 Factory Service Manual TROUBLE DIAGNOSIS EC-97 < SERVICE INFORMATION > C D E F G H I J K L MA EC N P O 13. Intake valve timing control position sensor (bank 1) (view with engine cover and intake air duct removed)14. Intak

Page 1181 of 3061

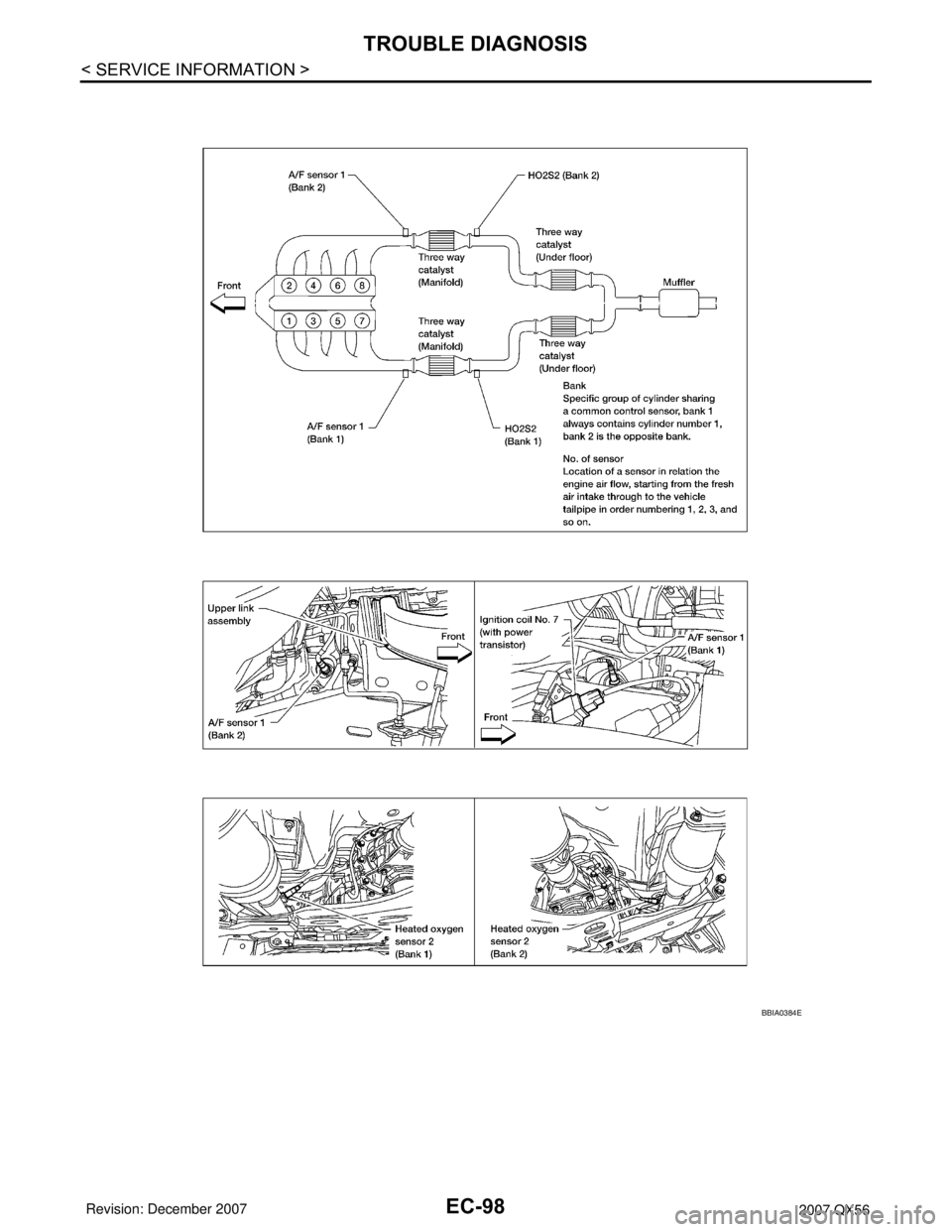

INFINITI QX56 2007 Factory Service Manual EC-98 < SERVICE INFORMATION > TROUBLE DIAGNOSIS BBIA0384E

Page 1182 of 3061

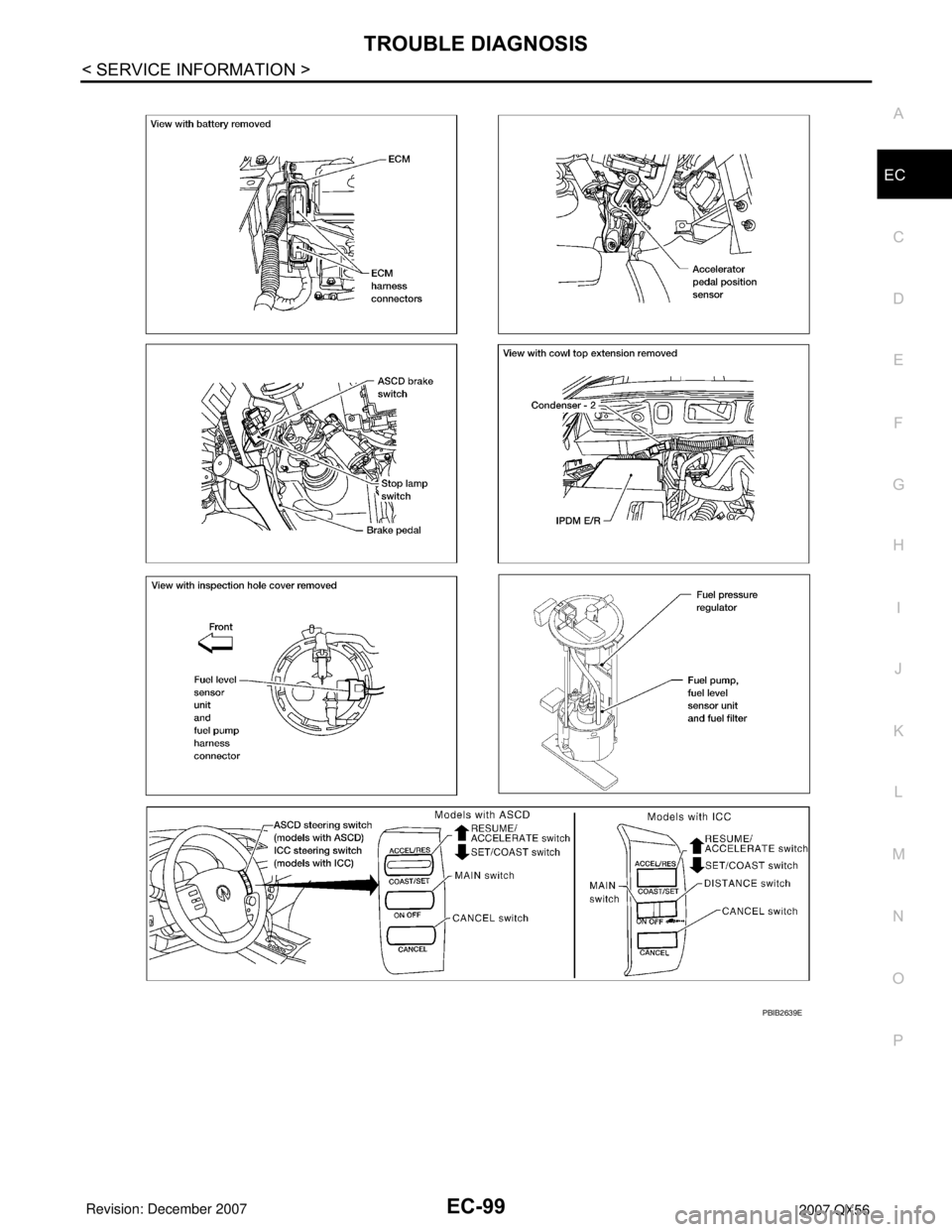

INFINITI QX56 2007 Factory Service Manual TROUBLE DIAGNOSIS EC-99 < SERVICE INFORMATION > C D E F G H I J K L MA EC N P O PBIB2639E

Page 1183 of 3061

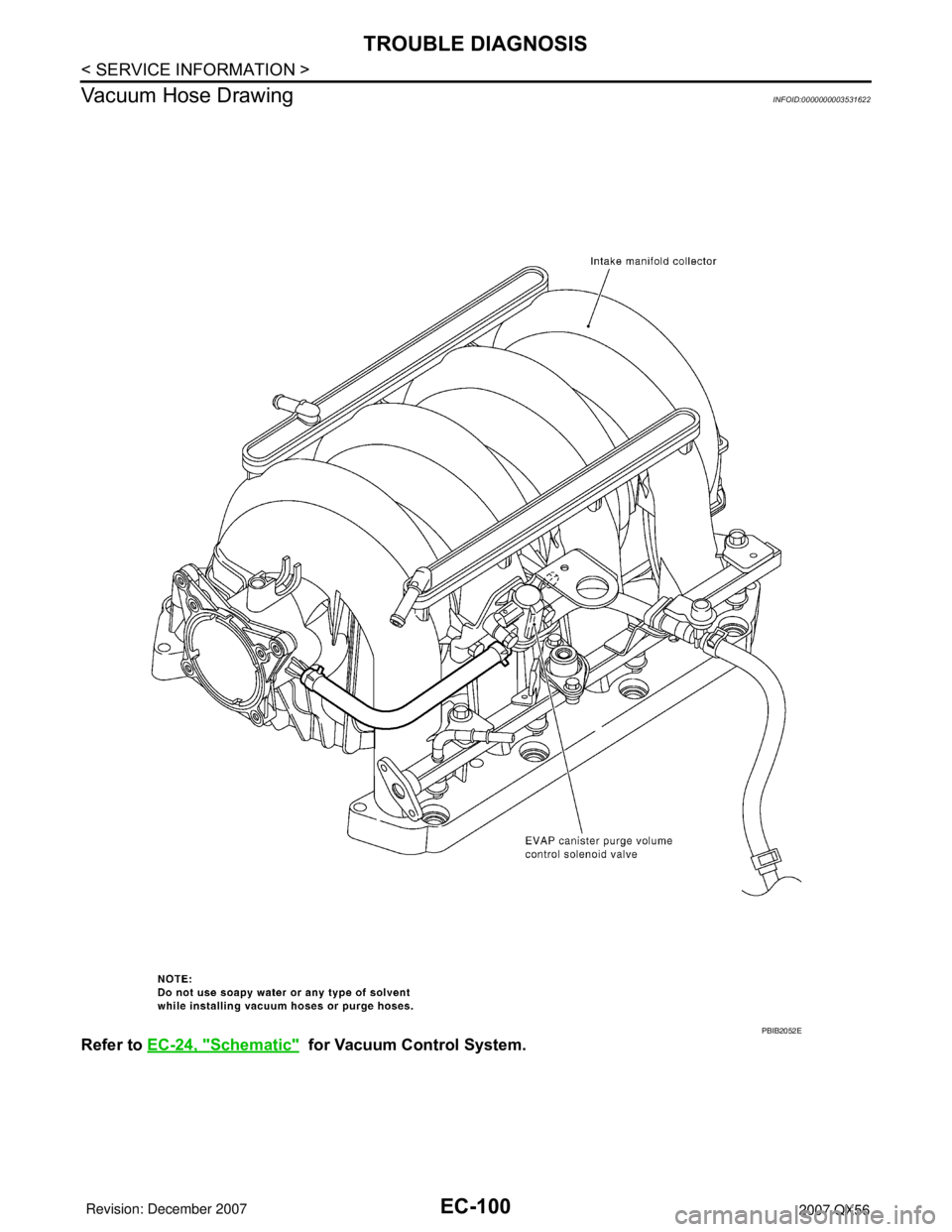

INFINITI QX56 2007 Factory Service Manual EC-100 < SERVICE INFORMATION > TROUBLE DIAGNOSIS Vacuum Hose Drawing INFOID:0000000003531622 Refer to EC-24, "Schematic" for Vacuum Control System. PBIB2052E

Page 1184 of 3061

INFINITI QX56 2007 Factory Service Manual TROUBLE DIAGNOSIS EC-101 < SERVICE INFORMATION > C D E F G H I J K L MA EC N P O Circuit DiagramINFOID:0000000003531623 BBWA2786E
