Page 3033 of 3061

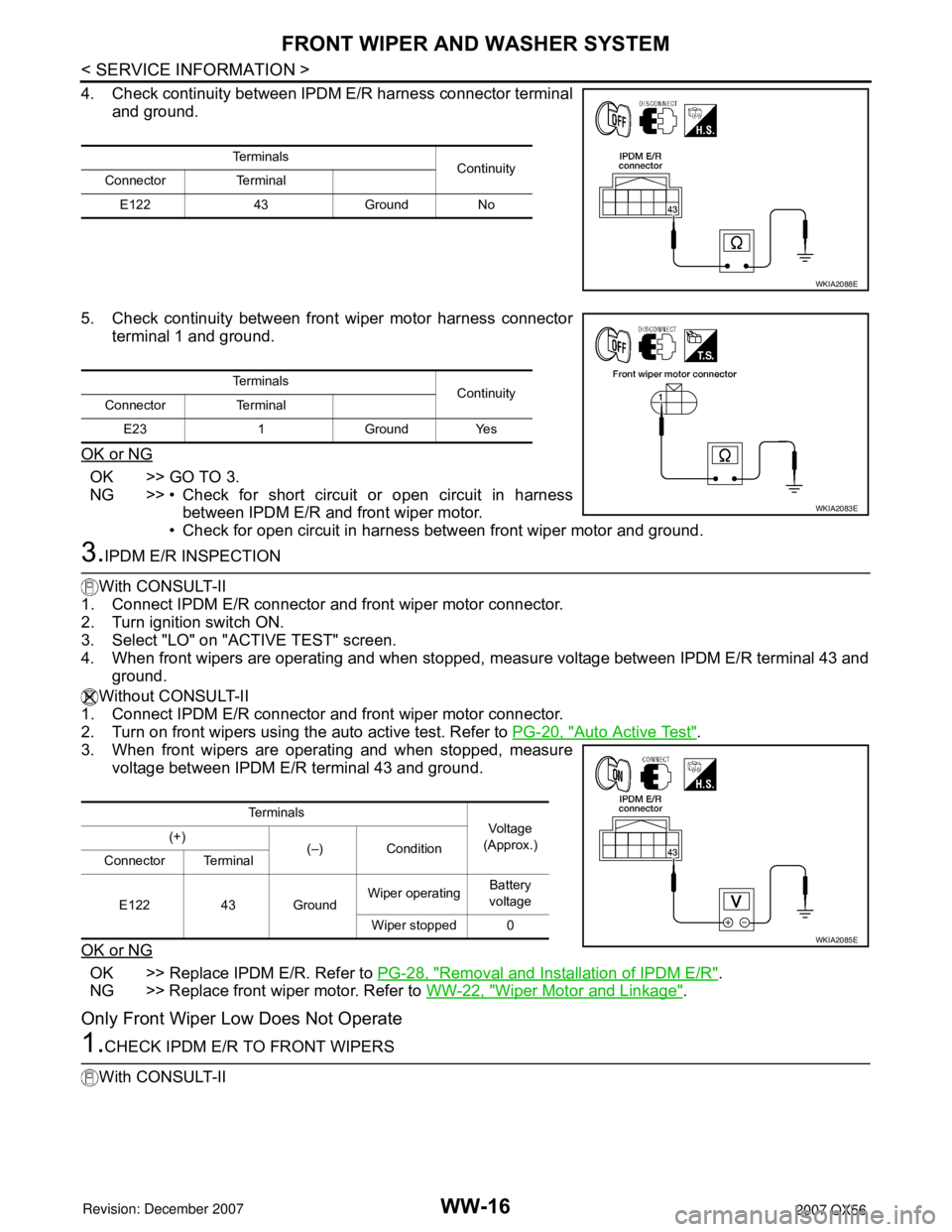

INFINITI QX56 2007 Factory Service Manual WW-16 < SERVICE INFORMATION > FRONT WIPER AND WASHER SYSTEM 4. Check continuity between IPDM E/R harness connector terminal and ground. 5. Check continuity between front wiper motor harness connector

Page 3034 of 3061

INFINITI QX56 2007 Factory Service Manual FRONT WIPER AND WASHER SYSTEM WW-17 < SERVICE INFORMATION > C D E F G H I J L MA B WW N O P 1. Select "IPDM E/R" with CONSULT-II, and select "ACTIVE TEST" on "SELECT DIAG MODE" screen. 2. Select "FRO

Page 3035 of 3061

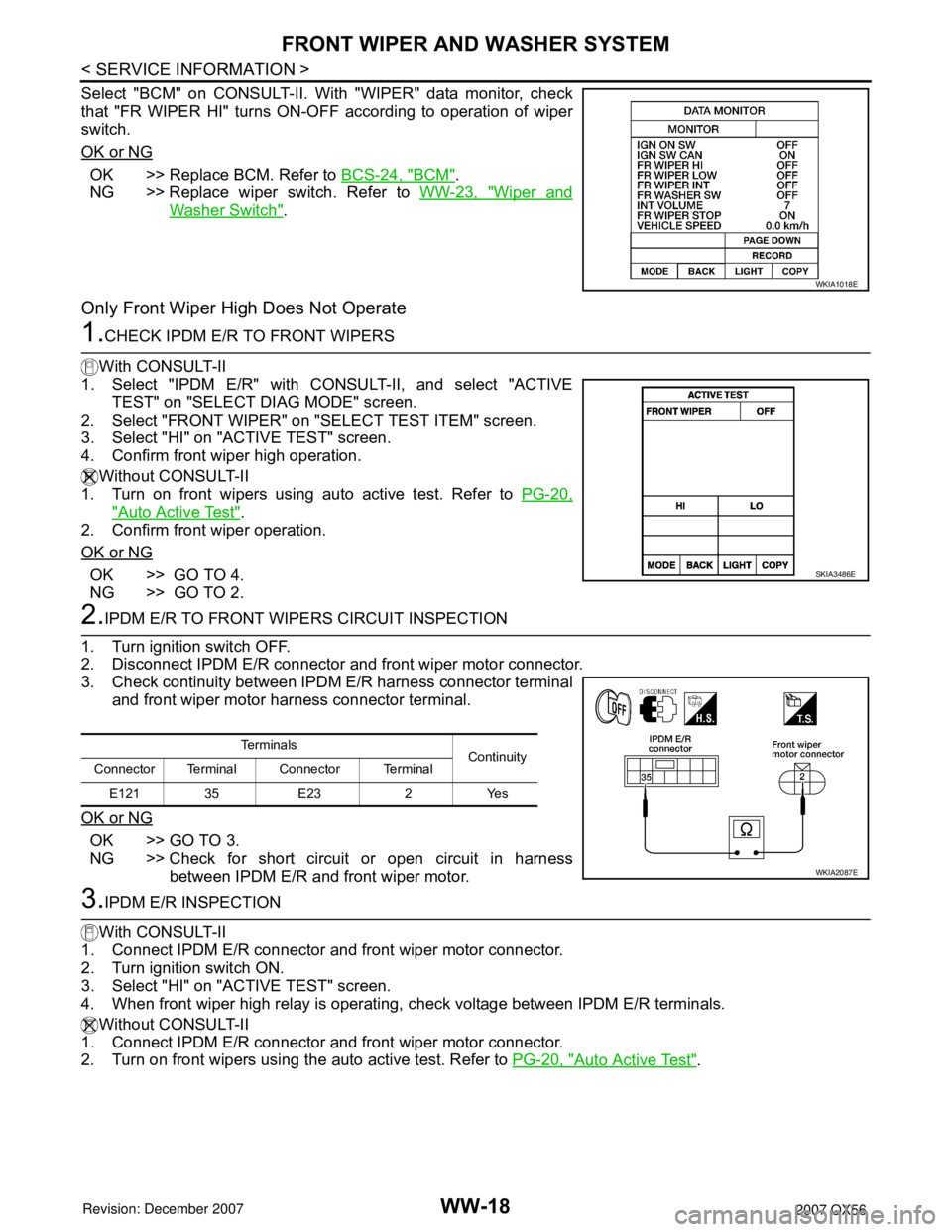

INFINITI QX56 2007 Factory Service Manual WW-18 < SERVICE INFORMATION > FRONT WIPER AND WASHER SYSTEM Select "BCM" on CONSULT-II. With "WIPER" data monitor, check that "FR WIPER HI" turns ON-OFF according to operation of wiper switch. OK or N

Page 3036 of 3061

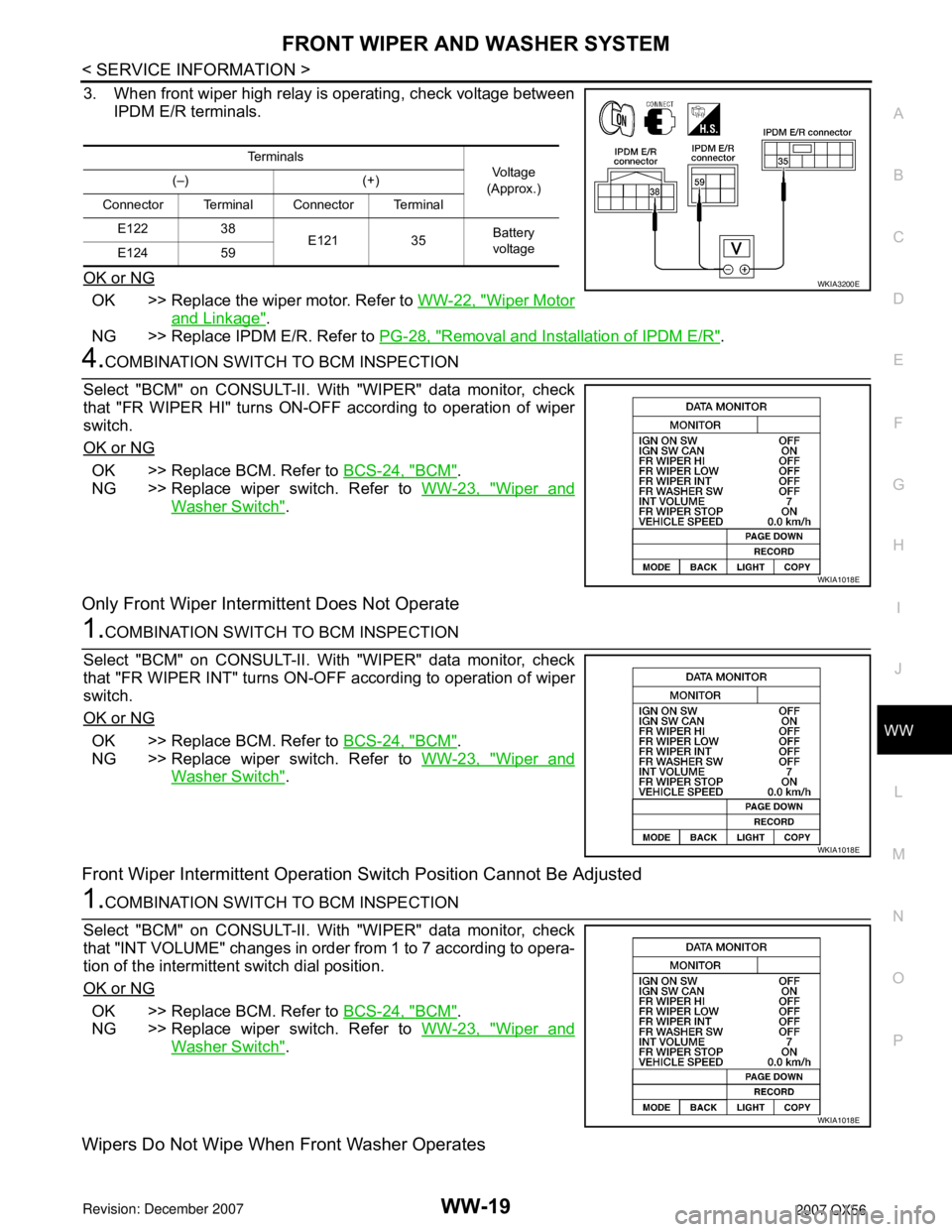

INFINITI QX56 2007 Factory Service Manual FRONT WIPER AND WASHER SYSTEM WW-19 < SERVICE INFORMATION > C D E F G H I J L MA B WW N O P 3. When front wiper high relay is operating, check voltage between IPDM E/R terminals. OK or NG OK >> Replac

Page 3037 of 3061

INFINITI QX56 2007 Factory Service Manual WW-20 < SERVICE INFORMATION > FRONT WIPER AND WASHER SYSTEM 1.COMBINATION SWITCH TO BCM INSPECTION Select "BCM" on CONSULT-II. With "WIPER" data monitor, check that "FR WASHER SW" turns ON-OFF accordi

Page 3038 of 3061

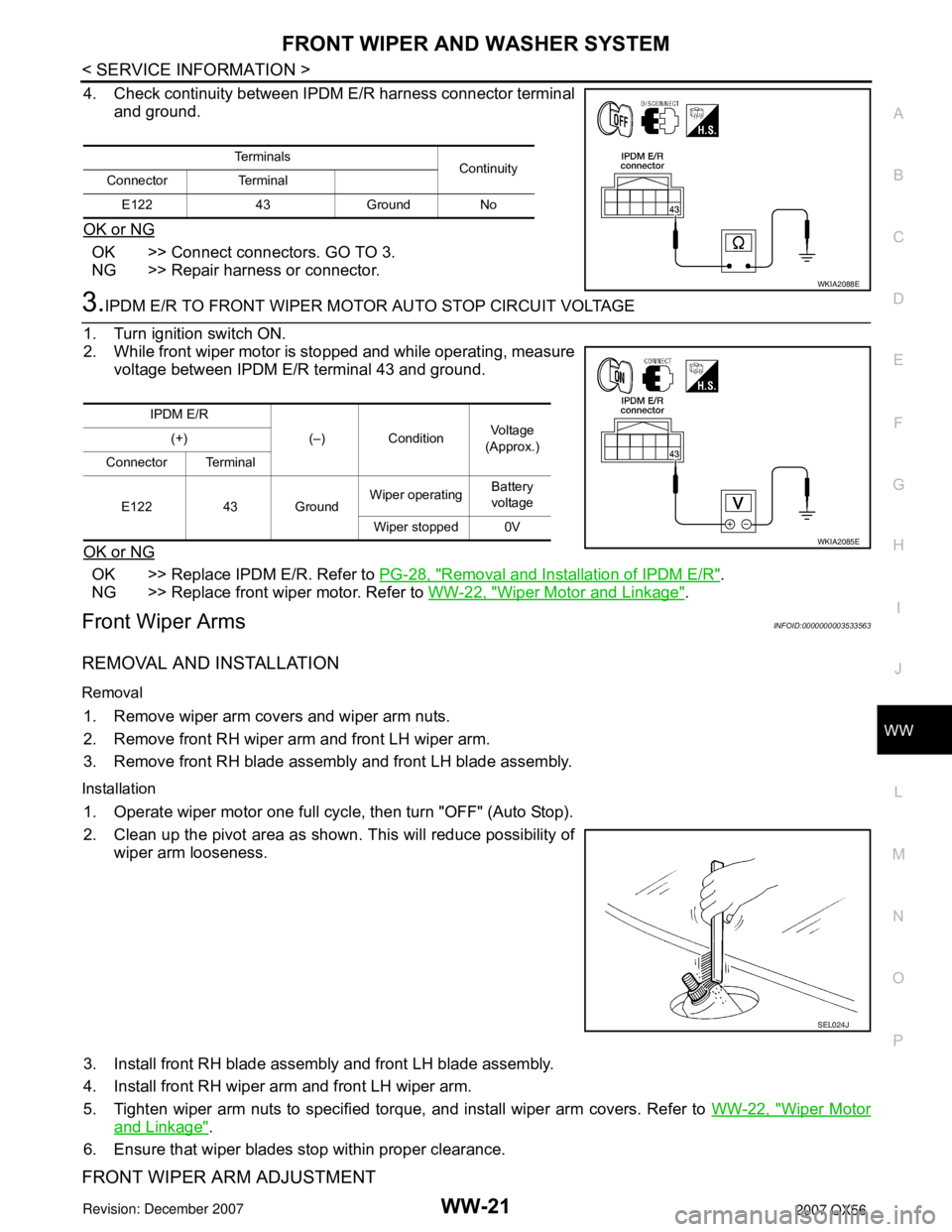

INFINITI QX56 2007 Factory Service Manual FRONT WIPER AND WASHER SYSTEM WW-21 < SERVICE INFORMATION > C D E F G H I J L MA B WW N O P 4. Check continuity between IPDM E/R harness connector terminal and ground. OK or NG OK >> Connect connector

Page 3039 of 3061

INFINITI QX56 2007 Factory Service Manual WW-22 < SERVICE INFORMATION > FRONT WIPER AND WASHER SYSTEM 1. Operate wiper motor one full cycle, then turn "OFF" (Auto Stop). 2. Lift the wiper blade up and then rest it onto glass surface, check th

Page 3040 of 3061

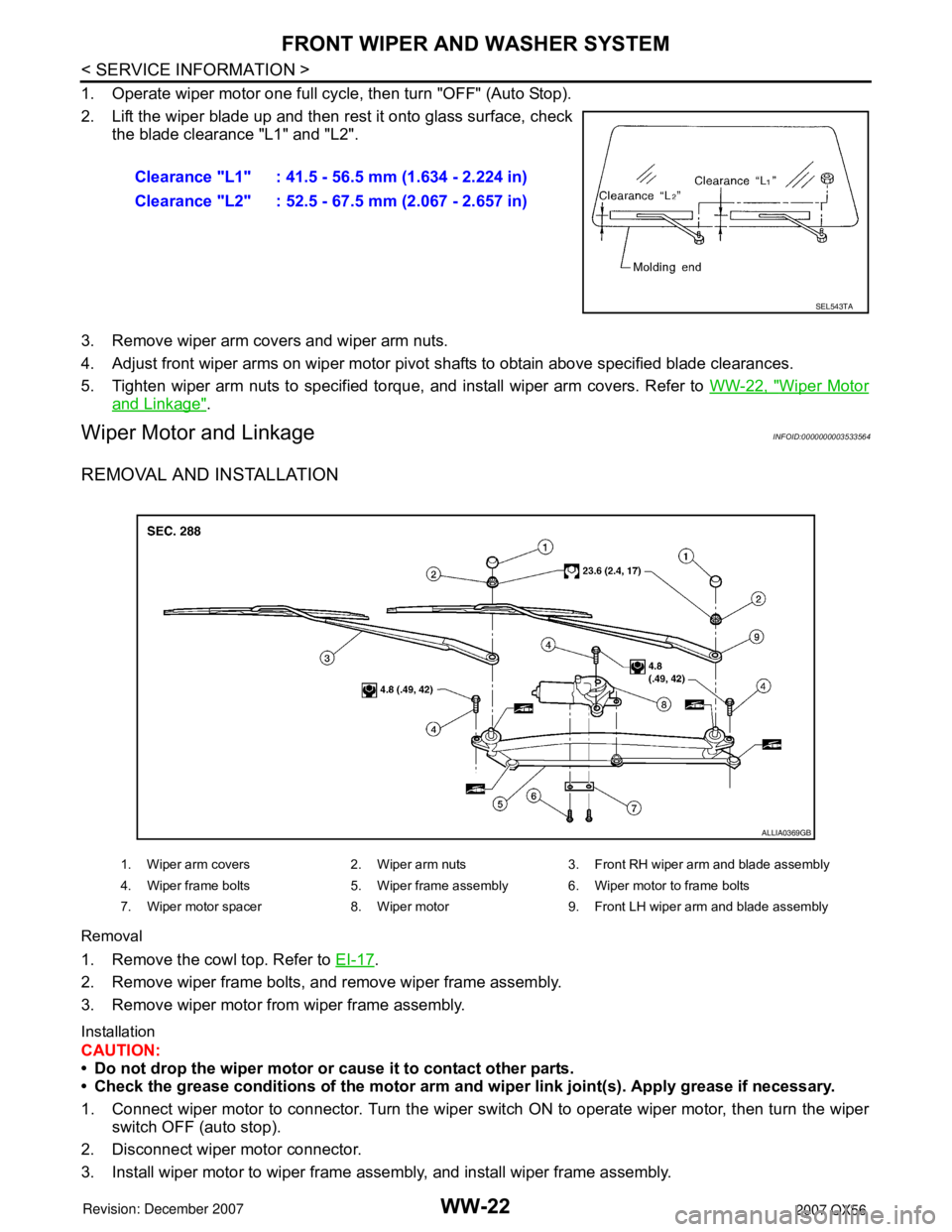

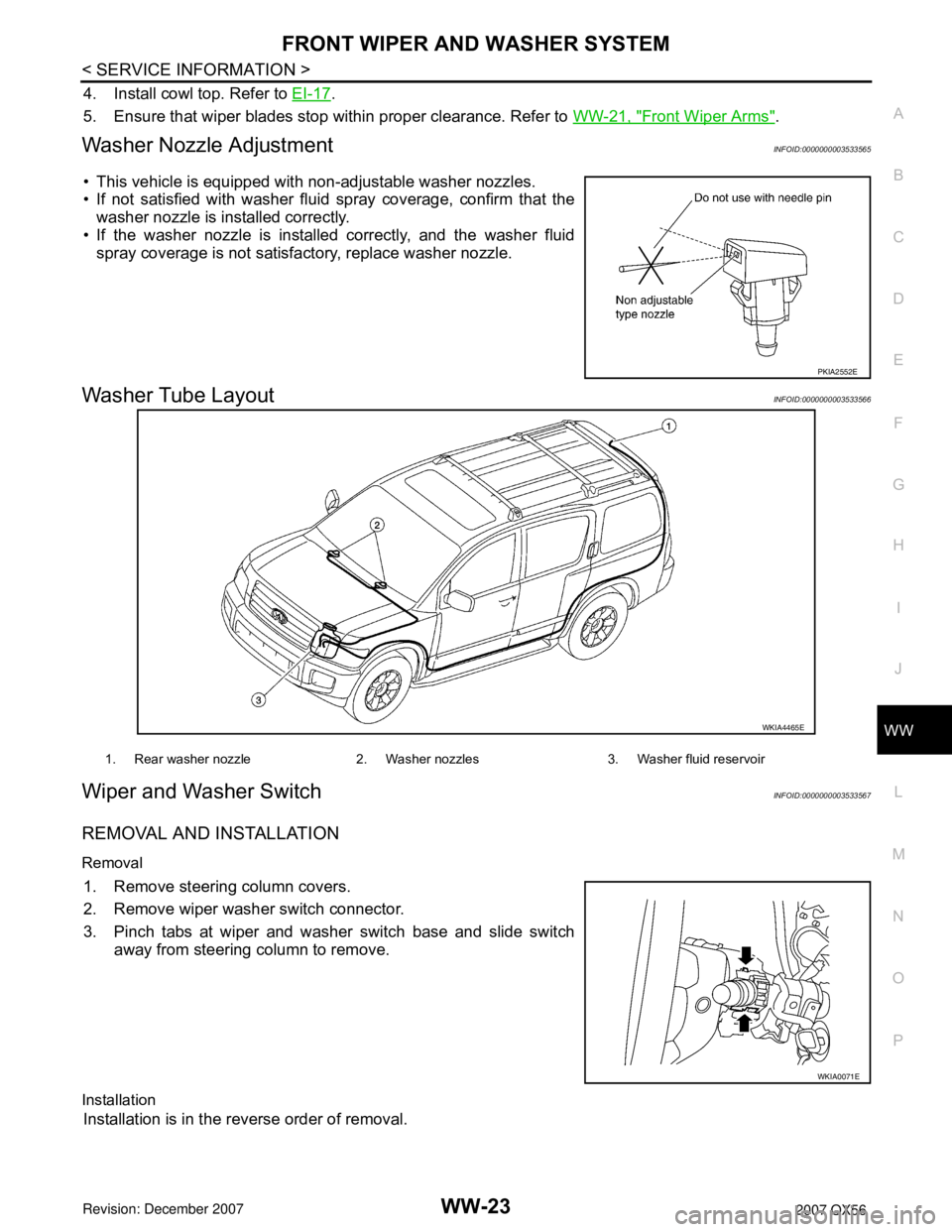

INFINITI QX56 2007 Factory Service Manual FRONT WIPER AND WASHER SYSTEM WW-23 < SERVICE INFORMATION > C D E F G H I J L MA B WW N O P 4. Install cowl top. Refer to EI-17. 5. Ensure that wiper blades stop within proper clearance. Refer to WW-2
