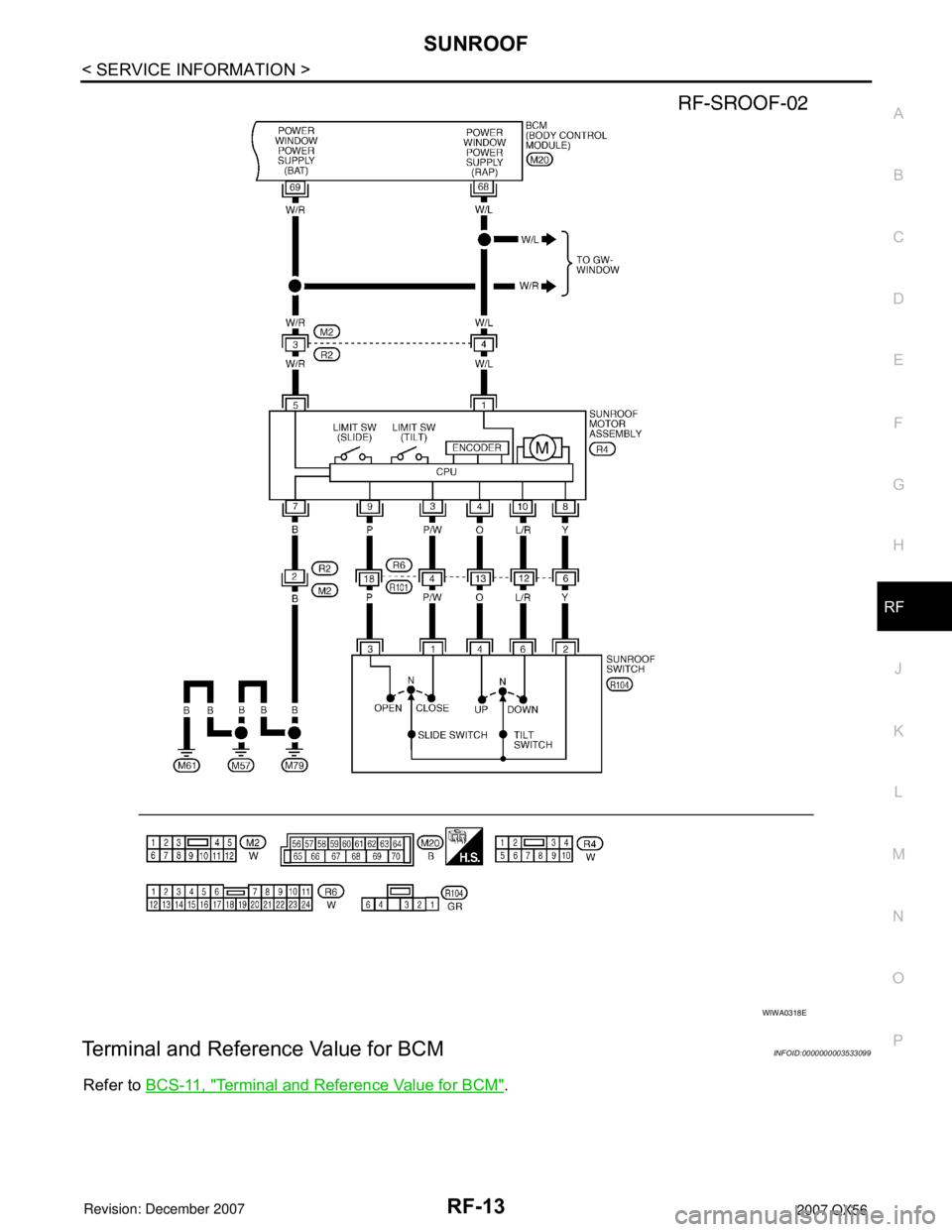

Terminal and Reference Value for BCMINFOID:0000000003533099
Refer to BCS-11, "Terminal and Reference Value for BCM".
WIWA0318E
Page 2546 of 3061

RF-14
< SERVICE INFORMATION >
SUNROOF
Sunroof Motor Assembly Harness Connector Terminal Layout
INFOID:0000000003533100
Terminal and Reference Value for Sunroof Motor AssemblyINFOID:0000000003533101
*: When MODE1 is selected. For more details, refer to RF-15, "Work Support".
Work FlowINFOID:0000000003533102
1. Check the symptom and customer's requests.
2. Understand the outline of system. Refer to RF-10, "
System Description".
3. According to the trouble diagnosis chart, repair or replace the cause of the malfunction.
Refer to RF-15, "
Trouble Diagnosis Chart by Symptom".
4. Does sunroof system operate normally? If Yes, GO TO 5, If No, GO TO 3.
5. Inspection End.
CONSULT-II Function (BCM)INFOID:0000000003533103
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
LIIA2447E
Terminal Wire Color Item ConditionVol tag e
(Approx.)
1 W/L RAP signalIgnition switch ON Battery voltage
Within 45 seconds after ignition switch is
turned OFF
*Battery voltage
When front door LH or RH is open while
retained power is operating0
3 P/W Sunroof switch CLOSE signalIgnition switch ON and sunroof switch
CLOSE position0
Other than above Battery voltage
4 O Sunroof switch TILT UP signalIgnition switch ON and sunroof switch in
TILT UP position0
Other than above Battery voltage
5 W/R BAT power supply — Battery voltage
7 B Ground — —
8 Y Ground signal — —
9 P Sunroof switch OPEN signalIgnition switch ON and sunroof switch
OPEN position0
Other than above Battery voltage
10 L/R Sunroof switch TILT DOWN signalIgnition switch ON and sunroof switch in
TILT DOWN position0
Other than above Battery voltage
Page 2547 of 3061

SUNROOF
RF-15
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
RF
N
O
P
CONSULT-II START PROCEDURE
Refer to GI-36, "CONSULT-II Start Procedure".
Work SupportINFOID:0000000003533104
Active TestINFOID:0000000003533105
Data MonitorINFOID:0000000003533106
Trouble Diagnosis Chart by SymptomINFOID:0000000003533107
BCM diagnostic
test itemDiagnostic mode Description
Inspection by partWORK SUPPORTSupports inspections and adjustments. Commands are transmitted to the BCM for
setting the status suitable for required operation, input/output signals are received
from the BCM and received data is displayed.
DATA MONITOR Displays BCM input/output data in real time.
ACTIVE TEST Operation of electrical loads can be checked by sending drive signal to them.
SELF-DIAG RESULTS Displays BCM self-diagnosis results.
CAN DIAG SUPPORT MNTR The result of transmit/receive diagnosis of CAN communication can be read.
ECU PART NUMBER BCM part number can be read.
CONFIGURATION Performs BCM configuration read/write functions.
Work item Description
RETAINED PWR SETRAP signal’s power supply period can be changed by mode setting. Selects RAP sig-
nal’s power supply period between the following three steps:
• MODE 1 (45 sec.) / MODE 2 (OFF) / MODE 3 (2 min.)
Test item Description
RETAINED PWRThis test is able to supply RAP signal (power) from BCM to power window system,
power sunroof system. Those systems can be operated when turning on "RETAINED
PWR" on CONSULT-II screen even if the ignition switch is turned OFF.
NOTE:
During this test, CONSULT-II can be operated with ignition switch in "OFF" posi-
tion. "RETAINED PWR" should be turned "ON" or "OFF" on CONSULT-II screen
when ignition switch ON. Then turn ignition switch OFF for checking retained
power operation. CONSULT-II might be stuck if "RETAINED PWR" is turned "ON"
or "OFF" on CONSULT-II screen when ignition switch is OFF.
Monitored item Description
IGN ON SW Indicates [ON/OFF] condition of ignition switch.
DOOR SW-DR Indicates [ON/OFF] condition of front door switch driver side.
DOOR SW-AS Indicates [ON/OFF] condition of front door switch passenger side.
Symptom Diagnostic procedure and repair order Refer to page
Sunroof does not operate.1. Sunroof motor assembly power supply and ground cir-
cuit checkRF-16
2. Sunroof switch system checkRF-16
3. BCM power supply and ground circuit checkBCS-15
4. Replace sunroof motor assemblyRF-20
Page 2548 of 3061

RF-16
< SERVICE INFORMATION >
SUNROOF
BCM Power Supply and Ground Circuit Inspection
INFOID:0000000003533108
Refer to BCS-15, "BCM Power Supply and Ground Circuit Inspection".
Sunroof Switch System InspectionINFOID:0000000003533109
1.CHECK HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect sunroof motor assembly and sunroof switch.
3. Check continuity between sunroof motor assembly connector
R4 terminals 3, 4, 8, 9 and 10 and sunroof switch connector
R104 terminals 1, 2, 3, 4 and 6.
OK or NG
OK >> GO TO 2.
NG >> Repair or replace harness.
2.CHECK SUNROOF SWITCH
Operate sunroof switch, and check continuity of the sunroof switch
as follows.
OK or NG
OK >> Sunroof switch and harness are OK. Refer to RF-15, "Trouble Diagnosis Chart by Symptom".
NG >> Replace sunroof switch.
Sunroof Motor Assembly Power Supply and Ground Circuit InspectionINFOID:0000000003533110
1.CHECK POWER SUPPLY CIRCUIT
Retained power operation does not operate properly.1. Check the retained power operation mode settingRF-102. BCM power supply and ground circuit checkBCS-15
3. Door switch checkRF-18
4. Replace sunroof motor assemblyRF-20
Motor does not stop at the sunroof fully-open or fully-
closed position.1. Initialization procedure checkRF-10
2. Replace sunroof motor assemblyRF-20
Sunroof does not do the interruption detection. 1. Replace sunroof motor assemblyRF-20
Symptom Diagnostic procedure and repair order Refer to page
3 - 1 : Continuity should exist.
4 - 4 : Continuity should exist.
8 - 2 : Continuity should exist.
9 - 3 : Continuity should exist.
10 - 6 : Continuity should exist.
LIIA1245E
Terminals Condition Continuity
1
2Sunroof switch in CLOSE position Yes
Other than above No
3Sunroof switch in OPEN position Yes
Other than above No
4Sunroof switch in TILT UP position Yes
Other than above No
6Sunroof switch in TILT DOWN position Yes
Other than above No
WIIA0232E
Page 2549 of 3061

SUNROOF
RF-17
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
RF
N
O
P
1. Turn ignition switch OFF.
2. Disconnect the sunroof motor assembly.
3. Turn ignition switch ON.
4. Check voltage between sunroof motor assembly connector R4
terminals 1, 5 and ground.
OK or NG
OK >> GO TO 2.
NG >> GO TO 3.
2.CHECK GROUND CIRCUIT
Check continuity between sunroof motor assembly connector R4 ter-
minal 7 and ground.
OK or NG
OK >> Sunroof motor assembly power supply and ground cir-
cuits are OK. Further inspection is necessary. Refer to
RF-15, "
Trouble Diagnosis Chart by Symptom".
NG >> Repair or replace harness.
3.CHECK BCM OUTPUT SIGNAL
1. Turn ignition switch ON.
2. Check voltage between BCM connector M20 terminals 68, 69
and ground.
OK or NG
OK >> GO TO 4.
NG >> Replace BCM. Refer to BCS-24, "
BCM".
4.CHECK SUNROOF MOTOR CIRCUIT HARNESS
ConnectorTe r m i n a l s
Condition Vo l ta g e
(Approx.)
(+) (-)
R41
GroundIgnition switch ON Battery voltage
Within 45 seconds after
ignition switch is turned
OFFBattery voltage
5When front door LH or RH
is open while retained
power is operating0
Ignition switch OFF Battery voltage
WIIA0250E
7 - Ground : Continuity should exist.
WIIA0251E
68 - Ground : Battery voltage
69 - Ground : Battery voltage
WIIA0425E
Page 2550 of 3061

RF-18
< SERVICE INFORMATION >
SUNROOF
1. Turn ignition switch OFF.
2. Disconnect BCM.
3. Check continuity between BCM connector M20 terminal 68, 69
and sunroof motor assembly connector R4 terminals 1, 5.
4. Check continuity between BCM connector M20 terminal 68, 69
and ground.
OK or NG
OK >> Sunroof motor assembly power supply circuits are OK. Further inspection is necessary. Refer to
RF-15, "
Trouble Diagnosis Chart by Symptom".
NG >> Repair or replace harness.
Door Switch CheckINFOID:0000000003533111
1.CHECK DOOR SWITCH INPUT SIGNAL
With CONSULT-II
Check door switches ("DOOR SW-DR" and "DOOR SW-AS") in
"DATA MONITOR" mode with CONSULT-II.
Without CONSULT-II
1. Turn ignition switch OFF.
2. Check voltage between BCM connector and ground.
OK or NG
OK >> Door switches are OK.
NG >> GO TO 2.
2.CHECK DOOR SWITCH CIRCUIT 68 - 1 : Continuity should exist.
69 - 5 : Continuity should exist.
68 - Ground : Continuity should not exist.
69 - Ground : Continuity should not exist.
LIIA1246E
Monitor item Condition
DOOR SW-DROPEN : ON
CLOSE : OFF
DOOR SW-ASOPEN : ON
CLOSE : OFF
PIIA2464E
Item ConnectorTe r m i n a l s
ConditionVo l ta g e
(Approx.)
(+) (-)
RH M18 12
GroundDoor open
(switch closed)0
Door closed
(switch open)Battery voltage
LH M19 47Door open
(switch closed)0
Door closed
(switch open)Battery voltage
WIIA0234E
Page 2551 of 3061

SUNROOF
RF-19
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
RF
N
O
P
1. Disconnect front door switches and BCM.
2. Check continuity between front door switch connector B8 (LH)
or B108 (RH) terminal 2 and BCM connector M18, M19 termi-
nals 12 and 47.
3. Check continuity between front door switch connector B8 (LH)
or B108 (RH) terminal 2 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness.
3.CHECK DOOR SWITCHES
Check continuity between each door switch terminal 2 and body
ground part of door switch.
OK or NG
OK >> GO TO 4.
NG >> Replace malfunctioning door switch.
4.CHECK BCM OUTPUT SIGNAL
1. Connect BCM.
2. Check voltage between BCM connector M18 terminal 12, M19
terminal 47 and ground.
OK or NG
OK >> Check the condition of the harness and the connector.
NG >> Replace BCM. Refer to BCS-24, "
BCM". Front door switch LH
2 - 47 : Continuity should exist.
Front door switch RH
2 - 12 : Continuity should exist.
2 - Ground : Continuity should not exist.
WIIA0235E
Terminal Condition Continuity
2Body ground part
of door switchDoor switch pushed No
Door switch released Yes
LIIA2377E
12 - Ground : Battery voltage
47 - Ground : Battery voltage
WIIA0234E
Page 2552 of 3061

RF-20
< SERVICE INFORMATION >
SUNROOF
Fitting Adjustment
INFOID:0000000003533112
GAP ADJUSTMENT
NOTE:
If any gap or height difference between glass lid assembly and roof panel is found, check the fit and adjust as
follows:
1. Open sunshade assembly.
2. Loosen glass lid assembly screws (2 each on left and right sides), then tilt glass lid assembly down.
3. Manually adjust glass lid assembly from outside of vehicle so it resembles "A-A" as shown in the figure.
4. After adjusting glass lid assembly, tilt up and tighten screws.
NOTE:
First tighten left front screw then right rear to prevent movement while tightening the remaining screws.
5. Tilt glass lid assembly up and down several times to check that it moves smoothly.
HEIGHT DIFFERENCE ADJUSTMENT
If an excessive height difference between glass lid assembly and roof panel is found, adjust in the following
manner:
1. Remove headlining. Refer to EI-37
.
2. Loosen sunroof frame assembly nuts and sunroof bracket bolts.
3. Add shims until gap is within specification "A-A".
NOTE:
Temporarily snug nuts and bolts to prevent movement between each adjustment.
4. Tilt glass lid assembly up and down several times to check that it moves and seals properly.
5. Tighten sunroof frame assembly nuts and sunroof bracket bolts.
NOTE:
First tighten left front then right rear sunroof frame assembly to prevent uneven torque while tightening
remaining sunroof bracket bolts.
6. Install headlining. Refer to EI-37
.
Removal and InstallationINFOID:0000000003533113
• After any adjustment, check sunroof operation and glass lid assembly alignment.
WIIA0304E
